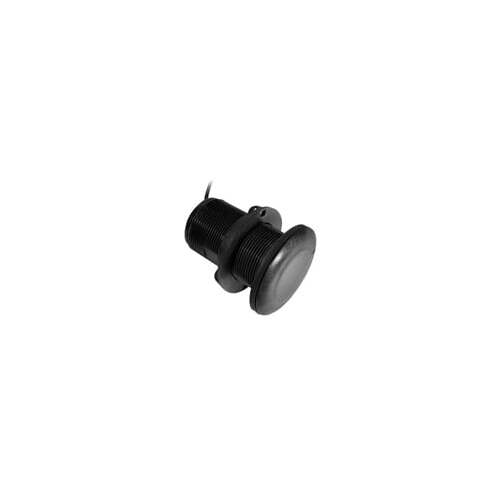

This plastic thru-hull mount transducer performs well at high speeds and is an excellent choice for fiberglass and metal hulls.

This 8-pin 500 W transducer has a depth of 900 ft; an operating frequency of 77/200 kHz; a beamwidth of 45/15 degrees; and a 16 to 24 degree deadrise.

Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.

*Do not use on wood hulls. When using with the echo™ series, transducer adapter cable, 010-11947-00, is required.

Features

Transducer cable length 30 ft.
Transducer power 300 W
Transducer frequency 200 kHz
Transducer maximum depth 900 ft.
Transducer number of pins 8-pin
Transducer beamwidth 45°/15°
Transducer depth/speed/temperature Depth and Temperature
Transducer supported deadrise/transom angles     16°-24° degree deadrise
SKU GAR.010-10218-22
Model # 010-10218-22
UPC/EAN 0753759971755
Brand Garmin
Shipping Weight 0.7500kg
