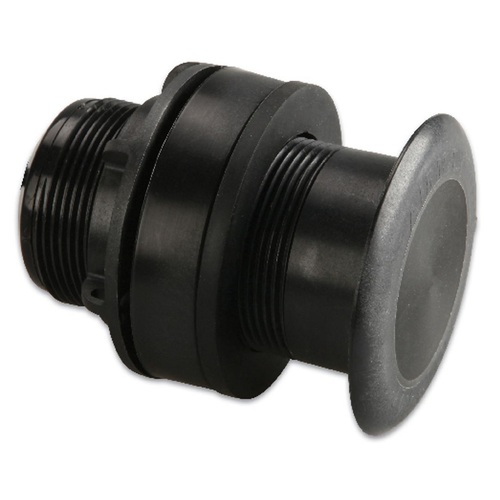

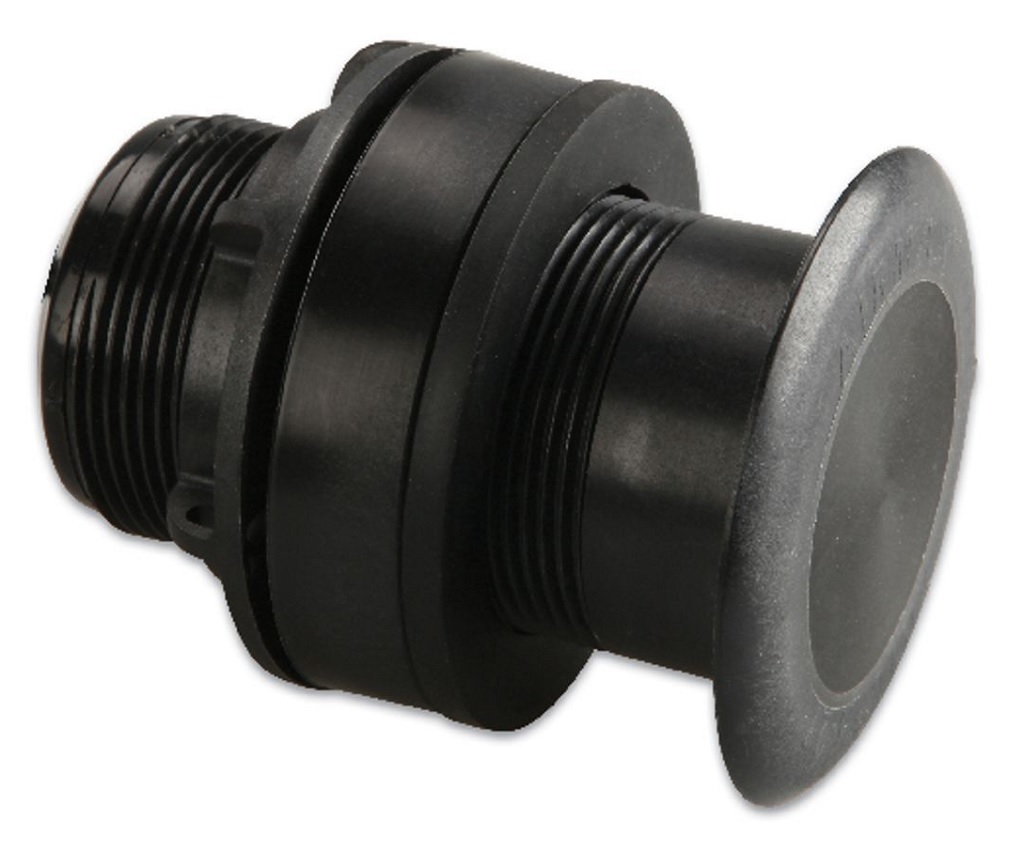

This plastic thru-hull mount transducer performs well at high speeds.

An excellent choice for fiberglass and metal hulls, this 8-pin 600 W transducer has a depth of 800 to 1,200 ft; an operating frequency of 50 to 200 kHz; a beamwidth of 45 to 12 degrees; and a 0 to 7 degree deadrise.

Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.

Do not use on wood hulls.

When using with a 6-pin Garmin sounder, transducer adapter cable part number 010-11612-00 is required.

Features

Transducer cable length 33 ft.
Transducer power 600 W
Transducer frequency 50/200 kHz
Transducer maximum depth 800-1,200 ft.
Transducer number of pins 8-pin
Transducer beamwidth 45°/12°
Transducer depth/speed/temperature Depth and Temperature
Transducer supported deadrise/transom angles      0°-7° degree deadrise
SKU GAR.010-10194-21
Model # 010-10194-21
UPC/EAN 0753759971809
Brand Garmin
Shipping Weight 0.8500kg
