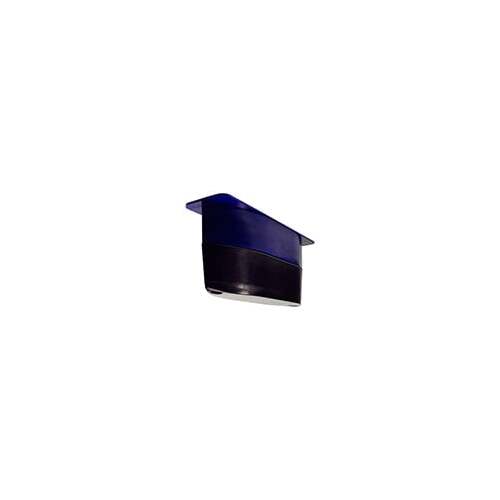

This plastic thru-hull mount transducer uses the low frequencies for deep water performance and high wide frequencies for shallow water performance.

A 2 kW in a slightly smaller package, this bare wire transducer has a depth of 6,000 feet; an operating frequency of 38 to 75 kHz and 150 to 250 kHz; a beamwidth of 9x23 degrees or a constant 25 degrees; and a 0 to 25 degree deadrise.

Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.

Features

Transducer cable length 49 ft.
Transducer depth/speed/temperature Depth and Temperature
Transducer power 1-2 kW
Transducer frequency CHIRP 38-75 kHz & 150-250 kHz
Transducer supported deadrise/transom angles      0°-25° degree deadrise
Transducer maximum depth 6,000 ft.
Transducer number of pins Bare wires
Transducer beamwidth 5°x10°-10°x19°/24°-26°
SKU GAR.010-12182-20
Model # 010-12182-20
UPC/EAN 0753759123567
Brand Garmin
Shipping Weight 4.0800kg
