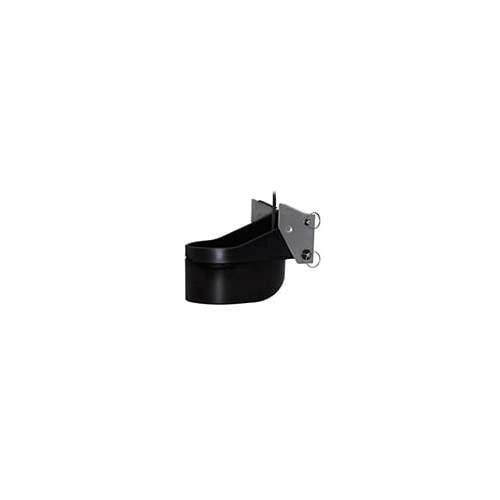

Our plastic transom mount performs well in deep water and provides exceptional bottom and water column detail.

The best performing 1 kW transom mount, this transducer has a maximum depth of 3,000 feet; an operating frequency of 42 to 65 kHz and 130 to 210 kHz; a beamwidth of 16 to 25 degrees or 6 to 10 degrees; and mounts on a 3 to 21 degree transom.

Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.

Features

Transducer cable length 39
Transducer power 1kW
Transducer frequency CHIRP 42-65 kHz & 130-210 kHz
Transducer maximum depth 3000'
Transducer number of pins 12
Transducer beamwidth 16°-25°/6°-10°
Transducer depth/speed/temperature Depth and Temperature
Transducer supported deadrise/transom angles      3°-21° transom
SKU GAR.010-12378-20
Model # 010-12378-20
UPC/EAN 0753759142407
Brand Garmin
Shipping Weight 5.1700kg
