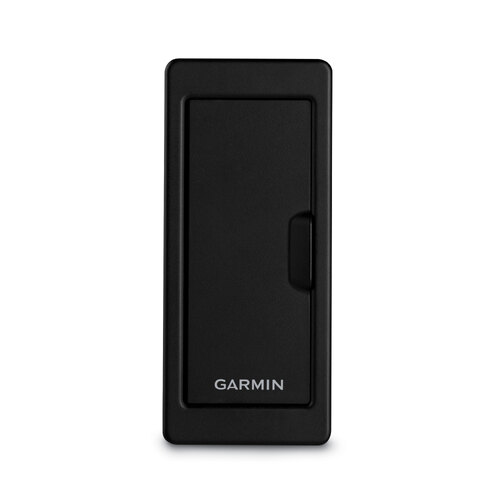

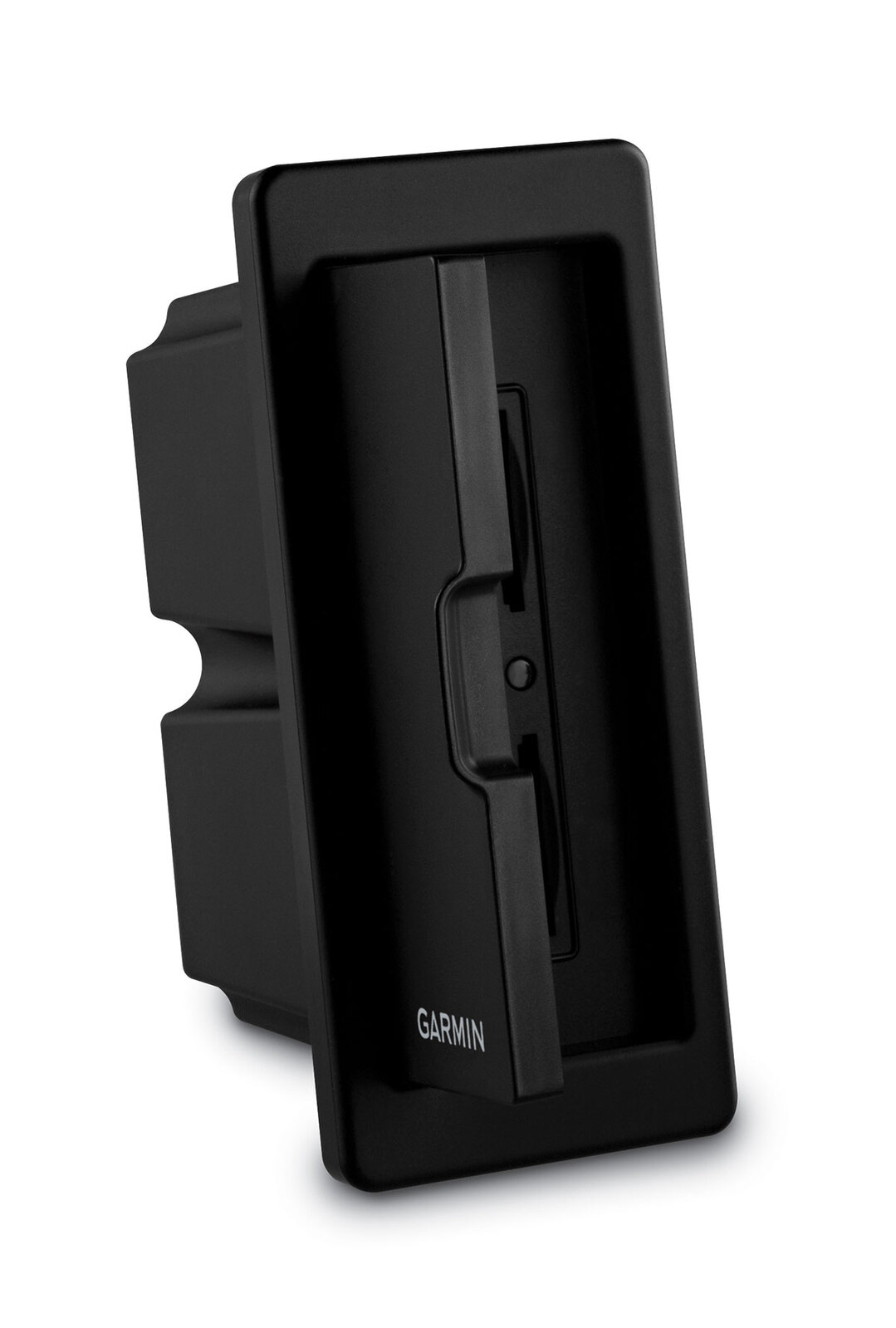

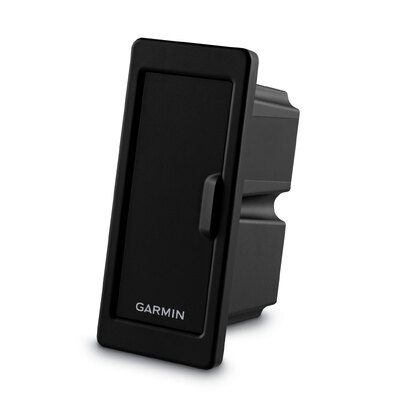

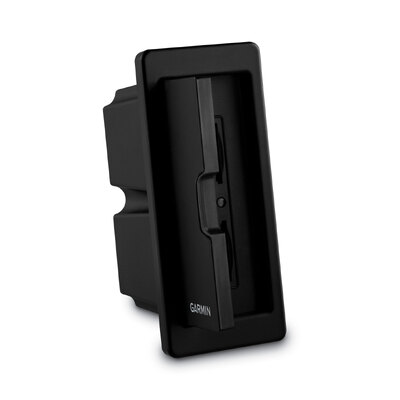

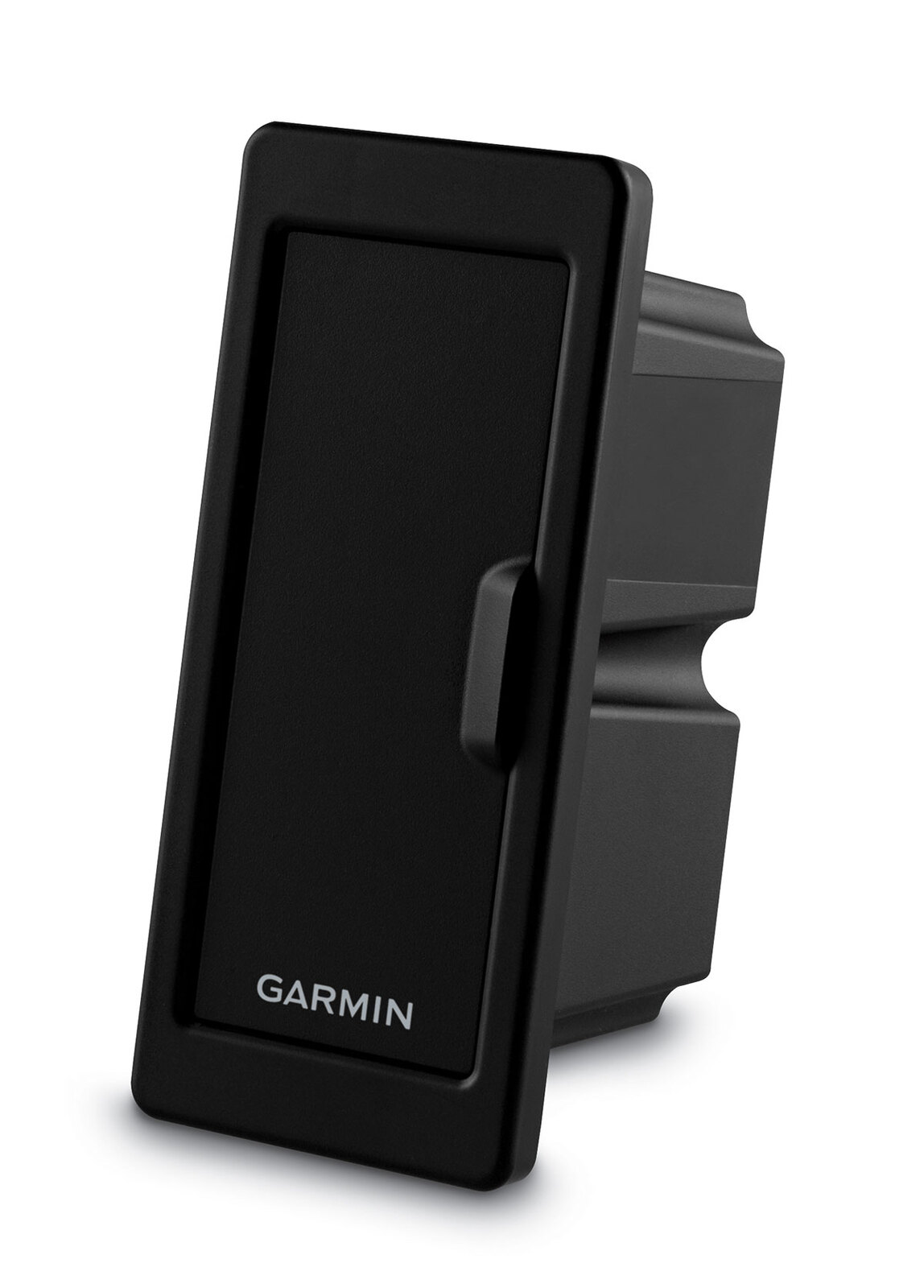

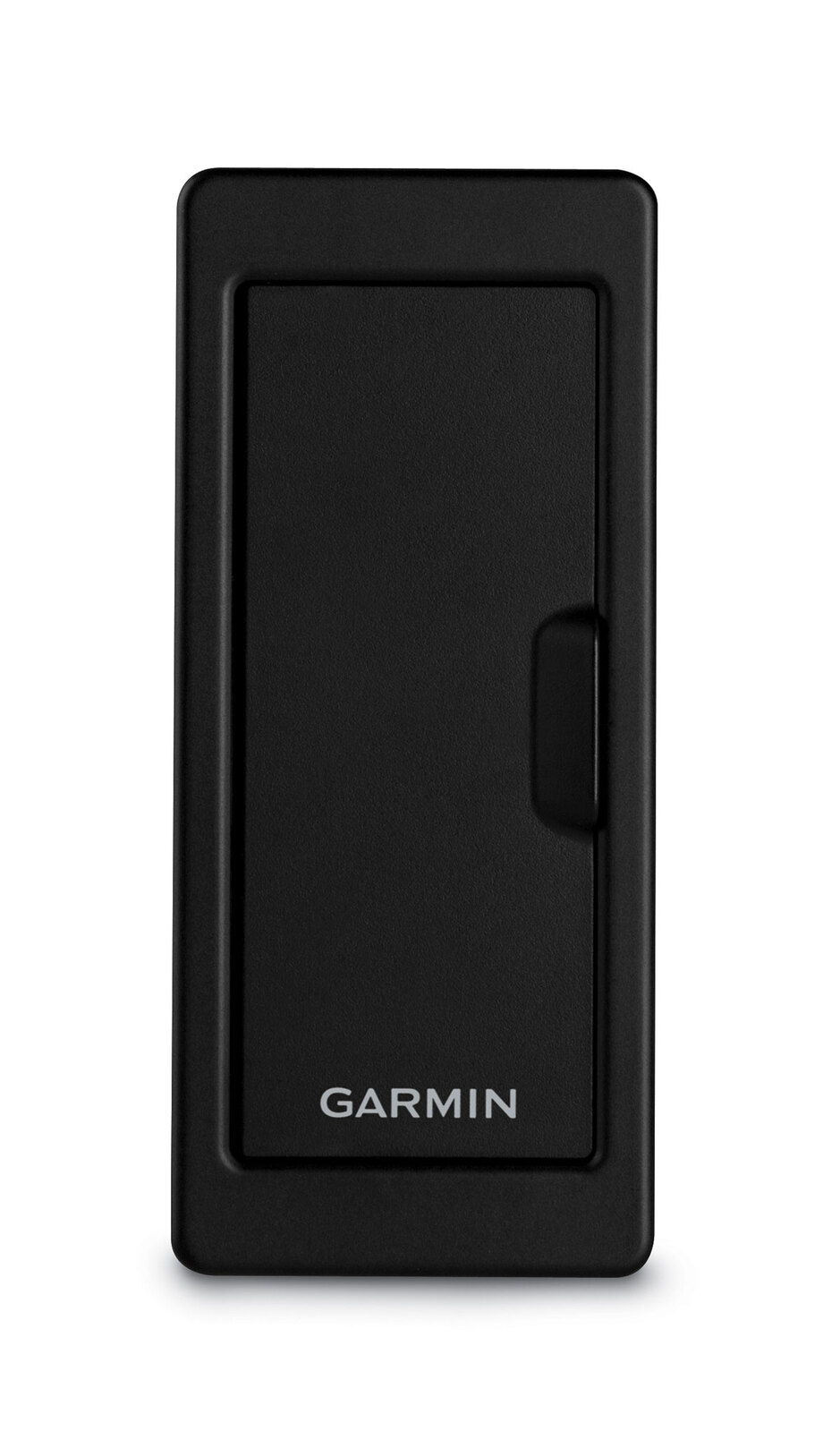

Provide convenient remote mounting and a single access point for 2 SD™ card slots for mapping with our Garmin Card Reader. A waterproof, magnetic door allows the card reader to be mounted horizontally or vertically - and you can add multiple card readers for additional access points.

Features

  • Dimensions (W×H×D): 54.3 x 124.1 x 81.2 mm
  • Weight: 178.6 g
  • Temperature range: From 5° to 158°F (from -15° to 70°C)
  • Material: Fully gasketed, high-impact plastic, waterproof to IPX7 standards
  • Input power: 10-35 Vdc
  • Fuse: 7.5 A, 42 V fast-acting
  • Maximum power usage at 10 Vdc: 2.4 W
  • Typical current draw at 12 Vdc: 80 mA
  • Maximum current draw at 12 Vdc: 240 mA
  • Compass-safe distance: 36" (915 mm)
SKU GAR.010-01023-00
Model # 010-01023-00
UPC/EAN 0753759998165
Brand Garmin
Shipping Weight 0.6300kg
