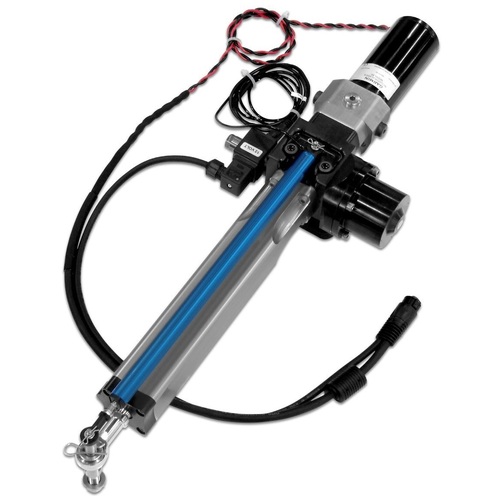

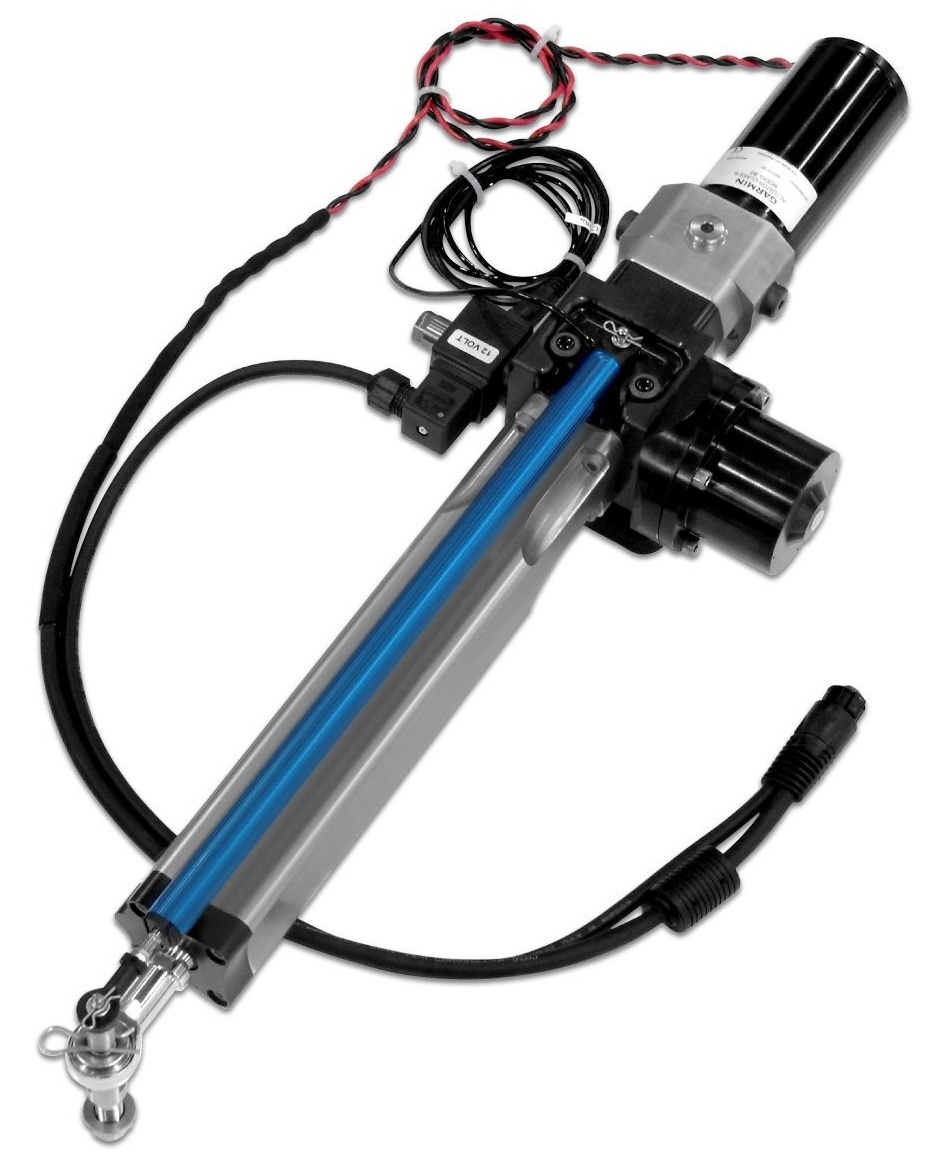

The Class B Compact Drive Unit works with the GHP™ 12 marine autopilot system to control your sailboat's steering system. This device is designed for use with sailboats with up to 48,400 lbs of displacement.

Features

Misc

Drive Unit Type: Integrated Hydraulic linear

Stroke Length: 254 mm

Maximum Thrust: 730 kg

Dimensions, WxHxD (centered): 810 x 120 x 225 mm

Supply Voltage: 10V to 30V (regulated to 12V by the ECU)

Average Clutch Current at 12V: 1 Amp

Average Motor Current at 12V: 2-4 Amps

Operating Temperature: -15° C to 50° C

SKU GAR.010-12029-00
Model # 010-12029-00
UPC/EAN 0753759108373
Brand Garmin
Shipping Weight 10.7900kg
