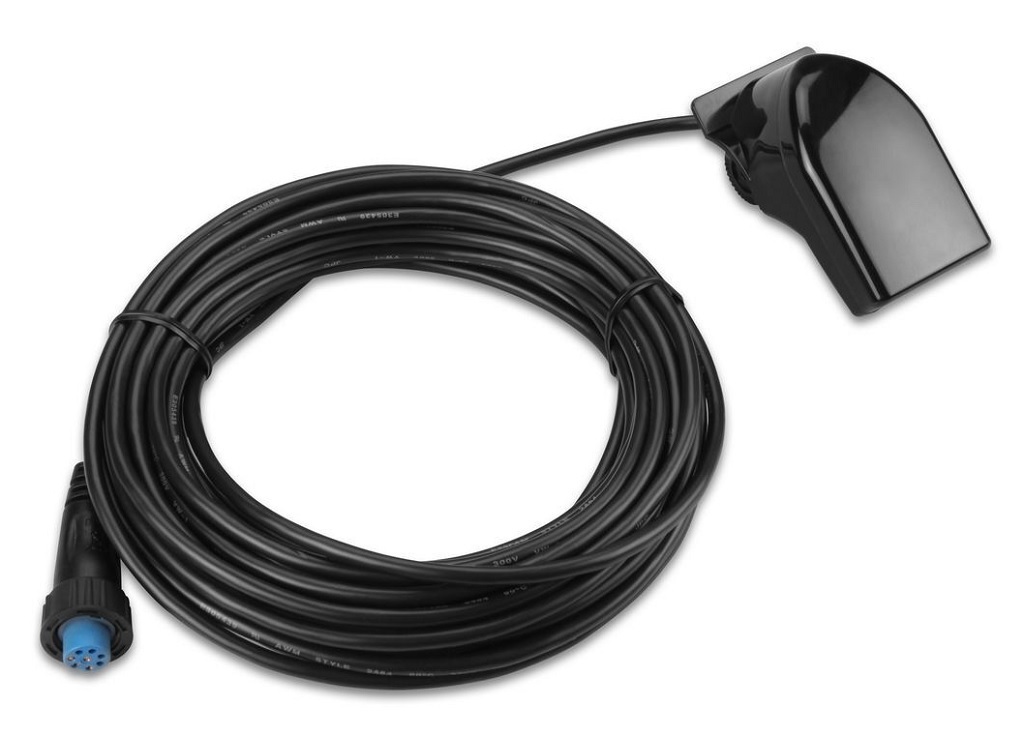

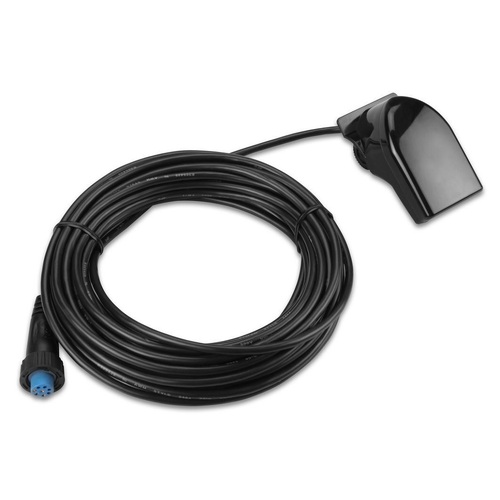

This dual beam transducer replaces the one included with your echo™ series fishfinder.

A 500 W 8-pin transducer, it has an operating frequency of 77/200 kHz; a beamwidth of 45/15 degrees; and mounts on a 0 to 70 degree transom.

Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.

When using with the echo fishfinders, transducer adapter cable, 010-11947-00, is required. Transducer, 010-10249-20, is preferred.



Features

Transducer cable length 30 ft.
Transducer power 500 W
Transducer frequency 77/200 kHz
Transducer maximum depth 1,900 ft.
Transducer number of pins 8-pin
Transducer beamwidth 45°/15°
Transducer depth/speed/temperature Depth and Temperature
Transducer supported deadrise/transom angles     0°-70° degree transom
SKU GAR.010-10249-40
Model # 010-10249-40
UPC/EAN 0753759996987
Brand Garmin
Shipping Weight 0.5500kg
