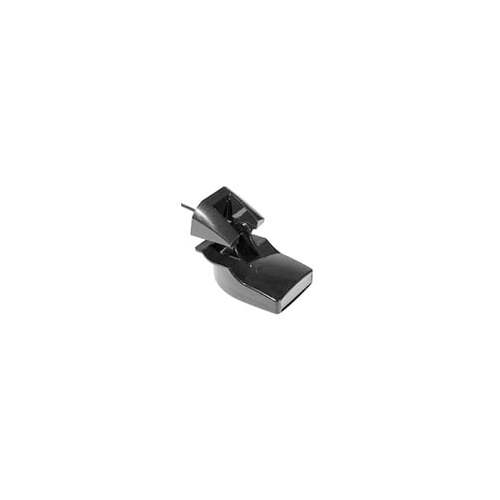

This plastic transom mount can be used to replace the dual frequency transducers included with many Garmin units.

The 500 W 8-pin transducer has a maximum depth of 1,500 ft; an operating frequency of 50 to 200 kHz; a beamwidth of 40 to 10 degrees; and mounts on a 0 to 70-degree transom.

The transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.

When using with a 6-pin Garmin sounder, transducer adapter cable part number 010-11612-00 is required.

The 6-pin transducer is preferred.

Features

Transducer cable length 30 ft.
Transducer power 500 W
Transducer frequency 50/200 kHz
Transducer maximum depth 1,500 ft.
Transducer number of pins 8-pin
Transducer beamwidth 40°/10°
Transducer depth/speed/temperature Depth and Temperature
Transducer supported deadrise/transom angles      0°-70° degree transom
SKU GAR.010-10272-10
Model # 010-10272-10
UPC/EAN 0753759975364
Brand Garmin
Shipping Weight 0.6900kg
