Experience Unparalleled Power and Precision in our Angling Adventures

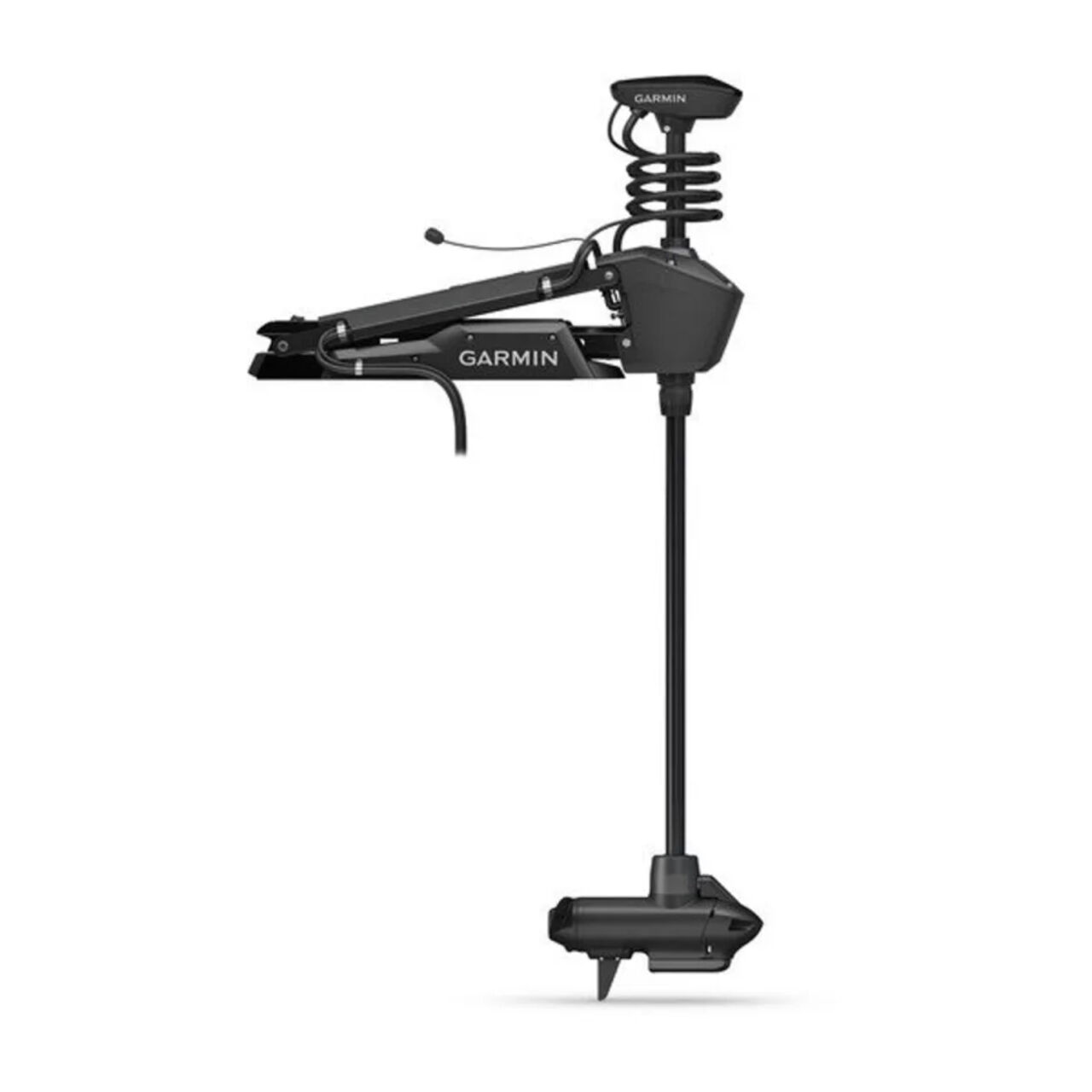

The Garmin Force® Kraken Trolling Motor is engineered to deliver exceptional thrust and efficiency for both freshwater and saltwater fishing enthusiasts. With its robust design and advanced features, it ensures a superior on-water experience, allowing anglers to navigate and position their boats with utmost accuracy.

Key Features

  • Unmatched Thrust: Provides up to 100 lbs of thrust, making it one of the most powerful trolling motors available, suitable for larger vessels and challenging conditions.
  • Dual Voltage Compatibility: Operates on both 24V and 36V systems, offering flexibility and extended battery life to meet diverse power requirements.
  • Integrated Wireless Connectivity: Seamlessly pairs with compatible Garmin chartplotters, enabling intuitive control and access to advanced navigation features directly from your display.
  • Anchor Lock Technology: Maintains your boat's position precisely, even in strong currents or windy conditions, allowing you to focus on fishing without manual adjustments.
  • Rugged Construction: Built with high-quality materials, including an aluminum mount and fiberglass shaft, ensuring durability and reliability in various marine environments.

Elevate your fishing experience with the Garmin Force® Kraken Trolling Motor, combining strength, versatility, and cutting-edge technology to meet the demands of serious anglers.

General
Color Black
For Use In Freshwater, brackish water, and saltwater

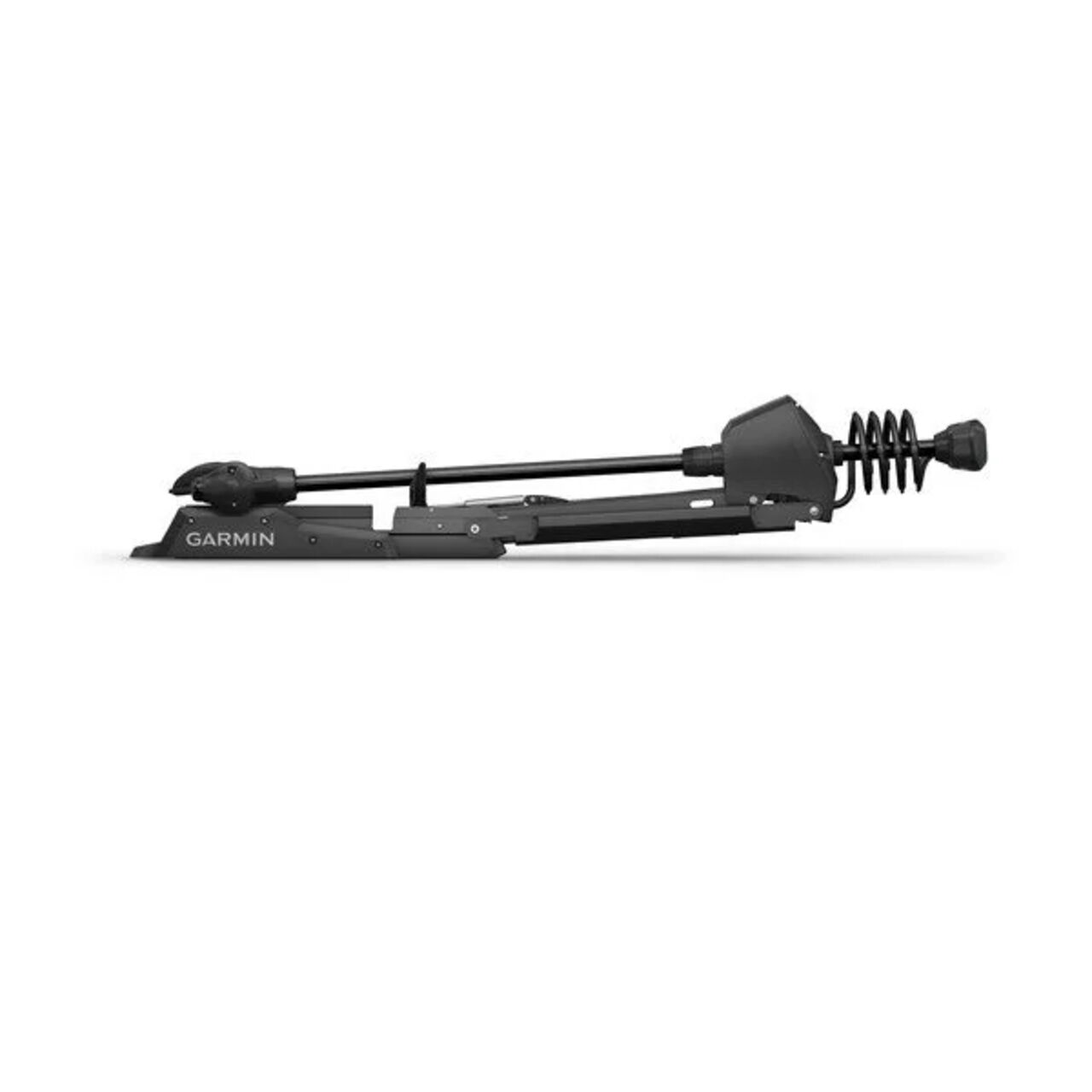

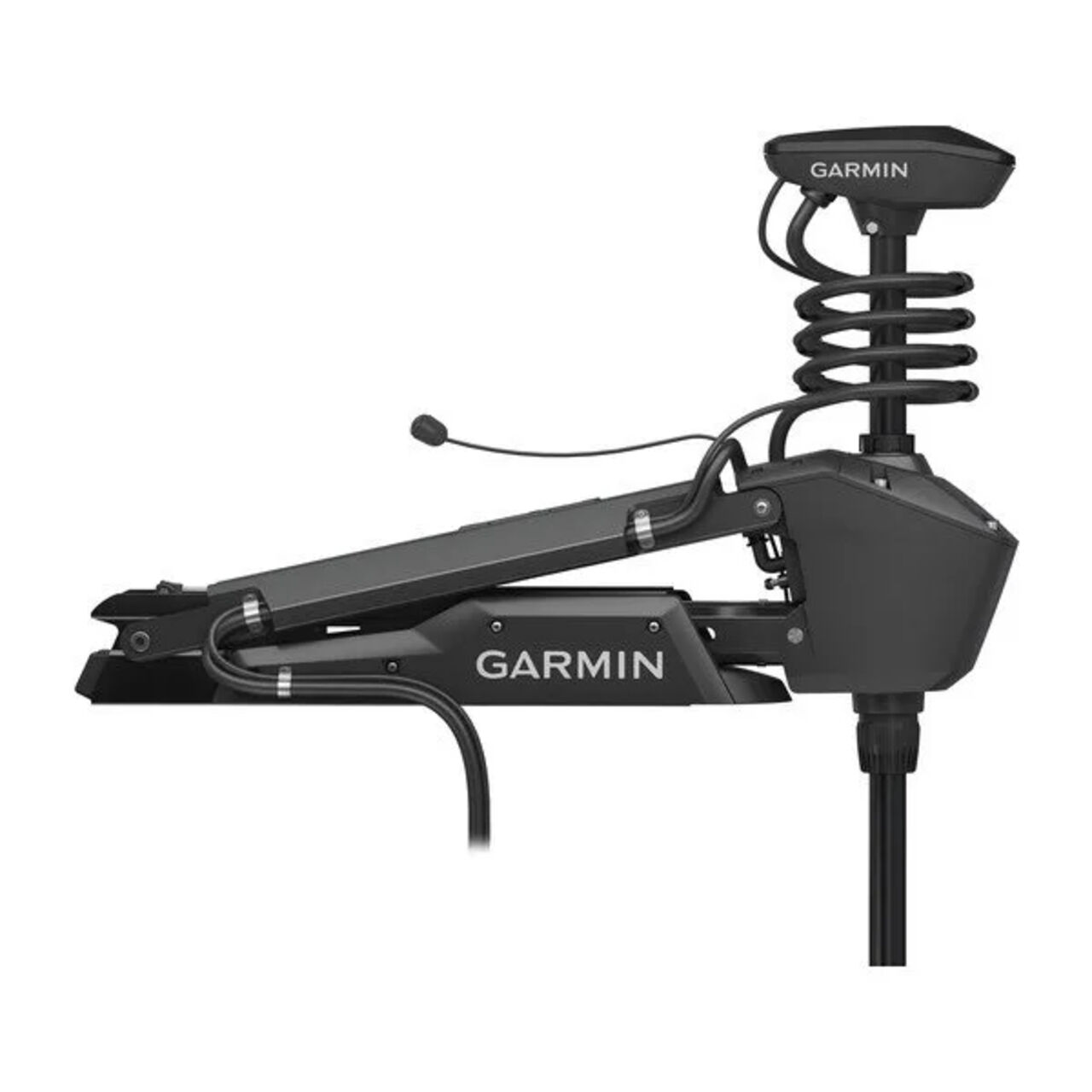

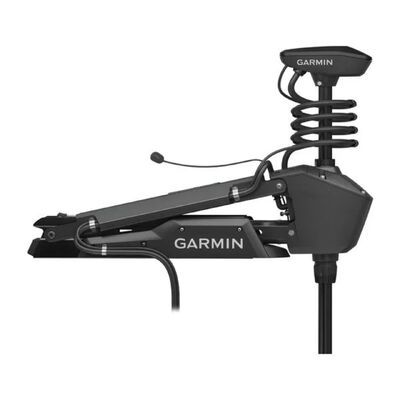

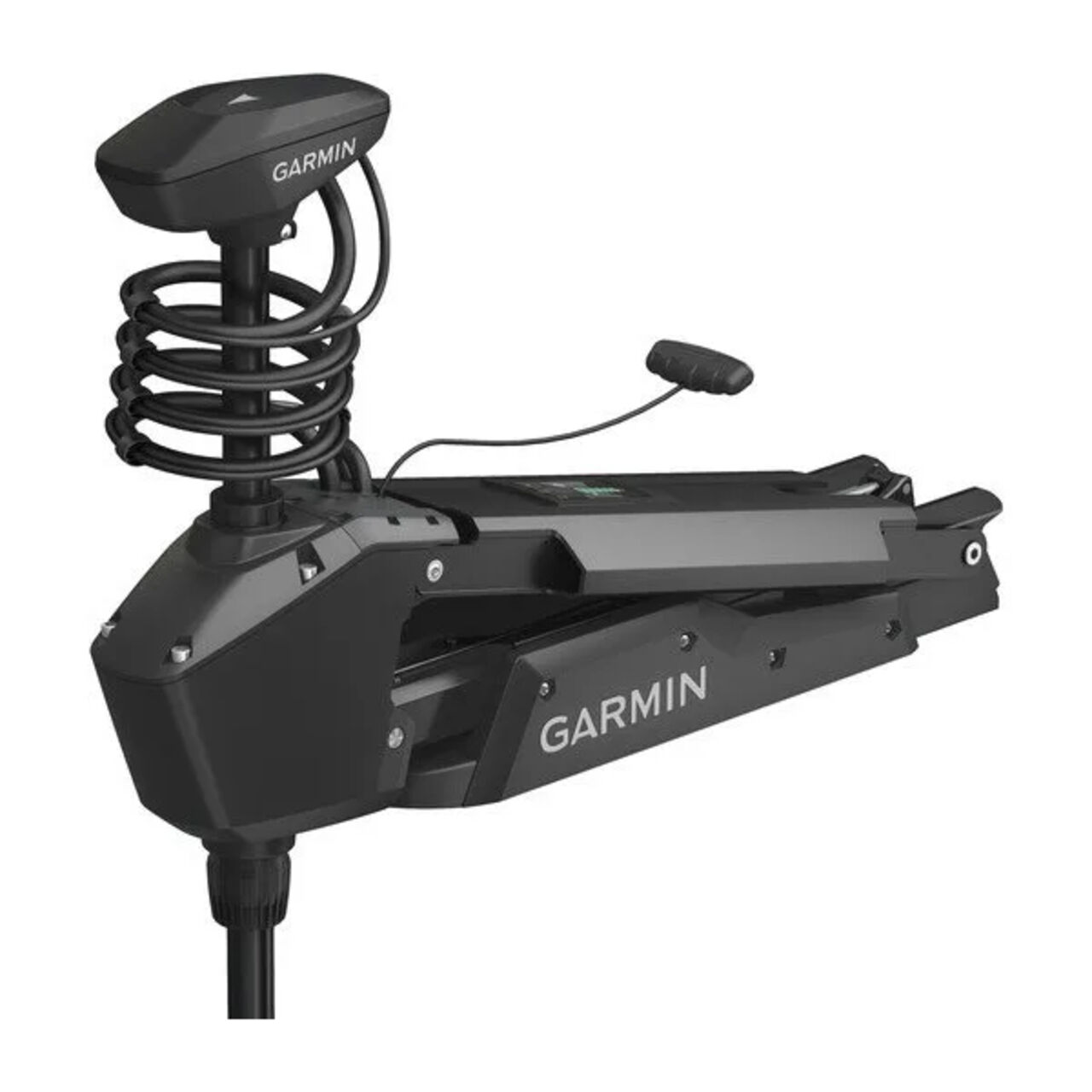

Mount Style Scissor-style mount
Max Thrust 100 lbs at 36 V, 80 lbs at 24 V (ISO 13342 using high-efficiency propeller)
Voltage 24 V or 36 V
Electric Steering Yes
Lift-Assist Dual gas springs
Built-in Heading Sensor Yes
Built-in GPS Yes (high-sensitivity GPS)
Warranty 3-year, limited lifetime on shaft
Water Rating IPX7
Mounting Location Bow
Wireless Remote Yes (included)
Foot Pedal Compatible Yes (included)
Variable Speed Control Yes (20 steps)
Deck Stabilizer Yes (included)
quatix Remote Control Supported Yes

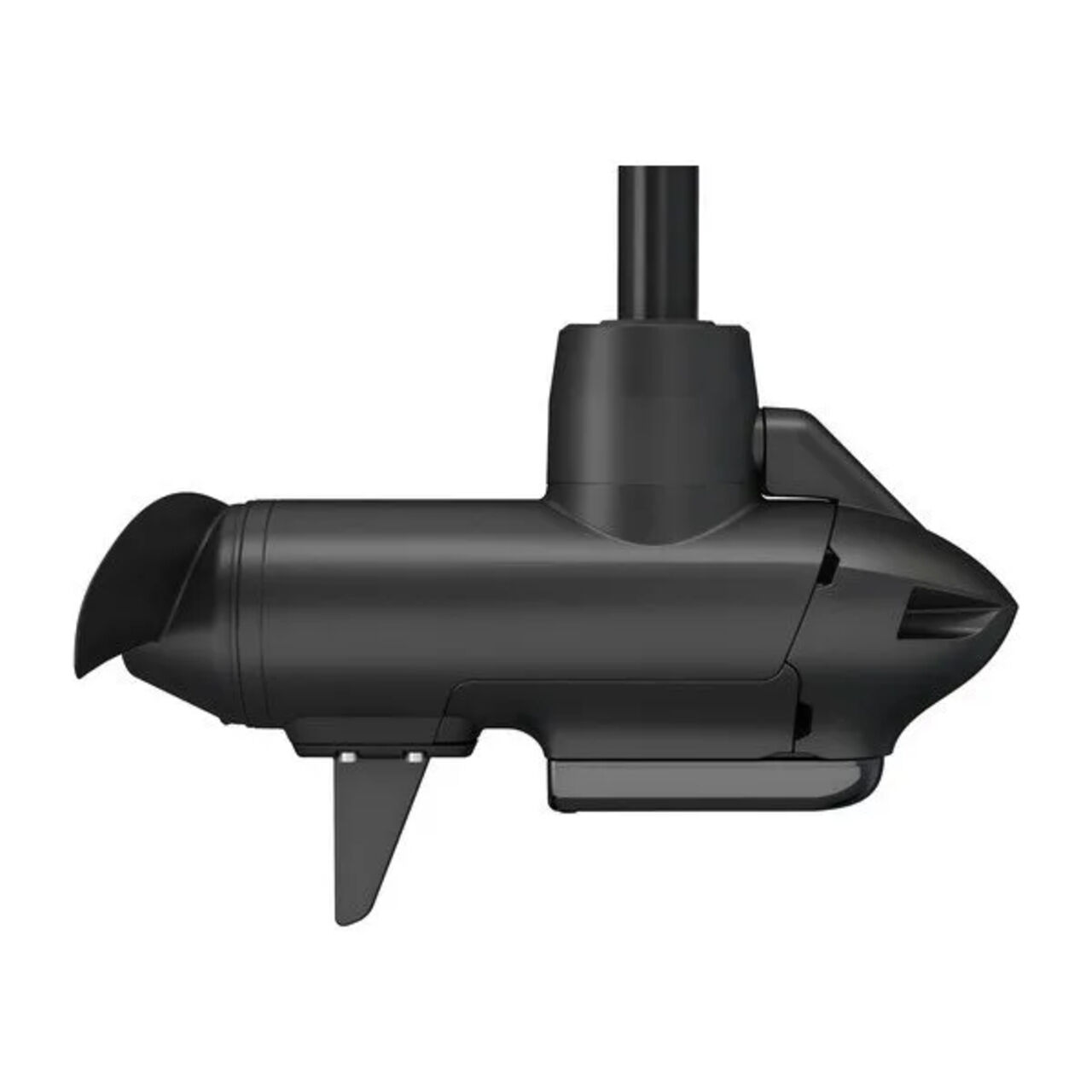

Sonar Features
Frequencies Supported CHIRP: High-wide CHIRP (150-240 kHz), ClearVü: Ultra-high definition 800 kHz, SideVü: Ultra-high definition 1200 kHz and 455 kHz
Transmit Power 350 W
Maximum Depth CHIRP: 800', ClearVü: 200', Ultra-high definition SideVü: 125' per side (250' total at 30' depth), SideVü: 500' per side (1000' total)
Depth/Speed/Temperature Depth and temperature
Number of Pins 12-pin (orange connector)
Autopilot Features
Route Following Yes
Anchor Lock Yes
Anchor Lock Jog Yes
Heading Hold Yes
Cruise Control Yes
Gesture Features Yes (manual+, heading hold+, jog+)
Foot Pedal Features
Dimensions 12" L x 9" W x 4 1/2" H
Wireless Communication Yes
Power Installation 12 V/24 V/36 V wired or battery-powered (2 AA)
AA Battery Life 1 full season
Water Rating IPX7
Adjustable Pedal Resistance Yes

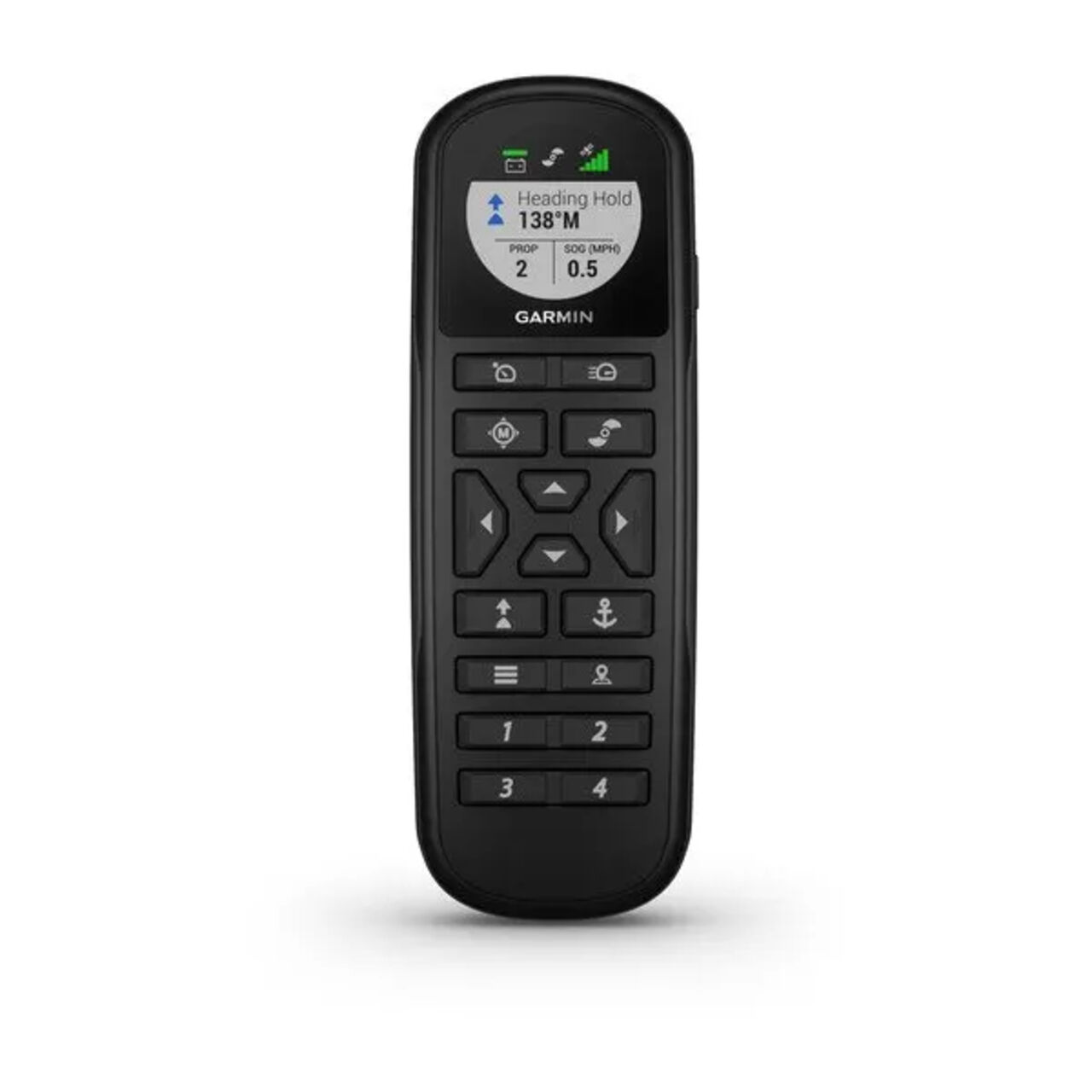

Remote Features
Display Size 1.2" (30.2 mm) diameter
Display Resolution 240 x 240 pixels
Display Type Color, sunlight-visible, transflective memory-in-pixel (MIP)
Chartplotter User-Programmable Keys Yes
Autopilot Feature Control Yes
Water Rating IPX7
Battery Life Typical use with low backlight: 43 weeks
Floats Yes
SKU GAR.010-02025-00
Model # 010-02025-00
UPC/EAN 753759217662
Brand Garmin
Shipping Weight 34.3000kg
Unit Of Measure each
