Know what’s out there.

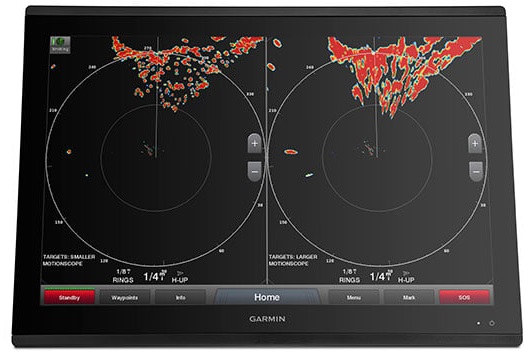

MOTIONSCOPE TECHNOLOGY

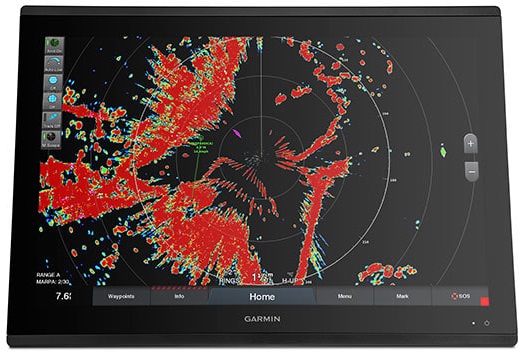

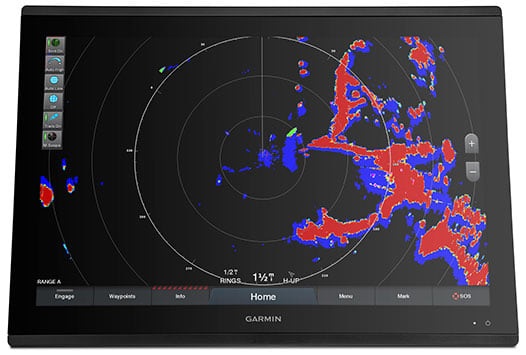

MotionScope technology detects and highlights moving targets in different colours to help avoid collisions, find flocks of birds and track weather from 20 feet to 96 nautical miles.

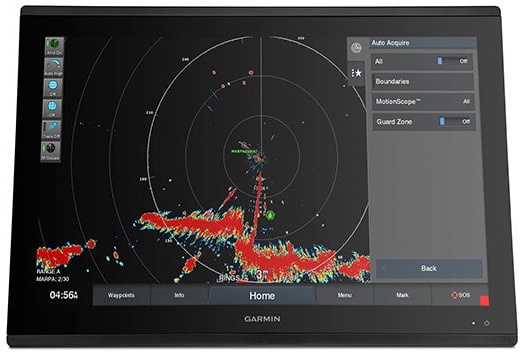

AUTOMATIC ACQUISITION

New mini-automatic radar plotting aid (MARPA) automatic acquisition allows for triggering and tracking of up to 30 targets with no user prompting on all returns, boundary zones, guard zones or MotionScope.

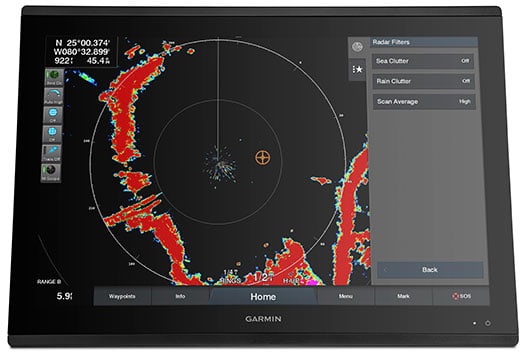

CLEAR THE WAY

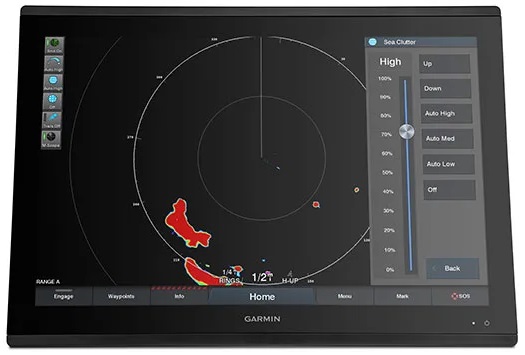

Scan-to-scan averaging aids in reduction of sea clutter and interference, so you have a clear view of what’s out there.

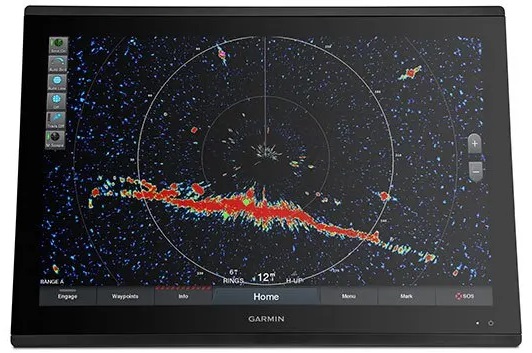

AUTO BIRD GAIN

Where there are birds on the water’s surface, there are fish below it. Auto Bird Gain helps you locate flocks of birds at the water’s surface.

PULSE COMPRESSION

This feature provides high-resolution imaging while maximising energy to enhance target detection and identification.

ECHO TRAILS

True Echo Trails feature displays a fading trail to help you quickly and easily identify moving targets while accounting for the movement of your own boat.

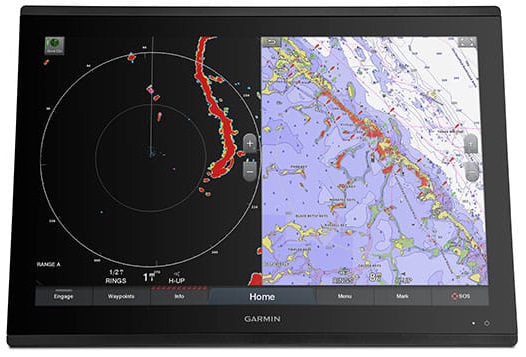

RADAR OVERLAY

Overlay radar on your chart screen as single display or split screen with independent range settings.

DYNAMIC SEA FILTER

Dynamic Sea Filter automatically adjusts gain to calm, medium and rough sea conditions.

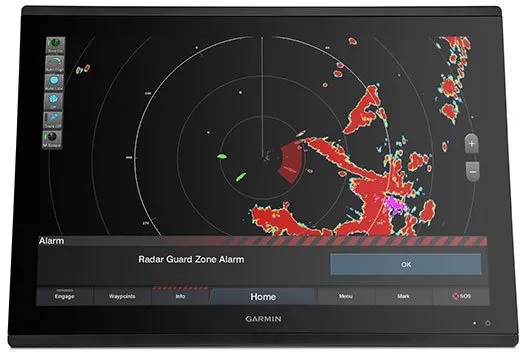

GUARD ZONE

Set the safety zone and receive an alarm when an object enters the zone.

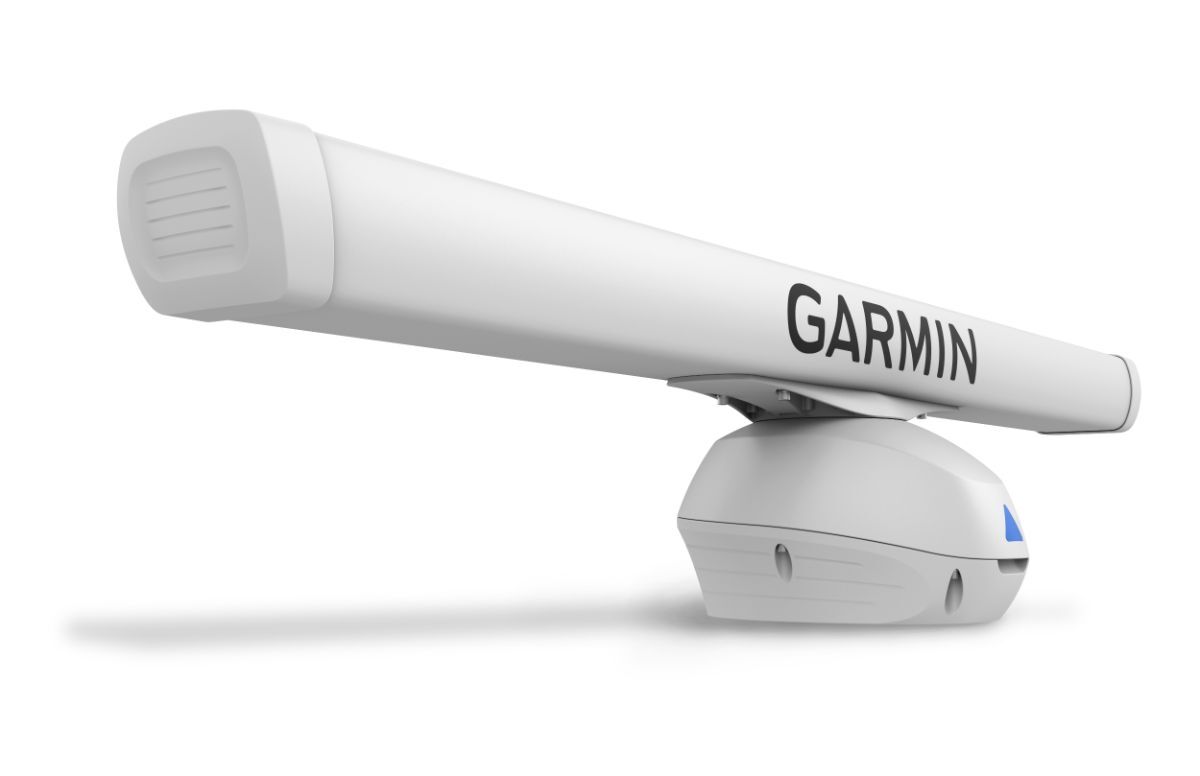

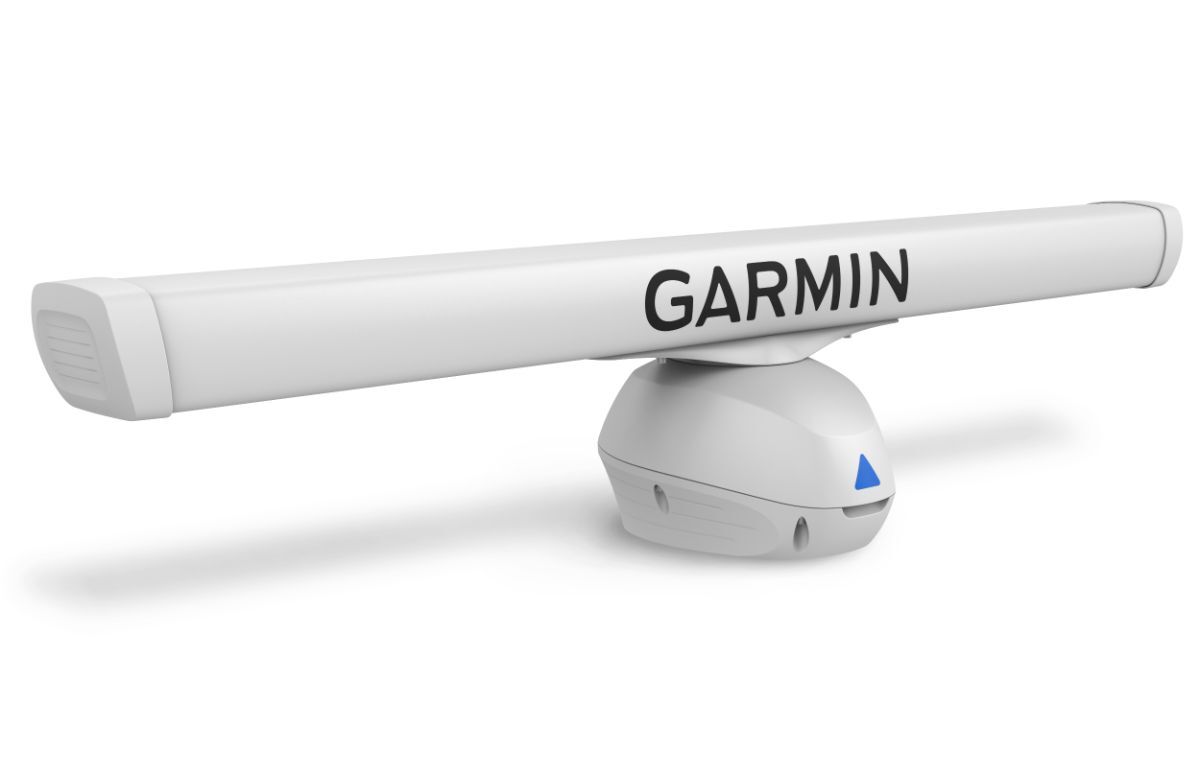

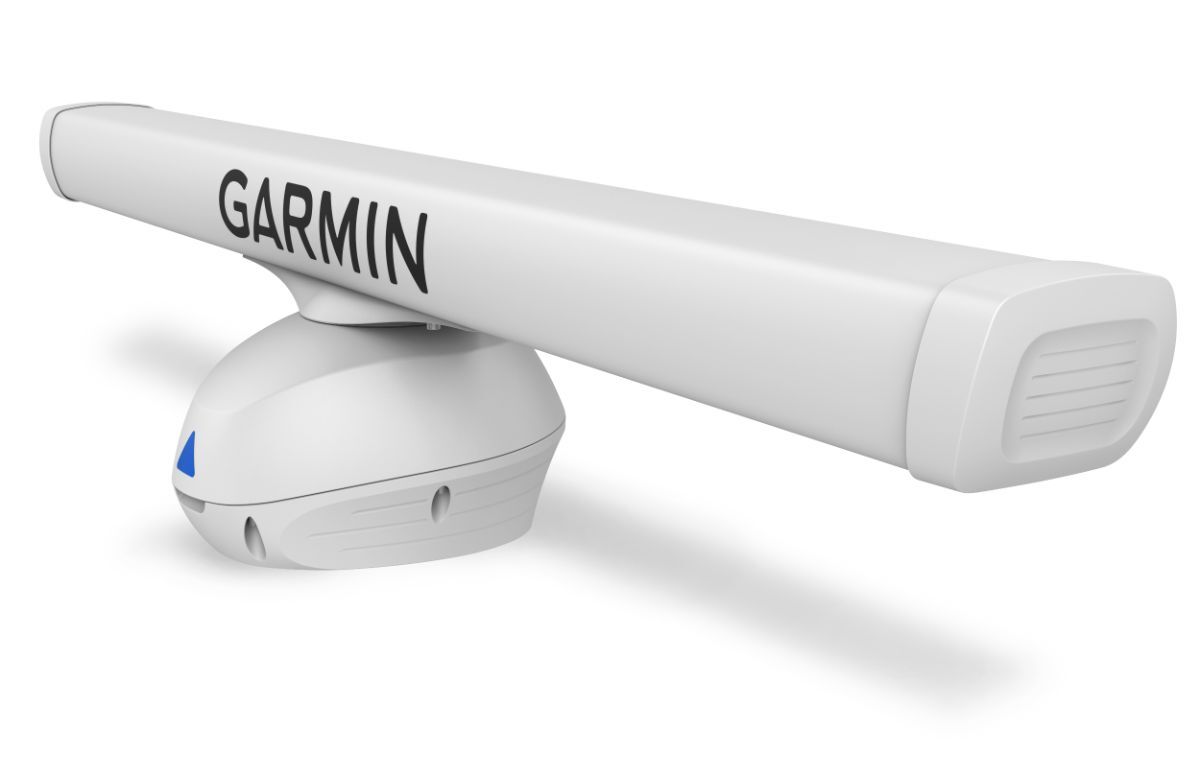

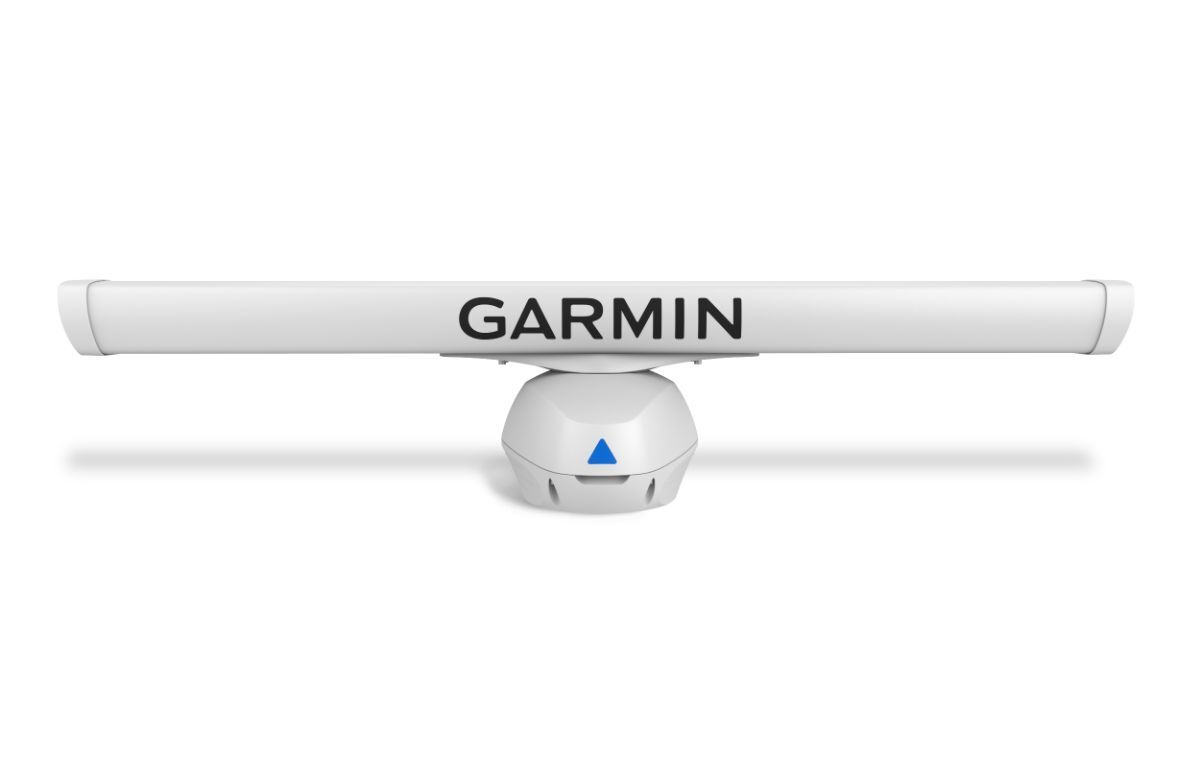

Physical & Performance

Max Range 96 nm

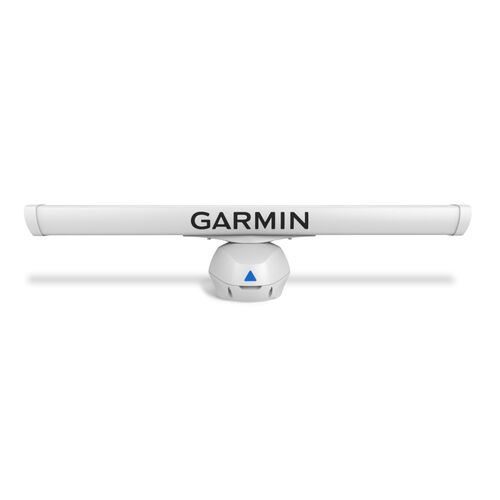

Radar Type Open-array
Dimension Pedestal: 42.1 x 36.4 x 27.1 cm
Full assembly: 40.3 cm x 190.9 cm
Transition Power 250 W power output, the approximate equivalent to a 15 kW magnetron
Power Consumption Typical: 150 W (no wind)
Maximum: 260 W (80 knot winds, 6 foot antenna)
Beam Width 1.25° horizontal, 23° vertical
Power Input 10-32 V
Antenna Length 182.9 cm
Rotation speed (RPM)       24 and 48 rpm. High speed only available in single range mode with MotionScope disabled, and on range settings of 12 NM or lower
Minimum range 6 metres
Waterproof IPX6
Weight Array: 7.3 kg
Pedestal: 15.7 kg



Features

Dual Range Support Yes
Dynamic Auto Gain Dynamic
Echo Trail Yes
Radar Overlay Support Yes
Max Power Consumptionumption       260 W
Additional
  • Scan averaging: Yes
  • MotionScope: Yes
  • Auto Bird Gain: Yes
  • Dual radar support: Yes
  • Echo trails: Yes (true)
  • Programmable antenna parking position: Yes
  • Max wind speed: 80 kt
Dual Radar Yes
MotionScope Yes
Max Wind Load 80kt
Programmable Antenna Parking Yes
AutoBird Yes
MARPA Target Track yes (requires heading sensor, sold separately)
Scan Yes
Target Size Yes
SKU GAR.K10-00012-22
Model # K10-00012-22
UPC/EAN 0753759243968
Brand Garmin
