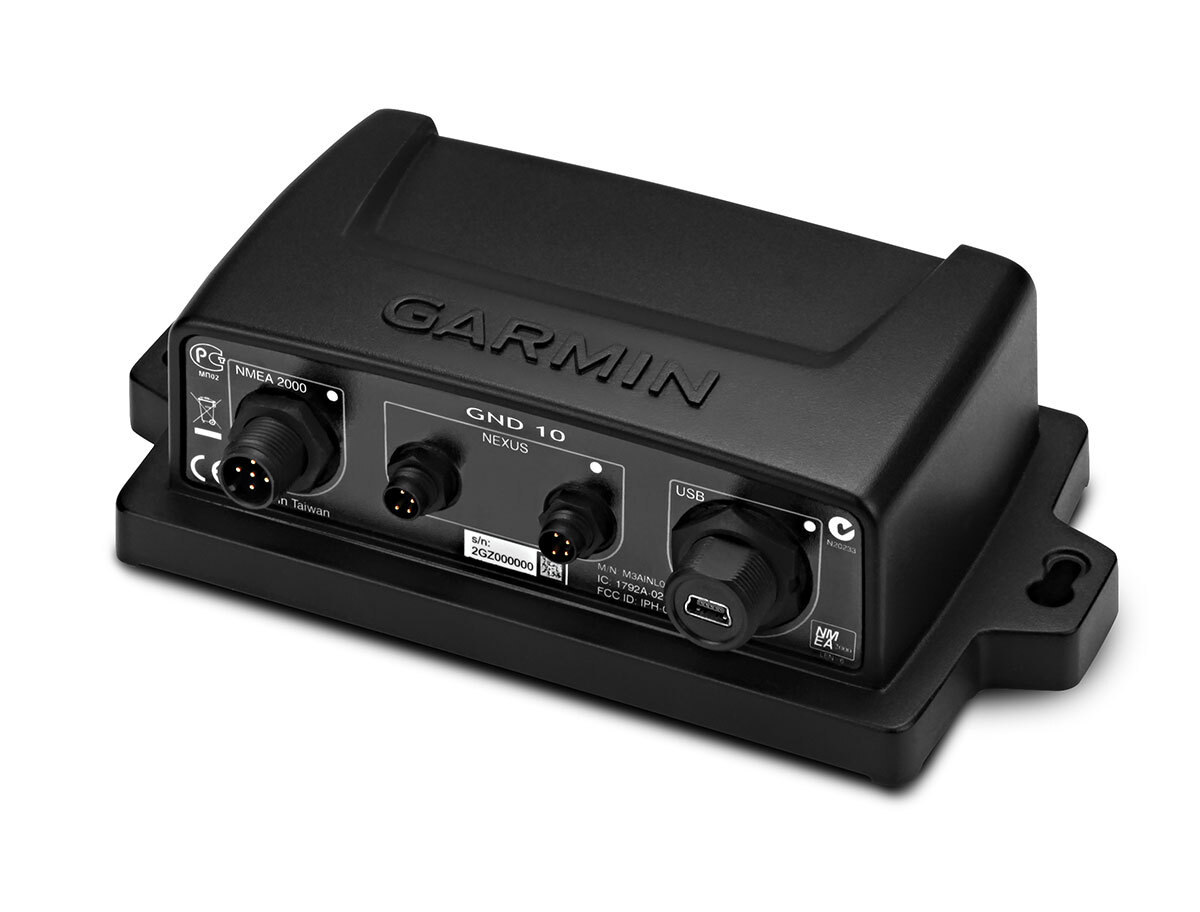

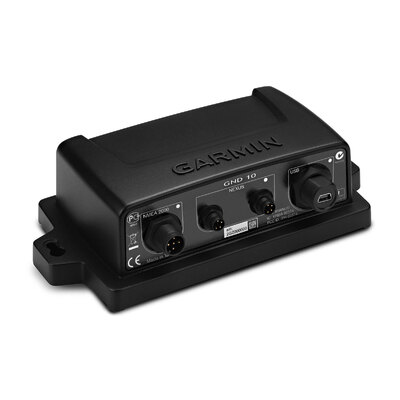

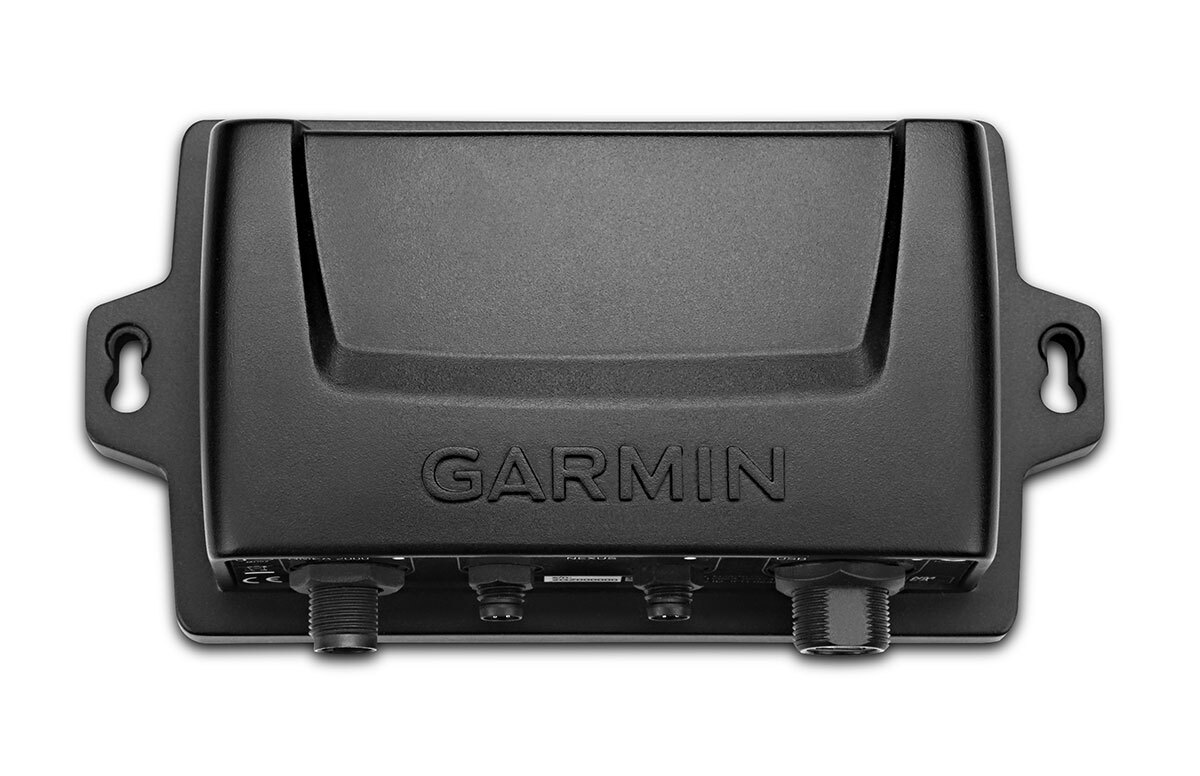

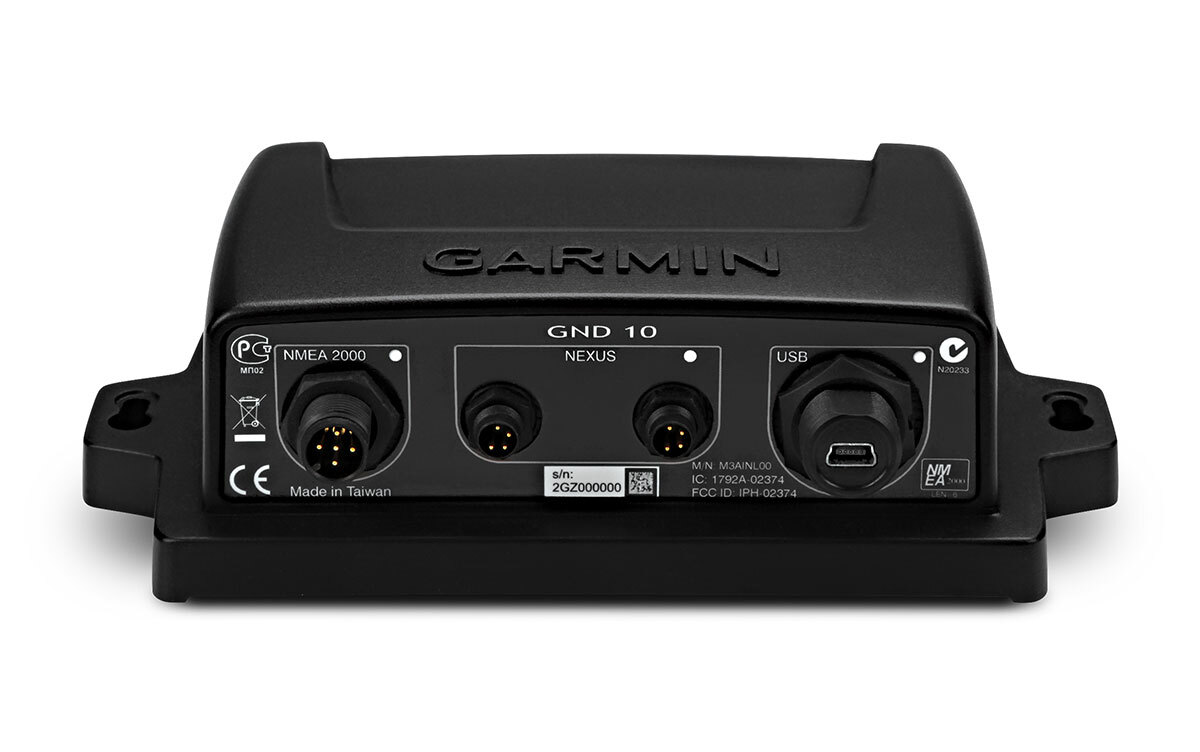

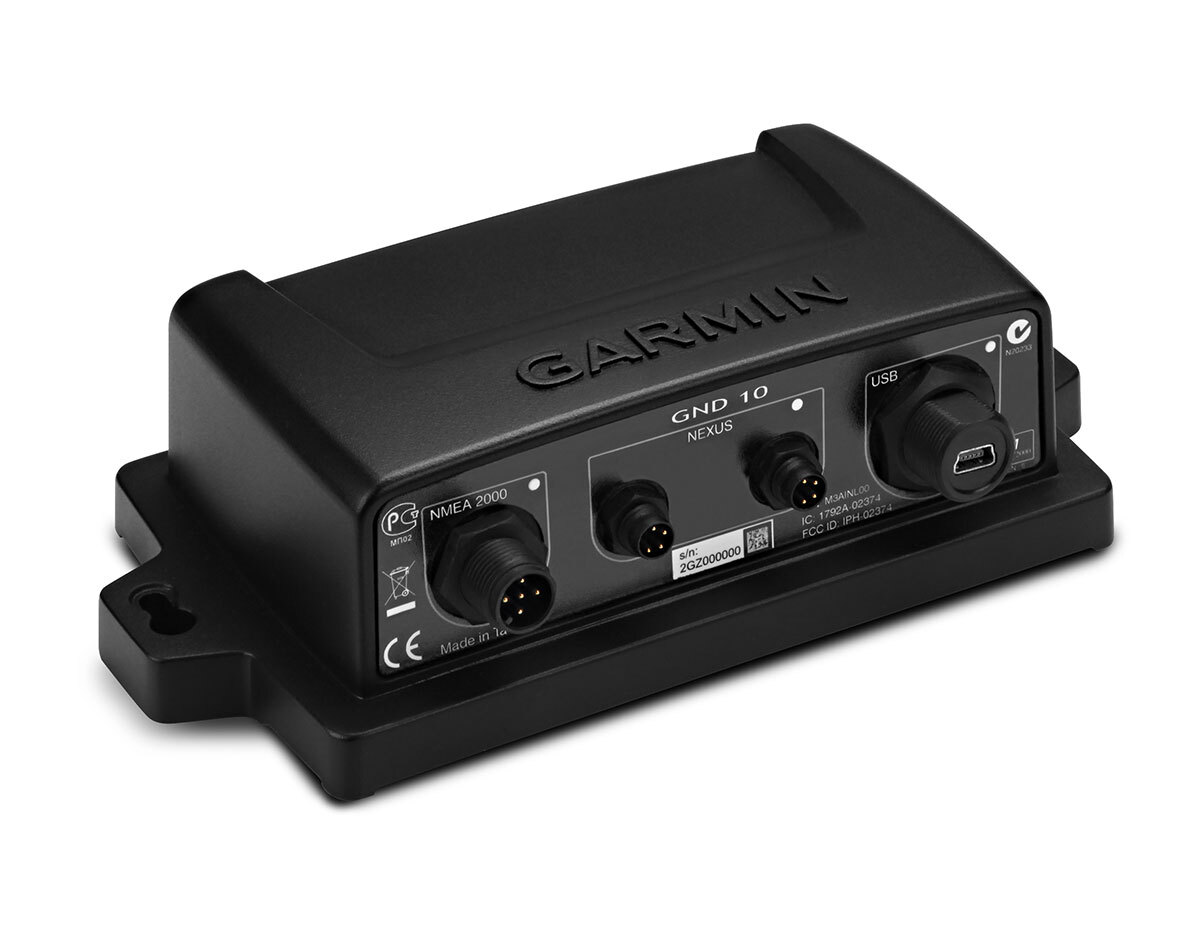

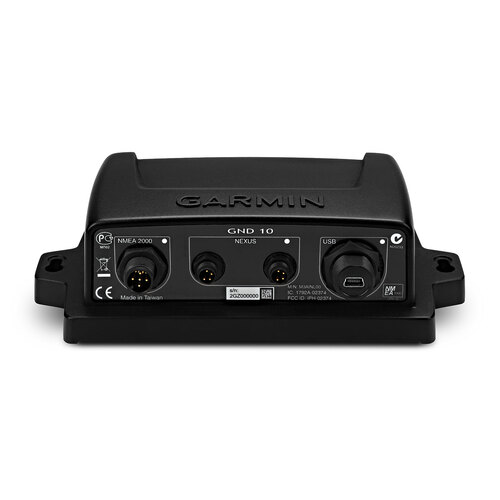

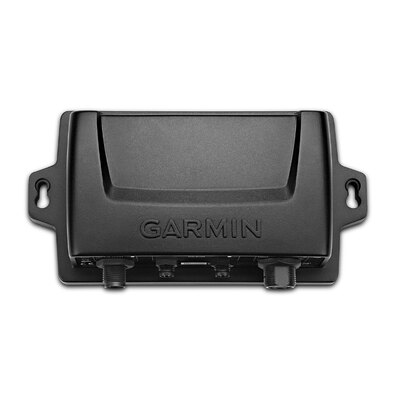

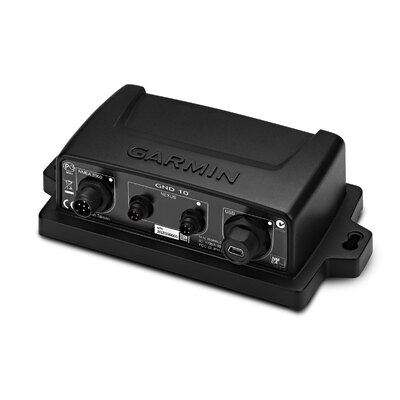

The GND 10 black box bridge seamlessly integrates Nexus instruments and sensors with the Garmin family. It converts data between the Nexus Network and NMEA 2000 to provide compatibility between Nexus and Garmin products, including gWind™, gWind™ Wireless and gWind™ Race transducers. Simple plug-and-play installation between Nexus and NMEA 2000, with USB connectivity, eliminates the need for user setup and system configuration.

GND 10 allows PC applications, such as NexusRace, Expedition, Adrena or SeaTrack, to communicate sailing-specific functions between Nexus and NMEA 2000 networks. It also enables GND 10 software updates over NMEA 2000. The existing NexusRace PC application can be used to update software, configure and calibrate Nexus devices over USB using the FDX protocol.

Features

productSpecMisc
  • Unit Dimension, WxHxD: 170 x 90 x 50 mm
  • Weight: 196 g
  • Waterproof: Yes (IPX7)
  • Temp Range: From 5°F to 158°F (-15°C to 70°C)
  • Voltage Range: 9-16 V
  • Power Usage: 0.52 W
  • Compass Safe Distance: 0.1 m
  • Accuracy Angle: N/A
  • Speed: N/A
  • NMEA 2000® Load Equivalency Number (LEN): 4
  • Wireless Connectivity: No



Nexus to NMEA 2000

NMEA 2000 to Nexus

Apparent Wind Angle

Y



Apparent Wind Speed

Y



Boat Speed Through Water

Y

Y

Course Over Ground



Y

Course to Waypoint



Y

Cross Track Error



Y

Depth

Y

Y

Distance to Waypoint



Y

Latitude



Y

Longitude



Y

Magnetic Heading

Y

Y

Magnetic Variation



Y

Speed Over Ground



Y

True Heading

Y

Y

True Wind Angle

Y



True Wind Speed

Y



UTC Date



Y

UTC Time



Y

Water Temperature

Y

Y

Barometric Pressure

Y


SKU GAR.010-01226-00
Model # 010-01226-00
UPC/EAN 0753759112219
Brand Garmin
Shipping Weight 0.8300kg
