More accurate data — for more confident navigation.

MULTI-BAND GNSS

Multi-band GNSS provides precise location accuracy1 to within 1 metre to compatible marine multifunction displays, instrument displays and autopilots.

MAGNETIC HEADING

The magnetic heading sensor provides accuracy to within 3 degrees, stabilising charts, radar overlay and MARPA even at slow speeds.

HIGH-SENSITIVITY GPS

Fast 10 Hz position update rates provide high-sensitivity position, velocity and time data.

EXPANDED GNSS SUPPORT

GPS 24xd provides access to four key global navigation satellite systems (GPS, Galileo2, GLONASS and BeiDou2) to more accurately track in challenging conditions than GPS alone.

MULTI-SBAS COMPATIBLE

Multi-SBAS compatibility corrects signal measurement errors and provides information about the accuracy, integrity, continuity and availability of its signals.

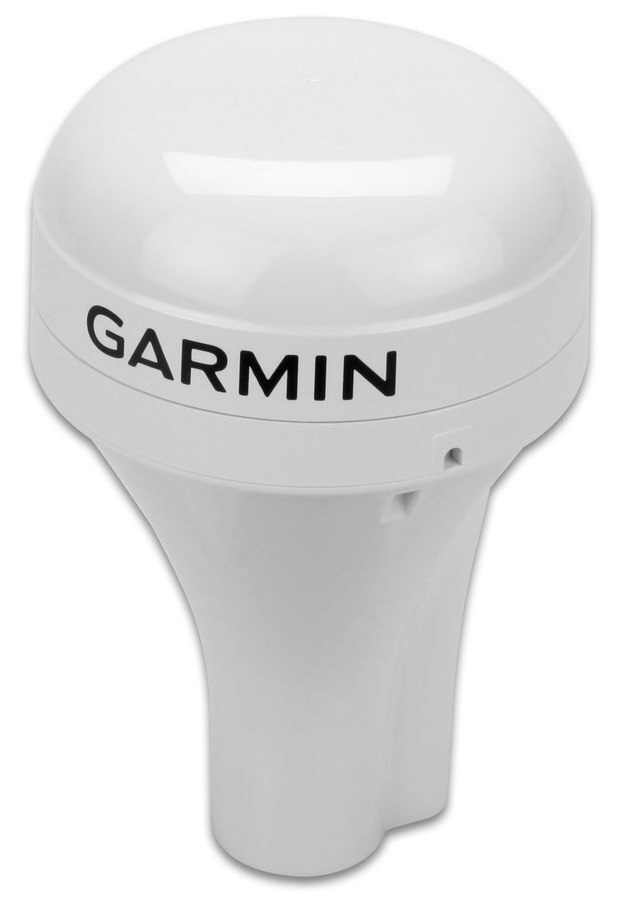

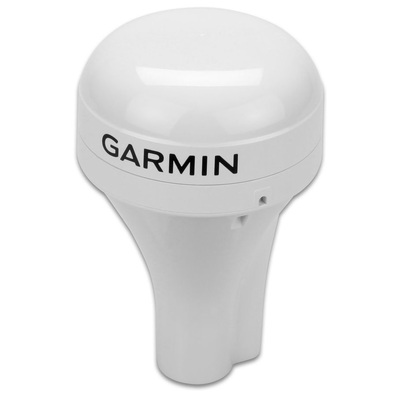

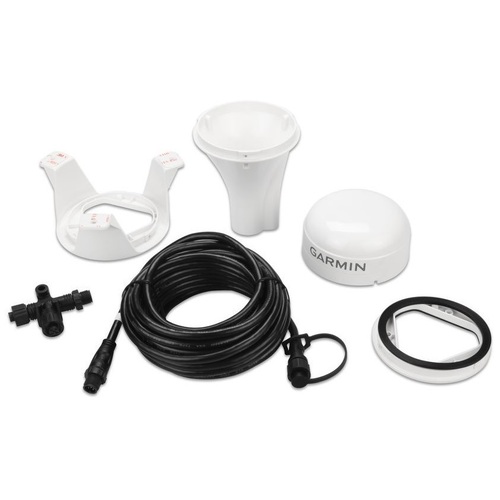

MOUNTING OPTIONS

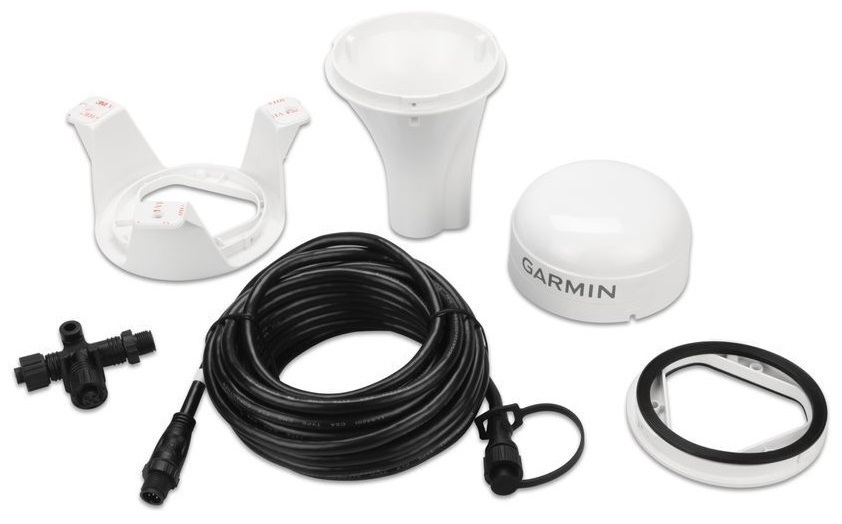

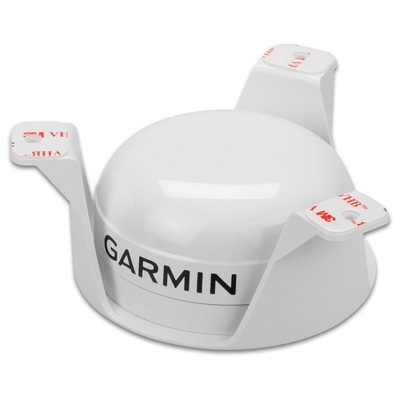

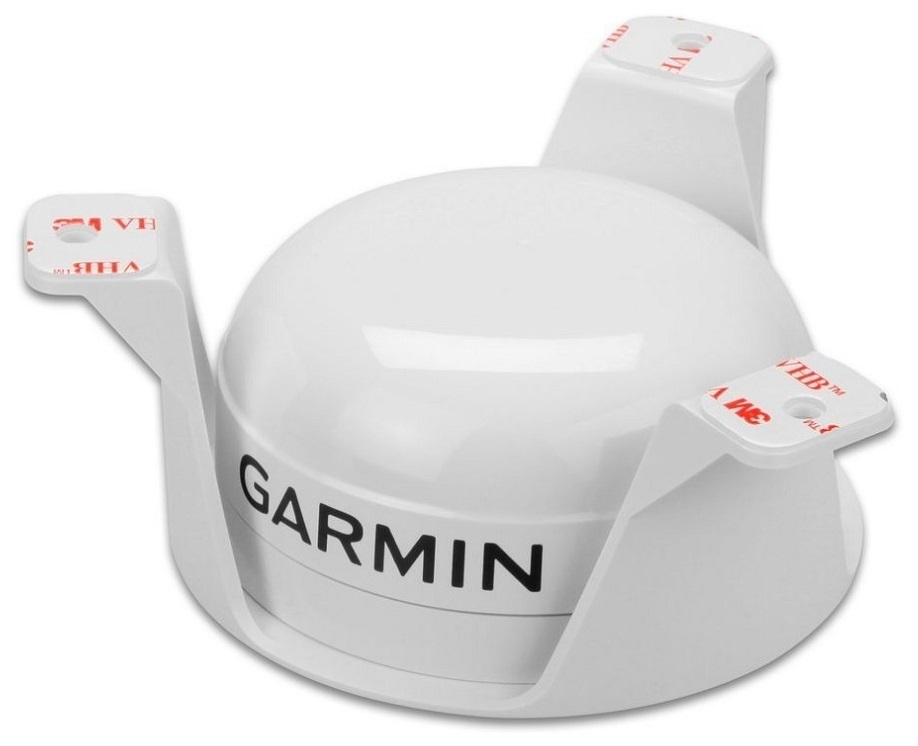

Installation is easy with under-deck, pole and surface-mount options.

1 < 1 metre CEP, < 3 metres 95%

Supported when available

Features

Misc
  • Dimensions (D x H): 91.6 mm x 49.5 mm

  • Weight: 201 g

  • Cable length: 6 m

  • Temperature range: -30° to 80° C

  • Case material: Fully gasketed, high-impact plastic alloy; waterproof to IPX7

  • Compass-safe distance: 150 mm

  • Power source input: 9-16 Vdc, unregulated

  • Input current: 150 mA at 12 Vdc

  • NMEA 2000 Load Equivalency Number (LEN): 3 (150 mA)

  • Position accuracy, typical marine use: < 50 cm, CEP 50%; < 1.0 metre, 88%

SKU GAR.010-02316-10
Model # 010-02316-10
UPC/EAN 0753759248215
Brand Garmin
Shipping Weight 0.9600kg
