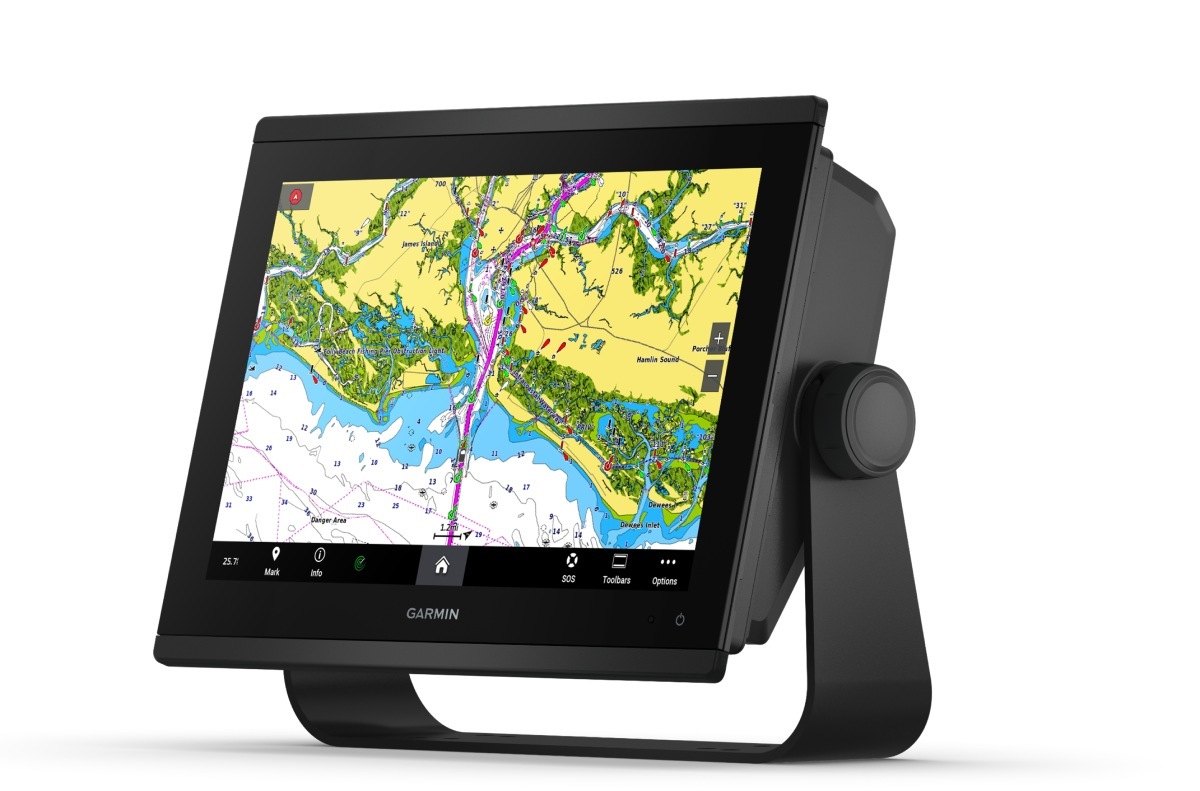

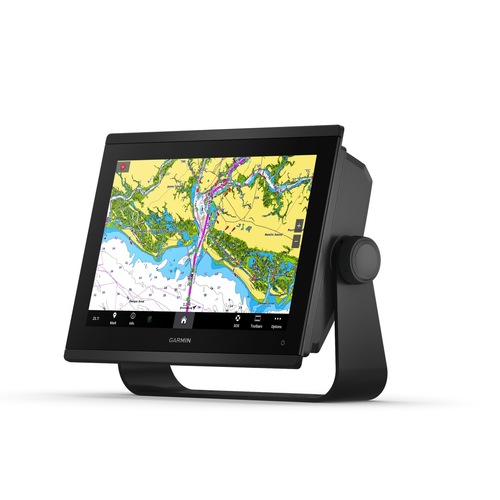

Get a sharper view from your connected helm. With its sleek design, powerful processing and upgraded IPS display, this advanced chartplotter integrates seamlessly into your Garmin marine system.
SKU: GAR.010-02367-62 | MPN: 010-02366-62
SAVE $166.62 (3%)
Special OrderSpecial Order from Supplier
Non Returnable/Non Refundable
With its added processing power and new slimline design featuring edge-to-edge glass and a smaller unit footprint, it’s easy to retrofit this plotter in a wider range of dash configurations.
New higher-resolution IPS displays for 9” and 12” plotters offer improved sunlight readability and visibility from any angle, with 50% more pixels than previous-generation 9” GPSMAP devices.
Experience unparalleled coverage and detail with built-in Garmin Navionics+ integrated coastal and inland mapping that includes Auto Guidance+™ technology and a 1-year subscription for downloadable daily updates and more on select chartplotters.
Bring a fresh new look and feel to your chartplotter with an optional upgrade to Garmin Navionics Vision+™ premium chart subscription, featuring downloadable high-resolution relief shading, satellite imagery, sonar imagery and more.
To help you avoid weather and traffic on the water, the compact 4 kW GMR™ 18 HD+ dome radar is available as a bundled option with your GPSMAP chartplotter/ sonar package.
IN THE BOX
| Display Size |
10.3" x 6.4"; 12.1" diagonal (26.2 x 16.3 cm; 30.7 cm diagonal) |
| Power Input | 10 to 32 Vdc |
| Display Resolution | 1280 x 800 pixels |
| GPS | Yes |
| Dimension | 12.1” x 8.9” x 3.2” (30.8 x 22.8 x 8.2 cm) |
| Receiver |
10 Hz |
| Waterproof | IPX7 |
| Weight |
6.6 lbs. (3.0 kg) |
| Mounting Options | Bail, flush or flat (Garmin does not offer any hardware or accessories for a flat-mount installation. Professional tools and knowledge is required.) |
| Display Type | WXGA |
| Garmin Navionics Vision+™ | Yes |
| Accepts Data Cards |
2 microSD™ cards (back of unit) |
| Garmin Navionics+ Inland & Coastal | Yes |
| Navigation Routes | 100 |
| Garmin Navionics+™ | Yes |
| Waypoints | 5,000 |
| Sailing Features | Yes |
| NMEA 0183 Compatible | Yes |
| Has built-in receiver | Yes |
| USB ports | Yes |
| TOPO | Yes |
| SideVü | built-in 260/455/800/1000/1200 kHz |
| DSC | Yes |
| Touchscreen | Yes |
| LakeVü g3 Ultra | No |
| NMEA 2000 Compatible | Yes |
| ActiveCaptain Mobile Planning Compatible |
yes |
| Typical current draw at 12 Vdc | 1.68 A |
| NMEA 2000 ports | 1 |
| Tide tables | Yes |
| GLONASS | Yes |
| Track points | 50,000 |
| Panoptix™ sonar | Yes |
| Garmin Marine Network Ports |
2 |
| LakeVü g3 | No |
| Supports WAAS | Yes |
| GSD Black Box Sonar Support | Yes |
| Maximum current draw at 12 Vdc | 3.56 A |
| Smart Mode Compatible | Yes |
| Built-in Auto Guidance | No |
| Maximum power usage at 10 Vdc | 43.0W |
| BlueChart g3 | No |
| Standard Mapping | Yes |
| LakeVu (inland) | No |
| Built-in Auto Guidance+ | Yes |
| Displays sonar | Yes |
| ANT+ (Connectivity) | Yes |
| GCV Black Box Sonar Support | Yes |
| BNC external GPS antenna port | Yes |
| Connections NMEA0183 Input Ports |
1 |
| Spoken audio alerts | Yes |
| BlueChart g3 Vision | No |
| Garmin Wi-Fi network (local connection) | Yes |
| J1939 ports | 1 |
| Input | Touchscreen |
| Garmin Quickdraw Contours | Yes |
| BLUETOOTH® pairing | Yes |
| AIS | Yes |
| Video output ports |
1 HDMI |
| Raster chart support | Yes |
| NMEA 0183 input (Tx) ports | 1 |
| OneHelm support | Yes |
| ClearVü | built-in 260/455/800/1000/1200 kHz |
| Tracks | 50 saved tracks |
| Wireless Remote Compatible | Yes |
| Supports Fusion-Link™ compatible radios | Yes |
| Galileo | Yes |
| LiveScope | Yes |
| Power output | 1 kW |
| 12-pin transducer ports | 1 |
| BlueChart (coastal) | No |
| Traditional sonar (dual frequency/beam) | built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP) |
| GRID (Garmin Remote Input Device) compatible | Yes |
| Video input ports |
1 (BNC composite); 1 HDMI (HDCP compliant) |
| SKU | GAR.010-02367-62 |
| Model # | 010-02366-62 |
| UPC/EAN | 753759285265 |
| Brand | Garmin |
| Shipping Weight | 3.0001kg |
| Shipping Width | 0.029m |
| Shipping Height | 0.031m |
| Shipping Length | 0.025m |
| Shipping Cubic | 0.000022000m3 |
| Unit Of Measure | ea |
