Made for your helm.

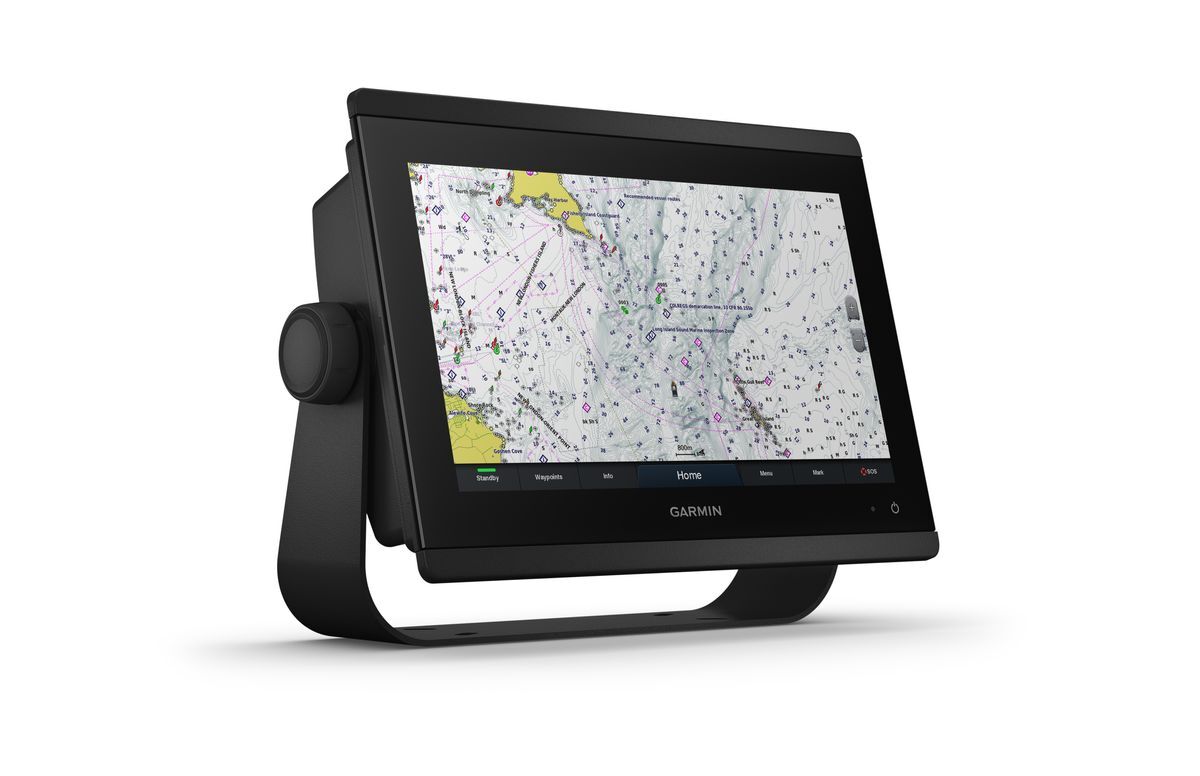

HD IPS DISPLAY WITH TOUCHSCREEN

This large 12” display offers wider viewing angles, superior clarity and sunlight readability, even with polarized sunglasses.

SIMPLE, ATTRACTIVE MOUNTING OPTIONS

You can install multiple displays, either flat mounted edge-to-edge for a sleek glass helm look or mounted flush — creating a stunning helm.

GRID 20 REMOTE CONTROL

The optional, easy-to-use GRID 20 remote input device provides intuitive remote access and control of your entire Garmin marine system.

See the world below.

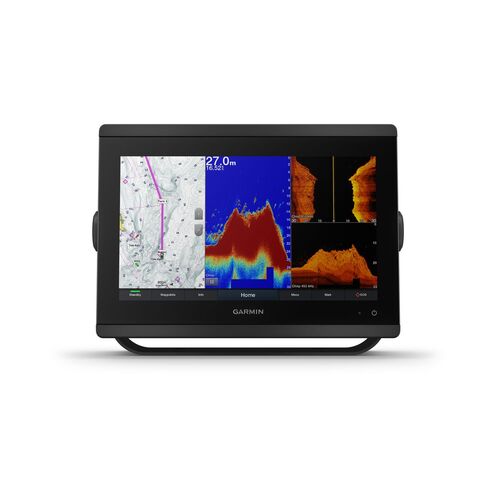

TRADITIONAL AND SCANNING SONAR SUPPORT

Get built-in support for 1-kW CHIRP traditional sonar for superior target separation and ClearVü and SideVü scanning sonars to see up to 1,000’ below and around your boat at 260 kHz (transducer sold separately).

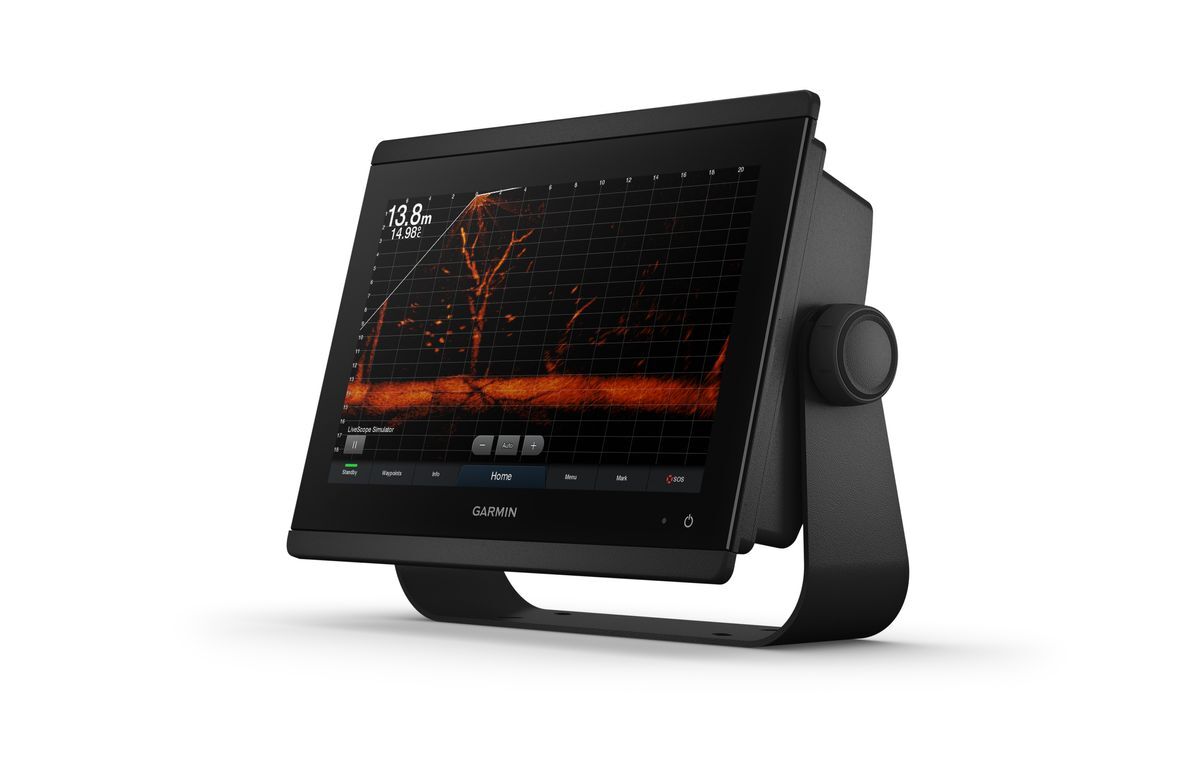

PANOPTIX™ SONAR SUPPORT

Pair your chart plotter with Panoptix or Panoptix LiveScope easy-to-interpret live sonar (transducer sold separately) to see all around your boat in real-time.

Connect to everything on your boat.

GARMIN MARINE NETWORK

If you have multiple Garmin devices on your boat, you can share information — such as maps, user data, radar and IP cameras — among them.

NMEA 2000® AND NMEA 0183 NETWORKS

Connect to autopilots, digital switching, weather, Fusion-Link audio system, media, VHF, AIS and more from one screen.

ACTIVECAPTAIN® APP

Built-in Wi-Fi® connectivity pairs with the free all-in-one mobile app for access to the OneChart feature, smart notifications1, software updates, Garmin Quickdraw Community data and more.

INTEGRATED BLUETOOTH® AND ANT TECHNOLOGIES

Connect with some of your favourite devices, such as quatix® marine watches, gWind Wireless 2 transducers, GNX Wind marine instruments and wireless remote controls.

ONEHELM™ FEATURE

This exclusive feature brings together all the operations and capabilities of third-party devices, such as EmpirBus™ digital switching, on one screen.

SMARTMODE STATION CONTROLS

Get quick, one-touch access to the information you need to ease high-stress situations such as docking. You can incorporate networked sonar, radar, cameras, media and more.

Sail and navigate with ease.

GARMIN SAILASSIST SAILING FEATURES

View lay lines, race start line guidance, enhanced wind rose, heading and course-over-ground lines, true wind data fields and tide/current/time slider, wind angle, set and drift, wind speed and more.

PRELOADED MAPPING

Experience unparalleled coverage and detail with preloaded BlueChart® g3 coastal charts and LakeVü g3 inland maps featuring integrated Garmin and Navionics® content and Auto Guidance technology1.

OPTIONAL CHARTS AND MAPS

Bring a fresh new look and feel to your chart plotter with optional Garmin Navionics+ or premium Garmin Navionics Vision+ cartography featuring integrated coastal/inland content, access to daily updates, Auto Guidance+ technology1 and more.

SAILING POLARS

Use the polar table to see key data, including how fast you should go at a certain wind angle and speed — so you know whether you need to adjust sail trim.

Make confident decisions using GNX™ Wind Instruments.

Show the sea what you’re made of with the quatix® 6X Solar smartwatch.

Manage your marine experience using the free ActiveCaptain® app

When paired with a compatible smartphone

Auto Guidance is for planning purposes only and does not replace safe navigation operations

Wi-Fi is a registered trademark of the Wi-Fi Alliance. The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Garmin is under license.

Physical & Performance

Display size 10.1" x 5.7"; 11.6" diagonal, 25.7 cm x 14.5 cm; 29.5 cm diagonal
Power input 10 to 32 Vdc
Display resolution    1920 x 1080 pixels
GPS Yes
Physical dimensions    11.9" x 8.5" x 3" (30.3 cm x 21.6 cm x 7.6 cm)
Built-in Receiver Hz

10 Hz

Water rating

IPX7

Weight

6.2 lbs (2.8 kg)

Mounting options    Bail, flat or flush (Garmin does not offer any hardware or accessories for a flat-mount installation. Professional tools and knowledge is required.)
Display type FHD, IPS



Maps & Navigation

Card slots

2 microSD cards

Routes 100



Features

Waypoints

5000

Sailing Features Yes
NMEA 0183 compatible Yes
Has built-in receiver Yes
USB ports Yes
TOPO Yes
SideVü Yes
Supports DSC (displays position data from DSC-capable VHF radio)     Yes
Touchscreen Yes
LakeVü g3 Ultra Yes
NMEA 2000® compatible Yes
ActiveCaptain compatible Yes
Typical current draw at 12 Vdc 1.3 A
NMEA 2000® ports 1
Tide tables Yes
GLONASS Yes
Track points 50,000
Panoptix™ all-seeing sonar Yes
Garmin Marine Network™ ports

2

LakeVü g3 Yes
Supports WAAS Yes
GSD™ Black Box sonar support Yes
Maximum current draw at 12 Vdc 6.0 A
Garmin SmartMode compatible (customizable monitor presets)     Yes
Built-in Auto Guidance Yes
Maximum power usage at 10 Vdc 45W
BlueChart® g3 Yes
Standard Mapping® Yes
LakeVü (inland) Yes
Displays sonar Yes
ANT+™ (Connectivity) Yes
GCV™ Black Box sonar support Yes
BNC external GPS antenna port Yes
NMEA 0183 input (Rx) ports 1
Spoken audio alerts Yes
BlueChart® g3 Vision® Yes
Garmin Wi-Fi® network (local connection) Yes
J1939 ports 1
Keyed assist buttons No
Garmin Quickdraw™ Contours Yes
BLUETOOTH® Yes
Supports AIS (tracks target ships position) Yes
8-pin transducer ports Yes
Video output ports

1 HDMI

Raster chart support Yes
NMEA 0183 input (Tx) ports 1
OneHelm™ support Yes
ClearVü Yes
Tracks 50 saved tracks
Wireless remote compatible Yes
Supports FUSION-Link™ compatible radios Yes
Galileo Yes
LiveScope Yes
12-pin transducer ports yes
BlueChart® (coastal) Yes
Traditional sonar (dual frequency/beam) Yes
GRID™ (Garmin Remote Input Device) compatible Yes
Video input ports

1 (BNC composite); 1 HDMI (HDCP compliant)

SKU GAR.010-02092-02
Model # 010-02092-02
UPC/EAN 0753759213480
Brand Garmin
Shipping Weight 6.4600kg
