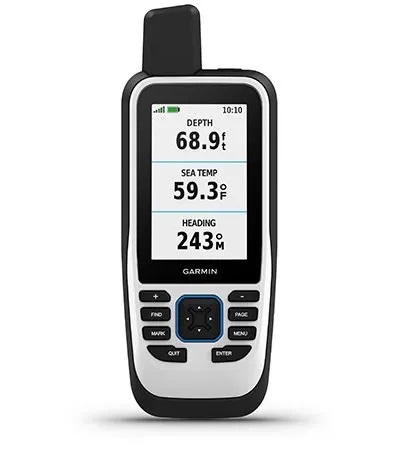

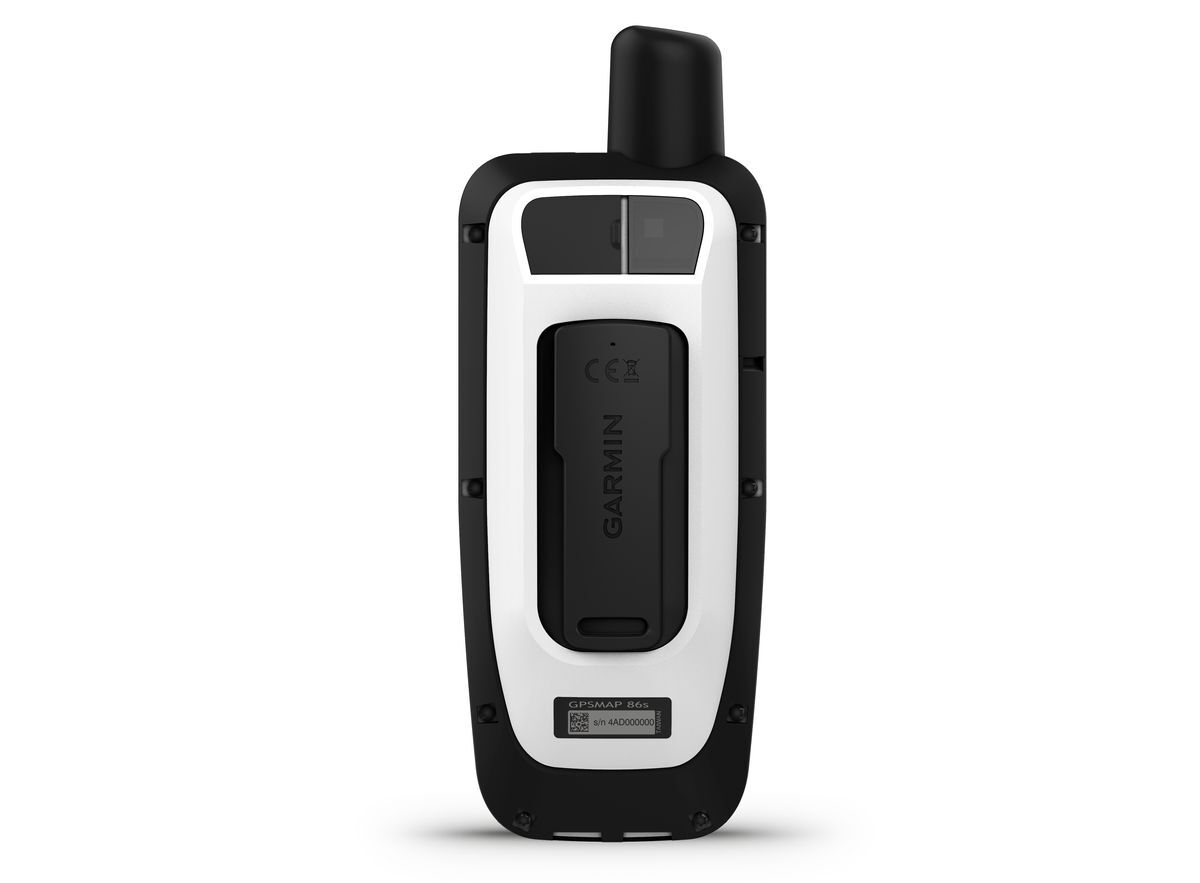

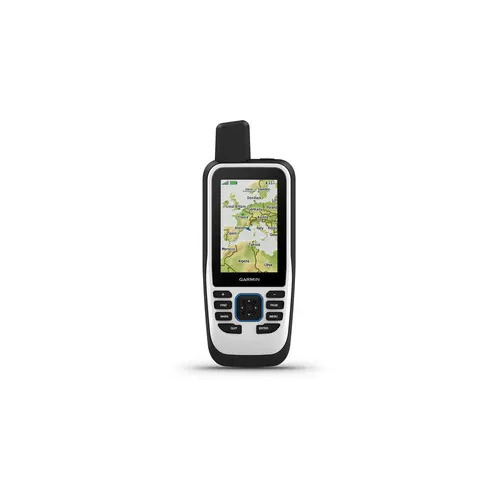

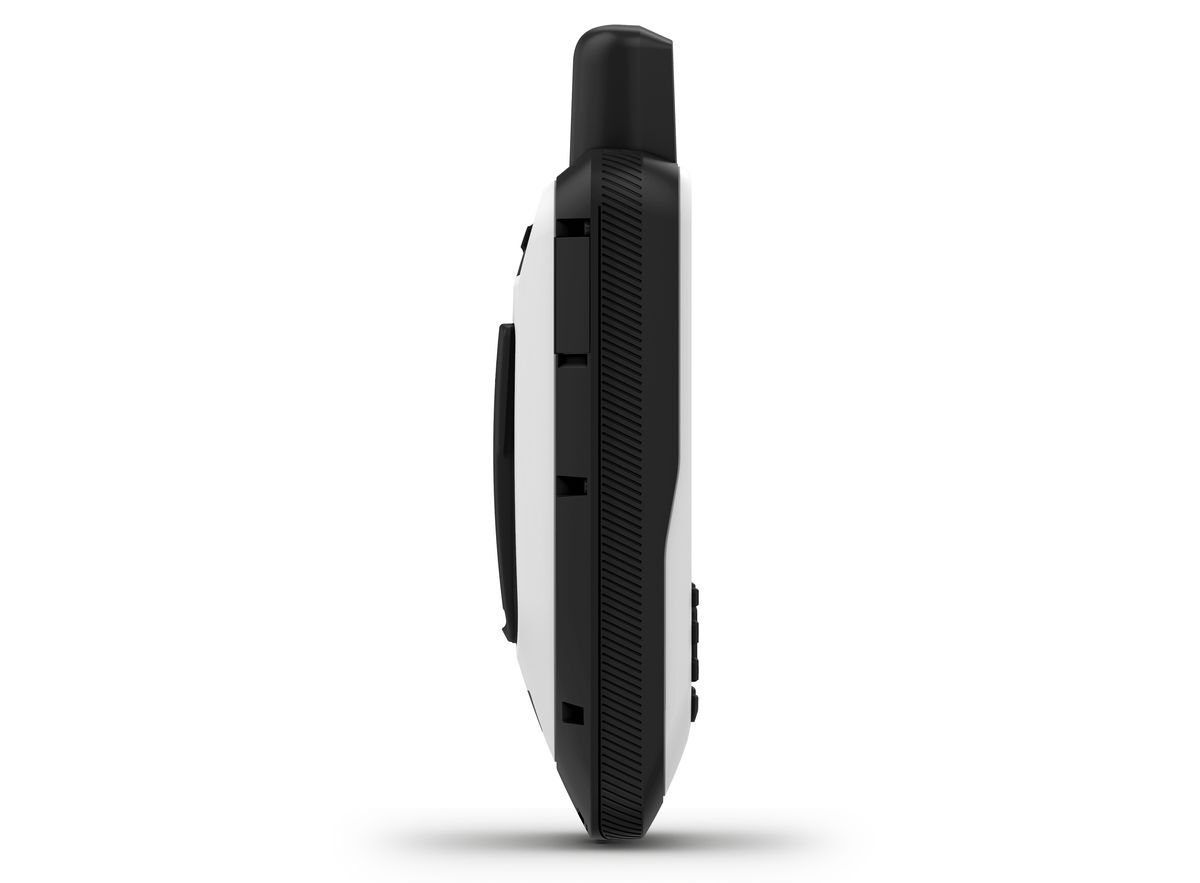

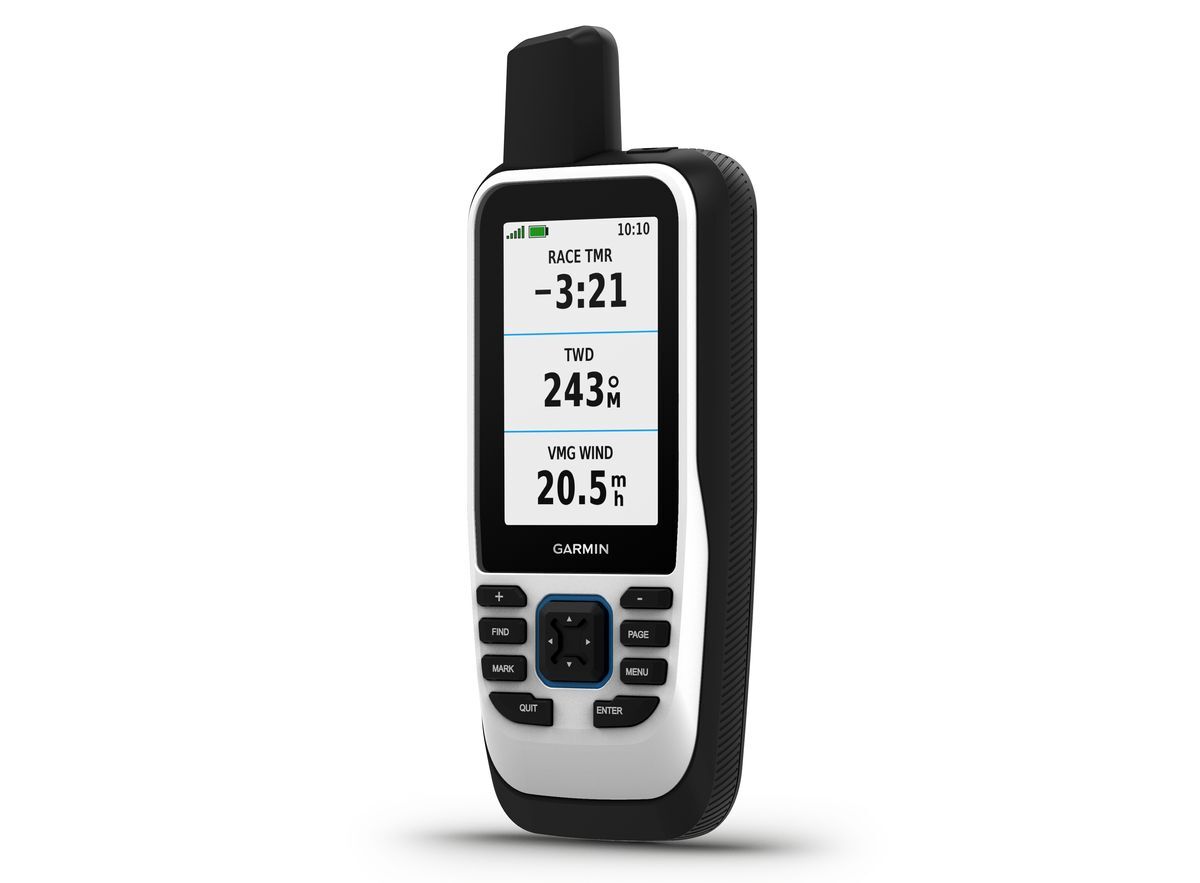

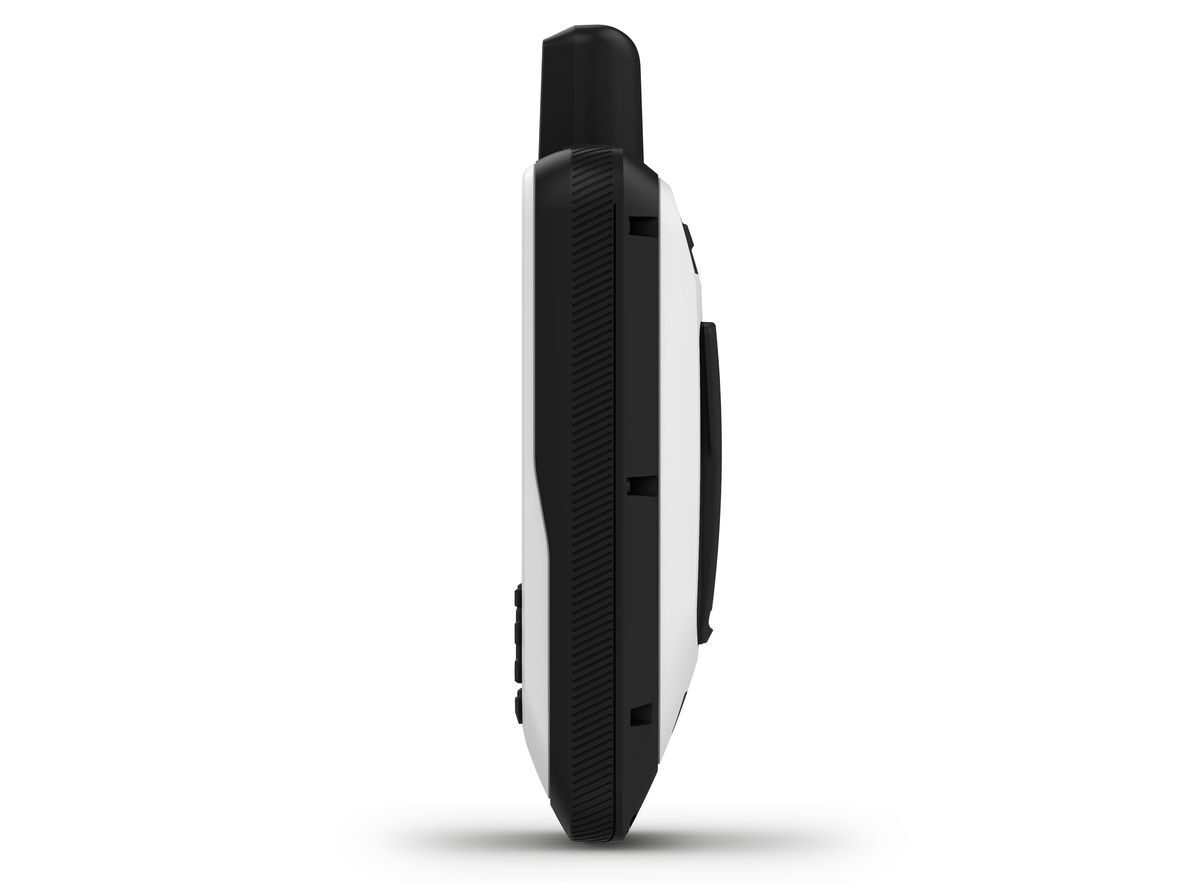

Garmin GPSMAP 86s
SKU: GAR.010-02235-01 | MPN: 010-02235-01
SAVE 4%!
Special OrderSpecial Order from Supplier
Non Returnable/Non Refundable
Set your course.
BOAT DATA

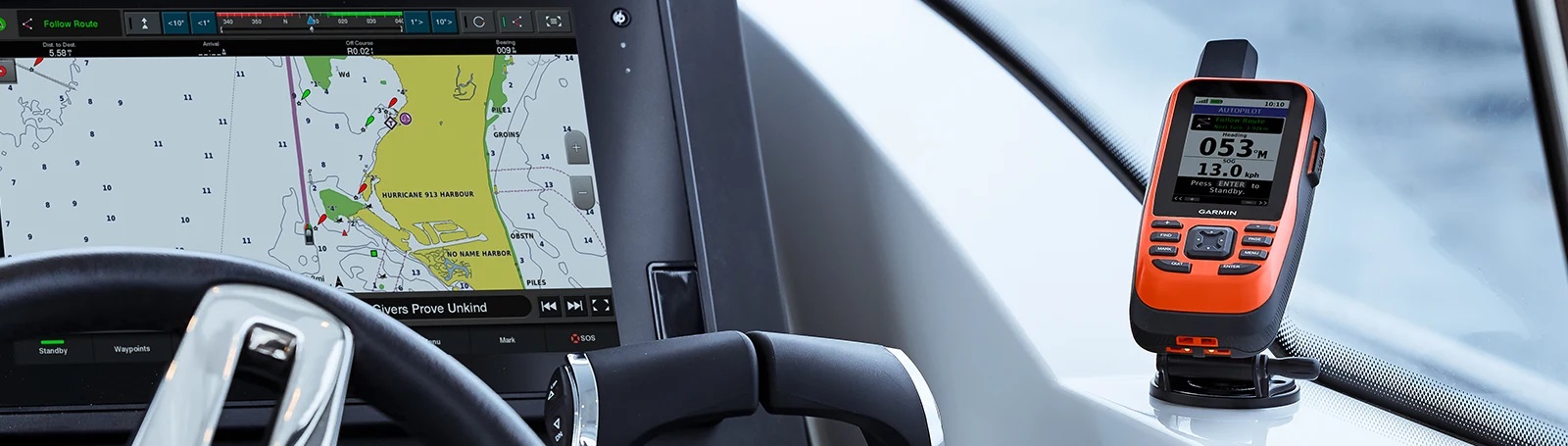

Sync with compatible Garmin chartplotters and instruments to see real-time boat data displayed right on your handheld.

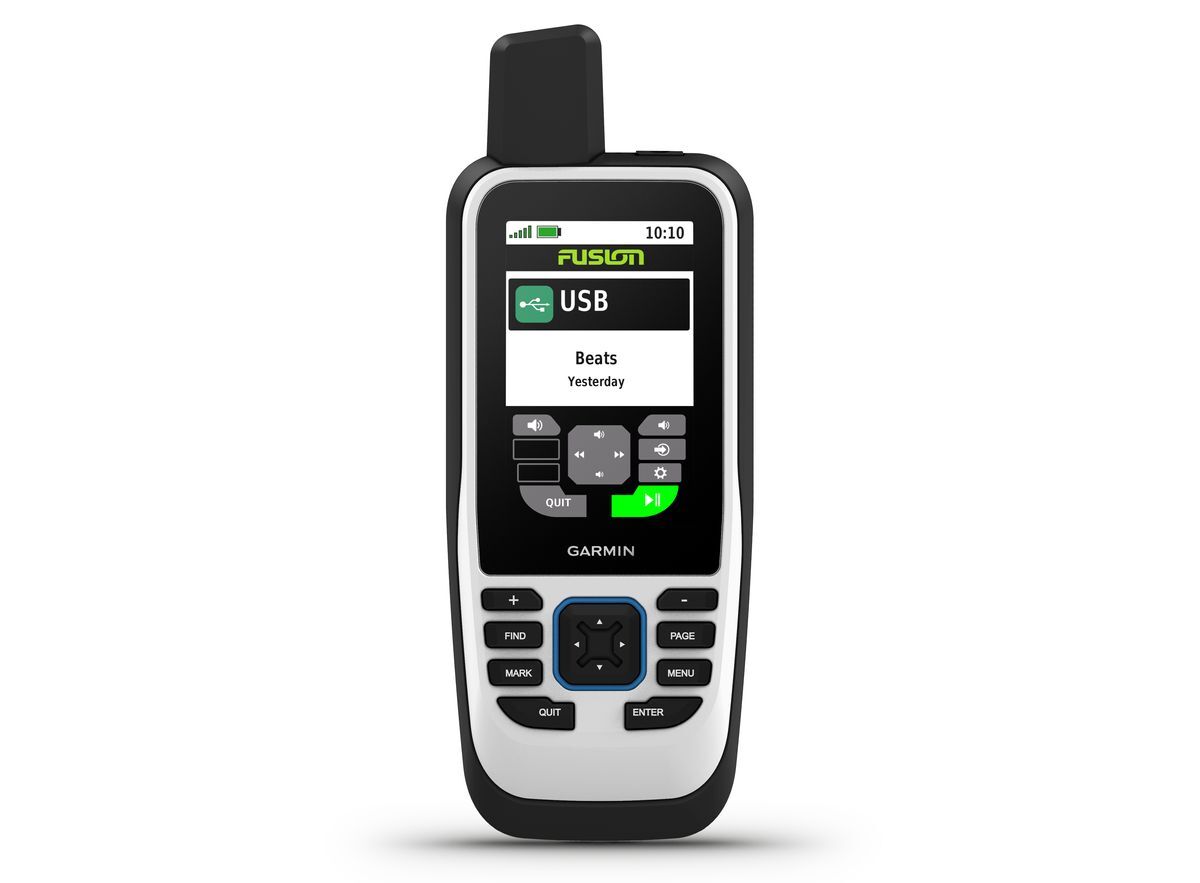

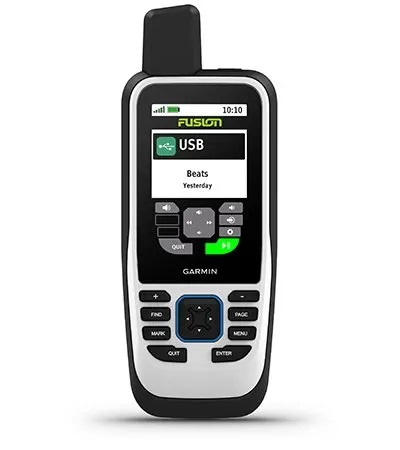

FUSION-LINK AUDIO
Get convenient remote operation of select onboard Fusion marine products.
ACCURATE TRACKING
When you’re underway, an adjustable GPS filter smooths speed and heading indications as you pass over swells for more accurate tracking.

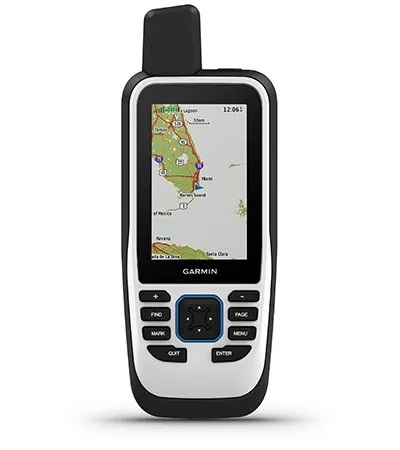

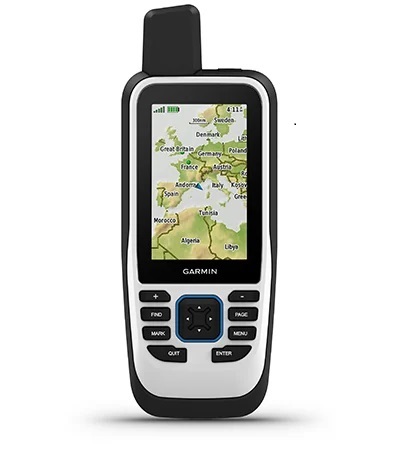

WORLDWIDE BASEMAP
See worldwide shaded relief coverage, including oceans, seas, major lakes and rivers. And see international and state political boundaries and time zone information.
BLUECHART COVERAGE
Add optional BlueChart g3 coastal charts give you leading-edge coverage, clarity and detail with integrated Garmin and Navionics data.

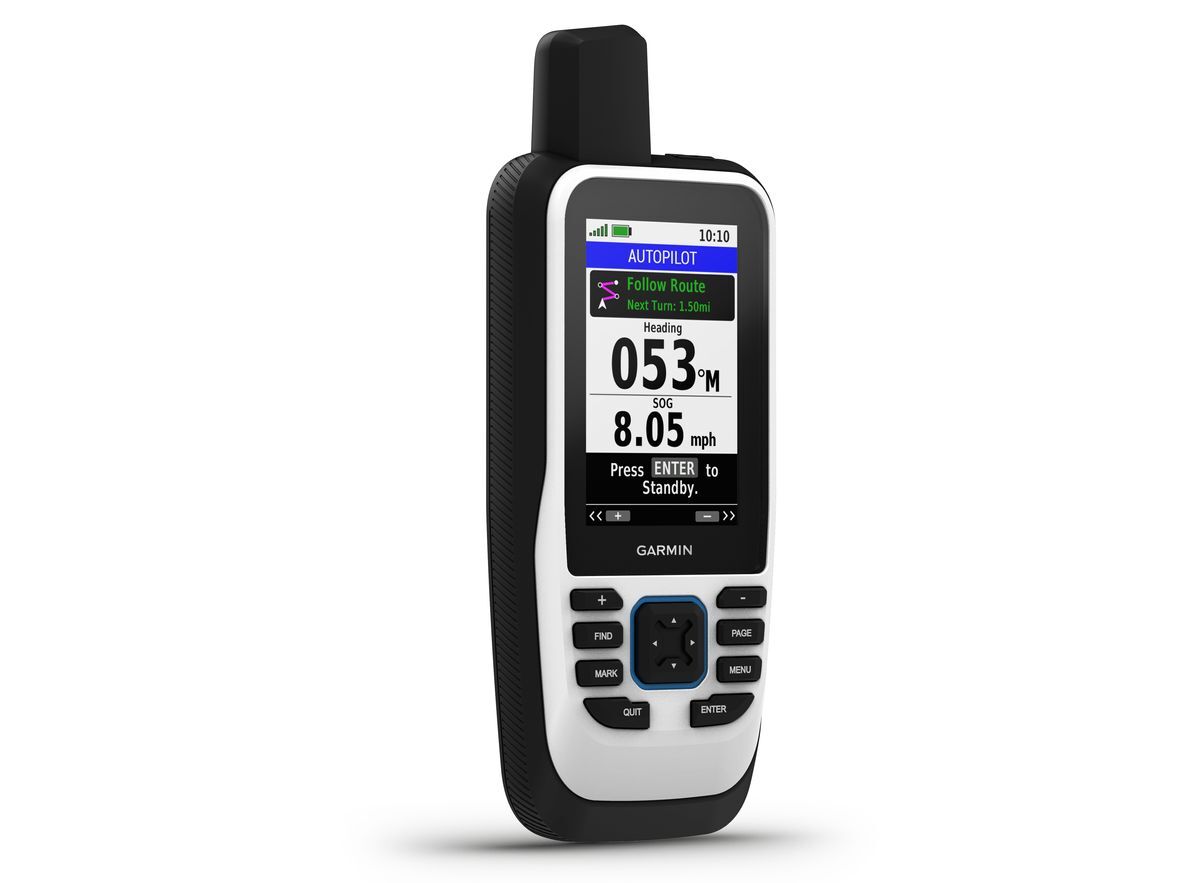

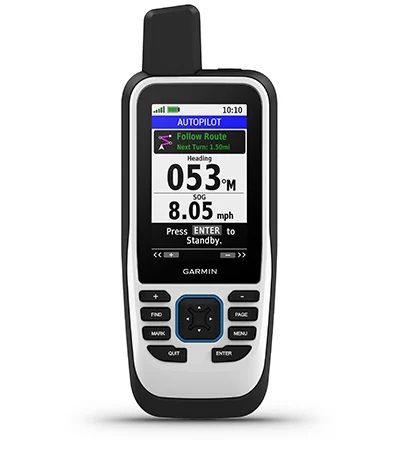

AUTOPILOT REMOTE
Even when you’re not at the helm, you can control your boat. Access the autopilot app to change heading, engage pattern steering and follow a GPS route.

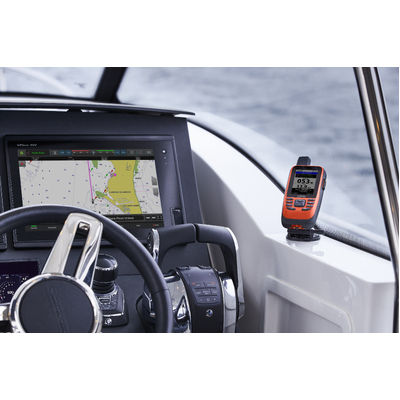

BACKUP NAVIGATION
Whether you’re out for a day of fishing, sailing or cruising, gain peace of mind that comes from having a backup navigator.
ABC SENSORS
Navigate anywhere with ABC sensors, including an altimeter for elevation data, barometer to monitor weather and 3-axis electronic compass.
Stay connected.

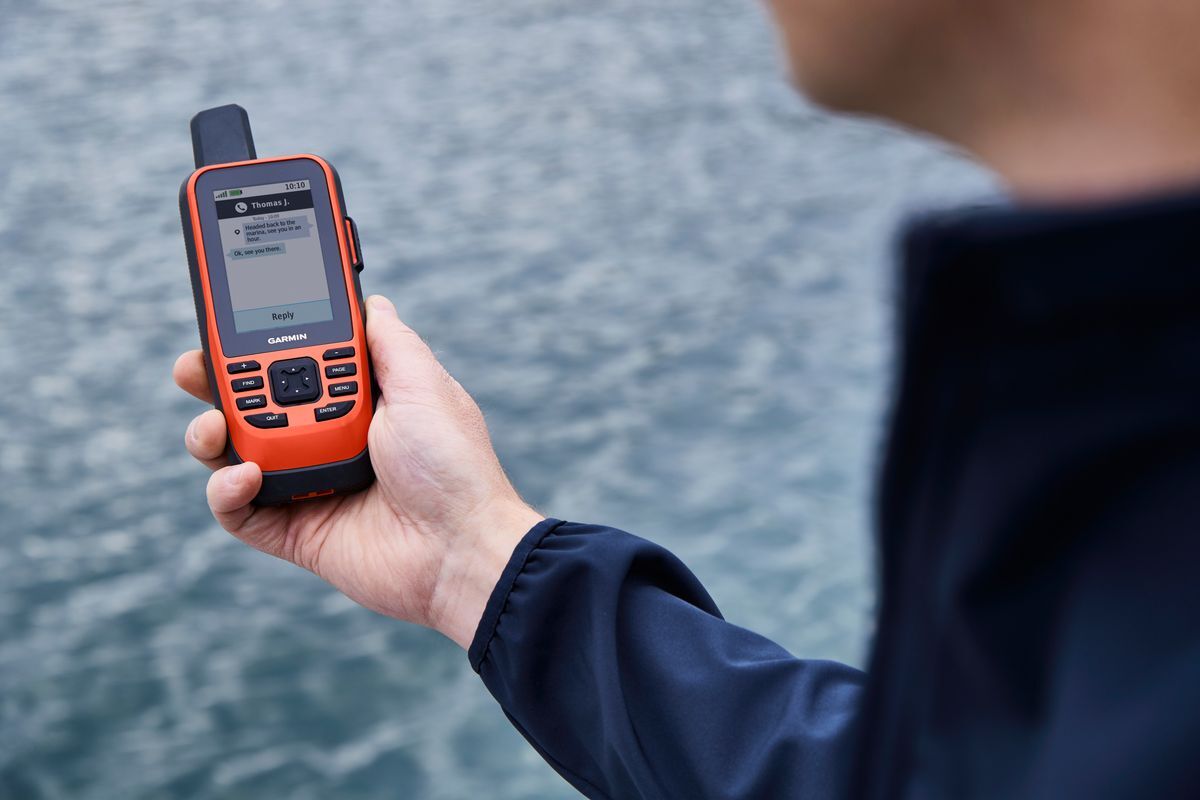

SMART NOTIFICATIONS
Get smart notifications right on your GPSMAP 86s handheld when you pair it with your compatible smartphone.
GARMIN EXPLORE™ APP
Sync GPSMAP 86s with Garmin Explore for cloud management of your favourite waypoints, tracks and routes.
WIRELESS CONNECTIONS
GPSMAP 86s offers Wi-Fi® connectivity, ANT+® technology and Bluetooth® wireless technology for easy wireless updates and connections.
LED FLASHLIGHT
The GPSMAP 86s helps you keep gear to a minimum with a built-in LED flashlight that can be used as a beacon to signal for help.
BATTERY LIFE
The internal, rechargeable lithium battery provides up to 40 hours of battery life in standard mode and up to 200 hours in expedition mode1.
1 Battery life may vary depending on usage; the battery is user-replaceable.
Wi-Fi is a registered trademark of the Wi-Fi Alliance. The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Garmin is under license.
Physical & Performance
| Display Size | 1.5"W x 2.5"H (3.8 x 6.3 cm); 3" diag (7.6 cm) |
| Battery type | rechargeable, internal lithium-ion |
| Display Resolution | 240 x 400 pixels |
| GPS | Yes |
| Dimension | 2.65" x 7" x 1.7" (6.75w x 17.8h x 4.4d cm) |
| Interface | high-speed micro USB and NMEA 0183 compatible |
| Waterproof | IPX7 |
| Weight |
9.59 oz (272 g) |
| Display Type | transflective, 65K colour TFT |
| Battery life |
up to 35 hours at 10-minute tracking; up to 200 hours at 30-minute tracking (power save mode) |
| High-sensitivity receiver | Yes |
Maps & Navigation
| External memory storage | Yes (32 GB max microSD™ card, not included) |
| Waypoints/favorites/locations | 10000 |
| Basemap | Yes |
| Navigation Routes | 250, 250 points per route; 50 points auto-routing |
| Navigation Track Log | 20,000 points, 250 saved GPS tracks, 300 saved fit activities |
| Memory/History | 16 GB (userspace varies based on included mapping) |
| Ability to add maps | Yes |
Features
| Send route selection to MapShare during the trip | No |
| QZSS | No |
| BirdsEye | Yes (direct to device) |
| Send waypoints to MapShare during the trip | No |
| Active Weather | Yes |
| Contacts | No |
| Rinex logging | Yes |
| inReach remote widget | No |
| Pairs with Garmin Connect™ Mobile | Yes |
| Touchscreen | No |
| LED beacon flashlight | Yes |
| inReach remote compatible | Yes |
| Sun and moon information | Yes |
| Virtual keyboard for custom messaging | No |
| MapShare compatible with tracking | No |
| IRNSS | No |
| Geocaching-friendly | Yes (Geocache Live) |
| Send and receive text messages to another inReach device | No |
| Automatic routing (turn by turn routing on roads) for motorized vehicles | No |
| GLONASS | Yes |
| Send and receive text messages to SMS and email | No |
| Frequency band | No |
| Displays national, state and local parks, forests, and wilderness areas | Yes (downloadable from Garmin Express™) |
| Smart notifications on handheld | Yes |
| Connect IQ™ (downloadable watch faces, data fields, widgets and apps) | Yes |
| Custom maps compatible | yes (500 custom map tiles) |
| Compatible with Earthmate | No |
| Dog tracking | No |
| Connections Wireless Connectivity |
Yes (Wi-Fi®, BLUETOOTH®, ANT+®) |
| LiveTrack | Yes |
| Exchange locations with another inReach device | No |
| Vibration alert | No |
| Map segments | 15000 |
| Point-to-point navigation | Yes |
| Picture viewer | Yes |
| Barometric altimeter | Yes |
| BAS | No |
| Weather | No |
| XERO™ Locations | Yes |
| Interactive SOS | No |
| VOX (voice activation) | No |
| Ballistics calculator | No |
| GPS compass (while moving) | Yes |
| Multi-band frequency support | No |
| Includes searchable points of interest (parks, campgrounds, scenic lookouts and picnic sites) | Yes (downloadable from Garmin Express™) |
| Hunt/fish calendar | Yes |

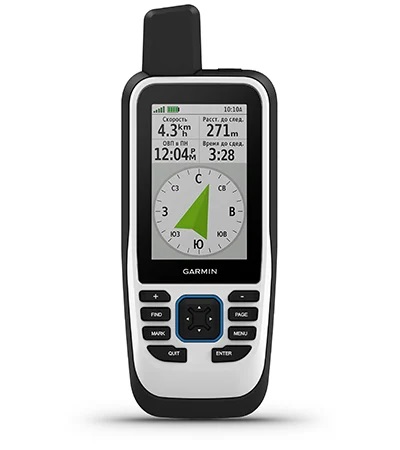

| Compass | Yes (tilt-compensated 3-axis) |
| Compatible with Garmin Explore™ app | Yes |
| Tracks | 250 |
| Galileo | Yes |
| Garmin Pilot™ app compatible | No |
| Garmin Explore website compatible | Yes |
| Area calculation | Yes |
| MIL-STD-810 | Yes (thermal, shock, water) |
| Location reporting (send and receive GPS positions) | No |
| VIRB® Remote | Yes |
| SKU | GAR.010-02235-01 |
| Model # | 010-02235-01 |
| UPC/EAN | 0753759228835 |
| Brand | Garmin |
| Shipping Weight | 0.5100kg |
