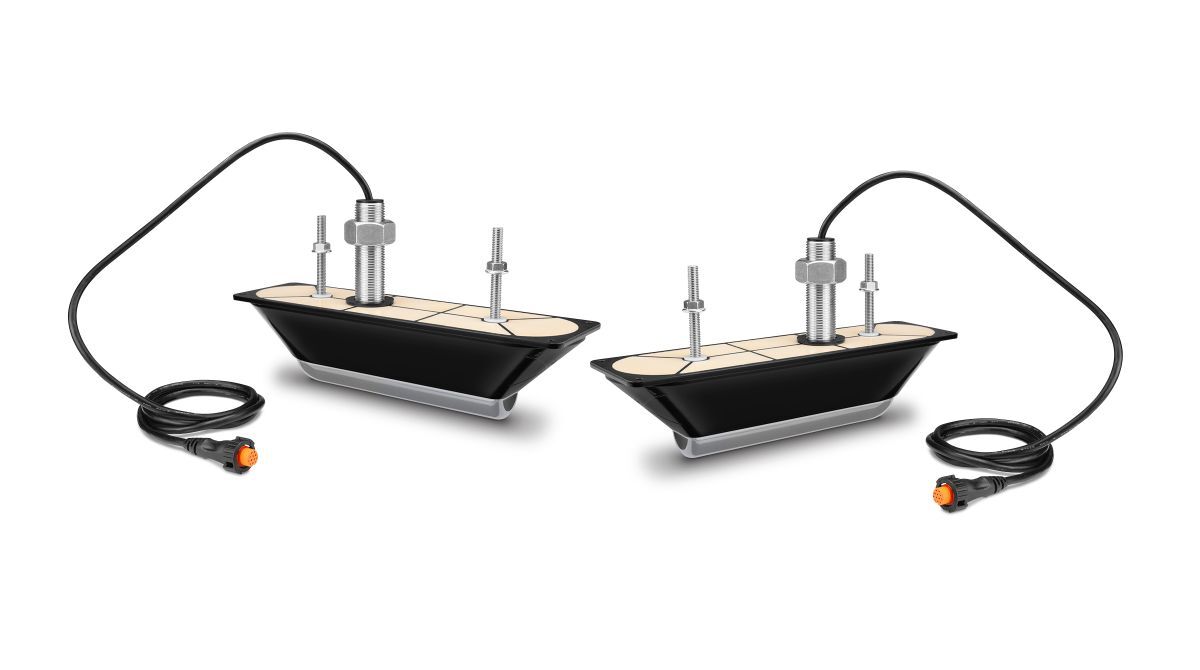

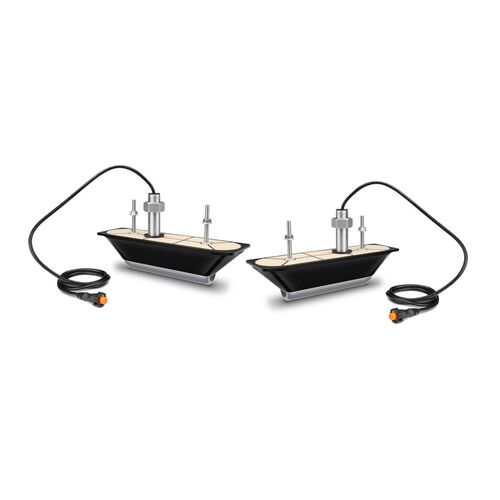

Perfect for the shallow water fisherman who wants CHIRP ClearVü and CHIRP SideVü scanning sonar with stainless steel stems, this pair of 12-pin thru-hull transducers consistently displays the clear definition of objects, structure and fish below and to each side of the boat.

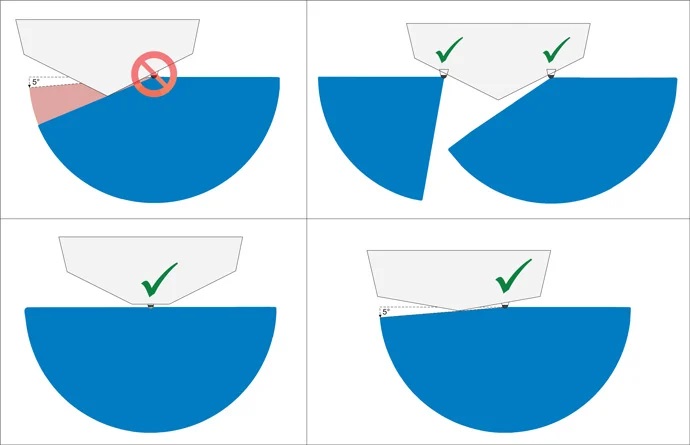

These transducers with built-in fast response temperature sensors have a power rating of 500 W per element (1,500 W total); a depth of 750 ft (ClearVü) and 500 ft left and right (SideVü); an operating frequency of CHIRP 455/800 kHz¹; for hull deadrises from 5 degrees to 25 degrees. Pair them with your GCV™ 10 scanning sonar module.

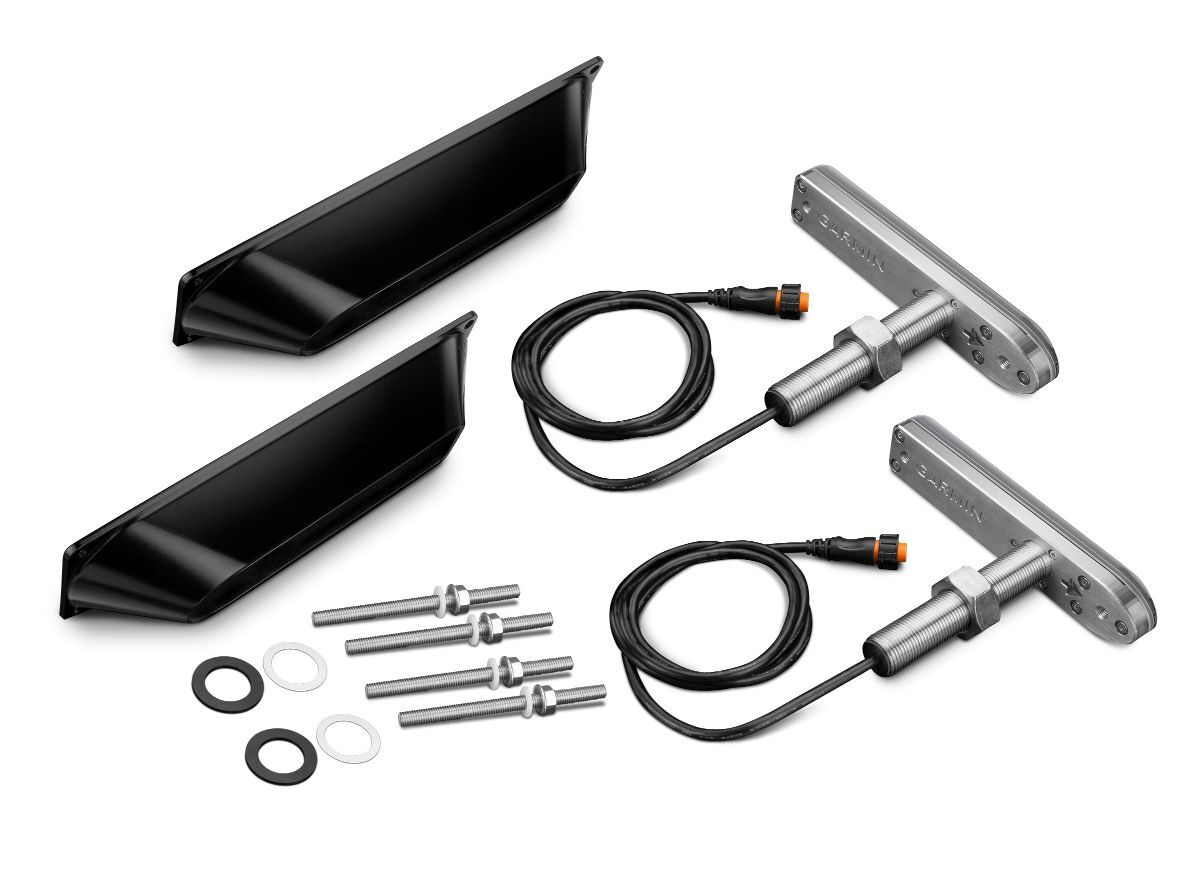

Includes 12-pin port and starboard transducers with stainless steel stems, isolation bushings, fairing blocks, Y-cable, mounting hardware and installation instructions. Follow the instructions carefully to avoid damaging your boat.

¹CHIRP frequency bandwidth is 445 to 475 kHz and 805 to 840 kHz.

Features

Transducer cable length 5 ft. + 30 ft. y-extension cable
Transducer power ClearVü/SideVü 500 W
Transducer frequency ClearVü/SideVü CHIRP 455 kHz (425-485 kHz) & 800 kHz (790-850 kHz)
Transducer maximum depth ClearVü: 750 ft.; SideVü: 500 ft.
Transducer number of pins 12-pin
Transducer beamwidth ClearVü: 1.4°x53° @ 455 kHz and 0.8°x30° @ 800 kHz
SideVü: 1.1°x53° @ 455 kHZ and 0.7°x30° @ 800 kHz
Transducer depth/speed/temperature Depth and Temperature
Transducer supported deadrise/transom angles      Up to 25° deadrise
SKU GAR.010-01961-11
Model # 010-01961-11
UPC/EAN 0753759152819
Brand Garmin
Shipping Weight 4.5000kg
