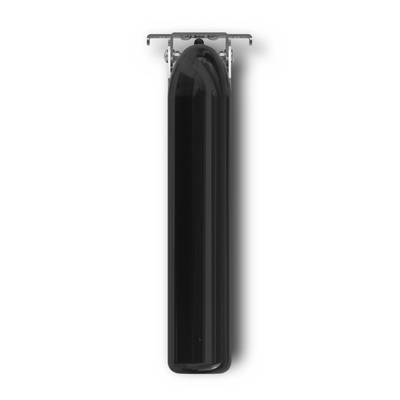

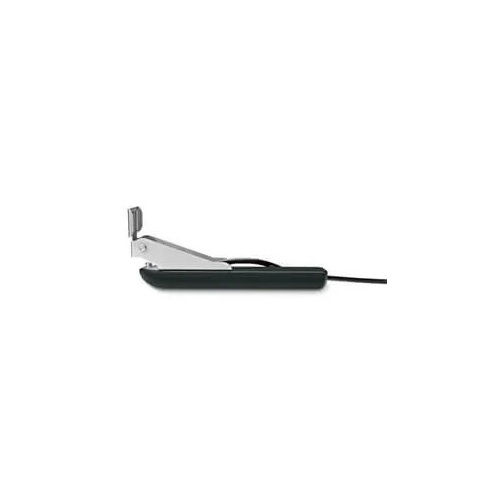

Perfect for the shallow water fisherman who wants CHIRP ClearVü and CHIRP SideVü scanning sonar, this transom mount transducer consistently displays the clear definition of objects, structures and fish below and to each side of the boat.

The 20 ft transducer cable with a built-in fast-response temperature sensor has a power rating of 500 W per element (1,500 W total); a depth of 750 ft (ClearVü) and 500 ft left and right (SideVü); an operating frequency of 455/800 kHz; and a 0 to 70 transom angle. Pair it with your GCV™ 10 black box sonar.

The transducer comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.

Features

Transducer cable length 20 ft.
Transducer power ClearVü/SideVü 500 W
Transducer frequency ClearVü/SideVü CHIRP 455 kHz (425-485 kHz) & 800 kHz (790-850 kHz)
Transducer maximum depth ClearVü: 750 ft.; SideVü: 500 ft.
Transducer number of pins 12-pin
Transducer beamwidth ClearVü: 1.4°x53° @ 455 kHz and 0.8°x30° @ 800 kHz
SideVü: 1.1°x53° @ 455 kHZ and 0.7°x30° @ 800 kHz
Transducer depth/speed/temperature Depth and Temperature
Transducer supported deadrise/transom angles    0°-70° degree transom
SKU GAR.010-01961-00
Model # 010-01961-00
UPC/EAN 0753759152796
Brand Garmin
Shipping Weight 0.9000kg
