ULTRA HIGH-DEFINITION CLEARVÜ SCANNING SONAR

Get brilliant image clarity of structure and fish below your boat at greater depths than other high-frequency scanning sonars. It puts more power on targets via a downward-facing element.

ULTRA HIGH-DEFINITION SIDEVÜ SCANNING SONAR

See everything the first time with stunningly clear images of structure and fish off to the sides of your boat. SideVü sonar now has 20% greater range at 1,000 kHz, so you can see even farther than before.

HIGH WIDE CHIRP TRADITIONAL SONAR

Experience remarkably clear target separation and definition up to 244 m (800 feet) below your boat.

MULTIPLE SCANNING SONAR FREQUENCIES

Use the perfect frequency for the waters you’re fishing. This transducer delivers 455 kHz, 800 kHz and 1,000 kHz for top performances at all depths.

VIVID COLOUR PALETTES

High-contrast vivid scanning sonar colour palettes make it easier than ever to distinguish targets and structure.

MOUNTING OPTIONS

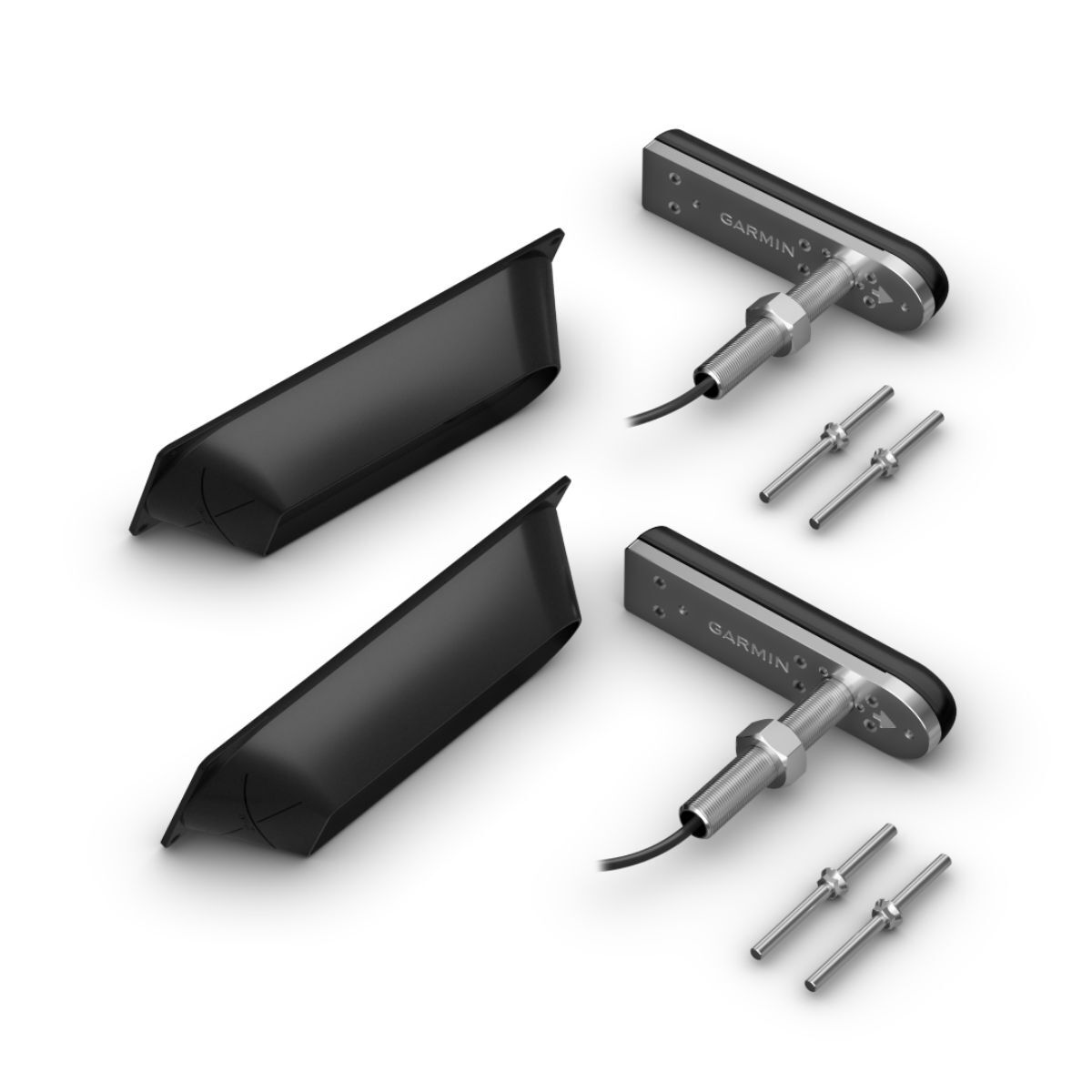

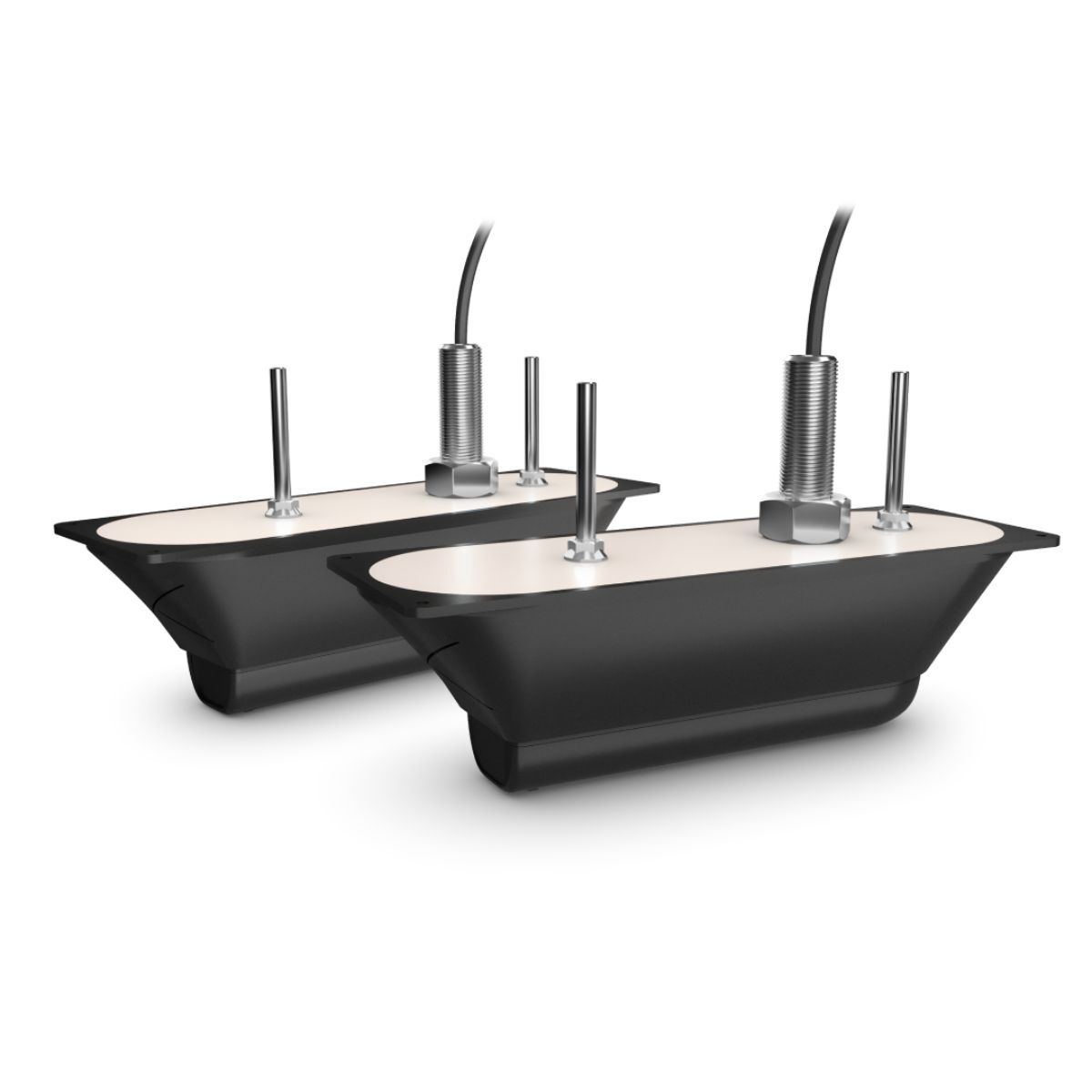

Everyone’s setup is different. That’s why we’ve included transom, trolling motor and thru-hull mounting hardware.

FEATURES

  • See everything below and around your boat with Ultra High-Definition scanning sonar.
  • High wide CHIRP traditional sonar delivers target separation like no other.
  • Multiple sonar frequencies have you covered — no matter what depth you’re fishing.
  • See targets and structure in bright, vivid colour.
  • Mount this transducer your way — transom, trolling motor or thru-hull.

Cable length: 7.62m

Power: Traditional 350 W; ClearVü/SideVü 500 W

Frequency: Traditional High-wide CHIRP (150-240 kHz); ClearVü/SideVü 455 kHz (425-485 kHz), 800 kHz (790-850 kHz), 1000 kHz (940-1100)

Maximum depth: Traditional: 244m freshwater; ClearVü: 122m; SideVü: 152m

Number of pins: 12

Beamwidth: Traditional CHIRP: 24-16; ClearVü 0.52 x 52 @ 1000kHz, 0.64 x 35 @ 800kHz, 1.1 x 52 @ 455kHz; SideVü 0.52 x 52 @ 1000kHz, 0.64 x 35 @ 800kHz, 1.1 x 52 @ 455kHz

Dimensions (without mount): 218.5mm x 51.8mm x 27.7mm

SKU GAR.010-02732-11
Model # 010-02732-11
UPC/EAN 753759294236
Brand Garmin
Shipping Weight 6.0000kg
Shipping Width 0.218m
Shipping Height 0.027m
Shipping Length 0.051m
Shipping Cubic 0.000300000m3
Unit Of Measure ea
