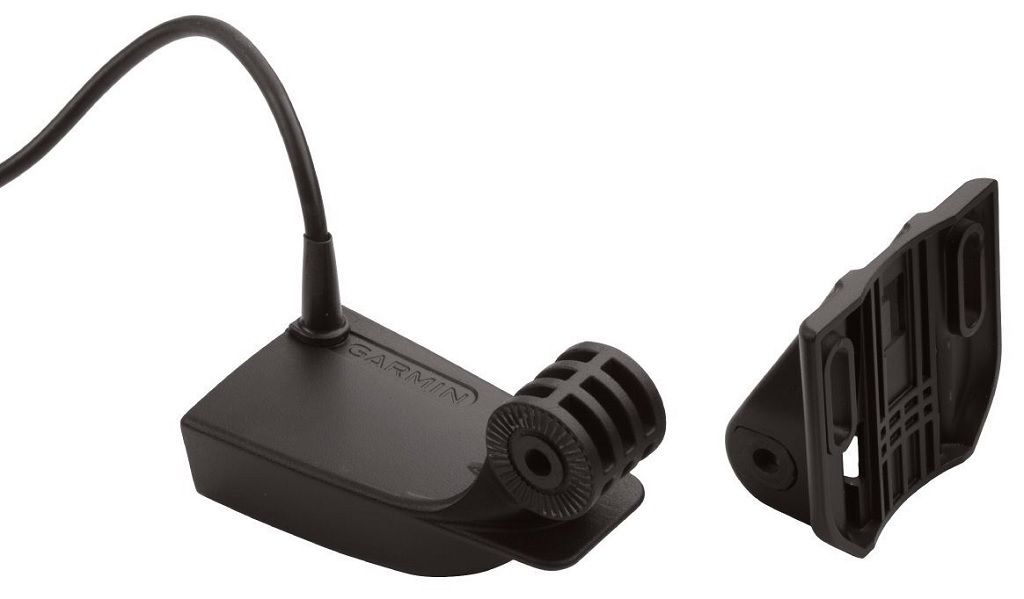

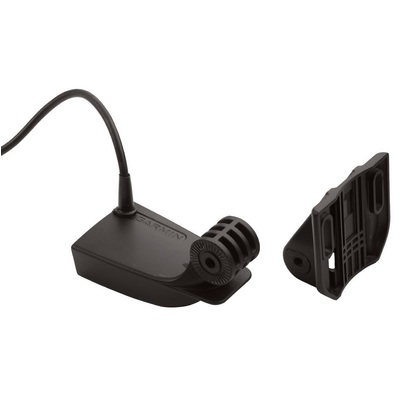

GT8HW-TM transducer is perfect for shallow water fishermen who want clear bottom definition under the boat as well as crisp, clear and wide fish arches with excellent target separation. The wider beam width — up to 24 degree beam angle — provides a larger coverage area in the water.

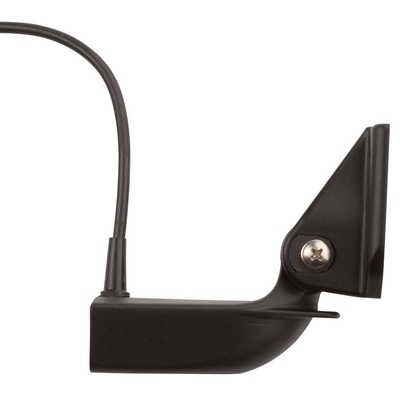

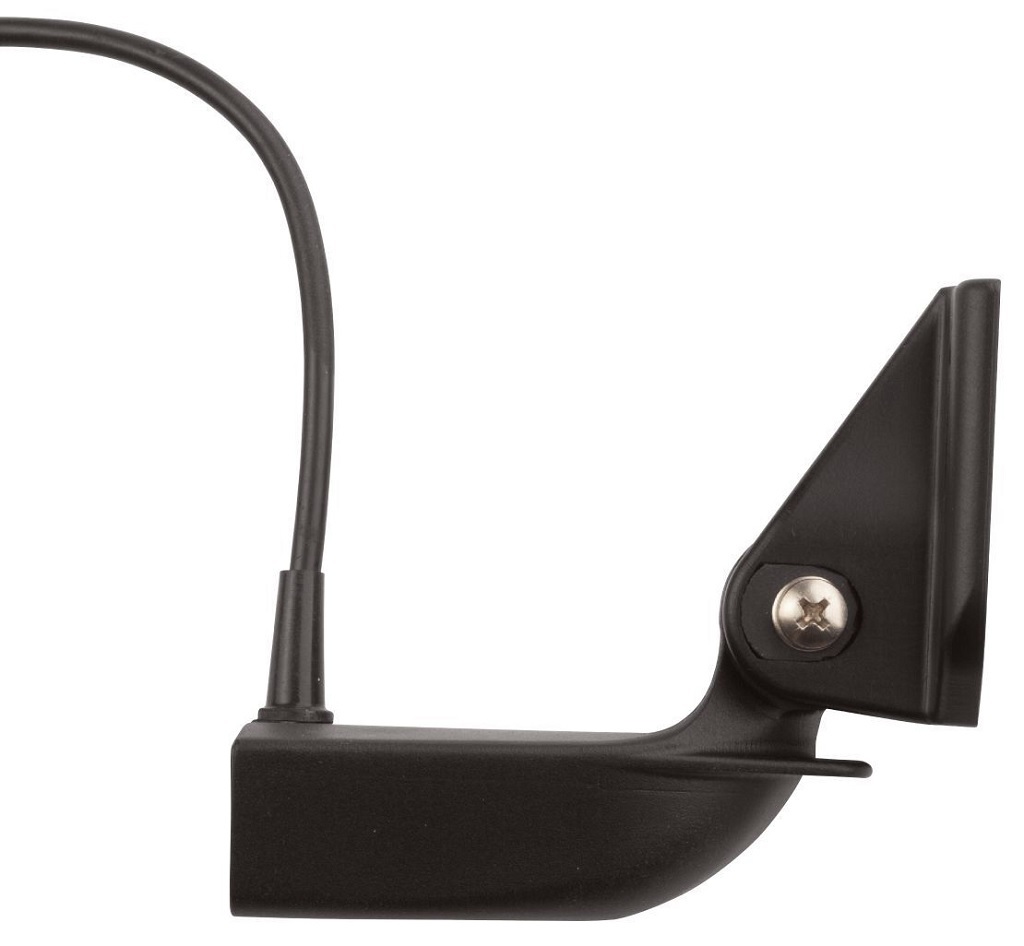

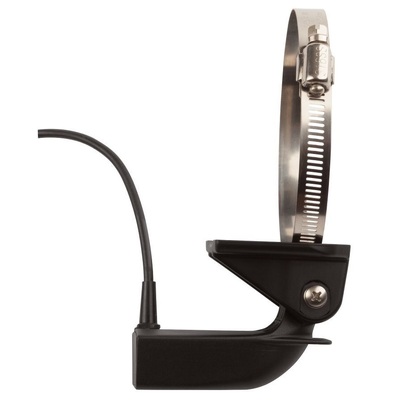

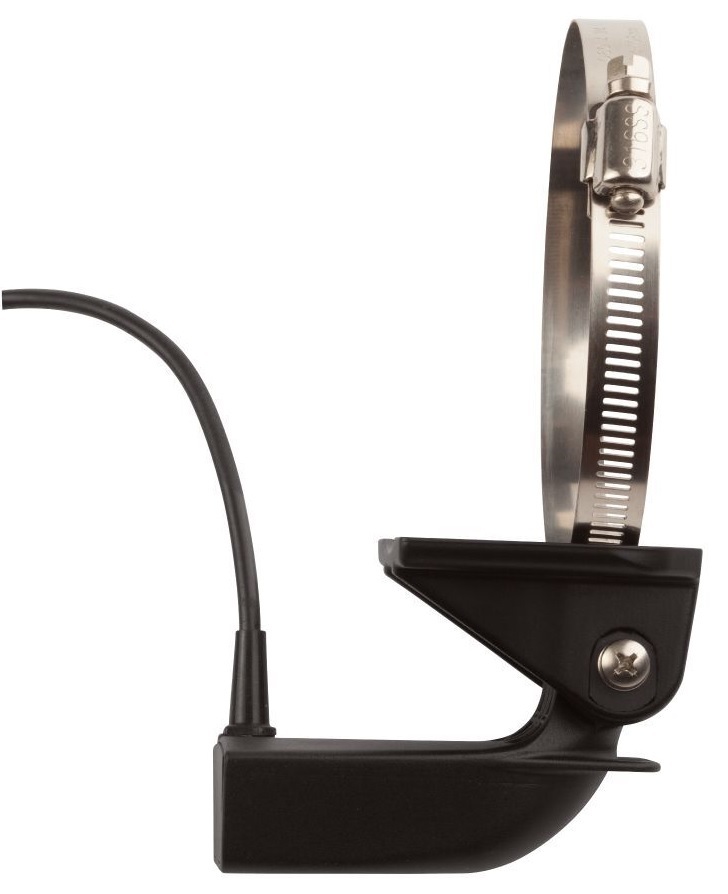

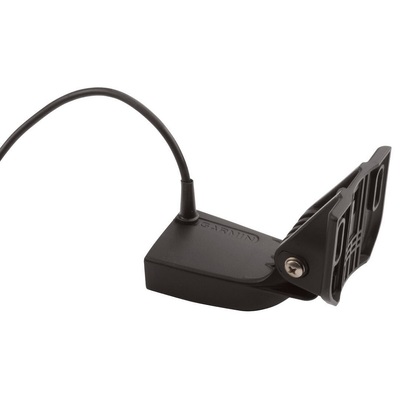

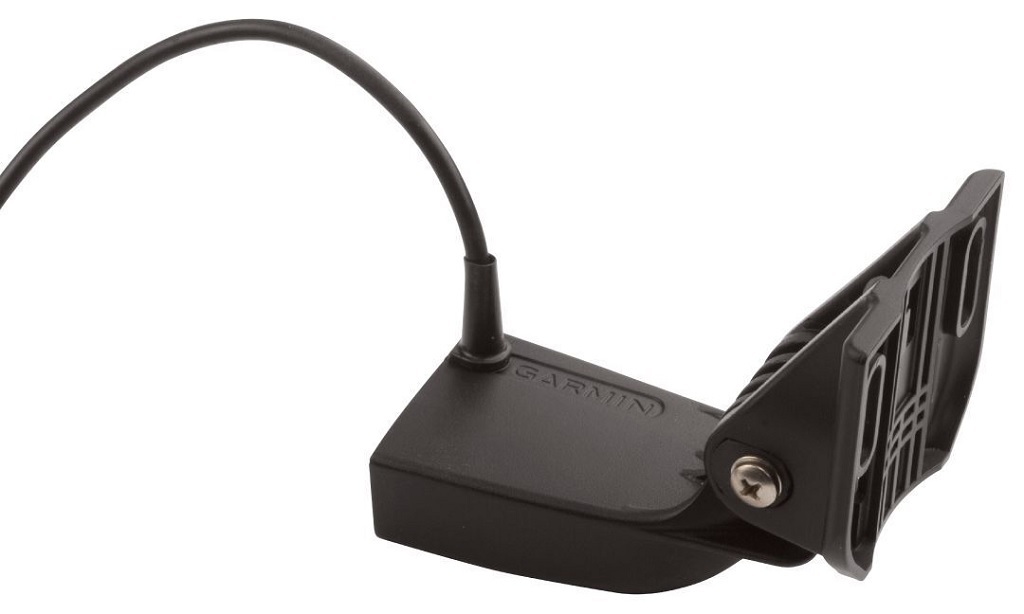

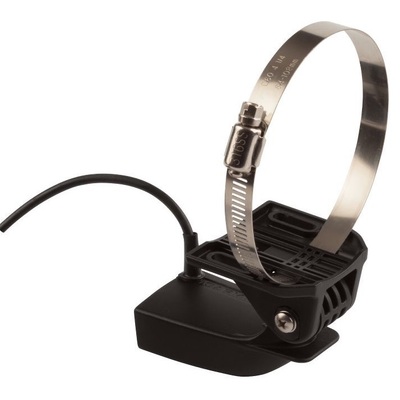

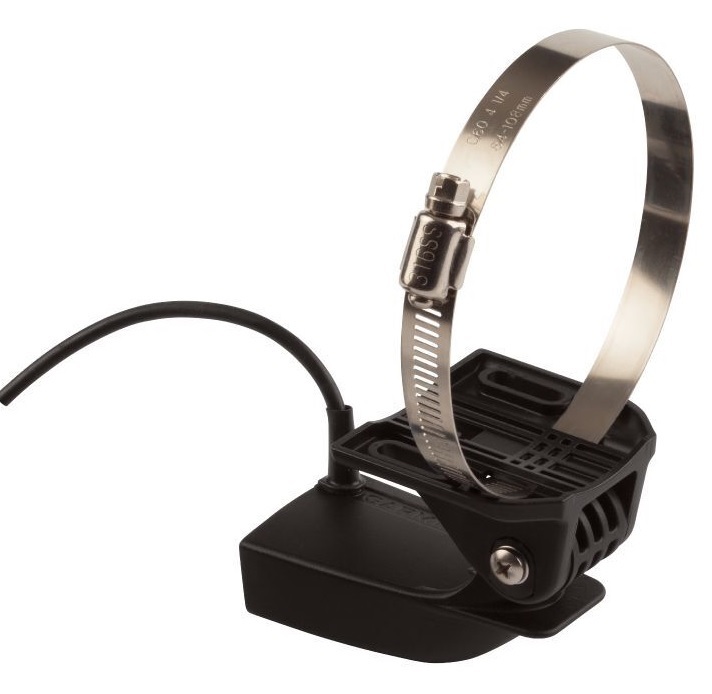

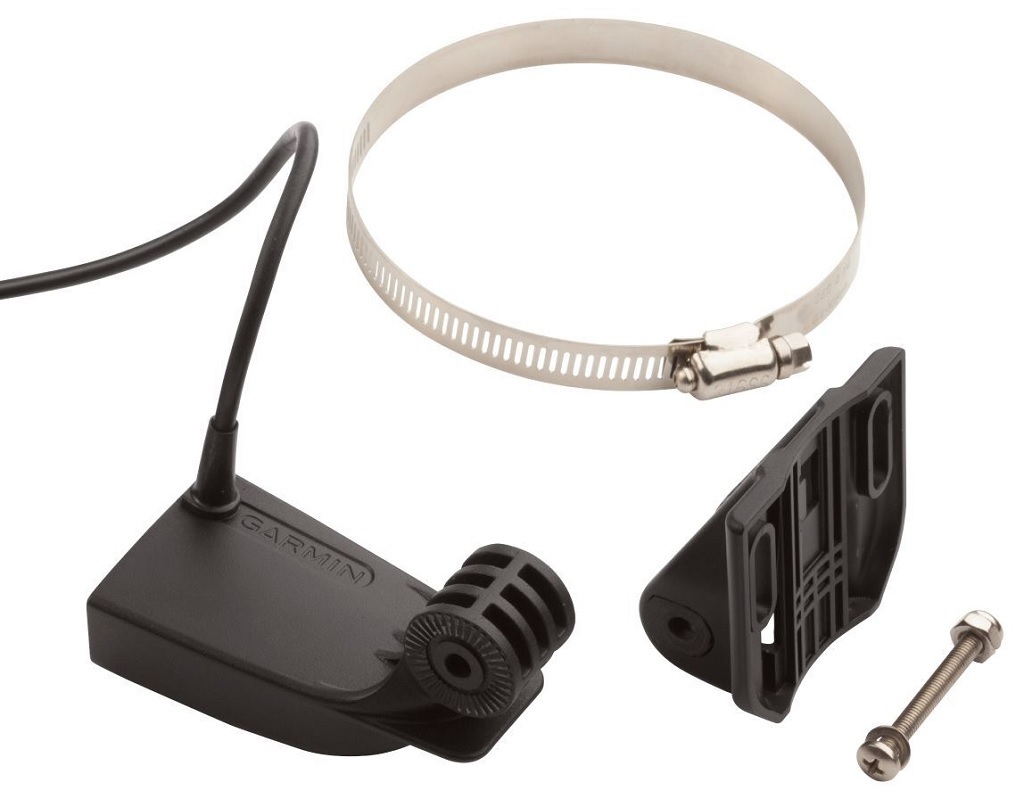

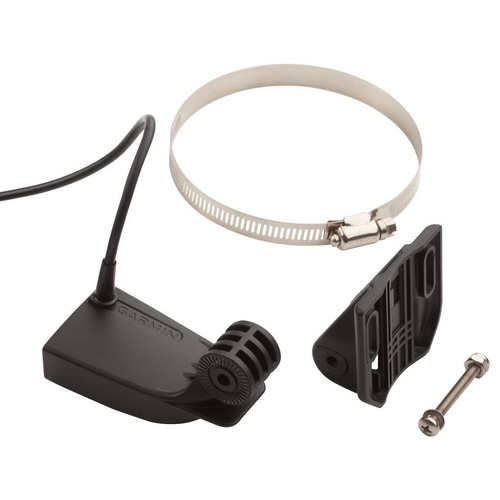

The 8-pin transducer features high wide band CHIRP traditional sonar (145-230 kHz) and has a power rating of 250 W. It can be mounted on the transom or a trolling motor. Follow the included installation instructions carefully to avoid damaging your boat.

Features

Transducer cable length 20 ft.
Transducer power 250 W
Transducer frequency CHIRP High Wide (145-230 kHz)
Transducer maximum depth 800 ft. freshwater
Transducer number of pins 8-pin
Transducer beamwidth 24°-16°
Transducer depth/speed/temperature Depth and Temperature
Transducer supported deadrise/transom angles      0°-70° degree transom
SKU GAR.010-12401-00
Model # 010-12401-00
UPC/EAN 0753759148553
Brand Garmin
Shipping Weight 0.5100kg
