Keep tabs on your boat.

TRACK

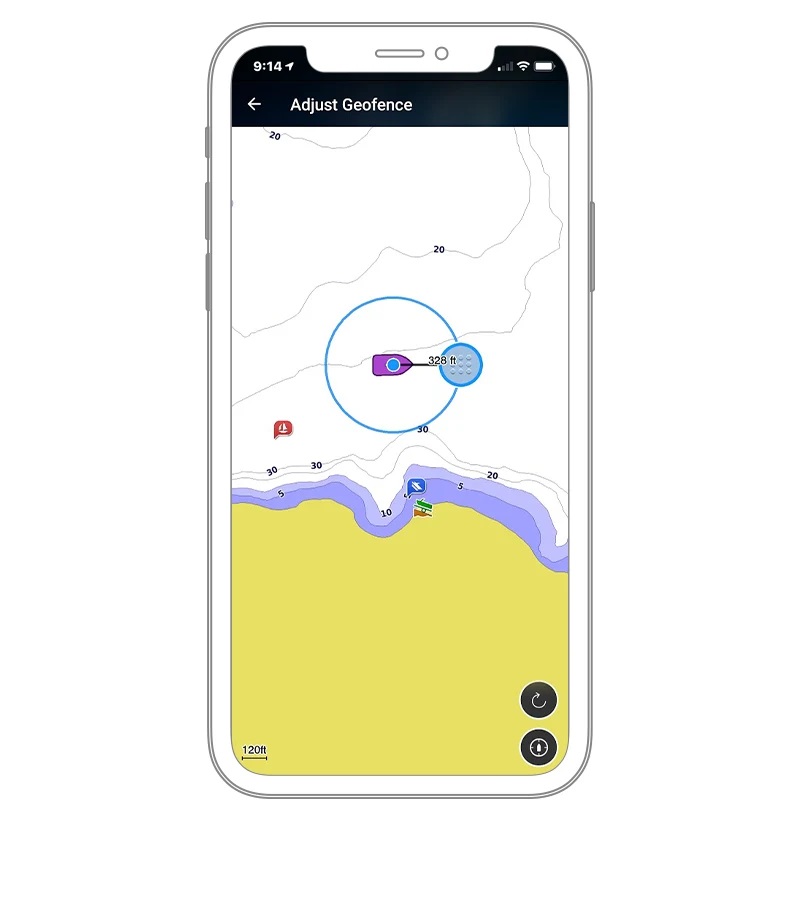

Be the first to know if a security sensor has been triggered, or if your boat has been moved. The internal GPS sensor updates every 15 minutes and will send text alerts1 if your boat leaves the geo-fenced area.

MONITOR

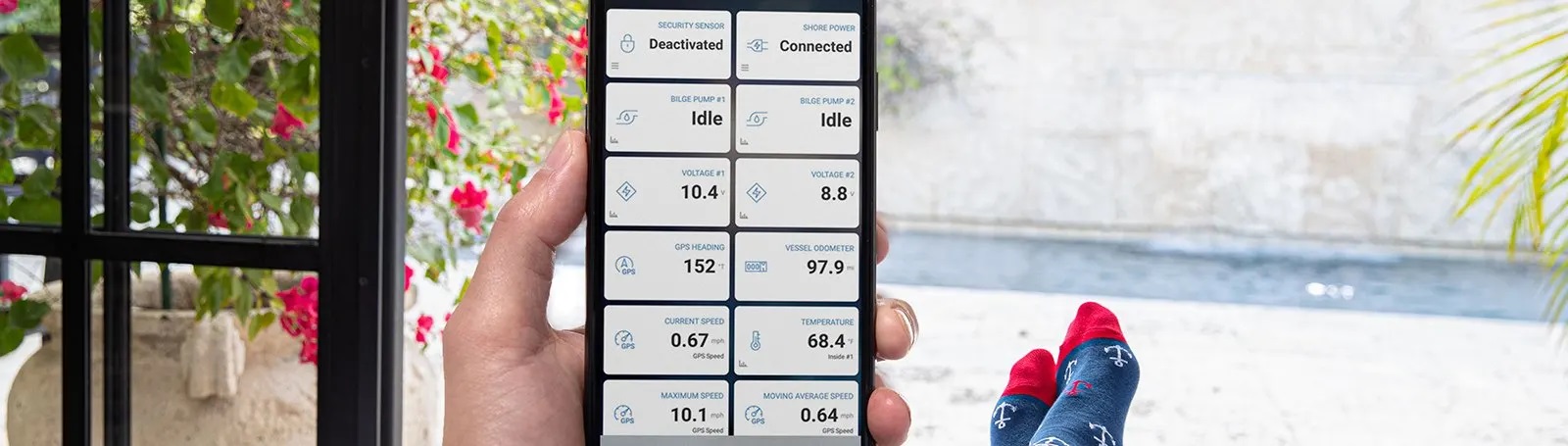

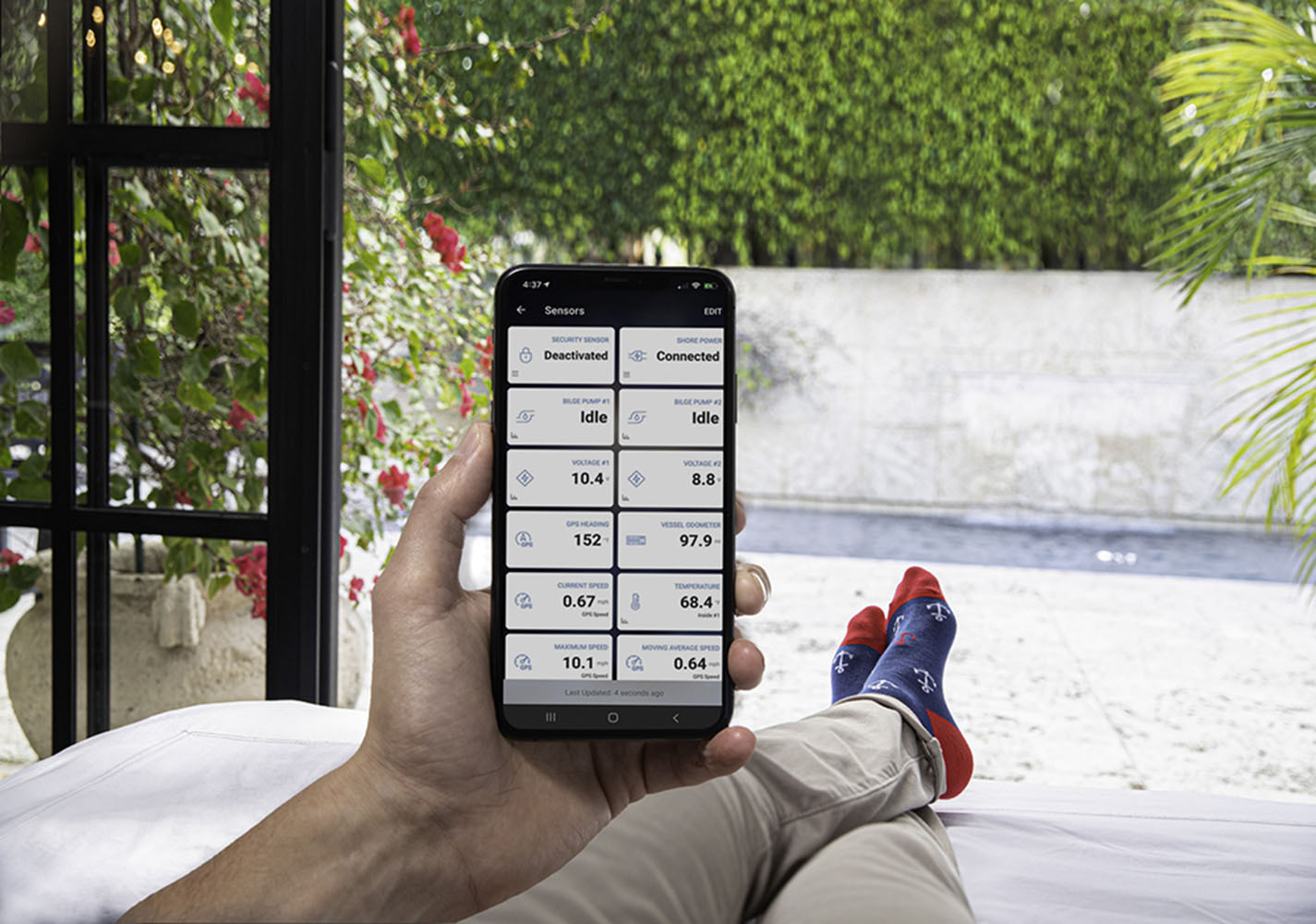

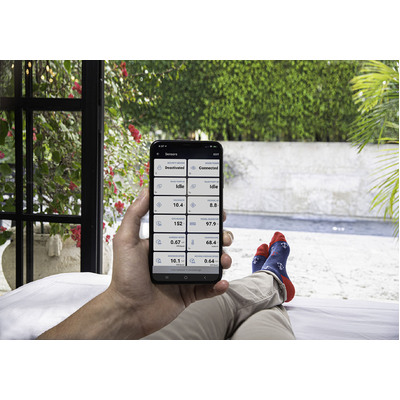

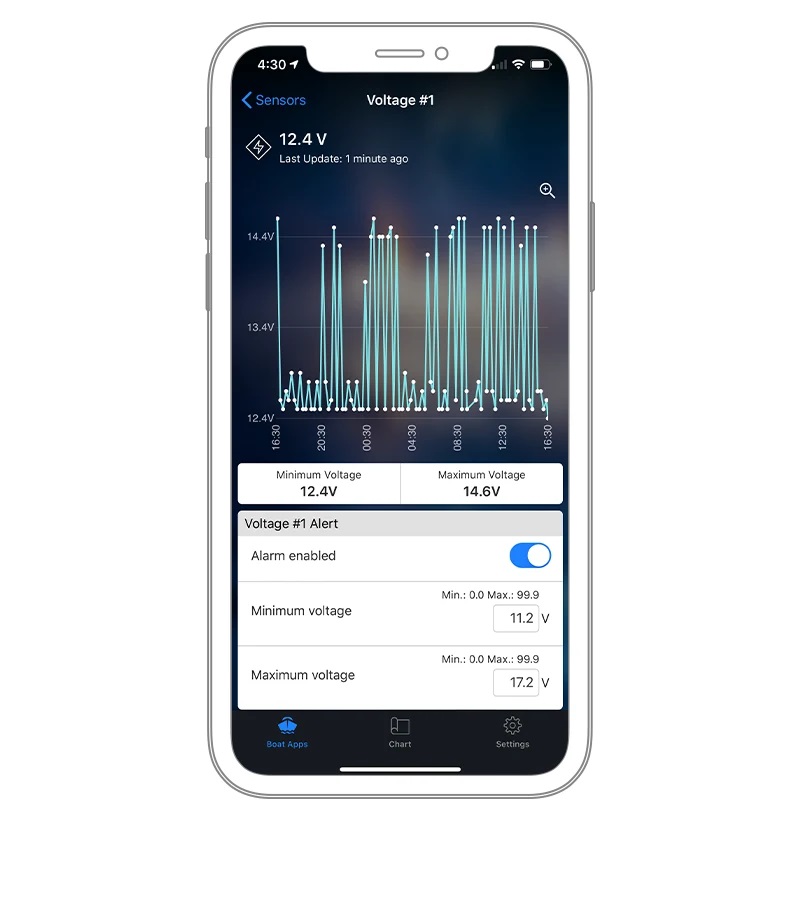

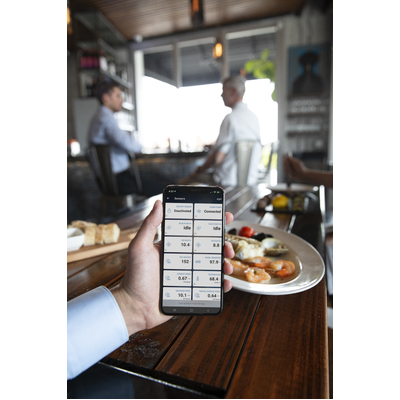

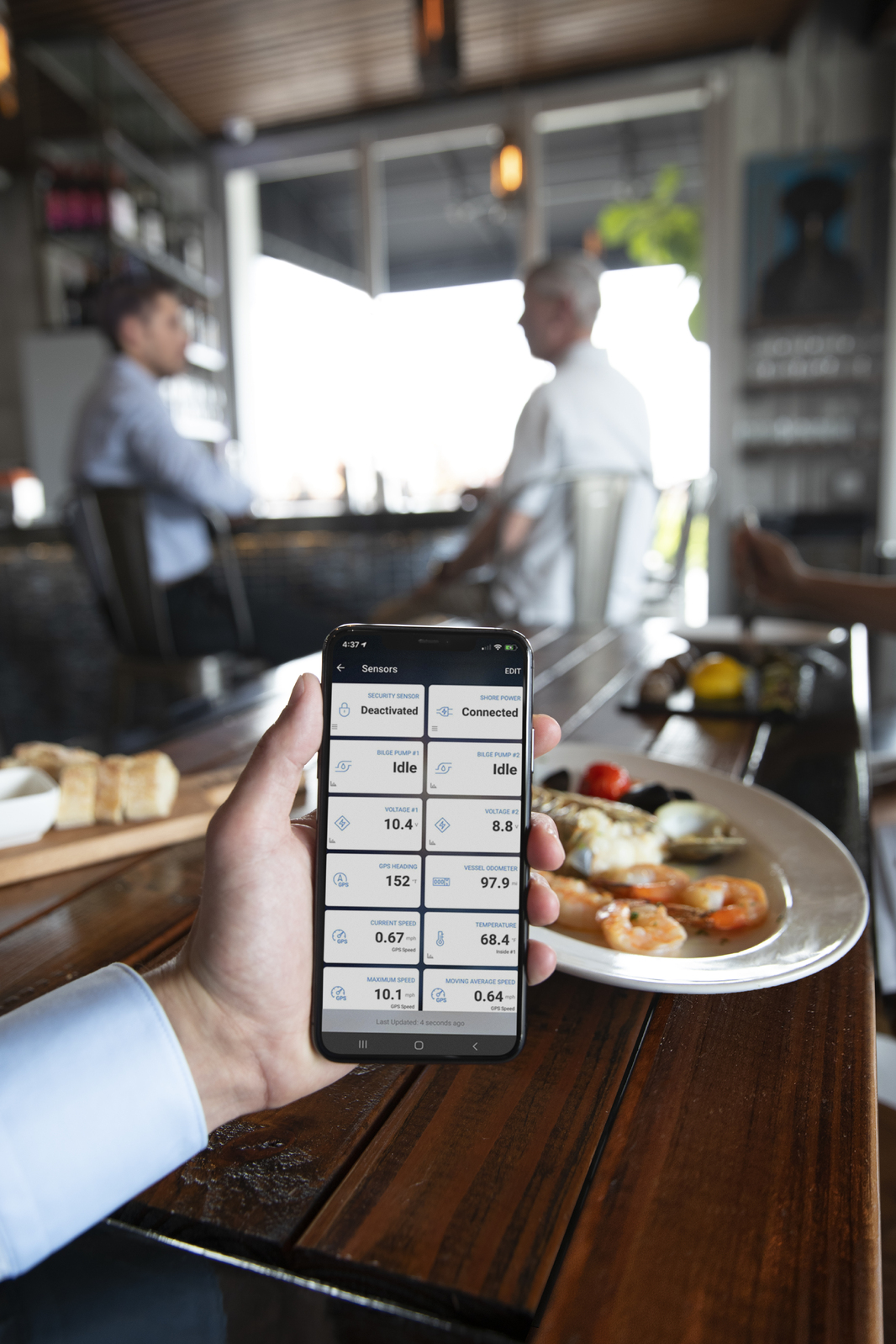

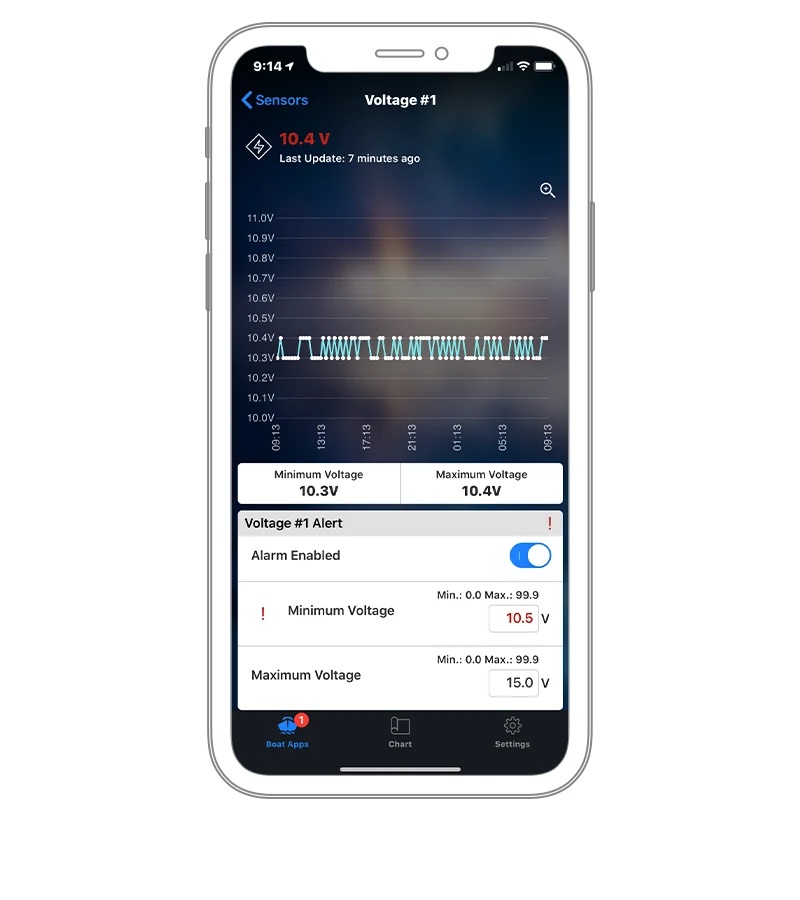

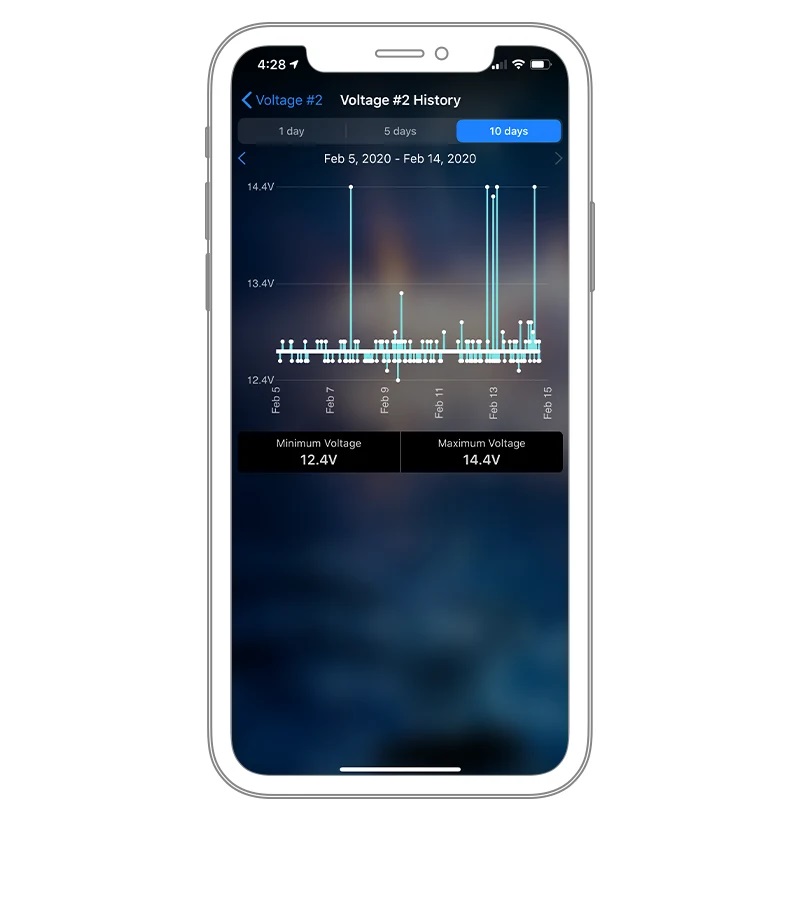

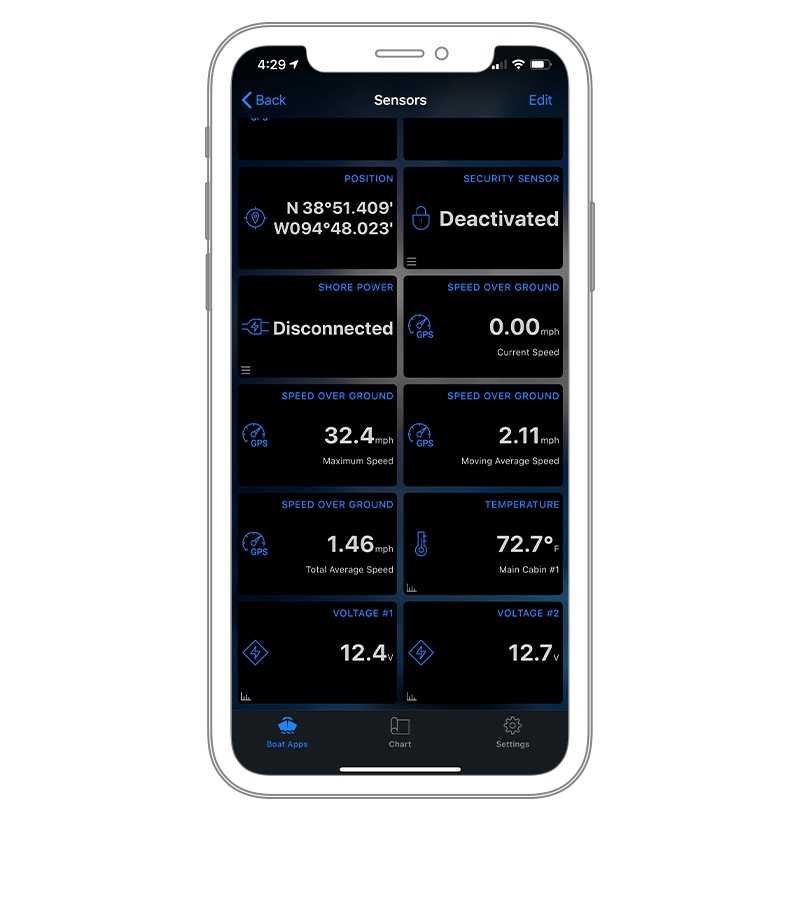

Get updates1 on your boat’s battery status, bilge activity, shore power, temperature changes and more. Set up alarm notifications in the ActiveCaptain® app.

CONTROL

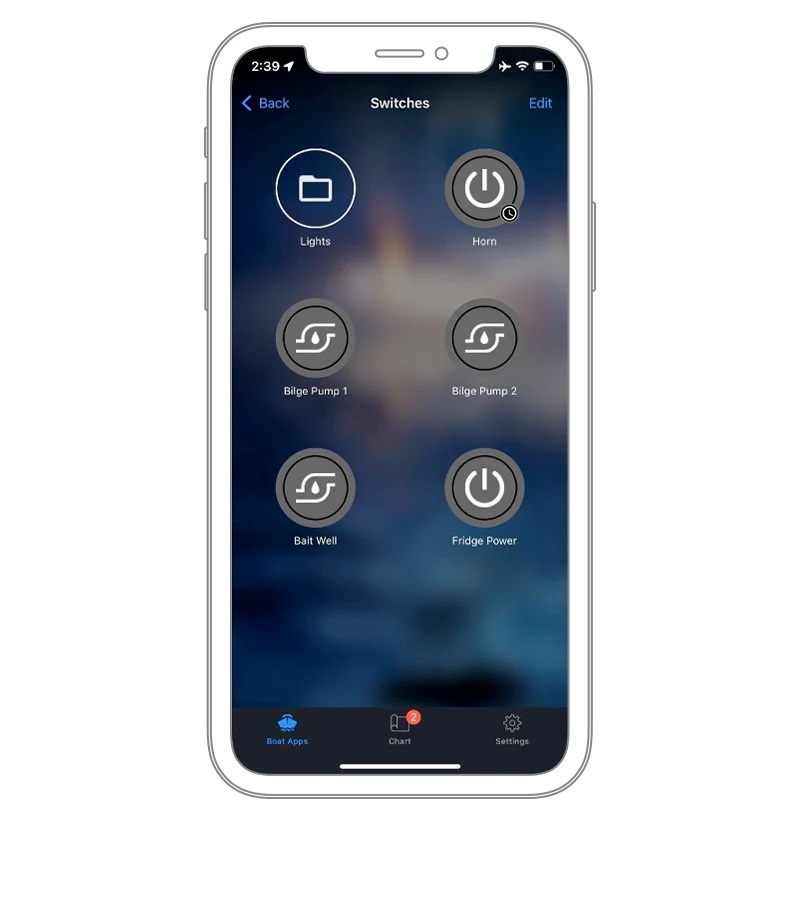

Get out on the water faster when you turn on up to 5 selected systems, including battery chargers, ice makers and more, from afar via relay switches.

Never miss an update.

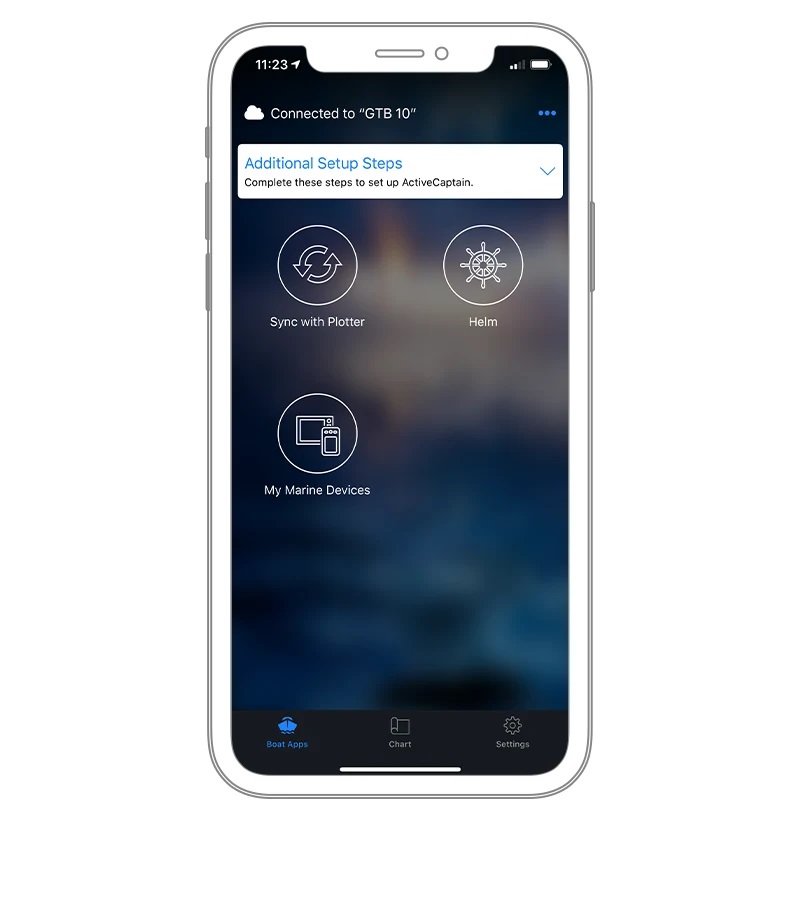

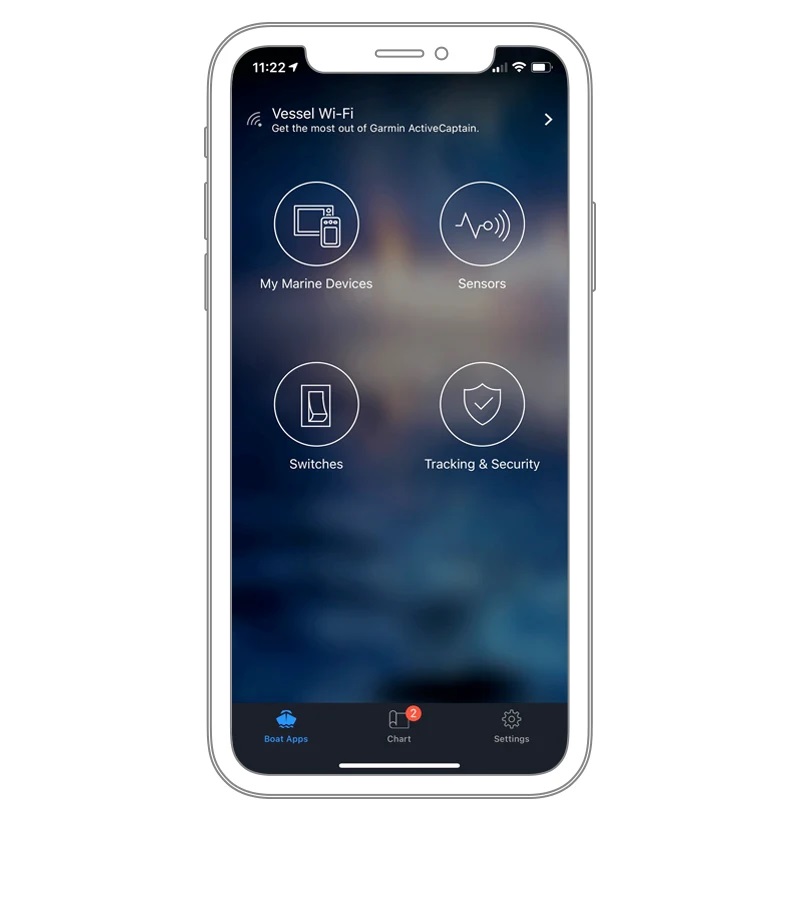

ACTIVECAPTAIN® APP

Download the ActiveCaptain app to your compatible smartphone to manage your vessel. It’s where you can set up alarm notifications, take control of your boat and so much more1.

STORE DATA

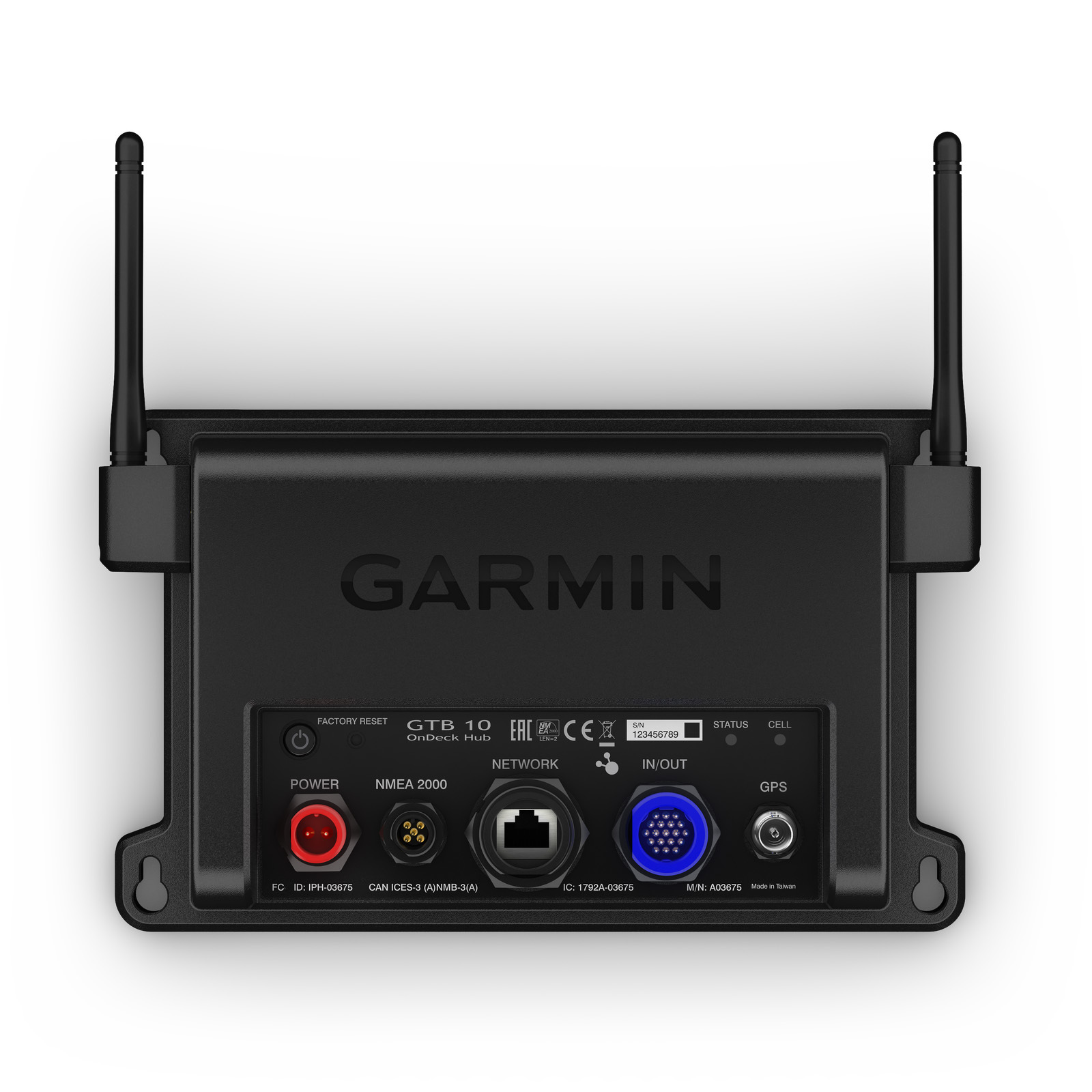

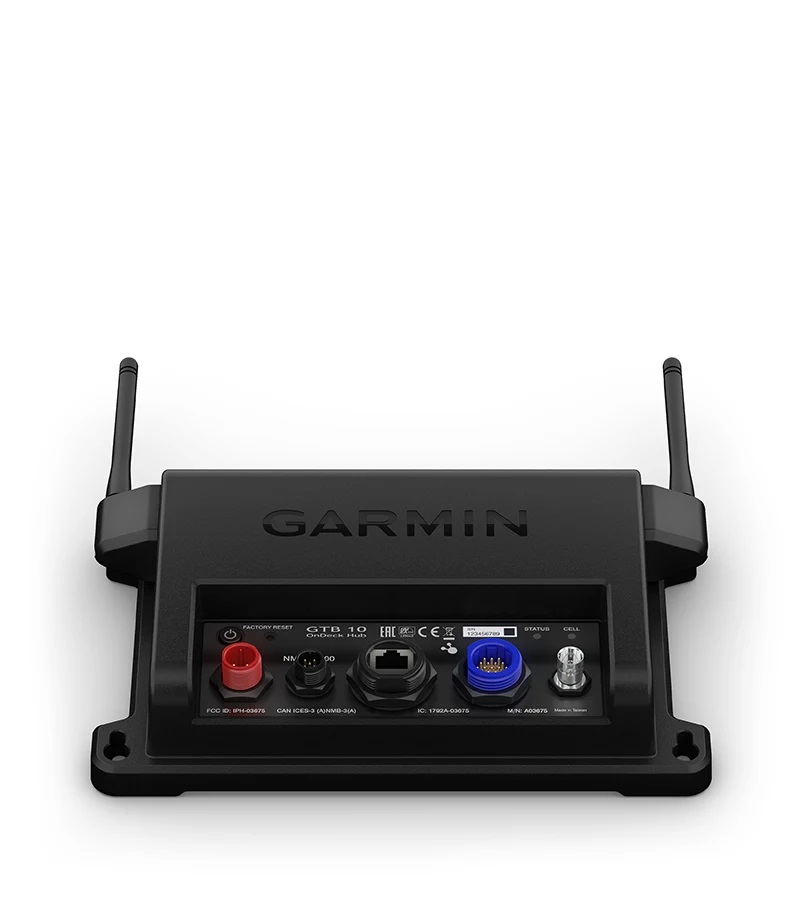

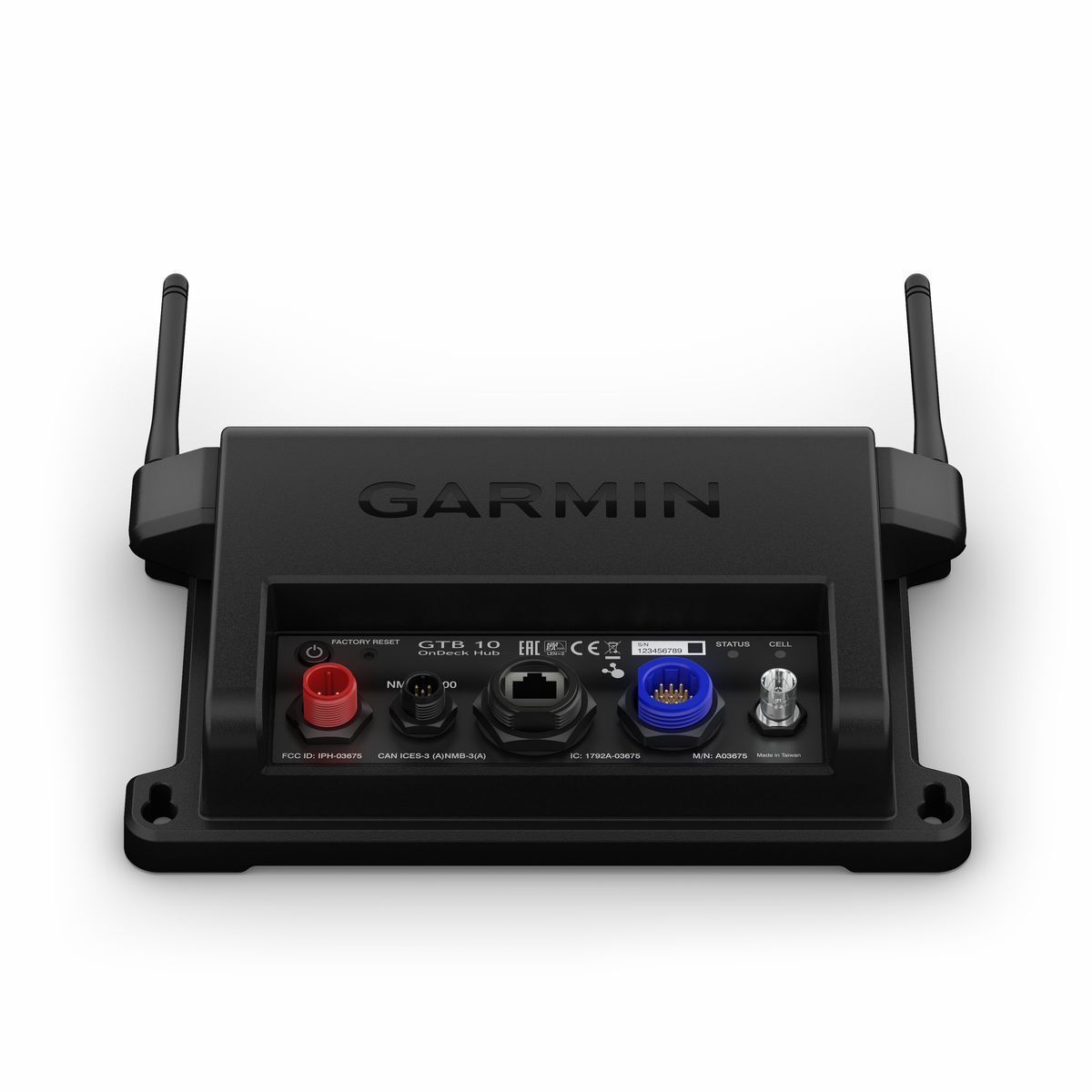

Securely collect vessel data with the GTB 10 OnDeck Hub and store it in the cloud for up to 30 days.

ALWAYS-ON CONNECTION

The GTB 10 hub uses global 3G/4G coverage.

BACKUP BATTERY

A 48-hour internal backup battery allows access to OnDeck after the boat battery is depleted or the power is disconnected.

SUBSCRIPTION

To stay in touch with your vessel, a subscription plan is required. Choose between an annual plan or pay month-to-month.

FULL INTEGRATION

The OnDeck system is a seamless addition to your current marine electronics (MFD via Garmin Marine Network, engines, NMEA 2000® sensors).

1 An active subscription plan is required. Both OnDeck Hub and the user’s device must have connectivity to a 3G/4G network; see coverage area for OnDeck.

Features

productSpecMisc

GENERAL

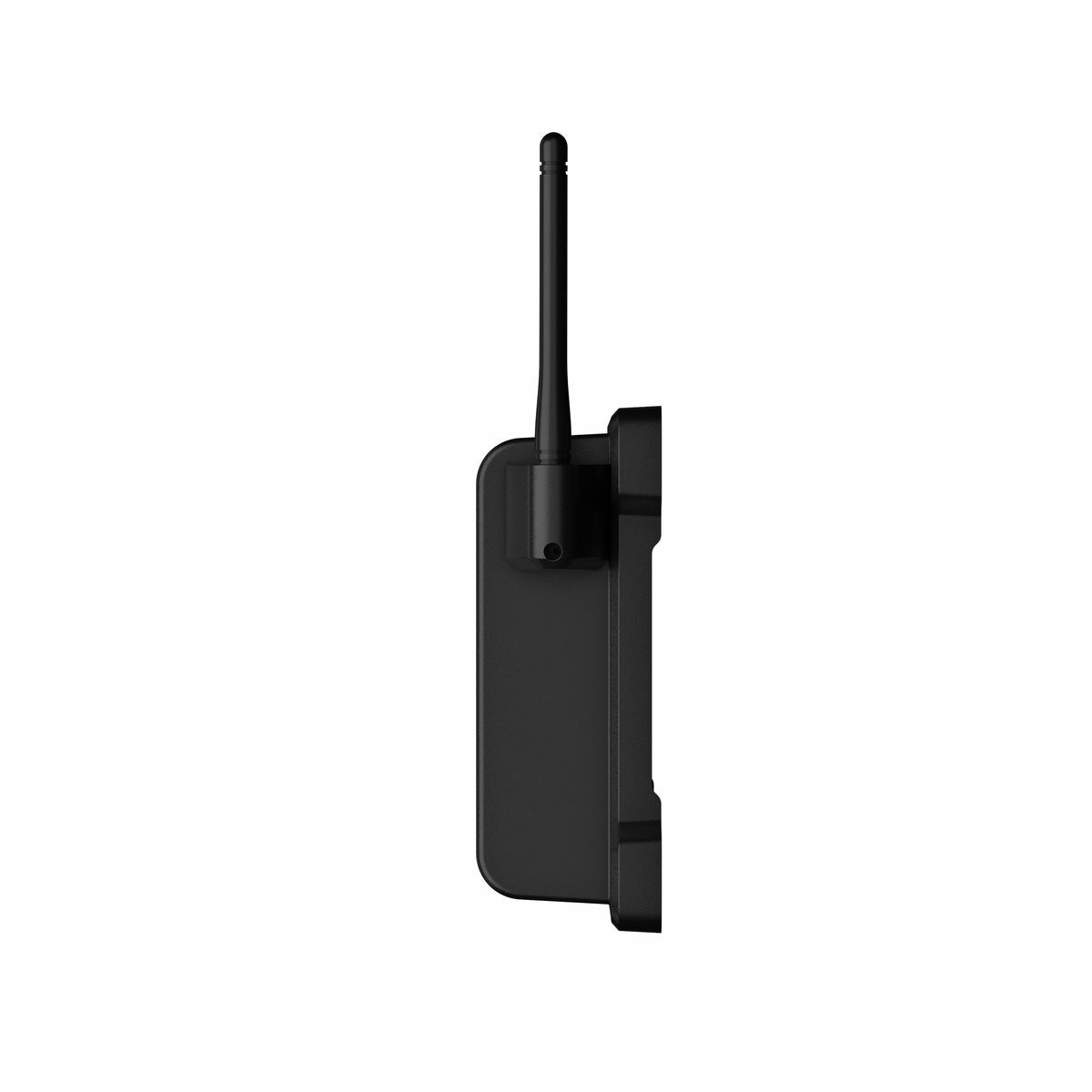

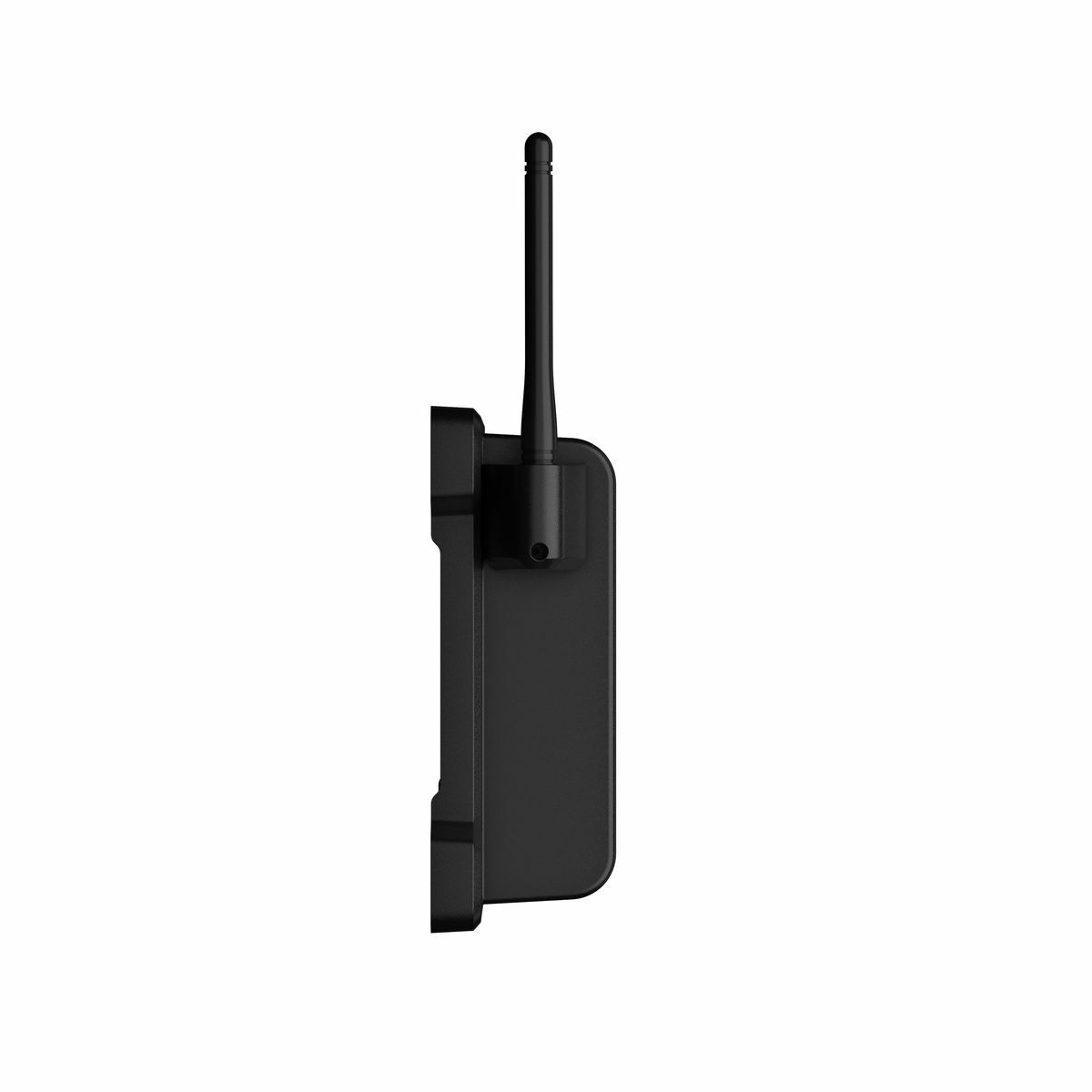

Physical dimensions without antennas 23.1 x 4.9 x 14.2 cm
Physical dimensions with antennas pointing up 23.1 x 13.2 x 14.2 cm
Physical dimensions with antennas parellel to mounting 23.1 x 4.9 x 21.5 cm
Weight 0.64 kg
Power consumption 20 W max at 10 Vdc
Input voltage range From 10 to 32 Vdc
Battery life Up to 48 hours
Monitoring frequency 15 minutes

CONNECTIVITY

NMEA 2000® compatible Yes
ActiveCaptain compatible Yes
Cellular connectivity Yes (3G/4G)
Wi-Fi® Yes
Garmin Marine Network Yes

SENSORS

Bilge pump Yes (2)
Security Yes
Battery voltage Yes (2)
Temperature Yes
Shore power Yes
GPS location Yes
Distance log Yes

NMEA 2000 SENSORS

Fluid level Yes
Temperature Yes
Water depth Yes
Position Yes
Course over ground Yes
Speed over ground Yes
Vessel speed Yes
Wind data Yes
Fuel flow rate Yes
Engine hours Yes
Engine warning indicators Yes

SWITCH CONTROLS

Relay switch Yes (5)

ALARMS

Temperature Yes
Geofence Yes
Offline Yes
Voltage Yes
Shore power Yes
Security sensor Yes
Depth Yes
SKU GAR.010-02134-00
Model # 010-02134-00
UPC/EAN 0753759248116
Brand Garmin
Shipping Weight 2.7700kg
