Clear sonar. Real time.

SEE EVERYTHING IN REAL TIME

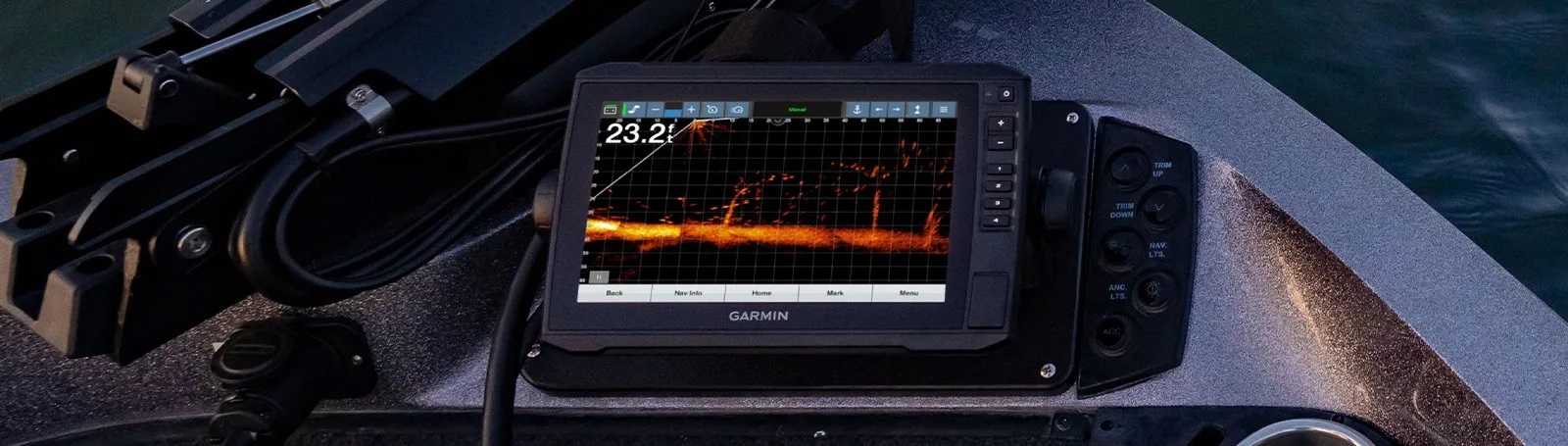

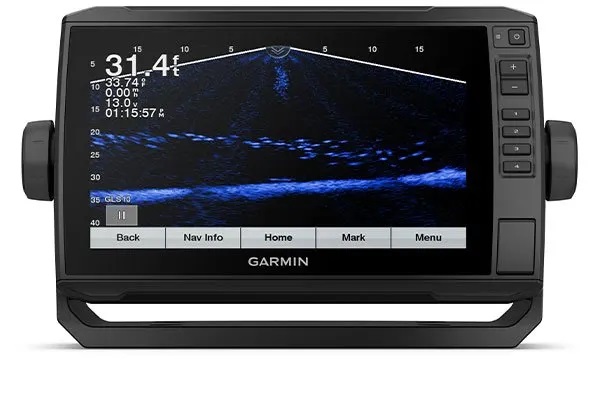

See easy-to-interpret live scanning sonar images of fish swimming near clearly defined structure, see your lure as you retrieve it, and even distinguish between species of fish in real time.

EXCELLENT RANGE

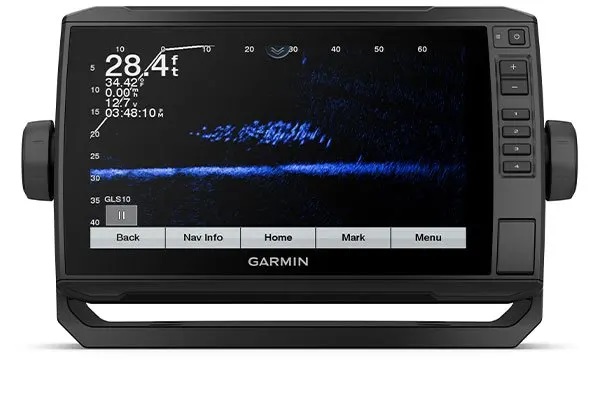

Not only can you see crystal-clear imagery around your boat, you can also see at a distance of up to 200 feet in both Forward and Down modes — even while your boat is stationary.

IMAGE STABILISATION

Attitude Heading Reference System stabilises the sonar view on your chartplotter screen, even in rough conditions.

EASILY CONNECT TO YOUR SYSTEM

Seamlessly integrate this system with your compatible Garmin chartplotter using the simple plug-and-play Garmin Marine Network connector.

Manage your marine experience using the free ActiveCaptain® app.

LEARN MORE

Powerful. Efficient. Quiet. Force™ trolling motor.

LEARN MORE

Physical & Performance

Dimension

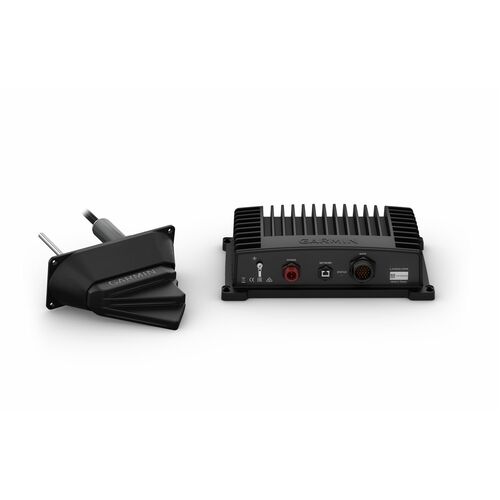

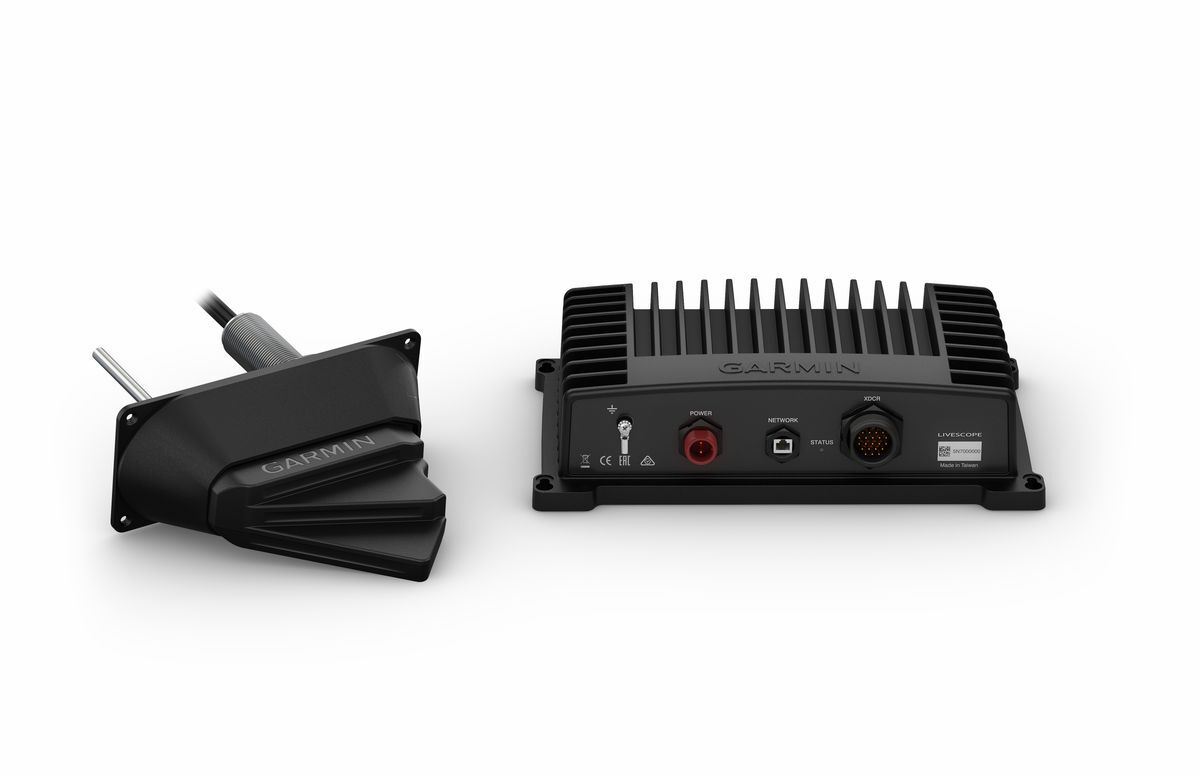

GLS 10 sonar black box: 9.6” x 5.9” x 2.6” (24.5 x 14.9 x 6.5 cm);

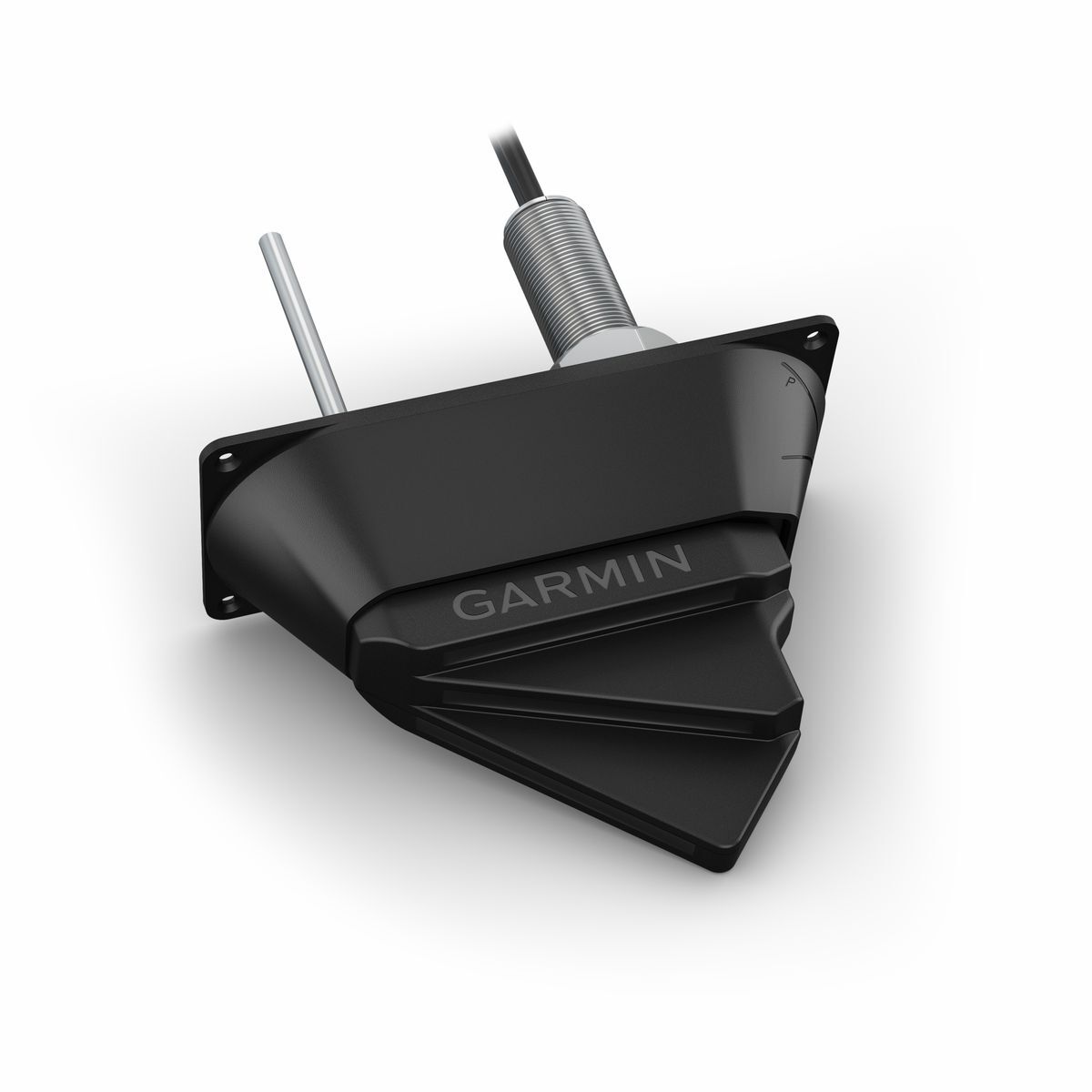

LVS32-TH transducer without fairing block: 9.6” x 1.8” x 5.4” (24.4 x 4.6 x 13.7 cm)

LVS32-TH transducer with fairing block: 9.6” x 3.4” x 8.1” (24.4 x 8.6 x 20.6 cm)
Waterproof      IPX7
Weight

GLS 10 sonar black box: 4.3 lbs (2.0 kg);

LVS32-TH transducer without fairing block: 4.4 lbs (2.0 kg)

LVS32-TH transducer with fairing block: 5.0 lbs (2.3 kg)

Features

Fuse 7.5 A
Misc
  • Beamwidth: 20° x 135°
  • Transducer cable length: 20 ft.
  • Transducer number of pins: 21
Transmit power 500 W
Connections Garmin Marine Network Ports

1 (small connector)
Power Input 10-32 V
Power usage 21 W typical, 58 W max
MaxDepth Forward: 200’ (61.0 m)
Frequency 530 - 1,100 kHz
Temperature range

GLS 10 Black Box: Operating: -15 C to 70 C

Panoptix LiveScope LVS12 Transducer: Operating: 0 C to 40 C
SKU GAR.010-02233-00
Model # 010-02233-00
UPC/EAN 0753759225384
Brand Garmin
Shipping Weight 5.5200kg
