A new way to see what’s under the water.

CLEAR, COLOURFUL SONAR

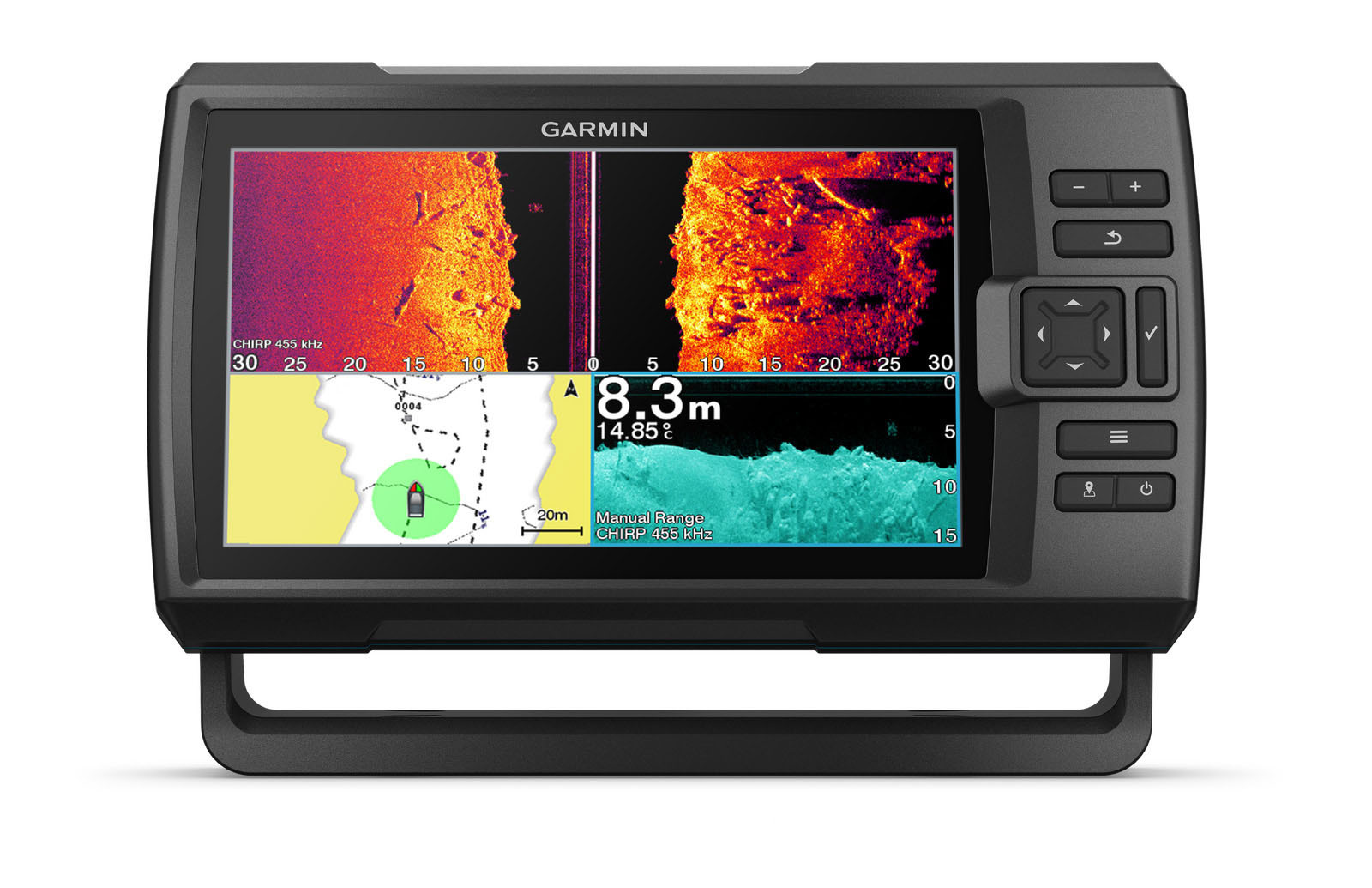

Choose from 7 new vivid colour options to see fish and structure in maximum contrast and clarity on your 7-inch fishfinder.

BUILT-IN SONAR

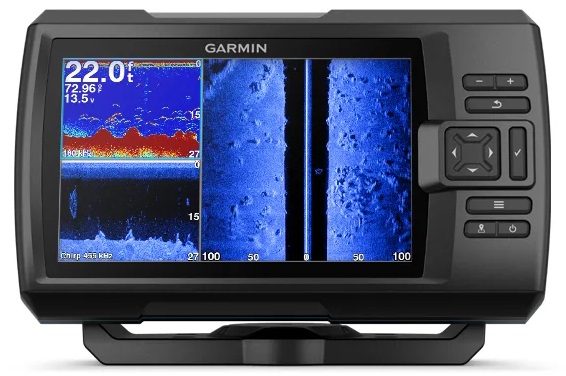

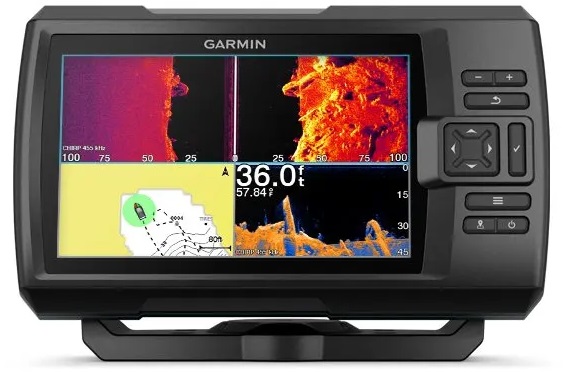

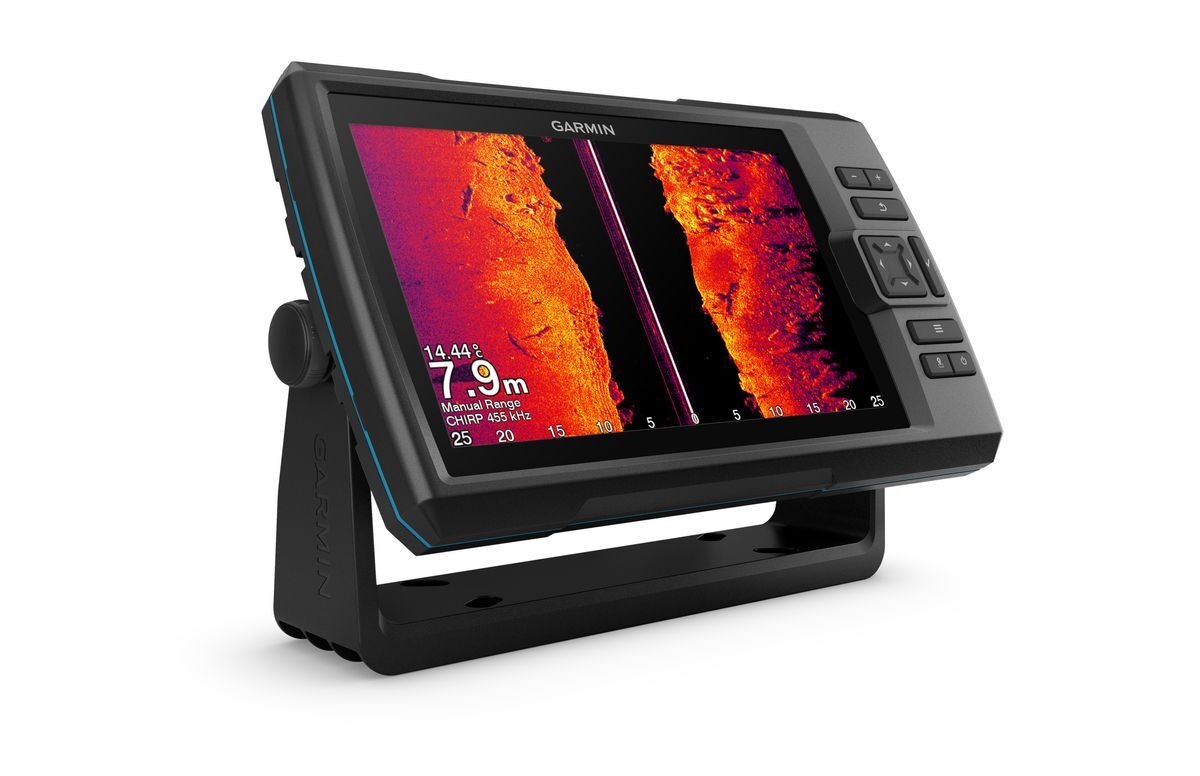

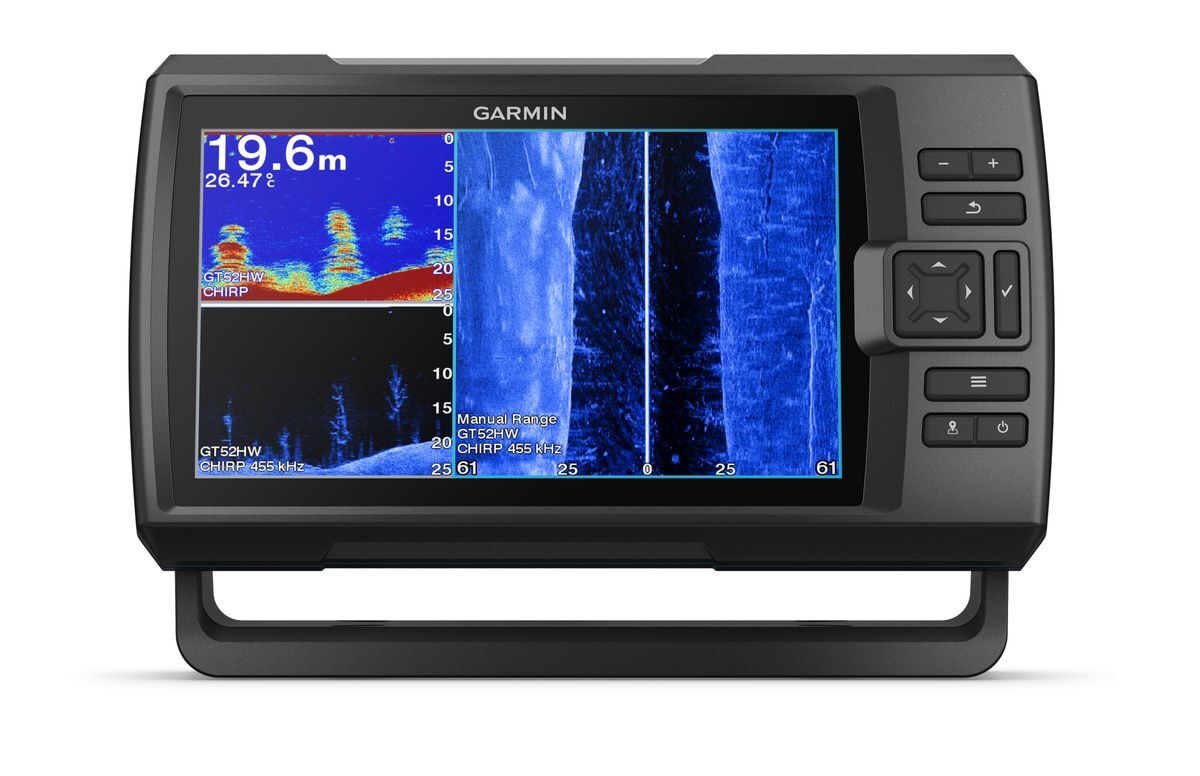

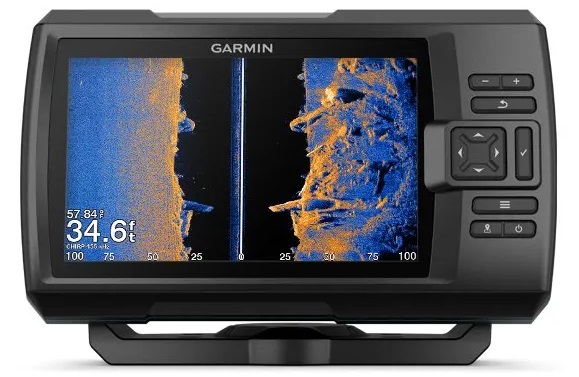

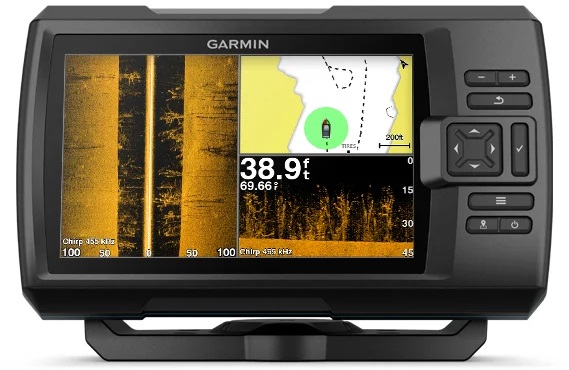

Use the included GT52 transducer to get Garmin CHIRP traditional sonar plus CHIRP ClearVü and CHIRP SideVü scanning sonars.

WAYPOINT MARKING

To catch more fish, you need to know where the fish are biting. Use waypoint marking for hot spots so you can easily find your way back.

HIGH-SENSITIVITY GPS

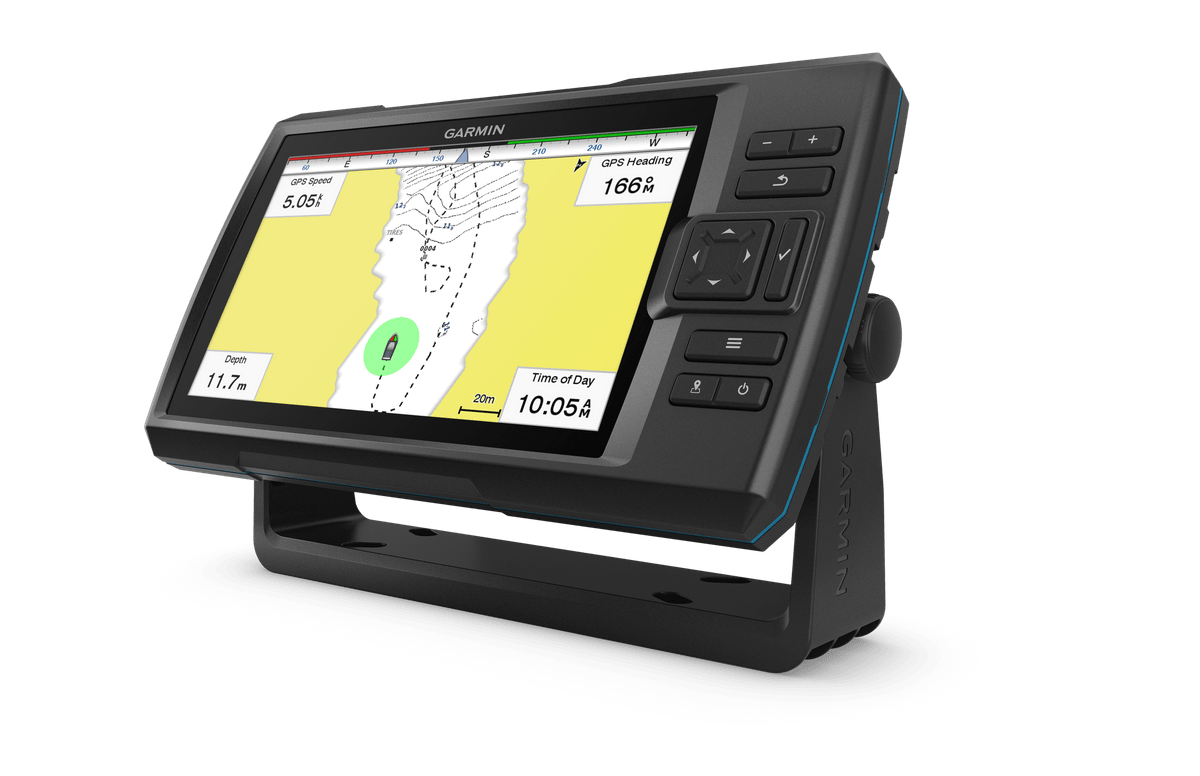

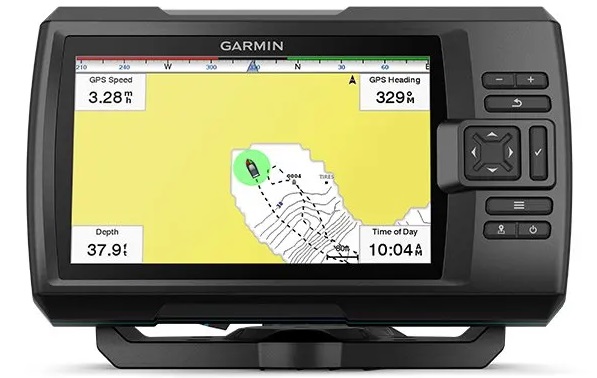

Plan and create routes and view your boat’s speed on your fishfinder using high-sensitivity GPS.

QUICKDRAW CONTOURS

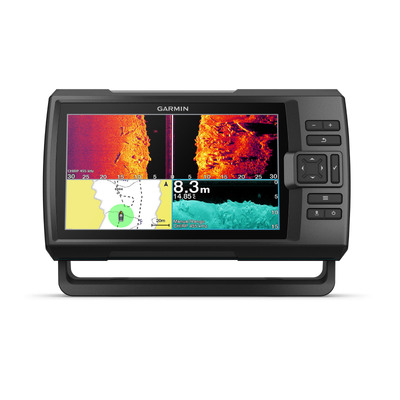

Nobody knows the waters you fish better than you. With the STRIKER Vivid 7sv, you can store up to 2 million acres of maps with 1-foot contours.

INCLUDED HARDWARE

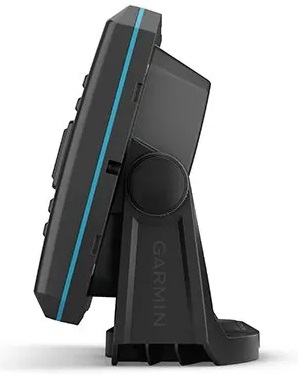

The STRIKER Vivid 7sv includes a tilt/swivel mount plus transom and trolling motor mounting hardware and cable.

WI-FI CONNECTIVITY

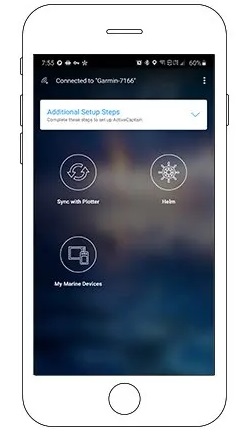

Connect to the ActiveCaptain® app1 to transfer waypoints, receive smart notifications (including software update notifications) and access the Garmin Quickdraw™ Community.









Add a portable Fishing Kit.

1 Requires ActiveCaptain app on your compatible smartphone paired to the STRIKER Vivid 7sv fishfinder; see Garmin.com/ble.

Wi-Fi® is a registered trademark of the Wi-Fi Alliance.

Physical & Performance

Display Size 4.4" x 7.8" (11.2 x 19.8 cm); 9.0" diag (22.8 cm)
Display Resolution 800 x 480 pixels
GPS Yes
Dimension 11.1” x 6.5” x 2.4” (28.2 x 16.5 x 6.0 cm)
Receiver

Traditional: 50/77/200 kHz
CHIRP (mid and high)
ClearVü and SideVü 260/455/800 kHz
Power Input 12 to 20 Vdc
Waterproof IPX7
Weight 2.4 lbs (1.1 kg)
Mounting Options        flush, tilt/swivel
Display Type WVGA colour



Maps & Navigation

Navigation Routes 100
Waypoints/favorites/locations      5000



Features

LakeVu (inland) No
Fish Symbol ID (helps identify fish targets) Yes
Transmit power 500 W (RMS)
NMEA 0183 Compatible No
Has built-in receiver Yes
Displays sonar Yes
Water Temperature Log Yes
ANT+ (Connectivity) No
USB ports No
Autogain technology (minimizes clutter; maximizes targets) Yes
BNC external GPS antenna port No
(Sounder) SideVü Yes
BlueChart g3 Vision No
Garmin Wi-Fi network (local connection) Yes
Additional

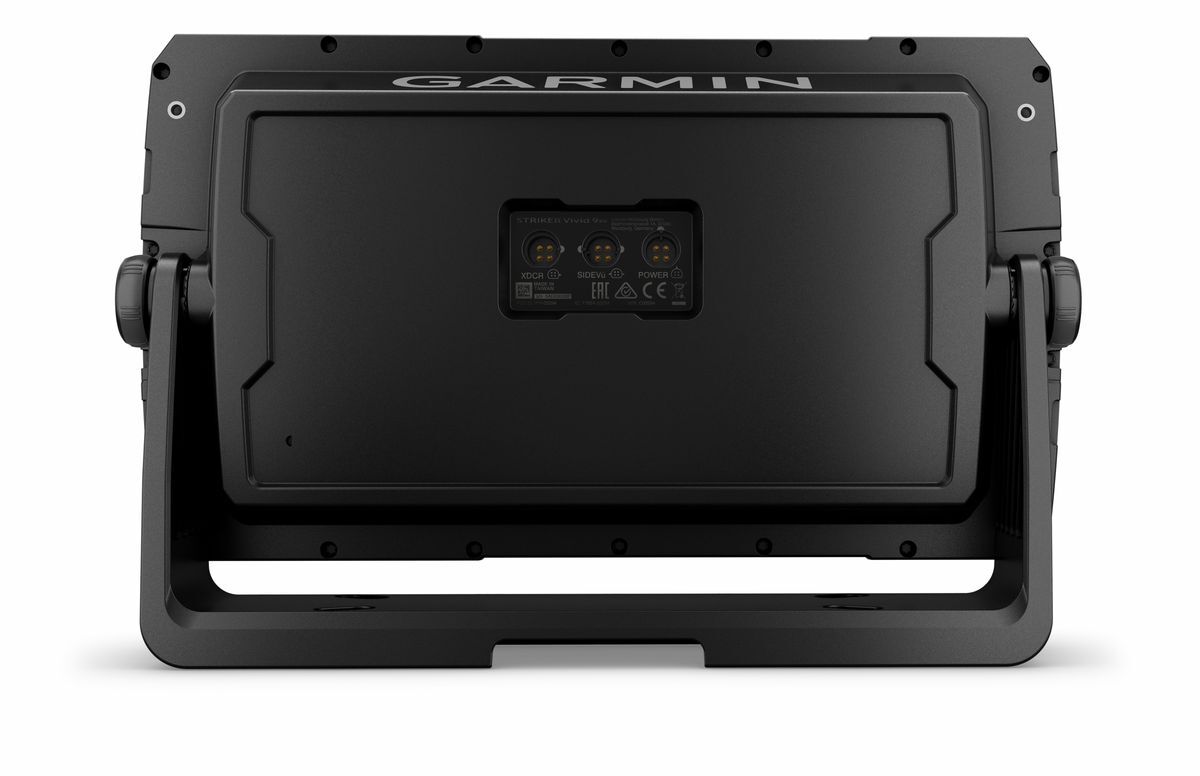

  • One 4-pin transducer port
  • One 4-pin SideVü transducer port
  • Wireless Connectivity: Yes
  • Quickdraw Contours
  • Integrated GPS
  • Mark Waypoints
  • Course over Ground (COG)
  • Current draw @ 12V: 0.75A
Input Keyed
LakeVü g3 Ultra No
Water temperature sensor included Yes
Depth range shading Yes
NMEA 2000 Compatible No
Garmin Quickdraw Contours Yes
BLUETOOTH® calling No
GLONASS No
Split-screen zoom Yes
Track points 50,000
Panoptix™ sonar No
A-scope (real time display of fish passing through transducer beam) Yes
Adjustable depth line (measures depth of underwater objects) Yes
LakeVü g3 No
Raster chart support No
Typical current draw 0.75 A
4-pin transducer ports 2
Supports WAAS Yes
ClearVü Yes
Tracks 50
Max current draw 1.5 A
Built-in Auto Guidance No
Galileo No
LiveScope No
Bottom Lock (shows return from the bottom up) Yes
Frequency Traditional: 50/77/200 kHz CHIRP (mid and high) ClearVü: 260/455/800 kHz
Tide Tables No
Power Consumption 9.0
BlueChart (coastal) No
Traditional sonar (dual frequency/beam) Built-in
BlueChart g3 No
Standard Mapping No
SKU GAR.010-02554-01
Model # 010-02554-01
UPC/EAN 0753759268411
Brand Garmin
Shipping Weight 2.9700kg
