Easily connect with boat systems, sensors, and media for control and data monitoring from any suitable location on board.

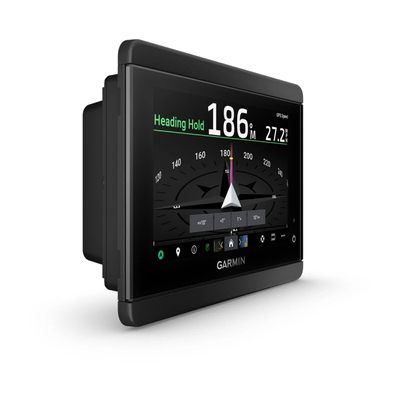

  • Sleek 5” Edge-to-Edge Glass Display: Modern, high-quality touchscreen that seamlessly integrates with your boat's aesthetics.

  • Compatible with Leading Networks: Works with NMEA 2000®, EmpirBus™, and Garmin Marine Networks for comprehensive connectivity.

  • Space-Saving Installation: Minimal footprint for installation anywhere on your vessel.

  • Perfect Match for GPSMAP® Series Chartplotters: Complementary look with existing GPSMAP® equipment.

  • Effortless Plug-and-Play Installation: Quick and hassle-free setup for instant access to your boat's systems.

  • Flexible Mounting Options: Choose flat- or flush-mounting to suit various preferences.

What you'll love:

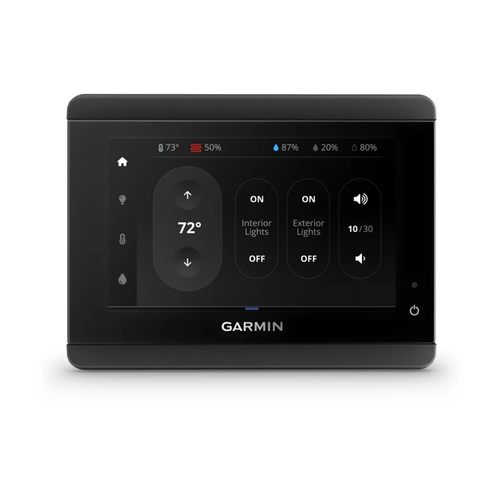

  • Control at Your Fingertips: Adjust settings for lights, climate control, entertainment, security sensors, autopilots, and more from the 5” TD 50 touchscreen.

  • Scalable Technology: Use as an extra display at the helm station or for below-deck networked access to switching functions and data monitoring.

  • Seamless System Integration: Compatible with NMEA 2000, OneHelm™ systems, EmpirBus, and Garmin Marine Network for digital control on board.

  • Intuitive Interface: Easily navigate through switching and monitoring functions via the user-friendly graphical interface.

  • Versatile Mounting Options: Slimline design and mounting choices allow installation in virtually any location.

  • Rugged, Durable Design: Built to withstand harsh marine environments with an IPX7 water rating. Bright LCD screen offers clear visibility.

The TD50 is a powerful addition to elevate your boating experience. Order today and experience its versatility and performance.

General

Dimensions without sun cover (HxWxD) 4.1" x 4.5" x 2.0" (10.5 x 14.0 x 5.1 cm)
Dimensions with sun cover (HxWxD) 4.5" x 5.7" x 2.2" (11.3 x 14.4 x 5.6 cm)
Weight without sun cover 11.6 oz. (328 g)
Weight with sun cover 13.2 oz. (375 g)
Temperature range from 5° to 131° F (from -15° to 55° C)
Compass-safe distance 7.9" (20 cm)
Case material Fully-gasketed polycarbonate
Lens material Glass with anti-glare and anti-fingerprint finish
Water rating IPX7
Brightness 1200 cd/m2 (NIT)
Power usage 5.9 W max
NMEA 2000® input voltage 9 to 16 Vdc
NMEA 2000 LEN @ 9 Vdc 13 (650 mA)
SKU GAR.010-02139-10
Model # 010-02139-10
UPC/EAN 753759259211
Brand Garmin
Shipping Weight 4.0000kg
Shipping Width 0.150m
Shipping Height 0.022m
Shipping Length 0.052m
Shipping Cubic 0.000172000m3
Unit Of Measure ea
