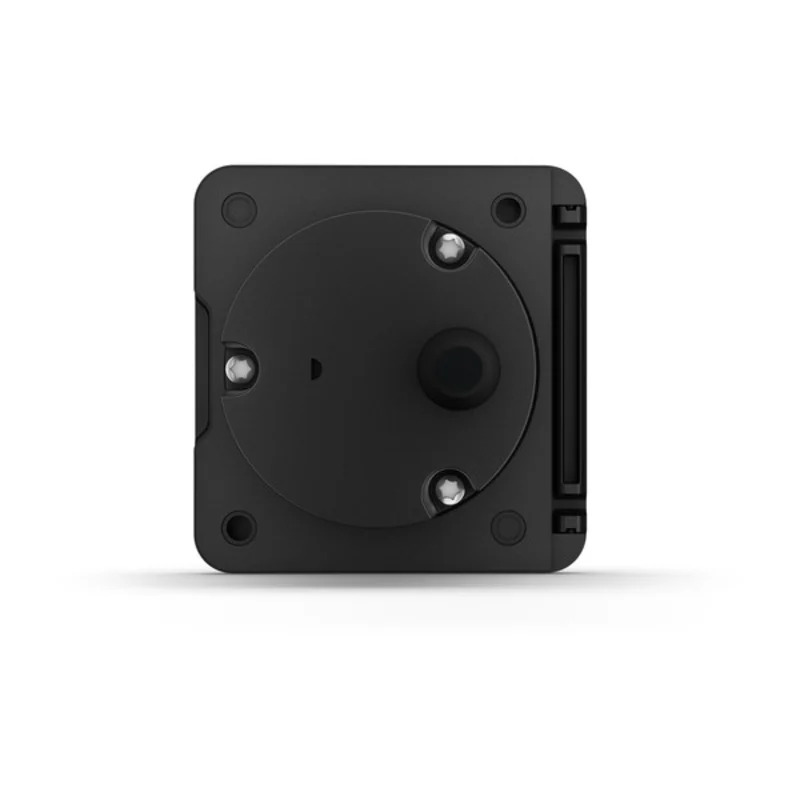

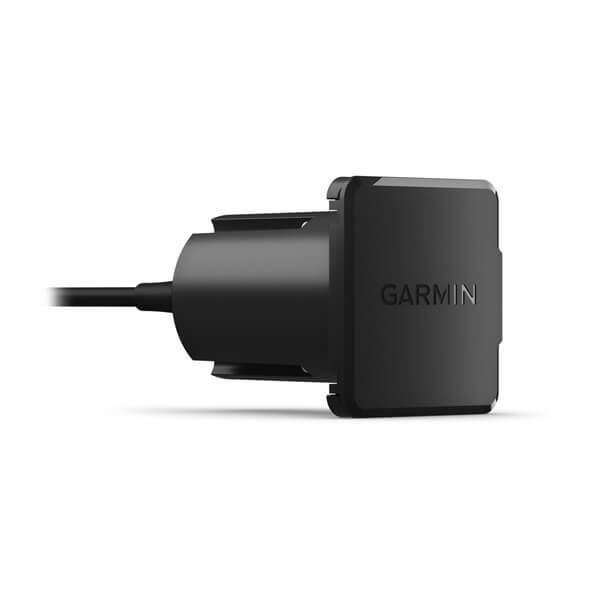

With its compact 2”x 2” dimensions, flush mounting capability, and convenient USB connection to your chartplotter's rear, this reader seamlessly integrates into tight spaces on your dashboard or any other helm setup.

SPECIFICATIONS

  • Dimensions (W×H×D): 2” x 2” x 2.4” (excluding the cable)

  • Weight: 4.025 oz

  • Temperature range: -15C to 70C

  • Material: fully gasketed, high-impact plastic, waterproof to IPX7 standards

  • Input power: 4.75V – 5.25V

  • Maximum power usage at 10 Vdc: 2.5 W

  • Typical current draw at 12 Vdc: 100 mA

  • Maximum current draw at 12 Vdc: 500mA

  • Compass-safe distance: 21" (533 mm)


IN THE BOX

  • Garmin USB card reader
  • Mounting hardware
  • Power cable
  • Documentation



SKU GAR.010-02251-10
Model # 010-02251-10
Brand Garmin
Shipping Weight 0.1780kg
Shipping Width 0.124m
Shipping Height 0.053m
Shipping Length 0.081m
Shipping Cubic 0.000532000m3
