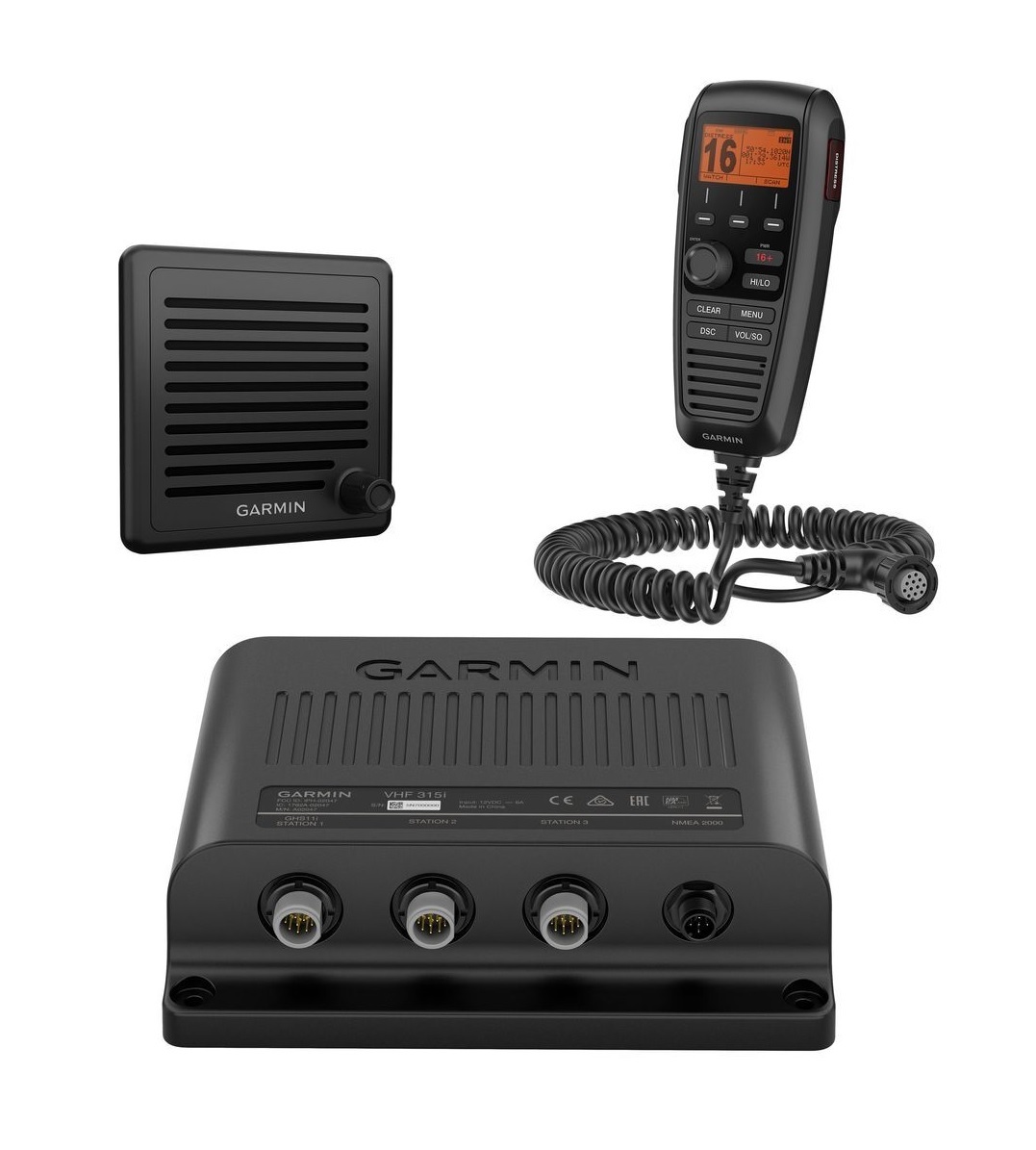

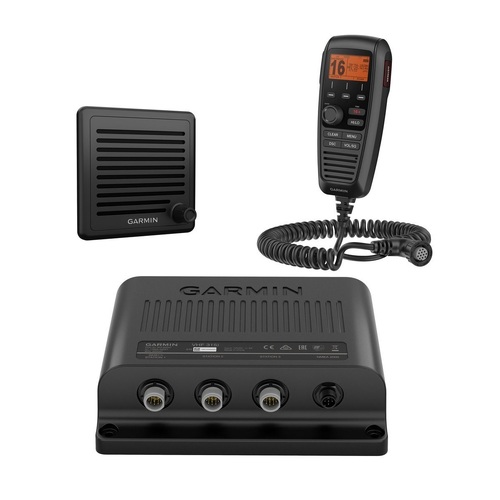

The 25-watt VHF 315i marine radio with Class D DSC is a modular communication solution. It provides the security of reliable communication and full NOAA weather alerts on the water by meeting the latest industry standards. It’s easy to use and integrates seamlessly into the Garmin onboard system. It has a built-in GPS receiver with a connector for the required external antenna. VHF 315i includes a GHS 11 handset and a new active speaker to use as an intercom between up to 3 stations. It’s also equipped with a two-way 30-watt hailer system for communication with other boats or deckhands. NMEA 2000 connectivity enables easy integration with compatible chart plotters, multifunction displays and convenient software updates. Simplified handset connectors and an uncomplicated, easy-to-use interface allow you to get your radio set up quickly, so you can get back out on the water and start communicating.

Features

productSpecMisc
  • Dimensions: 8.1” x 7.1” x 2.4” (20.5 x 18.1 x 6.0 cm)
  • Weight: 3.4 lbs. (1.53 kg)
  • Operating Temperature Range: 5°F to 158°F (-15°C to 70°C)
  • Water rating: IPX7
  • Compass-safe Distance: 2” (5 cm)
  • Digital Selective Calling: Class D
  • Frequency Bands: All USA, Canadian, and international marine channels; 10 NOAA weather channels
  • Operating Voltage: 9.6 - 16 Vdc
  • Current Draw: Standby: 350 mA; Receive: 600 mA; Transmit High Power: 6 A max; Transmit Low Power: 2 A max
  • Transmitter Power (at 13.6 Vdc): High Power: 23-25 W; Low Power: 0.7-1 W
  • NMEA 2000 LEN: 1
  • NMEA 0183: Yes

Active Speaker Specifications

SKU GAR.010-02047-01
Model # 010-02047-01
UPC/EAN 0753759205539
Brand Garmin
Shipping Weight 4.0800kg
