Contour Lock system with removable plates for connection from all sides. This allows the switch to be a stand alone unit or locked together with battery distribution modules.

The control knob can not be removed whilst in an ON or OFF position, however it can be removed by switching to an anti-clockwise 45° position. Switch can also be pad locked.

Suitable for surface or recess mounting by cutting an 85mm diameter hole.

Material Description Impact resistant plastic. Tin plated copper studs and nuts
Termination Stud Size 2 x 12mm (1/2")
Operation ON / OFF
Degree of Protection IP 56
Max. Load Continuous Continuous 600 Amps
Max. Load Intermittent 800 Amps (5 minutes)
Max. Load Cranking 2500 Amps (10 seconds)
Max. Voltage 48V DC
Warranty 1 year warranty

Dimensions

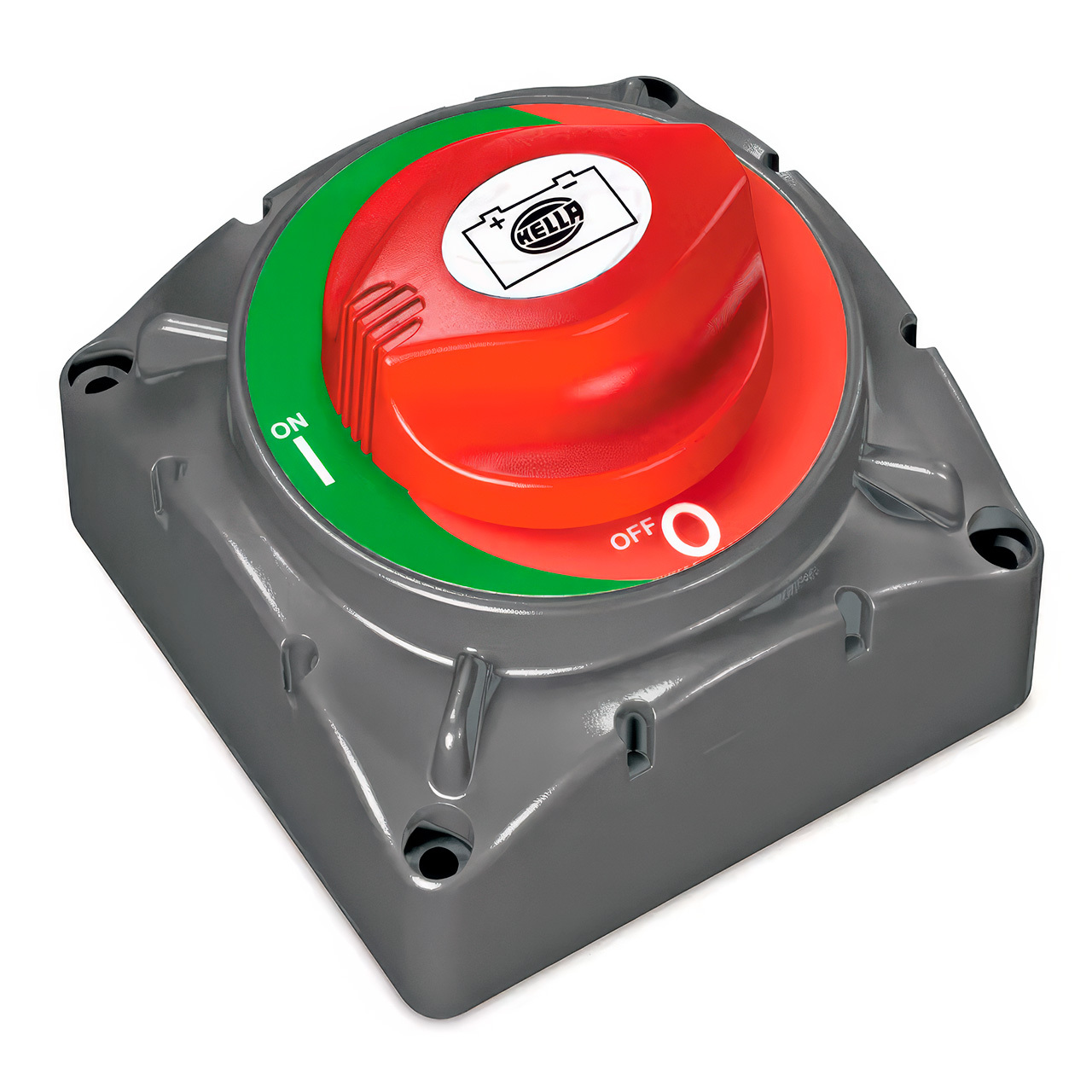

Hella 600A Battery Switch Dimensions

SKU HEL.6EK998540062
Model # 6EK 998 540-062 (4720)
UPC/EAN 9416325148449
Brand Hella Marine
Unit Of Measure Each
