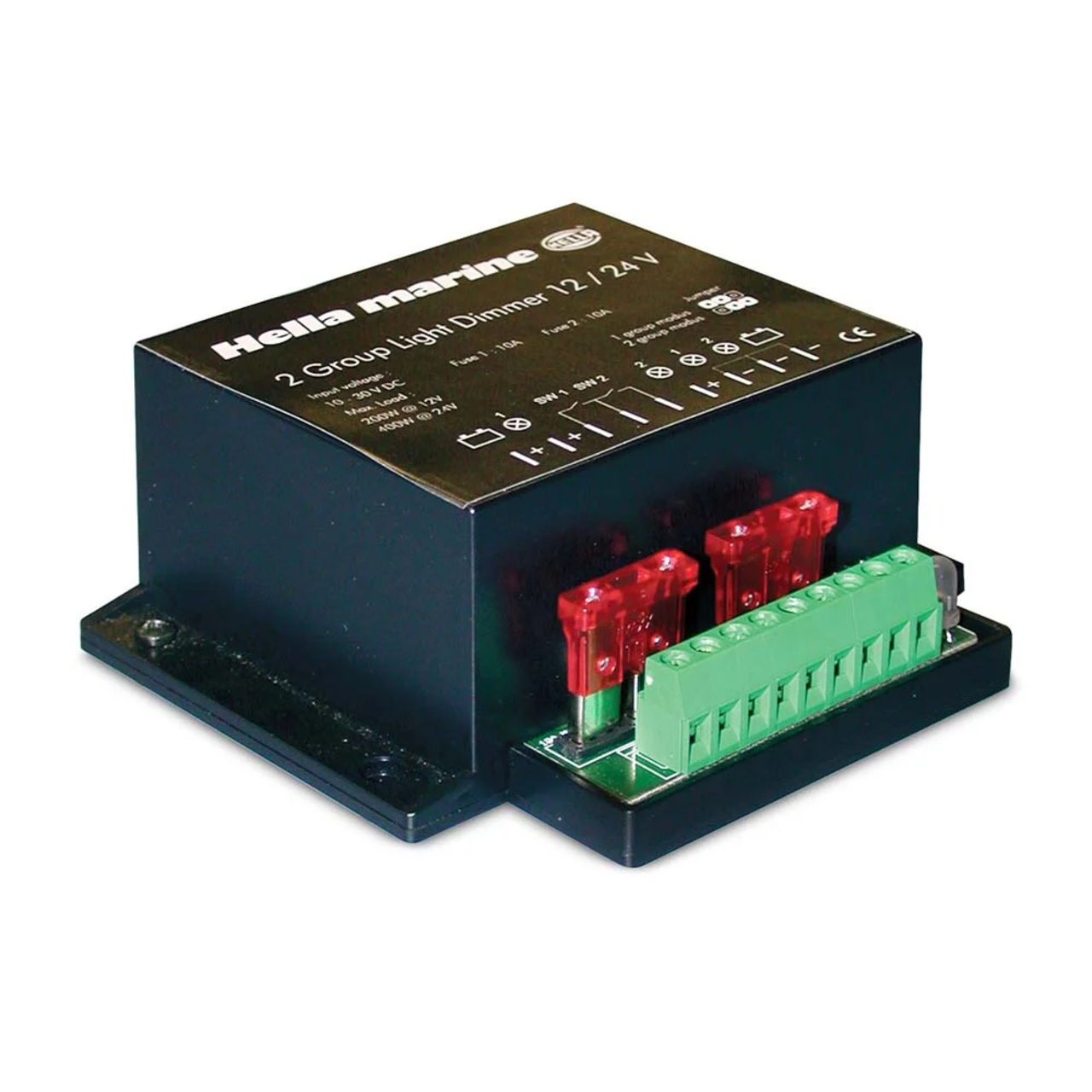

Hella Marine 2-Group Light Dimmer

Designed for both LED and halogen lamps, the Hella marine 2-Group Light Dimmer offers precise dimming control for one or two separate light groups. It features advanced voltage regulation and a ‘soft-start’ function to extend the life of filament bulbs. The dimmer also protects against deep battery discharge with low voltage protection, automatically turning off the lights when the battery voltage drops below 9V (12V systems) or 18V (24V systems). Once the battery is charged, the lights can be turned on again.

Features

  • PWM dimming control for 1 or 2 light groups
  • Compatible with LED lights like EuroLED 75 and EuroLED 95
  • Voltage regulation & ‘soft-start’ protection for longer bulb life
  • Low voltage protection to prevent deep battery discharge
  • Works with 12V and 24V DC systems
Category Specification
Max. Load 200W at 12V and 400W at 24V
Max. Load Per Group 100W at 12V and 200W at 24V
Input Voltage Range 8 – 30V DC
System Voltage 12V or 24V DC
Number of Groups 2
Switches Per Group Unlimited
Switch Type Momentary normally open
Weight 140 grams
Protections Overload, Temperature, Low voltage
Fuse 2 x 10A
SKU HEL.5XA998572001
Model # 5XA 998 572-001
Brand Hella Marine
Shipping Weight 0.1400kg
Shipping Width 0.099m
Shipping Height 0.041m
Shipping Length 0.089m
Shipping Cubic 0.000361251m3
