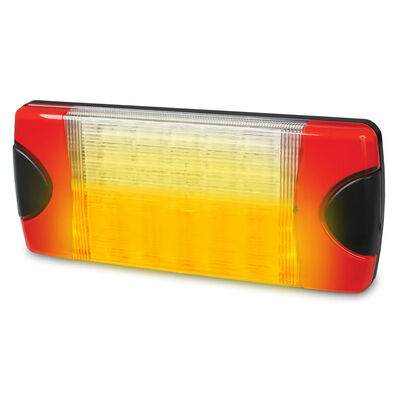

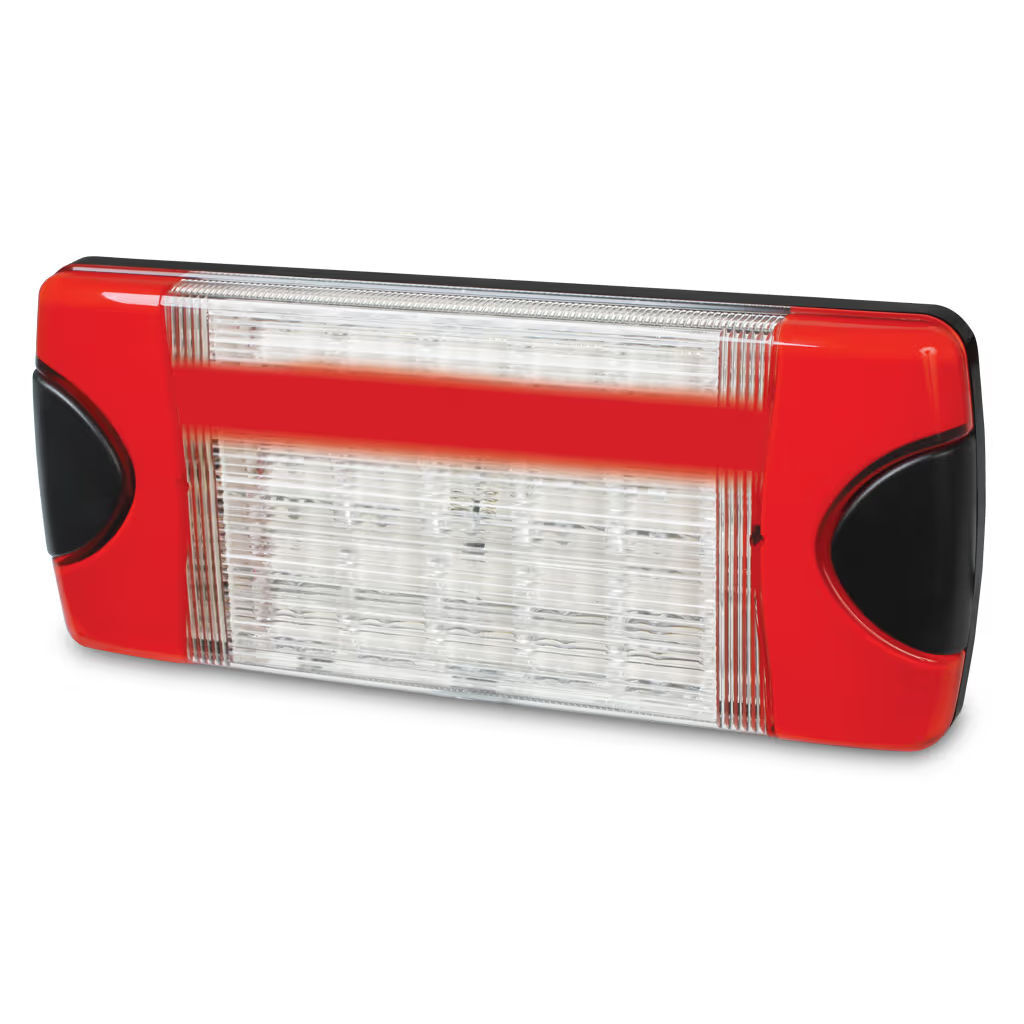

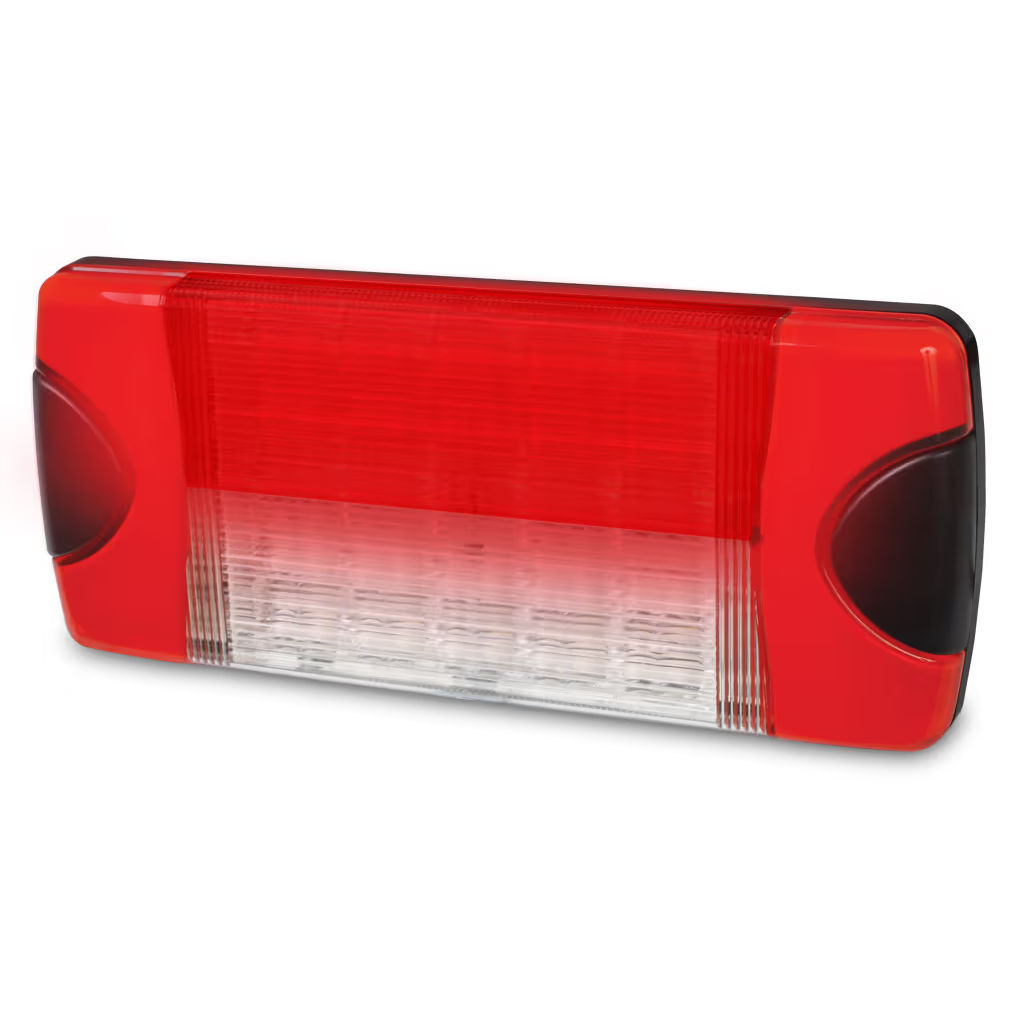

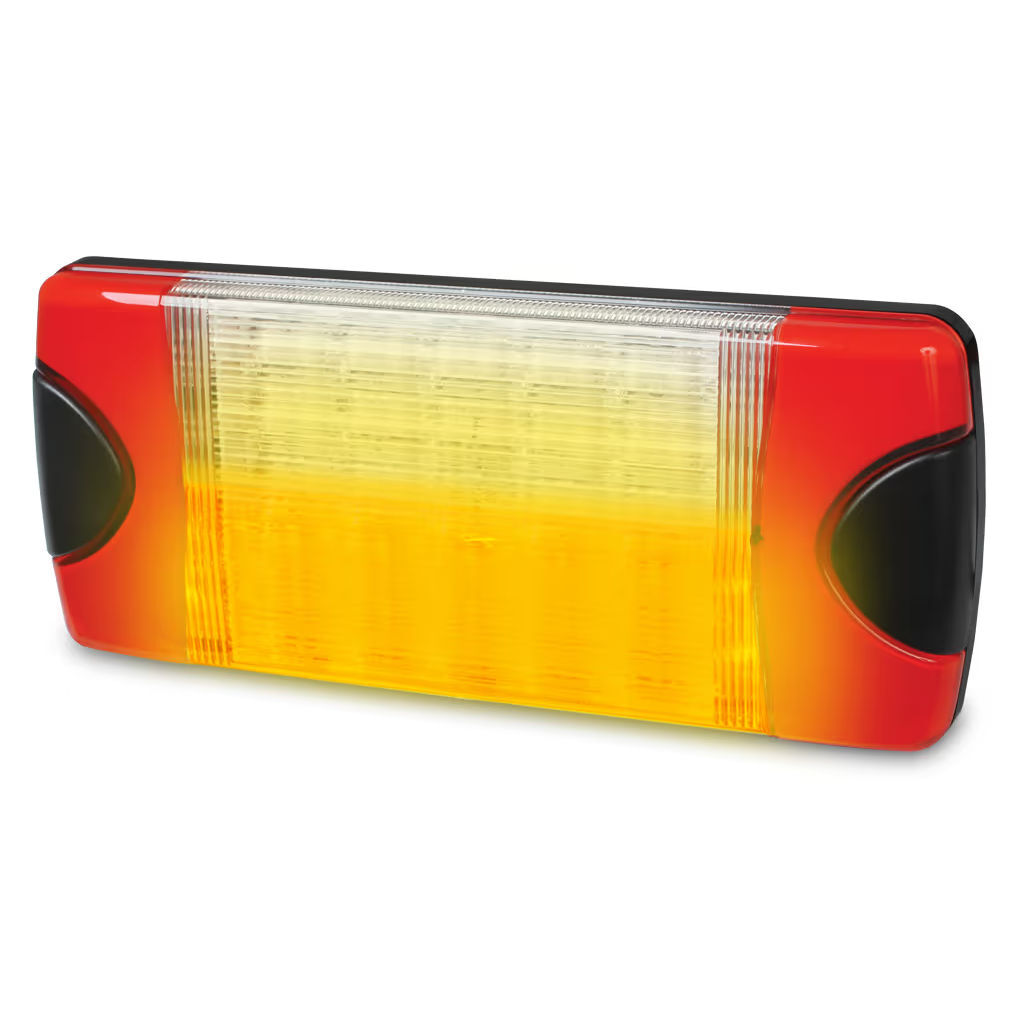

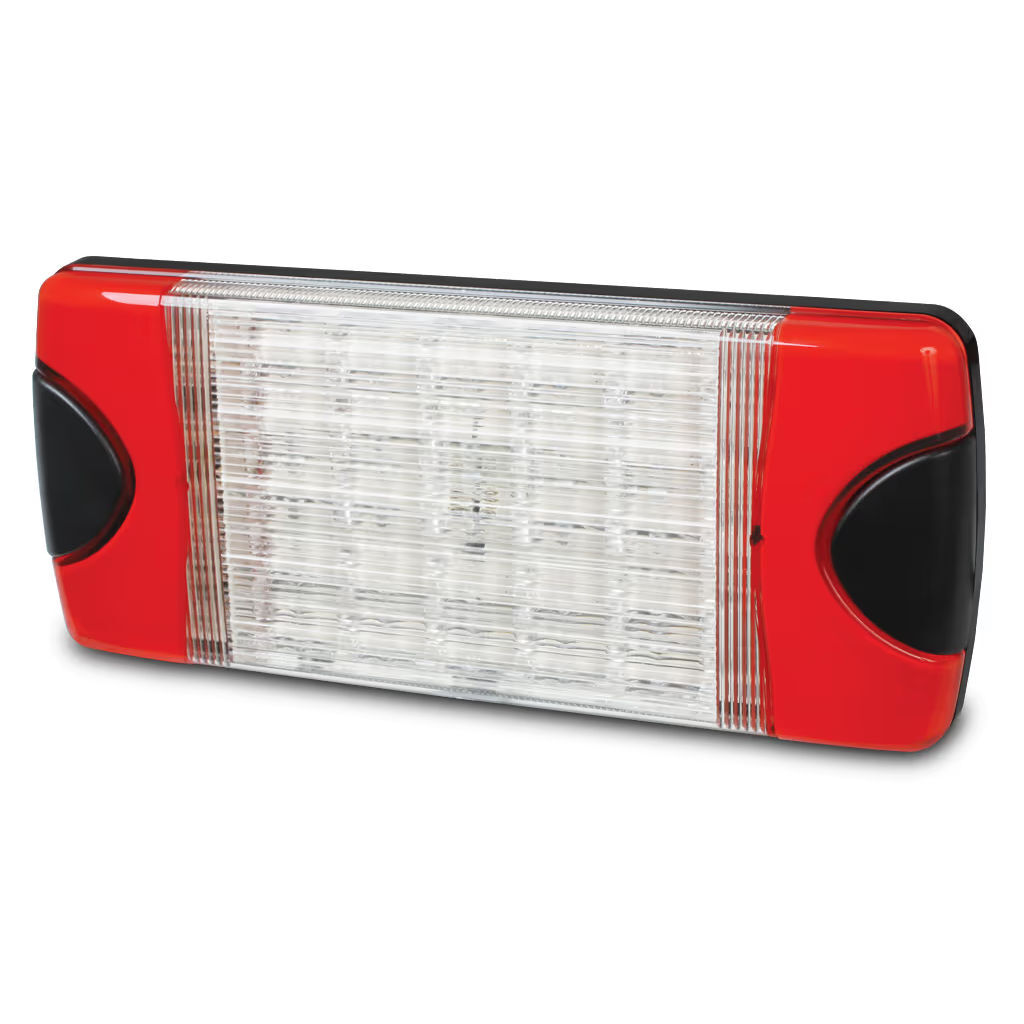

The Hella DuraLED Combi-S Rear Combination Lamp is a testament to over two decades of innovation in road safety. Initially introduced in New Zealand in 1998, this product has significantly enhanced the visibility and safety of transport fleets across Australia and New Zealand. Built on HELLA's commitment to long-term durability and user safety, this lamp is designed to be “Fit and Forget,” ensuring it can endure the rigours of the road and remain operational throughout the life of the vehicle.

Key Features:

  • Iconic DuraLED® design
  • UV, corrosion, impact, and shock-resistant
  • Clear optic until illuminated for improved visibility
  • Hella Compatibility Solution (HCS)
  • Two-hole surface mount with mounting bushes
  • Multivolt™ technology
  • IP 6K7 rated for dust protection and temporary water immersion
  • IP 6K9K rated for dust and high-pressure/steam jet cleaning
  • Available with a 6m sheathed multicore cable
  • Lens made from Grilamid®

Designed for Durability and Longevity

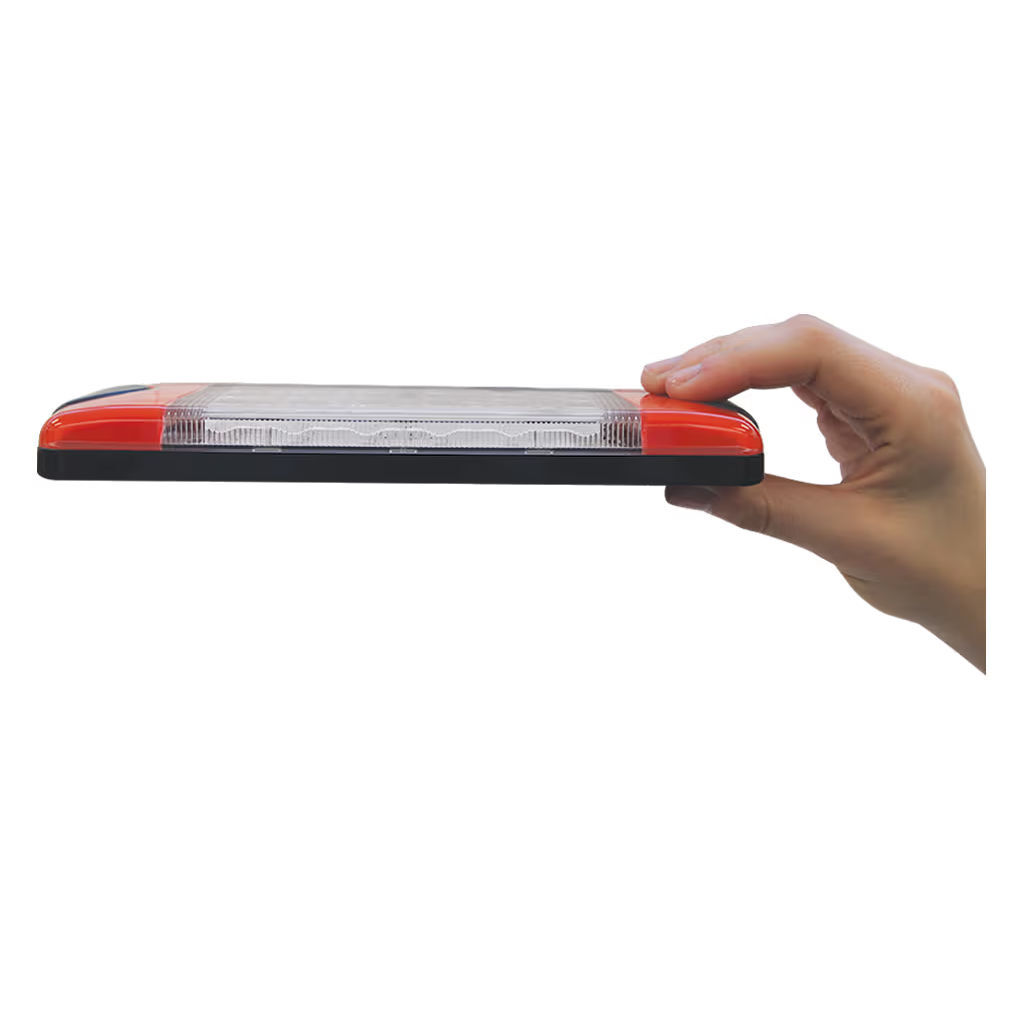

With a super slim profile of just 25 mm, the DuraLED Combi-S combines aesthetics and functionality. It is completely sealed and maintenance-free, making it ideal for harsh environments. The lamp is engineered to withstand high-pressure washing and temporary submersion, ensuring it continues to perform under various conditions. Its advanced materials provide exceptional resistance to UV light, corrosion, impact, and shock, guaranteeing an ultra-long service life.

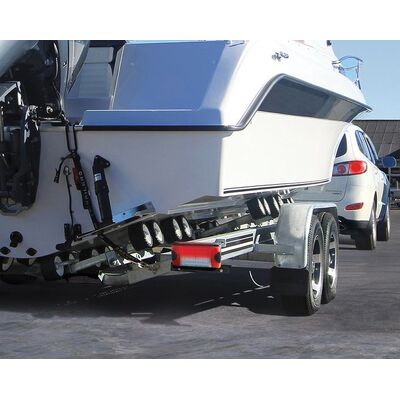

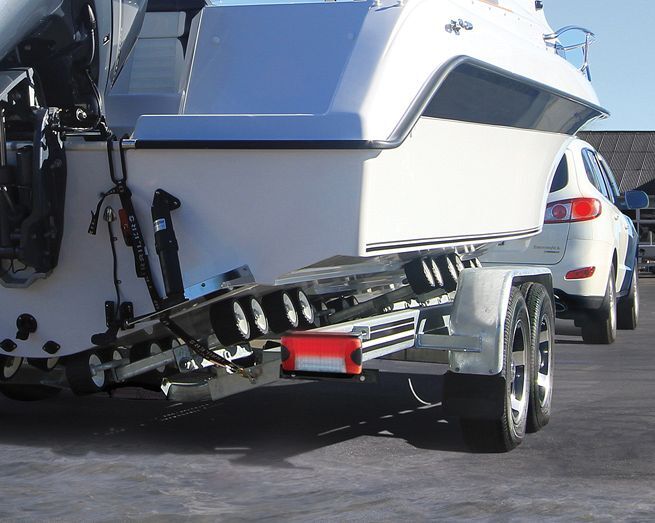

Versatile Application for Trailers and Beyond

This combination lamp is perfectly suited for commercial vehicles and boat trailers, providing reliable performance in diverse applications. Its multi-voltage capabilities ensure optimum brightness in both 12V and 24V systems, making it an adaptable choice for various vehicles and equipment.

Advanced Optics for Enhanced Visibility

The DuraLED Combi-S features clear optics that only reveal their vibrant light when illuminated. This clever design not only enhances visibility but also maintains a sleek appearance when the lamp is not in use. Its Hella Compatibility Solution (HCS) technology allows for seamless integration with modern European trucks equipped with body controllers compliant with ISO 13207-1 standards.

Energy-Efficient Power Consumption

Designed with efficiency in mind, the DuraLED lamp offers power consumption of just 5W for the stop and rear direction indicator lights, and 1W for the rear position light. This ensures that your vehicle remains energy-efficient while providing essential signalling and visibility.

Robust Protection Against the Elements

The DuraLED Combi-S boasts an impressive IP rating of 6K7, protecting it from dust and temporary water immersion, while the IP 6K9K rating ensures it can withstand high-pressure and steam jet cleaning. This level of protection means you can trust the DuraLED Combi-S to perform reliably in challenging conditions.

Easy Installation and Versatile Mounting Options

Installation is straightforward with the two-hole surface mount design, and the supplied mounting bushes allow for both horizontal and vertical configurations. Pre-wired with a generous 6 meters of sheathed multicore cable, this lamp ensures a hassle-free setup, so you can focus on what matters most—keeping your vehicles safe and operational.

Category Specification Details
Part Number 2SD 980 613-001 Hella DuraLED Combi-S Rear Combination Lamp
Design Profile Super slim profile, only 25 mm depth
Mounting Type Two-hole surface mount with mounting bushes supplied
Voltage Input Voltage Multivolt™ for 12 and 24 volt systems
Power Consumption Stop 5 W
  Rear Position 1 W
  Rear Direction Indicator 5 W
Protection Features Reverse polarity
5000 watt Transient Voltage Suppressor (TVS)
IP Rating IP 6K7 Protection against dust and temporary water immersion
  IP 6K9K Protection against dust and high-pressure/steam jet cleaning
Cable Length Length 6 m sheathed multicore cable
Lens Material Type Grilamid®
Compliance Standards

ADR 6/00: Cat 2a
ADR 49/00
CE
E24 5883
ECE R6/01
ECE R7/02

Compatibility Hella Compatibility Solution Compatible with HELLA 24V HCS control flasher units
SKU HEL.2SD980613001
Model # 2SD 980 613-001 (2378)
UPC/EAN 9416325228714
Brand Hella Marine
Unit Of Measure Each
