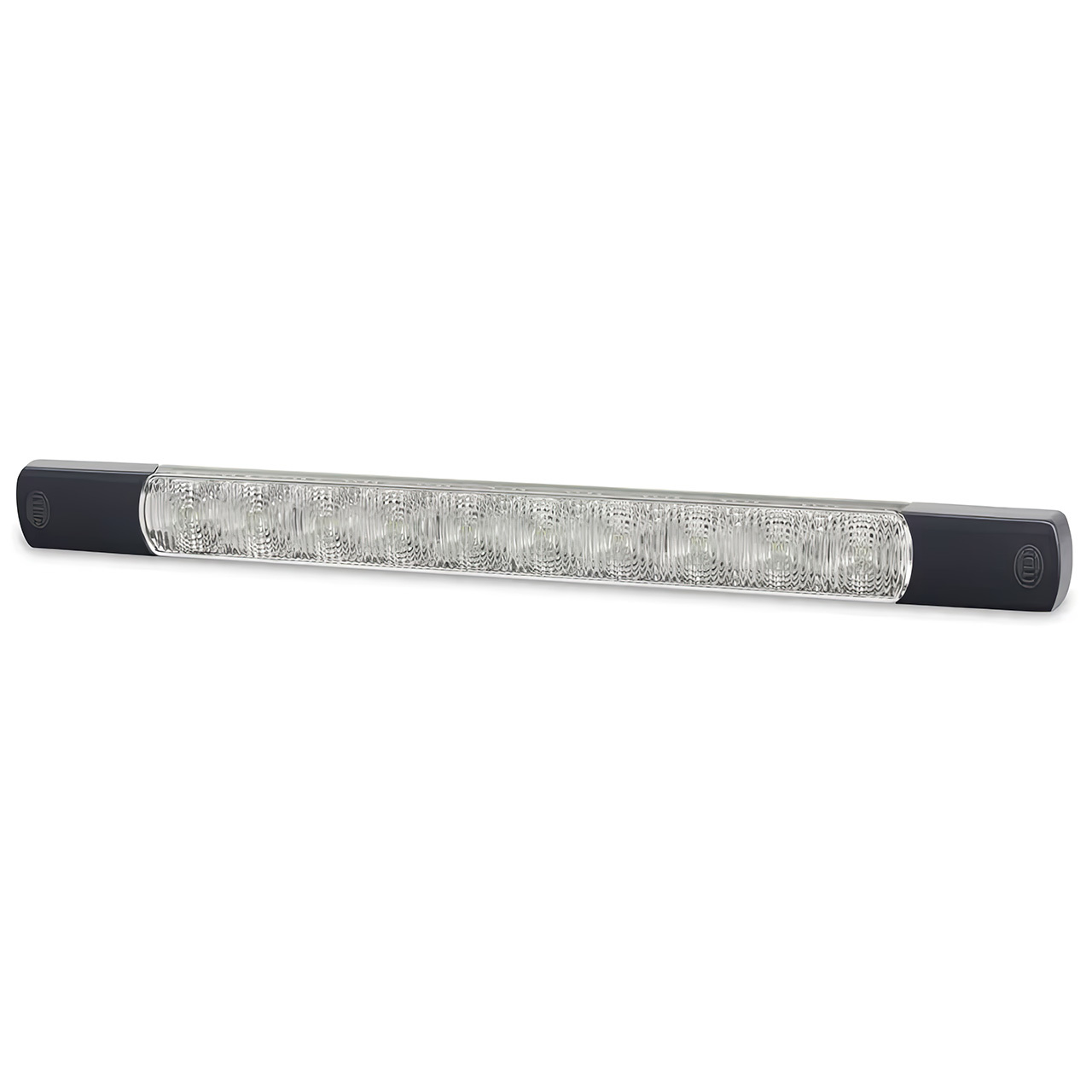

Surface mount LED reversing lamp. Featuring a low profile, ultra durable Grilamid® nylon lens for extreme impact, UV, chemical and stress resistance. Optic appears clear until illuminated.

Key Features:

  • Ultra slim with a profile height of only 11mm.
  • Low power consumption.
  • Grilamid® lens.
  • Ultra long service life.
  • Surface mount.
  • RFCommSafe.

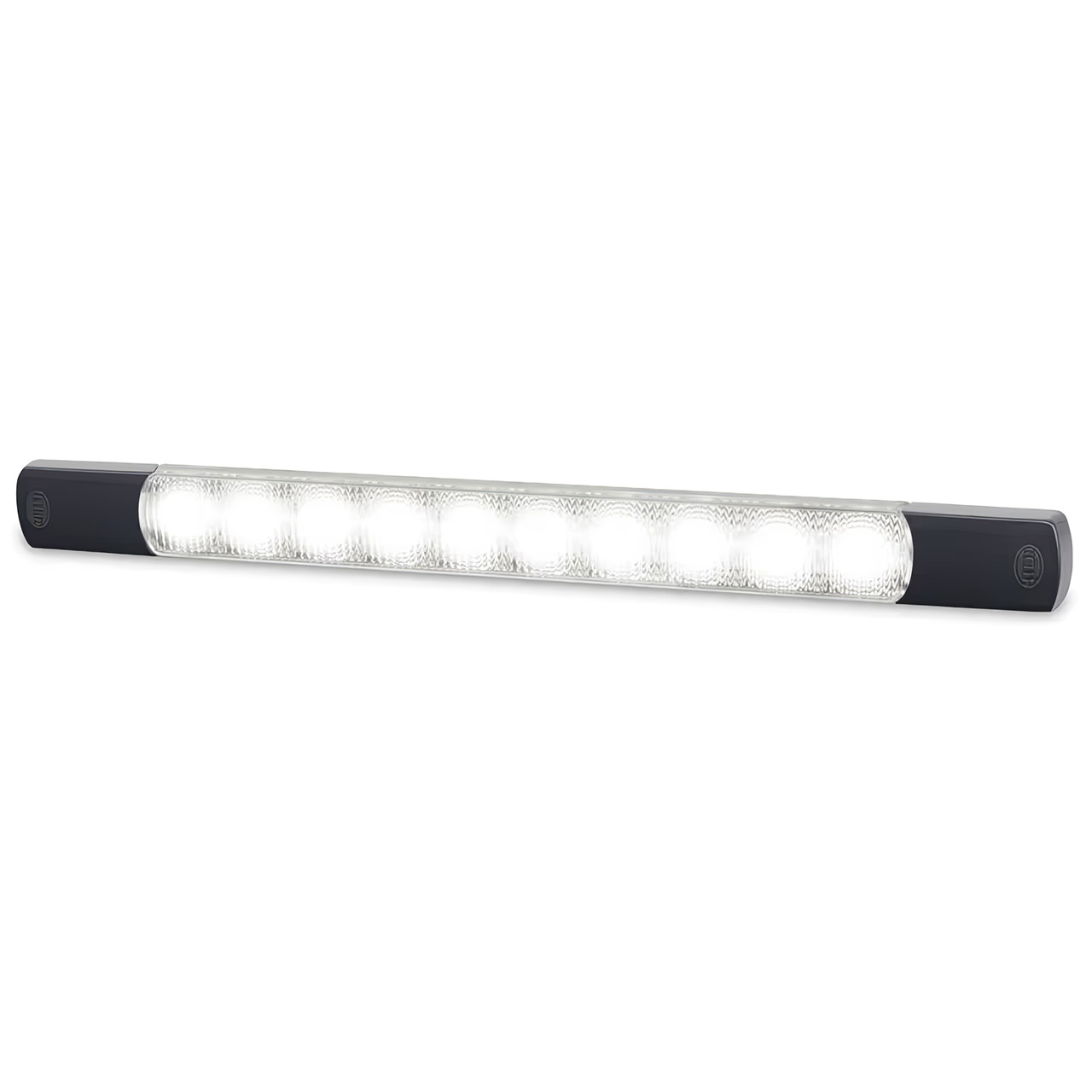

Optics Optic appears clear until illuminated

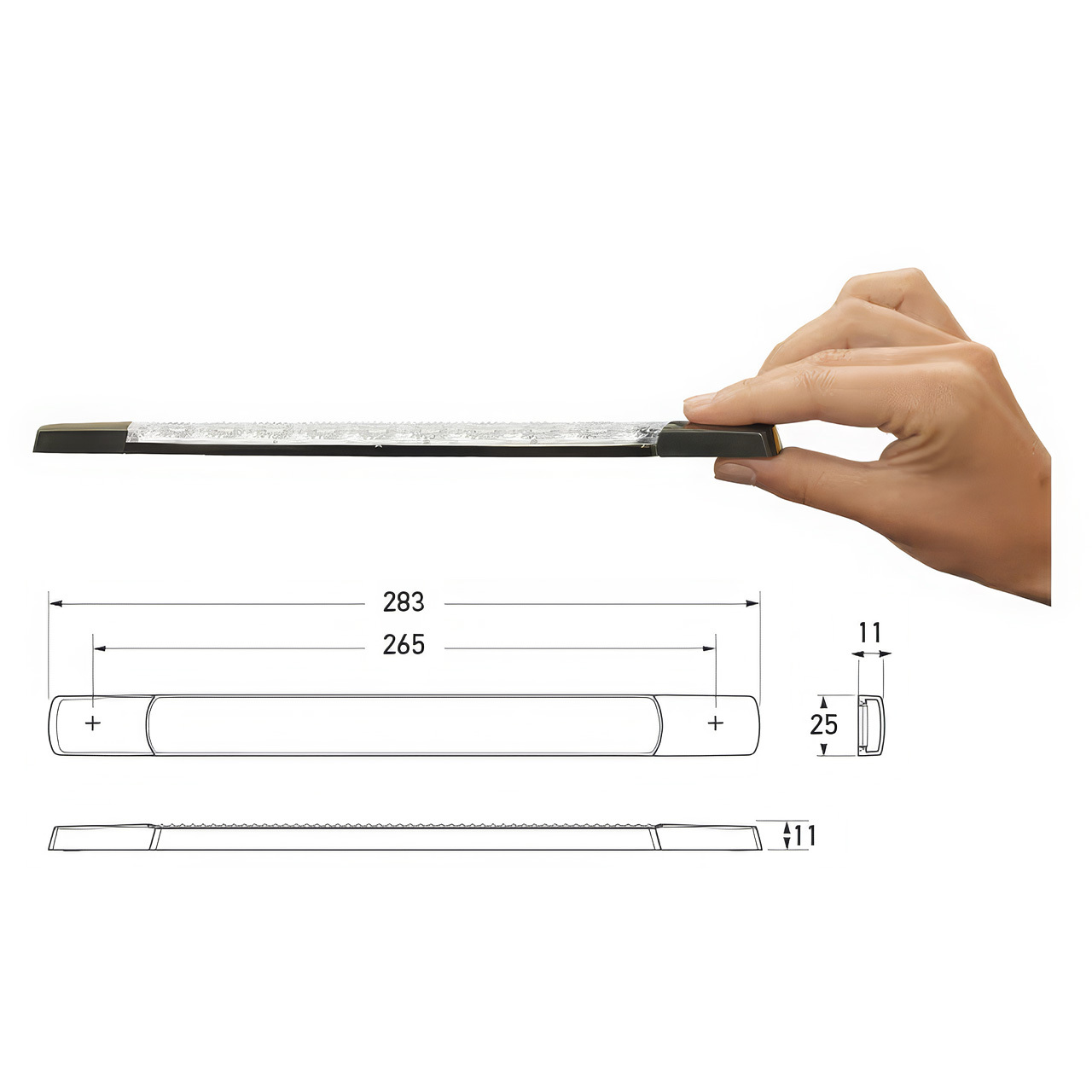

Mounting Suitable for horizontal or vertical mounting with tolerance. See diagram.
Power Consumption 3W
Protection Reverse polarity protection.
IP 6K7 (Protection against dust and temporary water immersion)
IP 6K9K (Protection against dust and high-pressure/steam jet cleaning)
Cable Length Box pack: Pre-wired with 2.5m of multi-core cable.
Blister pack: Pre-wired with 0.5m of multi-core cable.
Lens Material Grilamid®
Compliance ADR 1/00
Horizontal: E24 0027
Vertical: E24 0028
ECE R23/00
Note Includes mounting screws and charcoal screw caps.
SKU HEL.2ZR980889001
Model # 2ZR 980 889-001 (1468)
UPC/EAN 9416325236016
Brand Hella Marine
Shipping Weight 0.1000kg
Shipping Width 0.015m
Shipping Height 0.025m
Shipping Length 0.290m
Shipping Cubic 0.000108750m3
Unit Of Measure ea
