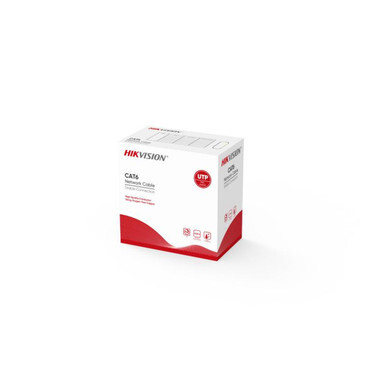

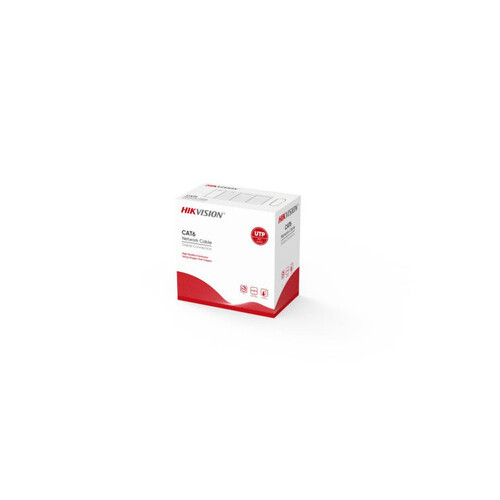

HikVision CAT6 UTP 4 Pair Network Cable, 305m, Blue
High-performance CAT6 Ethernet cable with solid copper conductors, offering reliable, high-speed networking for both residential and commercial installations
SKU: HIL.DS-1LN6-UE-W-BLUE | MPN: DS-1LN6-UE-W-BLUE
Special OrderSpecial Order from Supplier
Non Returnable/Non Refundable
High-performance 305-meter CAT6 Ethernet cable with solid copper conductors for reliable, high-speed networking in commercial and residential setups
The Hikvision 305m CAT6 UTP Network Cable is a high-performance, bulk Ethernet cable designed to support high-speed data transmission for residential, commercial, and industrial network installations. With solid copper conductors and a CM-rated jacket, this cable offers reliable performance over long distances, making it an excellent choice for creating a fast and secure Local Area Network (LAN).
Features
- Category: CAT6 – Supports Ethernet speeds of up to 1 Gbps over 100 meters, and up to 10 Gbps over shorter distances (up to 55 meters). Ideal for high-speed data transfer, video streaming, gaming, and VoIP applications.
- Cable Type: UTP (Unshielded Twisted Pair) – Features four twisted pairs of copper wires designed to reduce electromagnetic interference (EMI), ensuring reliable performance in typical indoor environments.
- Conductor Material: Solid Copper – High-quality solid copper conductors offer superior signal integrity and lower attenuation compared to stranded copper cables. Solid copper is ideal for longer cable runs and permanent installations.
- Conductor Gauge: 0.53 mm – Standard for CAT6 cables, providing a good balance between durability and flexibility for various network setups.
- Length: 305 meters – Bulk roll, perfect for large installations and long cable runs, reducing the need for multiple spools. Ideal for networking, data centers, and infrastructure projects.
- Jacket Rating: CM (Communications Multipurpose) – Suitable for general-purpose, indoor use. The CM rating indicates the cable is designed for dry environments, offering basic fire resistance for non-plenum spaces.
If you need high-quality, reliable, and cost-effective network cabling, the Hikvision 305m CAT6 UTP Network Cable is the ideal choice to meet all your connectivity needs.
General Specifications | |
---|---|
Core Color | White-Blue / Blue, White-Orange / Orange, White-Green / Green, White-Brown / Brown |
Packing | Wooden Tray & Carton |
Packing Length | 305 ± 1.5m |
Rip-Cord | Yes |
Drain Wire | No |
Electrical Properties | |
Impedance | 100 ± 15 Ω |
Delay Skew | ≤45 ns/100m |
DC Resistance | max 9.38 Ω/100m |
Conductor Resistance Unbalance | max 5.0% |
Material & Dimensions | |
Conductor Material | Solid Bare Copper (99.95%) |
Nominal O.D. (Conductor) | 0.530 ± 0.005 mm |
Insulation Material | HDPE |
Sheath Material | PVC (RoHS Compliant) |
External O.D. | 5.8 ± 0.4 mm |
Data Transfer Speed | |
Speed | Up to 1 Gbps (100m), Up to 10 Gbps (55m) |
SKU | HIL.DS-1LN6-UE-W-BLUE |
Model # | DS-1LN6-UE-W-BLUE |
Brand | HiLook |
Shipping Weight | 11.0000kg |
Shipping Width | 0.360m |
Shipping Height | 0.260m |
Shipping Length | 0.360m |
Shipping Cubic | 0.033696000m3 |
