The Hikvision HiLook HA-KIT-H1 is a cutting-edge 4Wire Hybrid 2MP intercom kit designed to offer seamless video communication. Featuring an indoor station with a 7-inch touch screen and user-friendly interface, this system provides a plug-and-play installation experience. It supports both Wi-Fi and PoE for easy integration into any setup.

Key Features

  • 7-inch touch screen
  • Plug & Play installation with Wi-Fi and PoE support
  • Mobile app support
  • Live view support for up to 16 IP cameras on the indoor station
  • 2MP resolution
  • IP65-rated door station
  • Two-way audio communication with noise suppression and echo cancellation
  • Supports Mifare cards for access control with a 13.56 MHz frequency
  • Motion detection feature
  • True WDR (Wide Dynamic Range)
  • Low illumination IR night vision
  • Built-in omnidirectional microphones and loudspeakers

Enhanced Indoor Experience

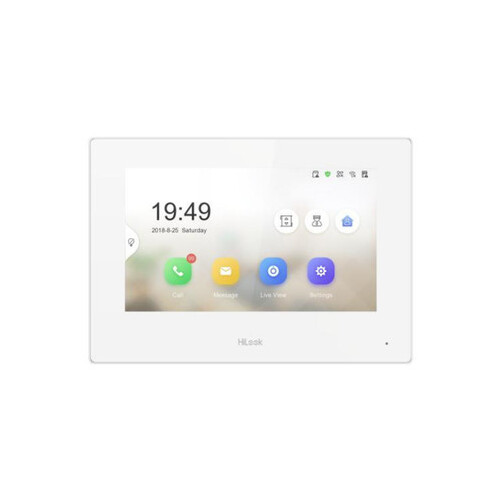

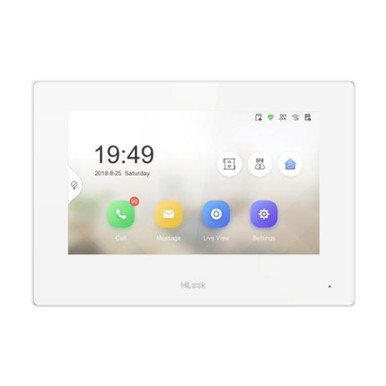

The indoor station (HA-IN-IP71) features a high-quality 7-inch TFT LCD display with a resolution of 1024 × 600 pixels. It provides smooth and responsive touch control, allowing users to easily receive video calls, unlock doors, and manage intercom functionalities. The device also supports live viewing of up to 16 IP cameras, offering an integrated solution for home security.

High-Definition Video Door Station

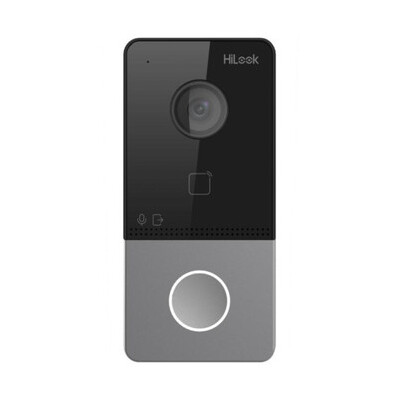

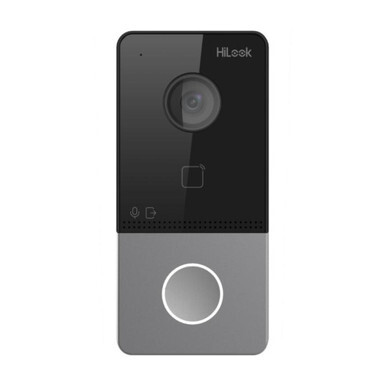

The HA-DS-IP1 door station captures high-definition video with its 2MP camera. It supports True WDR, low illumination IR mode, and a 131° horizontal field of view, ensuring clear video footage in any lighting conditions. Additionally, the camera uses H.264 compression, which ensures efficient video storage without compromising quality.

Easy Installation and Cost Efficiency

The Hikvision HiLook kit ensures hassle-free installation, with both the indoor and outdoor stations supporting Wi-Fi and PoE connectivity. This makes setup both cost-effective and straightforward. The door station features IP65 water resistance, making it ideal for outdoor use without concern for water ingress, even in challenging weather conditions.

Two-Way Audio and Smart Communication

Both the indoor and door stations feature built-in omnidirectional microphones and loudspeakers, enabling clear two-way audio communication. With G.711 audio compression, users can enjoy excellent audio quality with noise suppression and echo cancellation. Communication is seamless, whether you're indoors or outside.

Integrated Access Control Features

The HA-DS-IP1 door station includes an integrated Mifare card reader, which adds access control functionality to the system. It supports 13.56 MHz frequency, allowing for secure entry management. The system can be expanded to include up to 8 door stations, making it scalable for larger installations.

Robust Security and Durability

Designed for outdoor environments, the HA-DS-IP1 is rated IP65 for dust and water resistance, ensuring its durability in challenging conditions. It is also equipped with a tamper switch and supports alarm inputs for added security. The system's temperature tolerance ranges from -40°C to 53°C, providing reliable performance in a variety of climates.

Category Specification Details
Model Version HA-KIT-H1 4Wire Hybrid 2MP Intercom Kit, Wifi, 7" Touch
Indoor Station Model HA-IN-IP71 7-inch TFT LCD touch screen, plug & play, Wi-Fi & POE support
Display Screen Size 7-inch
Display Resolution Resolution 1024 x 600
Audio Input Microphone Built-in omnidirectional microphone
Audio Output Loudspeaker Built-in loudspeaker
Audio Compression Standard G.711U, 64 Kbps
Network Parameters Wired Network 10/100 Mbps self-adaptive
  Wireless Network Wi-Fi 802.11b/g/n
Capacity Event Capacity 200 events
  Linked Indoor Extensions 2
  Linked Doorphone Capacity 8
Dimensions (Indoor Station) W x H x D 200 mm x 140 mm x 15.1 mm
Door Station Model HA-DS-IP1 2MP camera, IP65 weather-resistant, Wi-Fi & POE support
Camera Resolution 2MP HD
  Field of View Horizontal: 131°, Vertical: 78°
Audio Intercom Two-way audio communication
Audio Compression Standard G.711U, 64 Kbps
Network Parameters Wired Network 10/100 Mbps Ethernet
  Wi-Fi 2.4G
Access Control Card Type Mifare card
Power Supply Indoor Station ≤ 6 W
  Door Station IEEE802.3af, PoE, 12 VDC
Temperature Indoor Station -10 °C to 55 °C
  Door Station -40 °C to +53 °C
Humidity Indoor Station 10% to 90%
  Door Station 10% to 95%
Protection Door Station IP65 water-resistant
Dimensions (Door Station) W x H x D 138 mm x 65 mm x 27 mm
SKU HIL.HA-KIT-H1
Model # HA-KIT-H1
Brand HiLook
Shipping Weight 1.0000kg
Shipping Width 0.200m
Shipping Height 0.020m
Shipping Length 0.140m
Shipping Cubic 0.000560000m3
