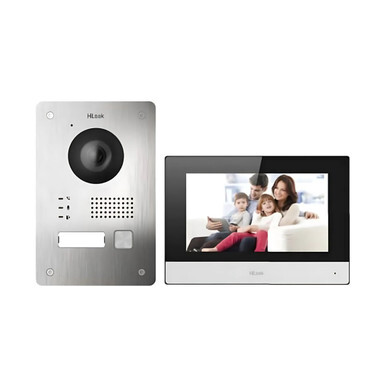

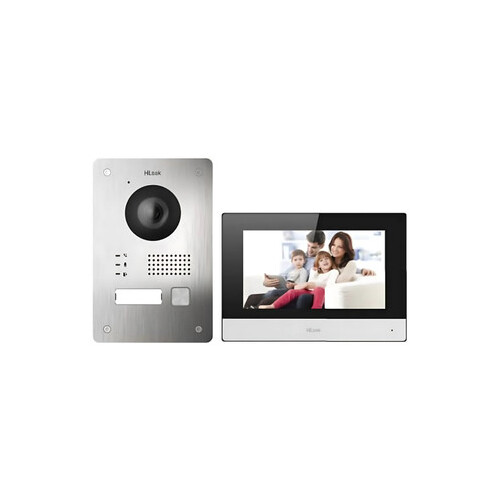

The Hikvision HiLook HA-KIT-A2 4WIRE 2MP Kit offers a sophisticated video intercom solution for residential and commercial use. Featuring a surface-mounted indoor station and a high-resolution villa door station, this kit is designed for both convenience and quality. The system includes everything needed for an easy and cost-effective installation, providing users with seamless communication and video monitoring.

Key Features

  • 7-inch touch screen
  • Plug & Play installation
  • Mobile app support
  • 2MP HD camera with high-quality video imaging at the door station
  • IP65-rated door station
  • Low illumination IR night vision with a 3 m range
  • True WDR (Wide Dynamic Range)
  • Two-way audio communication with built-in omnidirectional microphone and loudspeaker
  • Motion detection support
  • Supports H.264 video compression standard
  • Wide field of view (144° horizontal, 95° vertical)

User-Friendly Indoor Station

The indoor station in the HA-KIT-A2 features a 7-inch TFT touch screen with a resolution of 1024 × 600, offering users a simple and intuitive interface. With capacitive touch control and adjustable brightness, it’s designed for comfort and ease of use. The device supports Wi-Fi connectivity for additional flexibility and can connect seamlessly to the video intercom system.

High-Definition Video and Imaging

The villa door station provides sharp 2MP HD imaging with a wide 144° horizontal field of view, ensuring clear video footage of visitors. Equipped with True WDR and low illumination IR for night vision up to 3 metres, it delivers consistent video quality in all lighting conditions. The camera supports H.264 video compression, ensuring efficient storage without compromising image quality.

Easy and Efficient Installation

The two-wire connection between the indoor and outdoor stations ensures a straightforward and cost-effective installation process. The system supports both surface and flush mounting options, providing flexibility depending on installation preferences. The door station features a user-friendly design with a built-in camera, name tag, and LED indicators for communication status.

Reliable Outdoor Performance

Designed for durability, the villa door station has an IP65 protection rating, making it water-resistant and suitable for use in outdoor environments. It also includes a tamper switch for added security, ensuring that the system remains secure against unauthorised access. The station operates in a wide temperature range of -40°C to +60°C, making it suitable for various climates.

Advanced Communication Features

The intercom system supports two-way audio communication, with noise suppression and echo cancellation for clear conversations. The indoor station is equipped with a built-in microphone and loudspeaker, while the door station features an omnidirectional microphone and speaker for high-quality audio. The system supports G.711 audio compression, ensuring smooth and efficient audio streaming.

Scalable and Expandable System

The HA-KIT-A2 offers scalability, allowing for up to 8 linked indoor stations and up to 2 door stations. The system supports alarm inputs and relay outputs, adding extra layers of security and functionality. With its flexible connectivity options, including Ethernet and Wi-Fi, the system can be easily integrated into various setups and expanded as needed.

Category Specification Details
System Parameters Operating System Embedded Linux operating system
  Flash 32 MB
  RAM 256 MB
Video Parameters Camera 2MP HD camera
  Night Vision Low illumination IR supplement mode: 3 m
  BLC Support
  DNR Support
  WDR True WDR
  Field of View Horizontal: 144°, Vertical: 95°
  Video Compression Standard H.264
  Stream Main stream: 1080p@30fps, 720p@30fps
Sub stream: 4CIF
  Resolution Main stream: 1920 × 1080p, 720p
Sub stream: 704 × 576
  Motion Detection Support
Audio Parameters Audio Intercom Two-way audio communication
  Audio Input Built-in omnidirectional microphone
  Audio Output Built-in loudspeaker
  Audio Compression Standard G.711 U, G.711 A
  Audio Compression Rate 64 Kbps
  Audio Quality Noise suppression and echo cancellation
Network Parameters Wired Network 10/100 Mbps Ethernet
  Network Protocol TCP/IP, RSTP
Access Control Parameters Reading Frequency Not supported
  Relay 2
General Protection Level IP65
  Indicator 3
  Power Supply From indoor station
  Power Consumption < 10 W
  Heater Support
  Working Temperature -40°C to +60°C
  Working Humidity 10% to 95%
  Dimension 169 × 110 × 31 mm
  Installation Surface mounting, flush mounting
  Weight 476 g
Indoor Station Memory 128 MB
  Flash 32 MB
SKU HIL.HA-KIT-A2-HILOOK
Model # HA-KIT-A2-HILOOK
Brand HiLook
Shipping Weight 1.5000kg
Shipping Width 0.300m
Shipping Height 0.100m
Shipping Length 0.200m
Shipping Cubic 0.006000000m3
