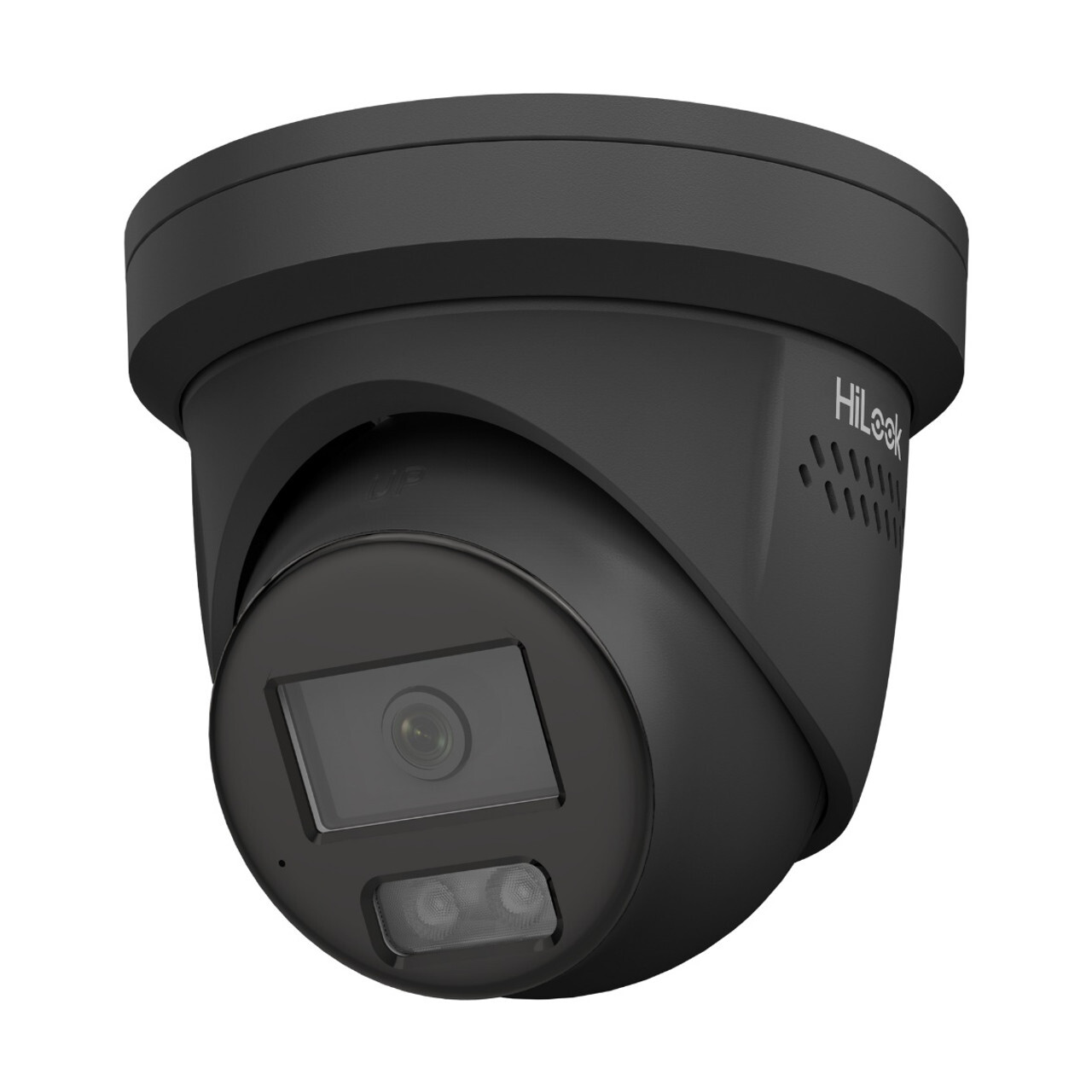

The Hikvision HiLook IPC-T269H-MU-SL provides high-quality, 6 MP resolution imaging, ensuring that every detail is captured with precision. This resolution is ideal for monitoring large areas or high-traffic zones, as it offers clarity and sharpness that allow for effective surveillance even in complex environments.

Key Features

  • 6 MP resolution
  • H.265+ compression
  • 120 dB WDR for clear images in challenging lighting
  • Dual strobe lights and audio alarm
  • Deep learning for human and vehicle detection
  • Built-in two-way audio
  • 24/7 color imaging with smart dual-light support
  • IR and white light range up to 30 m
  • IP67-rated
  • Supports microSD up to 256 GB for local storage
  • Powered by 12V DC or PoE (802.3af)

Advanced Dual Light Supplement for 24/7 Colourful Imaging

Equipped with Smart Dual-light Supplement technology, this camera automatically switches from infrared to white light when an event is detected, enabling 24/7 colourful imaging. This feature enhances visibility in low-light conditions, ensuring consistent colour accuracy and improved recognition of key details, such as clothing and vehicles.

Intruder Deterrence with Active Strobe Light and Audio Alarm

The camera includes an active red and blue strobe light coupled with an audio alarm, designed to deter potential intruders. These features offer a proactive security approach by warning off unauthorised individuals, making it an excellent choice for security-conscious locations.

Wide Dynamic Range for Superior Image Clarity

This model supports 120 dB true Wide Dynamic Range (WDR), which ensures clear imaging even when there is intense backlighting. This advanced technology adapts to challenging lighting conditions, making it suitable for monitoring areas with high contrast or varying lighting.

Built-in Microphone for Two-Way Audio Communication

With a built-in microphone and speaker, the IPC-T269H-MU-SL enables two-way audio communication. This feature allows operators to interact in real-time, providing immediate responses to situations as they unfold, which is crucial for both security and customer service applications.

Durable IP67-Rated Construction for All-Weather Protection

Designed to withstand harsh conditions, the camera is IP67-rated, making it resistant to dust and water. This durable construction ensures reliable performance in outdoor environments, maintaining functionality and image quality even in extreme weather conditions.

Efficient Video Compression and Storage Capabilities

The IPC-T269H-MU-SL employs H.265+ compression technology, which reduces bandwidth usage and storage requirements without compromising image quality. Additionally, with support for microSD storage up to 256 GB and network storage options, it provides flexible and efficient data management, enabling longer recording times and reduced storage costs.

Category Specification Details
Model Version IPC-T269H-MU-SL 6MP All-in-One Fixed Turret Network Camera
Camera Image Sensor 1/2.4" Progressive Scan CMOS
  Minimum Illumination (Colour) 0.003 Lux @ (F1.6, AGC ON)
0 Lux with white light
  Minimum Illumination (B/W) 0 Lux with IR
  Shutter Speed 1/3 s to 1/100,000 s
  Wide Dynamic Range 120 dB
  Angle Adjustment Pan: 0° to 360°
Tilt: 0° to 75°
Rotate: 0° to 360°
Lens Lens Type Fixed focal lens, 2.8 mm
  Focal Length & FOV 2.8 mm: Horizontal FOV 105.1°
Vertical FOV 53.4°
Diagonal FOV 128.6°
  Aperture F1.6
  Lens Mount M12
Illuminator Supplement Light Type White light
IR
  IR Range Up to 30 m
  White Light Range Up to 30 m
  Smart Supplement Light Yes
Video Max Resolution 3200 × 1800
  Main Stream 50 Hz: 25 fps
(3200 × 1800)
(2688 × 1520)
(1920 × 1080)
(1280 × 720)
  Sub Stream 50 Hz: 25 fps
(640 × 480)
(640 × 360)
  Third Stream 50 Hz: 10 fps (1920 × 1080)
(1280 × 720)
(640 × 480)
(640 × 360)
  Compression H.265
H.264
H.265+
H.264+
  Bitrate Control CBR/VBR
Audio Audio Sampling Rate 8 kHz to 48 kHz
  Audio Compression G.711ulaw
G.711alaw
G.722.1
G.726
MP2L2
PCM
MP3
AAC
  Built-in Microphone Yes
  Built-in Speaker 1.2 W
Max. sound pressure level: 95 dB @ 10 cm
Network Protocols TCP/IP, ICMP, HTTP
HTTPS, FTP, DHCP
DNS, DDNS, RTP
RTSP, NTP, UPnP
SMTP, IGMP, 802.1X
QoS, IPv4, IPv6
UDP, Bonjour, SSL/TLS
PPPoE, SNMP, ARP
  Simultaneous Live View Up to 6 channels
Storage Local Storage Supports microSD/SDHC/SDXC (256 GB)
General Operating Conditions -30 °C to 60 °C
Humidity 95% or less (non-condensing)
Power Power Supply 12 VDC ± 25%
PoE (802.3af, 36 V to 57 V)
  Power Consumption Max. 9.7 W (PoE)
Physical Dimensions Ø 138.3 mm × 112.1 mm
  Weight Approx. 820 g (Camera)
1150 g (with Package)
Protection Ingress Protection IP67
SKU HIL.IPC-T269H-MU-SL-BLK
Model # IPC-T269H-MU-SL-BLK
Brand HiLook
Shipping Weight 1.1500kg
Shipping Width 0.170m
Shipping Height 0.150m
Shipping Length 0.170m
Shipping Cubic 0.004335000m3
