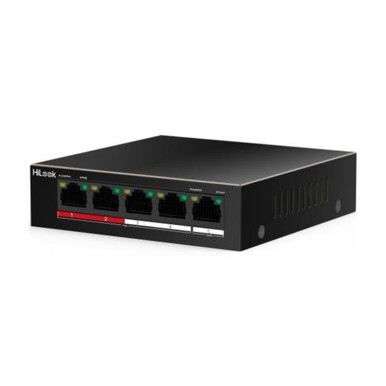

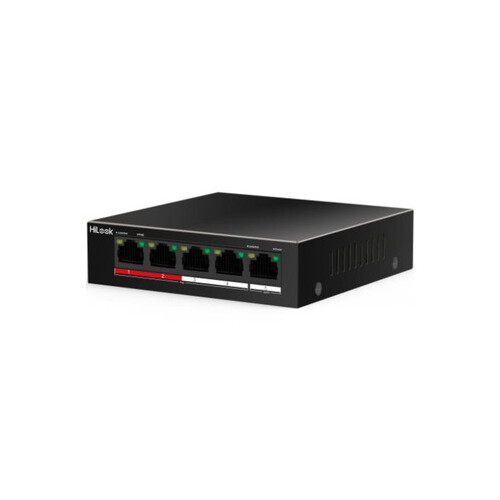

The HikVision HiLook NS-0105P-35 L2 Switch is an ideal choice for small to medium-sized network setups that require efficient Power over Ethernet (PoE) capabilities. With four 100 Mbps PoE ports and an additional uplink port, this unmanaged switch provides reliable network connectivity for various devices, perfect for home and office environments.

Key Features

• 4 PoE ports (100 Mbps) and 1 uplink port (100 Mbps)
• 35 W PoE power budget across all ports
• EXTEND mode allows 250 m data transmission at 10 Mbps
• 6 kV lightning protection on all ports
• Auto MDI/MDIX
• Store-and-forward forwarding method with smart cache optimisation
• Supports MAC address auto-learning and auto-aging

Extended Range for Wide Coverage

Designed for extended connectivity, the NS-0105P-35 offers a transmission distance of up to 250 metres when in Extend mode. This feature ensures that devices far from the main switch maintain stable and fast connections, making it suitable for large spaces or challenging network layouts.

Enhanced PoE Power Management

This switch is equipped with a 35W PoE power budget, supporting IEEE 802.3af standards across ports 1 to 4. This allows it to efficiently power multiple devices, such as IP cameras and access points, reducing the need for separate power sources and enhancing overall network simplicity.

Reliable Protection with Lightning Safeguards

All ports on the NS-0105P-35 feature 6 kV lightning protection, shielding the switch and connected devices from potential power surges. This robust protection increases network reliability and durability, particularly in areas prone to electrical fluctuations.

Efficient Data Transmission with Quality of Service

Supporting store-and-forward data processing and a 1 Gbps switching capacity, this switch ensures seamless data flow across the network. It also provides Quality of Service (QoS) on ports 1 and 2, prioritising critical traffic for smooth and efficient data handling.

Compact, Versatile Design for Easy Installation

With a sturdy design made from a 0.6 mm galvanised metal sheet, the NS-0105P-35 is built to last. It’s suitable for both desktop and wall mounting, allowing flexible installation options for different workspace needs. Its compact size, measuring 100 mm by 100 mm, makes it easy to place in space-constrained areas.

Smart Network Features for Optimal Performance

This switch includes auto MDI/MDIX for automatic crossover cable detection, MAC address auto-learning, and auto-aging for improved network efficiency. With smart cache optimisation, it keeps network performance steady, making it a reliable component of any network setup.
