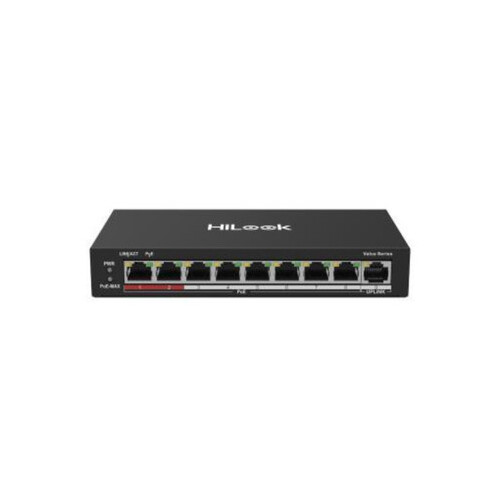

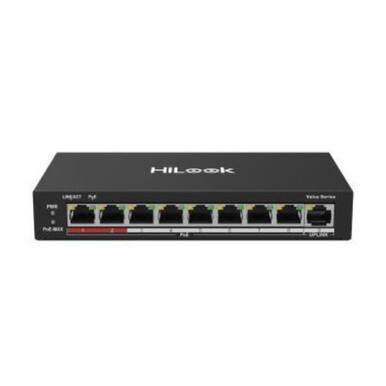

The HikVision HiLook NS-0109P-60 L2 Switch offers an efficient, unmanaged solution for small to medium-sized networks. Equipped with eight 100 Mbps PoE ports and an additional Ethernet uplink port, it delivers reliable connectivity for multiple devices while providing power over Ethernet (PoE) to compatible devices like IP cameras and wireless access points.

Key Features

• 8 PoE ports (100 Mbps) and 1 Ethernet uplink port (100 Mbps)
• Supports IEEE 802.3at/af PoE standards on all ports
• 60 W total PoE power budget
• EXTEND mode allows up to 250 m transmission distance on all ports
• 6 kV surge protection
• Wire-speed forwarding with store-and-forward switching
• 8-core power supply for simultaneous power delivery
• Compact, fan-free design with solid metal casing

Extended Transmission Range for Flexible Network Design

This switch supports a maximum transmission distance of 250 meters when operating in Extend mode. This extended range makes it an excellent choice for large premises or installations requiring long-distance PoE connections, ensuring consistent performance even over extended distances.

Enhanced PoE Power Budget

With a generous 60W PoE power budget, the NS-0109P-60 can power multiple devices simultaneously across all eight PoE ports. Compliant with IEEE 802.3af/at standards, it offers reliable power management, making it ideal for environments where multiple devices need to be powered via Ethernet, such as surveillance systems or VoIP phones.

Advanced Protection with Lightning Safeguards

For added durability and protection, the NS-0109P-60 features 6 kV surge protection on all PoE ports, ensuring the switch and connected devices remain safe from lightning and other electrical surges. This feature enhances the switch’s reliability in outdoor or vulnerable installations.

High-Speed Data Transmission with Wire-Speed Forwarding

The NS-0109P-60 is designed for optimal network performance with a wire-speed forwarding and non-blocking architecture. Offering a switching capacity of 1.8 Gbps and a packet forwarding rate of 1.339 million packets per second (Mpps), this switch ensures smooth data flow, even in high-traffic networks.

Durable, Fan-Free Design for Quiet Operation

Built with a solid metal shell, the NS-0109P-60 ensures long-lasting durability while maintaining a fan-free design. This design reduces noise and enhances the switch's reliability, making it ideal for both office and industrial environments where minimal maintenance is desired.

Compact and Easy to Install

With compact dimensions of 170 mm x 27.6 mm x 93.1 mm, the NS-0109P-60 is designed to fit into space-constrained environments. It supports both desktop and wall mounting, offering installation flexibility to meet different deployment needs, while the lightweight design simplifies setup.
