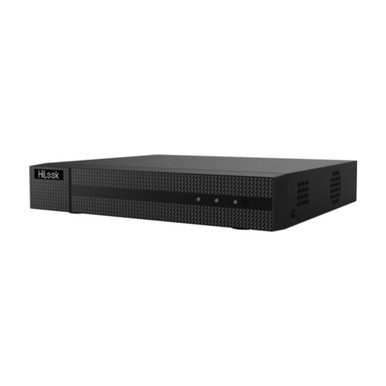

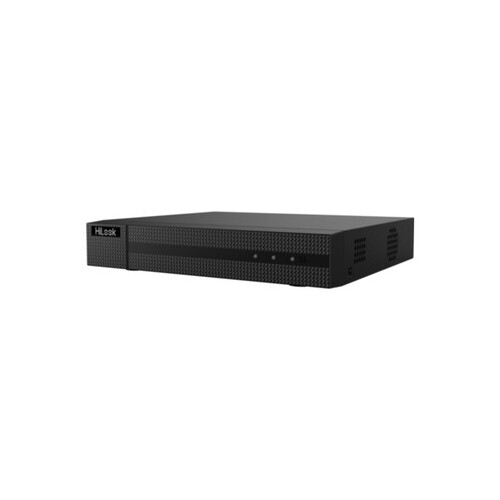

The Hikvision HiLook NVR-104MH-C-4P supports up to 4 channels of IP camera input, with a maximum resolution of 8 MP per channel. It features powerful decoding capabilities, offering up to 1 channel at 8 MP or 5 channels at 1080p, delivering clear and detailed video for all your surveillance needs.

Key Features:

  • Up to 4 IP camera inputs with 8 MP resolution support
  • Decodes 1 channel at 8 MP, 3 channels at 4 MP, or 6 channels at 1080p
  • Supports up to 40 Mbps incoming bandwidth
  • H.265+ compression reduces storage space by up to 75%
  • Simultaneous HDMI and VGA output with up to 4K HDMI resolution
  • Smart search and playback features
  • Supports multiple VCA events
  • Includes 4 independent PoE network interfaces
  • One-way audio output and two-way audio input via RCA

Efficient Video Compression

Utilising H.265+ compression technology, the NVR-104MH-C-4P effectively reduces storage space requirements by up to 75%. This ensures that you can store more footage without compromising on video quality, providing a cost-effective solution for long-term surveillance storage.

Versatile Video Outputs

The NVR offers both HDMI and VGA outputs, allowing for simultaneous video display on multiple monitors. It supports HDMI video output up to 4K resolution (4096 x 2160) at 30 Hz, making it suitable for high-definition display setups in surveillance rooms or control centres.

Storage Flexibility

The device includes a SATA interface that supports hard drives up to 8 TB, ensuring ample storage for recorded footage. Additionally, with smart search and playback functionality, you can quickly access and review footage with ease, enhancing efficiency during investigations.

Advanced Smart Features

The HiLook NVR-104MH-C-4P supports a range of intelligent video content analytics (VCA) features, such as motion detection, line crossing, intrusion detection, heat mapping, ANPR, and people counting. These features make it an ideal solution for enhancing security monitoring and gaining valuable insights from the footage.

Network Connectivity and PoE Support

Equipped with 4 independent PoE ports and a 10/100 Mbps Ethernet interface, this NVR ensures easy connectivity to IP cameras and network devices. The 4 PoE ports provide both power and data transmission to cameras, simplifying installation and reducing cable clutter.

Reliable and Energy-Efficient Design

The NVR-104MH-C-4P is built for reliability with low power consumption (under 10 W without HDD and PoE off) and wide operating temperature ranges from -10 °C to 55 °C. Its compact design (265 × 225 × 48 mm) ensures it fits neatly into a variety of installations, making it an excellent choice for both commercial and residential surveillance applications.

Category Specification Details
Model Version NVR-104MH-C/4P 4-Channel NVR, 4 PoE Ports, 8MP Resolution
Video Input IP Video Input 4-ch, Up to 8 MP resolution
Bandwidth Incoming Bandwidth 40 Mbps
  Outgoing Bandwidth 80 Mbps
Video Output HDMI Output 1-ch, 4K (4096 x 2160)
30 Hz, 2K, 1080p, 720p
  VGA Output 1-ch, 1920×1080/60 Hz
Decoding Decoding Format H.265+/H.265/H.264+/H.264
  Recording Resolution 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/720p
  Synchronous Playback 4-ch
Audio Audio Output 1-ch, RCA (Linear, 1 KΩ)
  Two-way Audio Input 1-ch, RCA (2.0 Vp-p, 1 KΩ)
Network Remote Connection 16
  Network Protocols TCP/IP, DHCP, IPv4
IPv6, DNS, DDNS
NTP, RTSP, SADP
SMTP, SNMP, iSCSI, ISUP
PoE PoE Interface 4, RJ-45 10/100 Mbps self-adaptive Ethernet interface
  PoE Standard IEEE 802.3 af/at
Storage SATA Interface 1, up to 8 TB per disk
General Power Supply 48 VDC, 1.35 A
  Power Consumption ≤ 10 W (without HDD and PoE off)
  Operating Temperature -10°C to 55°C
  Operating Humidity 10% to 90%
Physical Dimensions 265 × 225 × 48 mm
  Weight ≤ 1 kg
Certification Compliance FCC Part 15
CE EN 55032: 2015
EN 61000-3-2
SKU HIL.NVR-104MH-C-4P
Model # NVR-104MH-C-4P
Brand HiLook
Shipping Weight 0.9970kg
Shipping Width 0.270m
Shipping Height 0.050m
Shipping Length 0.230m
Shipping Cubic 0.003105000m3
