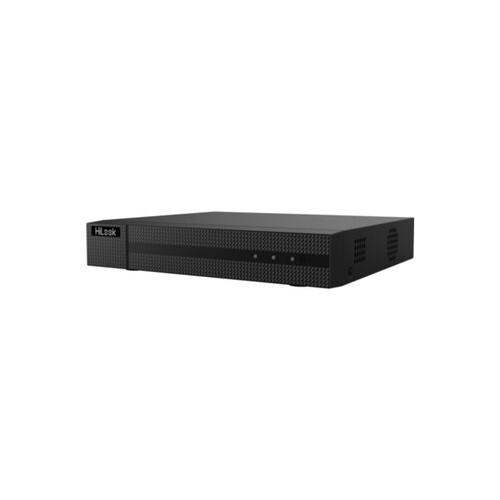

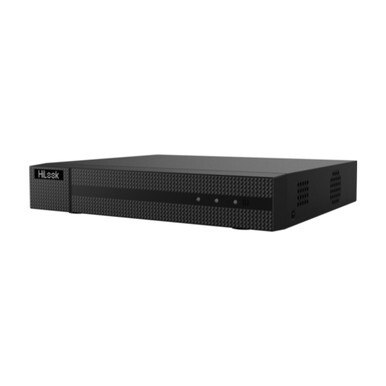

The Hikvision HiLook NVR-108MH-C-8P is an 8-channel network video recorder designed to support up to 8 IP camera inputs, providing superior video surveillance for both residential and commercial use. This 1U unit comes with 8 PoE (Power over Ethernet) ports for easy and efficient camera connectivity, streamlining the setup process.

Key Features

  • Up to 8 IP camera inputs with 8 MP resolution support
  • Supports up to 80 Mbps incoming bandwidth
  • H.265+ compression reduces storage space by up to 75%
  • Simultaneous HDMI and VGA output with up to 4K HDMI resolution
  • Smart search and playback features
  • Supports multiple VCA events like motion detection, line crossing, and people counting
  • Includes 8 independent PoE network interfaces
  • One-way audio output and two-way audio input via RCA

Advanced Video Compression and Decoding

This NVR supports H.265+, H.265, H.264+, and H.264 video formats, offering flexible options to suit different recording and storage requirements. It delivers powerful decoding capabilities, supporting 1-channel at 8 MP and 5-channels at 1080p resolution, ensuring clear and detailed video playback.

Exceptional Video Output Options

The NVR-108MH-C-8P provides simultaneous HDMI and VGA video outputs, allowing users to monitor their surveillance footage on multiple displays. The HDMI output supports up to 4K resolution, ensuring high-definition video quality on compatible displays, while the VGA output ensures compatibility with older monitors.

Smart and Efficient Storage Management

With an 8 TB storage capacity per HDD (via the SATA interface), this NVR allows for extended recording times and efficient storage management. The smart search and smart playback features enhance playback efficiency, making it easier to find and review important footage.

Enhanced Network Integration

Equipped with 8 independent PoE ports and a self-adaptive Ethernet interface, the NVR-108MH-C-8P offers reliable network connectivity and simplified installation. The device supports multiple network protocols like TCP/IP, DHCP, and NTP, making it easy to integrate into various network setups.

Intelligent Video Content Analytics

This NVR includes support for a range of advanced video content analytics (VCA) events. Features such as motion detection, line crossing, and intrusion detection can be configured to trigger specific actions, providing enhanced security and monitoring capabilities. Additional smart functions like heat mapping and people counting can also be used for more detailed analysis.

Reliable and Efficient Power Management

The NVR-108MH-C-8P operates on a 48 VDC power supply with a maximum power consumption of just 75 W (without HDD and PoE off), making it an energy-efficient choice for 24/7 surveillance. The compact design and efficient power usage ensure minimal environmental impact while maintaining optimal performance.

Category Specification Details
Model Version NVR-108MH-C/8P 8-Channel 1U 8 PoE 4K NVR
Video and Audio IP Video Input 8-ch, Up to 8 MP resolution
Network Incoming Bandwidth 80 Mbps
  Outgoing Bandwidth 80 Mbps
Video Output HDMI Output 1-ch, up to 4K resolution
(4096 x 2160/30 Hz)
  VGA Output 1-ch, 1920 × 1080/60 Hz
  Simultaneous HDMI/VGA Output Yes
Audio Output Output 1-ch, RCA (Linear, 1 KΩ)
Decoding Decoding Format H.265+/H.265/H.264+/H.264
  Recording Resolution Up to 8 MP/6 MP/5 MP/4 MP/3 MP/1080p
  Synchronous Playback 8-ch
PoE PoE Interface 8, RJ-45 10/100 Mbps self-adaptive Ethernet
  Power ≤ 75 W
  PoE Standard IEEE 802.3 af/at
Auxiliary Interface SATA 1 SATA interface, up to 8 TB capacity
General Power Supply 48 VDC, 1.88 A
  Consumption (without HDD) ≤ 10 W
  Working Temperature -10 °C to 55 °C
  Working Humidity 10% to 90%
  Dimensions (W x D x H) 265 × 225 × 48 mm
  Weight (without HDD) ≤ 1 kg
Certification Types FCC Part 15 Subpart B
CE EN 55032: 2015
EN 61000-3-2
EN 61000-3-3, EN 50130-4
SKU HIL.NVR-108MH-C-8P
Model # NVR-108MH-C-8P
Brand HiLook
Shipping Weight 0.9970kg
Shipping Width 0.270m
Shipping Height 0.050m
Shipping Length 0.230m
Shipping Cubic 0.003105000m3
