High-performance 32-channel Network Video Recorder with 16 PoE ports, 8MP resolution support, and dual HDD storage for efficient surveillance

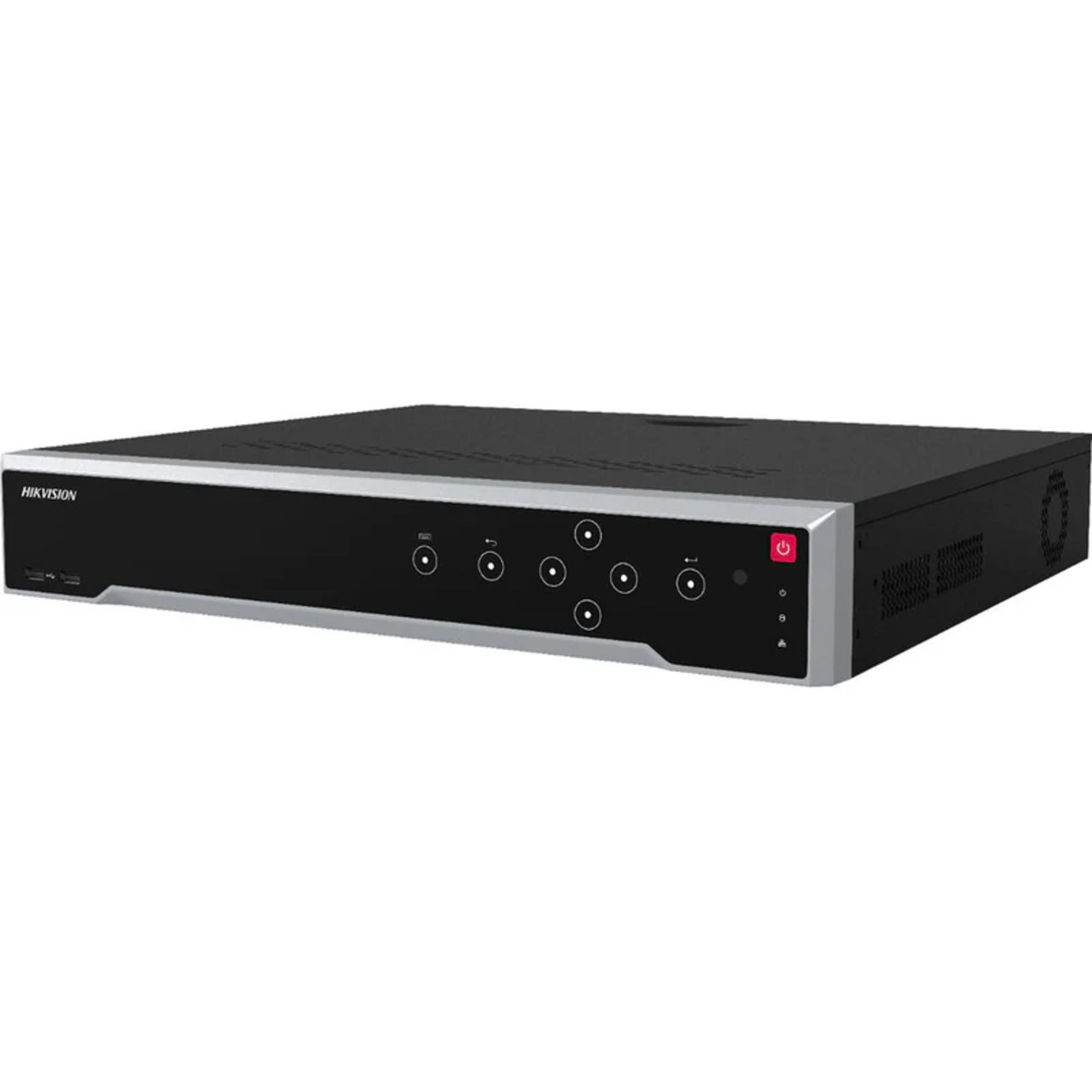

The HikVision HiLook NVR-232MH-K-16P is a high-performance 32-channel Network Video Recorder (NVR), ideal for both residential and commercial surveillance systems. With 16 PoE ports, this NVR simplifies installation by providing power and data transmission over a single Ethernet cable, eliminating the need for separate power supplies. Supporting up to 8MP resolution, it ensures clear, detailed video recording for your security needs.

The NVR can accommodate 2 hard drives (HDDs) for large-scale video storage and features advanced H.265+ compression, saving bandwidth and storage space without compromising on video quality. The system is equipped with HDMI and VGA outputs for easy connection to monitors, while its smart features, including motion detection and intelligent video analytics, enhance security with automated alerts and efficient video management.

Features

  • Channels: Supports up to 32 channels of IP cameras.
  • PoE Ports: 16 built-in Power over Ethernet (PoE) ports, which simplifies installation by providing both power and data transmission over a single Ethernet cable.
  • Resolution: Supports up to 8MP (4K) resolution, ensuring ultra-high-definition video recording for clear and detailed surveillance footage.
  • Storage: Can accommodate 2 hard drives (HDDs) for storage, allowing for large capacity recording and video storage.
  • Video Output: Typically includes HDMI and VGA outputs for connecting to monitors or display units.
  • Compression: Supports advanced video compression methods, such as H.265+, which optimises storage space while maintaining video quality.
  • User Interface: The NVR typically comes with an easy-to-use web interface, as well as remote access via mobile apps or software for monitoring and management.
  • Advanced Features: Includes features like motion detection, video analytics, smart search, and other professional surveillance tools for enhanced security.

This NVR is suitable for small to medium-sized surveillance systems, such as commercial installations, office buildings, and residential properties, where high-definition video monitoring is needed. With its built-in PoE support, it eliminates the need for additional power sources or injectors, making it easier to set up and manage a security network.

General Specifications
Model HiLook NVR-232MH-K-16P
Channels Supported 32 Channels
PoE Ports 16 Built-in PoE Ports
Storage 2 x HDD (Up to 10TB per HDD)
Resolution Support Up to 8MP (4K)
Video Output HDMI, VGA
Compression & Performance
Video Compression H.265+, H.265, H.264, H.264+
Recording Speed Up to 256Mbps Incoming Bandwidth
Network & Connectivity
Network Interface 1 x RJ45 10/100/1000 Mbps
Remote Access iOS, Android, Web Browser (via Hik-Connect or HiLookVision)
Power & Dimensions
Power Supply AC 100-240V, 50/60Hz
Power Consumption Max 25W (Without HDD)
Dimensions 315 mm × 232 mm × 45 mm
Weight 2.3 kg
Additional Features
ONVIF Compliance Yes
Operating Temperature 0°C to 40°C
Operating Humidity 10% to 90% RH
SKU HIL.NVR-232MH-K-16P
Model # NVR-232MH-K-16P
Brand HiLo
Shipping Weight 1.1250kg
Shipping Width 0.390m
Shipping Height 0.060m
Shipping Length 0.320m
Shipping Cubic 0.007488000m3
