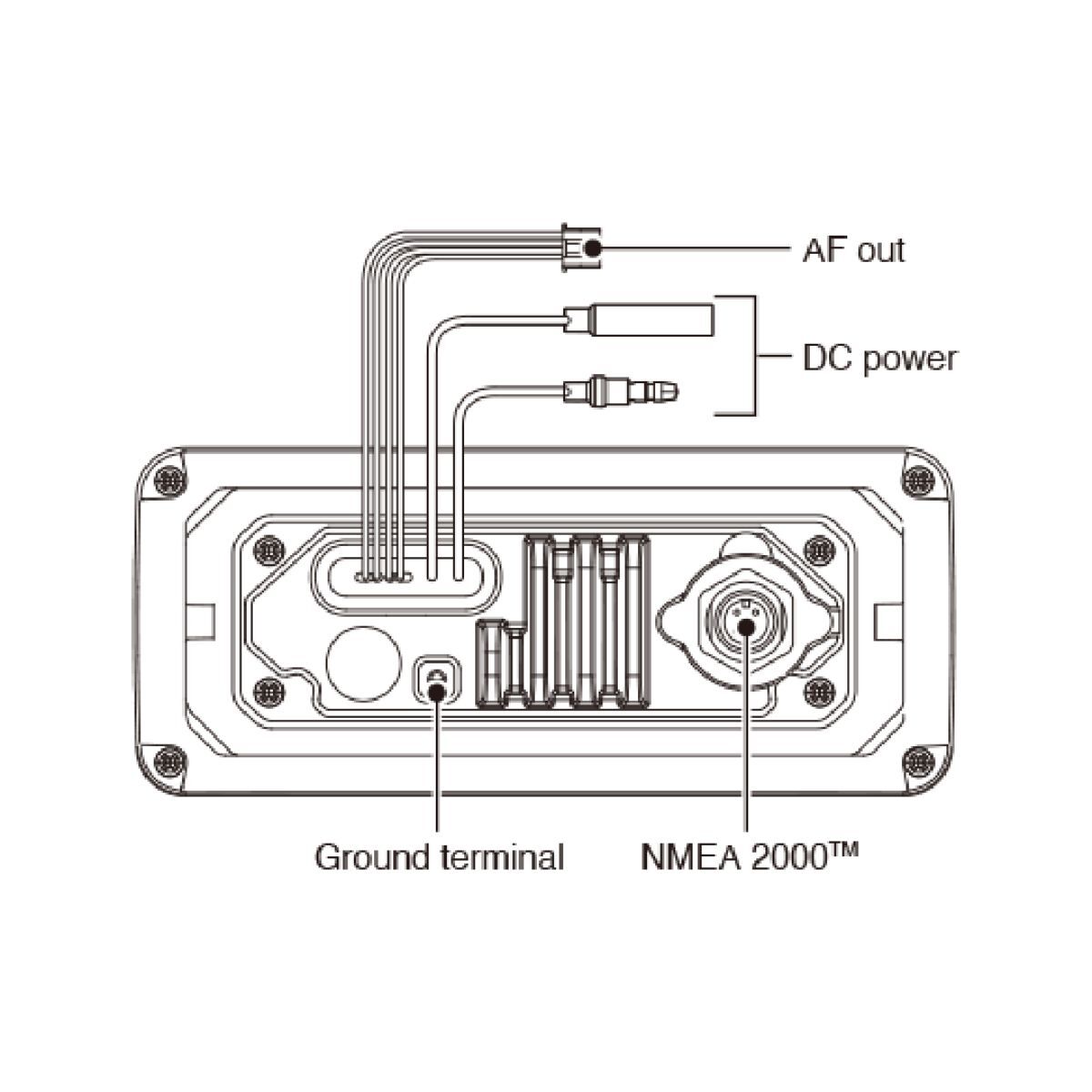

For NMEA 2000™ interface and Hailer/PA function.

To connect to the IC-M510/E via WLAN.

AF POWER (at 13.8 V) 20.0 W min ( 10% distortion) RX_HAILER
25.0 W min ( 30% distortion) HAILER
Operating temperature range -20 ℃ to +60 ℃, -4℉ to 140℉
Power supply requirement 11.7 to 15.9 V DC (Negative ground)
Current drain (at 13.8 V) 3.5 A

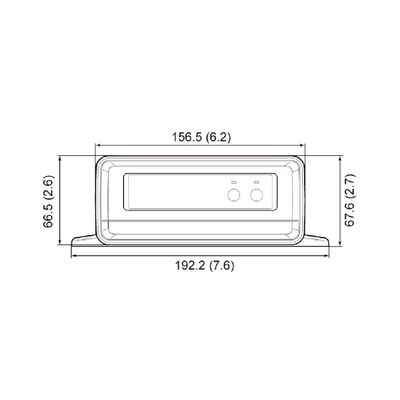

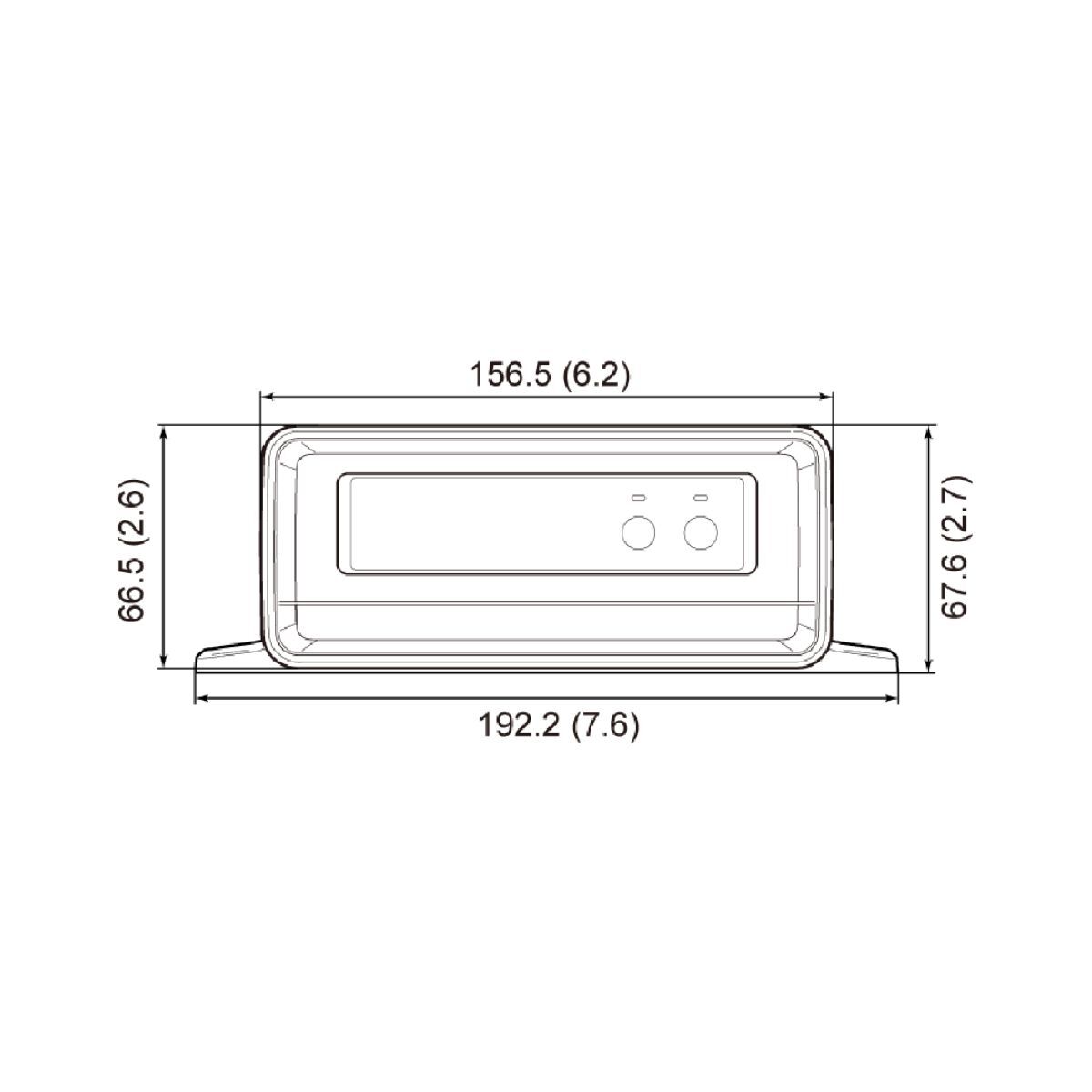

Dimensions (approx.)
(W x H x D, Projections do not included)
156.5 x 67.6 x 82.1 mm, 6.2 x 2.7 x 3.2 inch
Weight (approx.) 430 g, 15.2 oz
Waterproof IPX7
SKU ICO.CT-M500
Model # CT-M500
Brand Icom
Shipping Weight 0.4300kg
Shipping Width 0.082m
Shipping Height 0.067m
Shipping Length 0.156m
Shipping Cubic 0.000857000m3
Unit Of Measure ea
