Radio Control & Intercom via Your Smart Device

Use the RS-M500 app (for iOS™/Android™) to remotely control Smart device the IC-M510E through WLAN. Up to three smart devices can be used as a wireless microphone or remote controller in substitute for a simple microphone. Intercom function between your smart device and the radio is also available.

Integrated AIS Receiver

With its integrated AIS receiver, the IC-M510E AIS can show real-time AIS vessel traffic information on the display. You can directly make an individual DSC call to selected AIS targets from the AIS screen.

Wide Viewing Angle Colour TFT LCD

The colour TFT LCD provides nearly a 180-degree viewing angle. The wide display has high-resolution characters and function icons. The night mode screen ensures good readability in low light conditions.

New Sleek Design

The IC-M510E is slim (depth: 53.6 mm) and easy to install in your boat. Its all-new sleek design is suitable for either panel or trunnion mounting.

Simplified Navigation Function

The Navigation function guides you to a specified waypoint or AIS target. You can assign up to 100 destinations as waypoints.

Provides Clear, Loud Audio

The IC-M510E’s internal speaker enhances the received audio. The waterproof speaker provides superior sound quality with a wide frequency range for powerful, clear audio.

Interface BOX for NMEA 2000™ and Hailer

The optional CT-M500 wireless interface box provides NMEA 2000™ connectivity and Two-way Hailer/PA function. The CT-M500 and the radio can be connected through WLAN. This separate interface box option allows for flexibility in positioning the unit closer to the NMEA network connection point.

Prestigious iF Design Award 2022 Recipient

The IC-M510 is a winning product of the iF DESIGN AWARD 2022, the world-renowned design prize. The IC-M510 VHF marine radio provides essential maritime communication and supports safety on the water. Integration with the newly developed RS-M500 smart-device app also enables an unprecedented onboard communication experience.

AIS Target Call with MA-510TR

When connected to the optional MA-510TR Class B AIS transponder, the AIS target call function allows you to make an individual DSC call without having to manually input an MMSI number.

Other Features:

  • Active Noise Cancelling
  • NMEA 0183/HS connectivity, NMEA 2000™ (CT-M500 required)
  • Integrated GNSS receiver (Selectable from either internal receiver or use optional UX-241 GNSS antenna)
  • IP68 advanced waterproofing (1 m depth of water for 60 minutes)
  • Automatic Foghorn function (CT-M500 required)
  • Voice Scrambler with optional UT-112A
  • AquaQuake™ prevents audio degradation from a water-logged speaker
  • Supplied speaker-microphone, HM-205RB can be connected to the rear panel
  • External speaker connection
  • Controlled with COMMANDMIC™ HM-195 or HM-229 series
  • Supports 4-digit channels

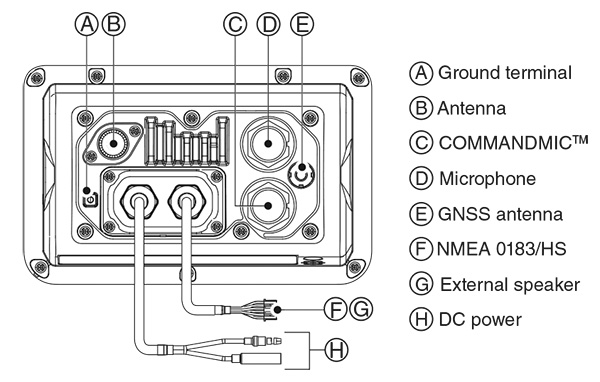

Rear Panel View:

Icom IC-M510E AIS Rear View



Supplied Accessories

  • Speaker microphone, HM-205RB
  • Microphone hanger
  • DC power cable
  • Mounting bracket kit





General

Frequency range TX 156.025–161.425 MHz*3
RX 156.300–161.925 MHz*3
DSC 156.525 MHz
AIS1, 2*1 161.975, 162.025 MHz
Usable channels INT, USA, ATIS*2 channels
Type of emission 16K0G3E (FM), 16K0G2B (DSC)
16K0G2B (AIS)*1
Power supply requirement 13.8 V DC (10.8–15.6 V DC)
Current drain TX 25 W output 5.0 A
RX Max. audio 4.0 A (with HM-195)
Operating temperature range –20°C to +60°C; –4°F to +140°F
Antenna impedance 50 Ω
Weight (approx.) 750 g; 1.7 lb
(Not including microphone)

Transmitter

Output power (at 13.8 V DC) 25 W, 1W
Max. frequency deviation ±5 kHz
Frequency error ±0.5 kHz
Spurious emissions Less than 0.25 μW (at 25 W)
Residual modulation More than 40 dB
Adjacent channel power More than 70 dB

Receiver

Sensitivity (at 20 dB SINAD)
DSC (1% BER)		 –5 dBμ
–1 dBμ emf
Adjacent channel selectivity
DSC (1% BER)		 More than 75 dB
More than 73 dBμ emf
Spurious response
DSC (1% BER)		 More than 75 dB
More than 73 dBμ emf
Intermodulation
DSC (1% BER)		 More than 75 dB
More than 68 dBμ emf
Hum and noise More than 40 dB
Audio output power
(at 10% distortion)		 15 W typ. with a 4 Ω external speaker

Wireless LAN

Wireless LAN standard IEEE802.11 b/g/n
Authentication and Encryption WEP (64/128 bit), WPA-PSK (TKIP), WPA2-PSK (AES)
Channels 1 to 13 (2.4 GHz band)*4
Output power Less than 10 mW/MHz


*1 Only for the Integrated AIS version. *2 Available depending on the transceiver version. *3 May differ depending on version. *4 May differ depending on the country of use.
Measurements made in accordance with EN301 025-2, -3.
All stated specifications are subject to change without notice or obligation.

Applicable U.S. Military Specifications

Icom makes rugged products that have been tested to and passed the following MIL-STD requirements and strict environmental standards.

Standard
MIL-810 G
Method
Procedure
Low Pressure

500.5

I, II
High Temperature

501.5

I, II
Low Temperature

502.5

I, II
Temperature Shock

503.5

I-C
Solar Radiation

505.5

I
Rain

506.5

I
Humidity

507.5

II
Salt Fog

509.5

-
Dust Blowing

510.5

I
Immersion

512.5

I
Vibration

514.6

 I
Shock

516.6

I, IV


Also meets equivalent MIL-STD-810-C, -D, -E and -F.

Applicable IP Rating

Ingress Protection Standard
Dust & Water IP68 Dust-tight and waterproof protection
