Last Call Voice Recording

The last call voice recording function automatically saves the last incoming call for 1 minute. You can also start recording manually. You will not miss an important call.


Active Noise Cancelling Technology

The built-in bidirectional active noise cancelling reduces background noise to up to 90% and improves both your transmitted voice and incoming call. You will hear better and clearer!


Bass Boost Function

The signal processing technology emphasizes low-pitched sound to provide a rich bass sound for both transmitting and receiving signals.


700 mW Loud Audio

The IC-M73EURO uses a BTL (bridge tied load) amplifier that doubles the audio output. Its internal speaker delivers a loud 700mW audio output with clear sound.


5W RF Output Power

The IC-M73EURO's 5 Watts of transmit power will provide an extended communication range for the user. A large capacity Lithium-Ion battery, BP-245H allows for 17 hours of operation, under normal conditions*2.
(*2 Typical operation with 5:5:90 duty ratio. 20 hours for basic version.)

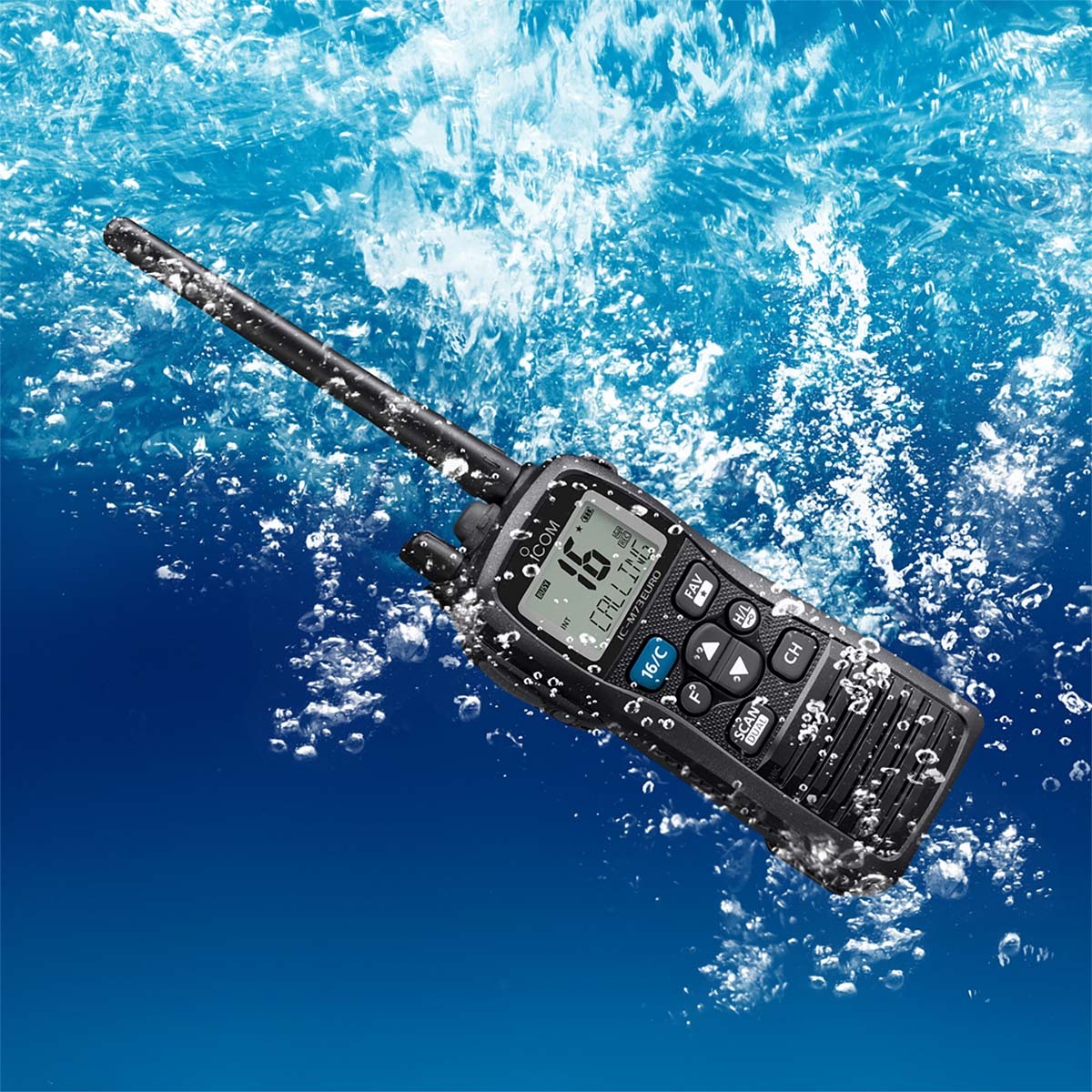

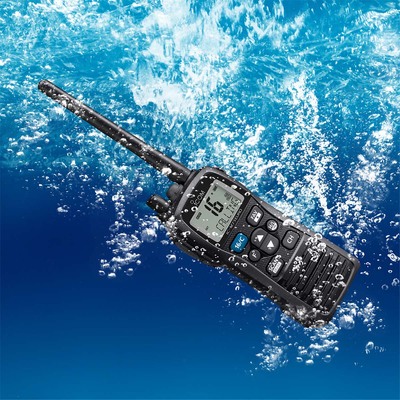

IPX8 Advanced Waterproofing

The IC-M73EURO continues to offer Icom's best waterproof protection. The radio has been tested to survive after being submersed in 1.5 m (4.9 ft) depth of water for 30 minutes.


Slim, Hourglass Body Wide Viewing Angle LCD

The IC-M73EURO has a stylish, ergonomic design. A durable and rugged body provides for user-friendly operation and long life. A wide viewing angle, high intensity LCD offers bright, easy to read characters.


Additional features

  • AquaQuake™ water draining function
  • Dual/Tri-Watch function* for monitoring Channel 16 and/or call channel
  • 4 level battery indicator
  • Favorite channel and tag scan functions
  • Optional waterproof speaker-microphones, HM-167 and HM-202
  • Rapid charger BC-210 supplied
  • Auto power save function
  • Basic version (no voice recorder, no noise canceller and no bass boost function) available for limited markets.
  • Supports 4-digit channels


Included Accessories

  • Cigarette lighter cable, CP-25H*
  • AC adapter, BC-123SE or BC-242*
  • Rapid charger, BC-210
  • Battery pack, BP-245H
  • Belt clip, MB-103
  • Antenna, FA-S59V or FA-S64V*
  • Hand strap

(* Not supplied or may differ depending on the version.)

  IC-M73EURO
AUS version
Frequency range Tx 156.025–157.425 MHz
Rx 156.300–162.025 MHz
Dimensions (W×H×D)
(Projections not included)		 52.5×125×30 mm
Weight (approx.) 320 g
(With BP-245H, FA-S64V, MB-103)
Current drain Tx 1.4 A
(5 W output)
Rx Max. audio
(Int SP/Ext SP)		 450 mA/250 mA
Sensitivity (at 20 dB SINAD) −5 dBμ emf typ.
Intermodulation 65 dB
Audio output power
(at 10% distortion, 8 Ω load)		 700 mW typ. (Internal SP@ 1 kHz)
200 mW typ. (External SP)
Output power (Hi/Mid/Low) 5/3/1 W

Applicable U.S. Military Specifications

Icom makes rugged products that have been tested to and passed the following MIL-STD requirements and strict environmental standards.

Standard MIL-810 G
Method, Proc.
Low Pressure Storage 500.5 I
Low Pressure Operation 500.5 II
High Temperature Storage 501.5 I
High Temperature Operation 501.5 II
Low Temperature Storage 502.5 I
Low Temperature Operation 502.5 II
Temperature Shock 503.5 I-C
Solar Radiation 505.5 I
Rain Blowing 506.5 I
Rain Drip 506.5 III
Humidity 507.5 II
Salt Fog 509.5
Dust Blowing 510.5 I
Water Immersion 512.5 I
Vibration 514.6 I
Shock Functional 516.6 I
Shock Transit Drop 516.6 IV

Also meets equivalent MIL-STD-810-C, -D, -E and -F.

Applicable IP Rating

Ingress Protection Standard
Water IPX8 (Waterproof protection)


All stated specifications are subject to change without notice or obligation.

SKU ICO.IC-M73EURO
Model # IC-M73EURO
Brand Icom
Shipping Weight 0.7500kg
Shipping Width 0.150m
Shipping Height 0.100m
Shipping Length 0.150m
Shipping Cubic 0.002250000m3
