M3 Standard Flange 6.5-inch Marine Coaxial System (60 W, 4 Ω) - Gray Metallic Sport Grille with RGB LED Illumination

Because you expect great performance and top quality when you choose JL Audio for your marine audio system, the affordable M3 speakers are designed with the same “DNA” as our flagship models and use the same marine grade materials to ensure outstanding longevity in real-world boating use. Most importantly, JL Audio's fanatical approach to sound quality is in full effect, this time optimised for moderate powered systems.

Purpose-engineered and built for real marine duty, M3 coaxial systems deliver excellent performance at a more affordable price than JL Audio's maximum-performance M6 models.

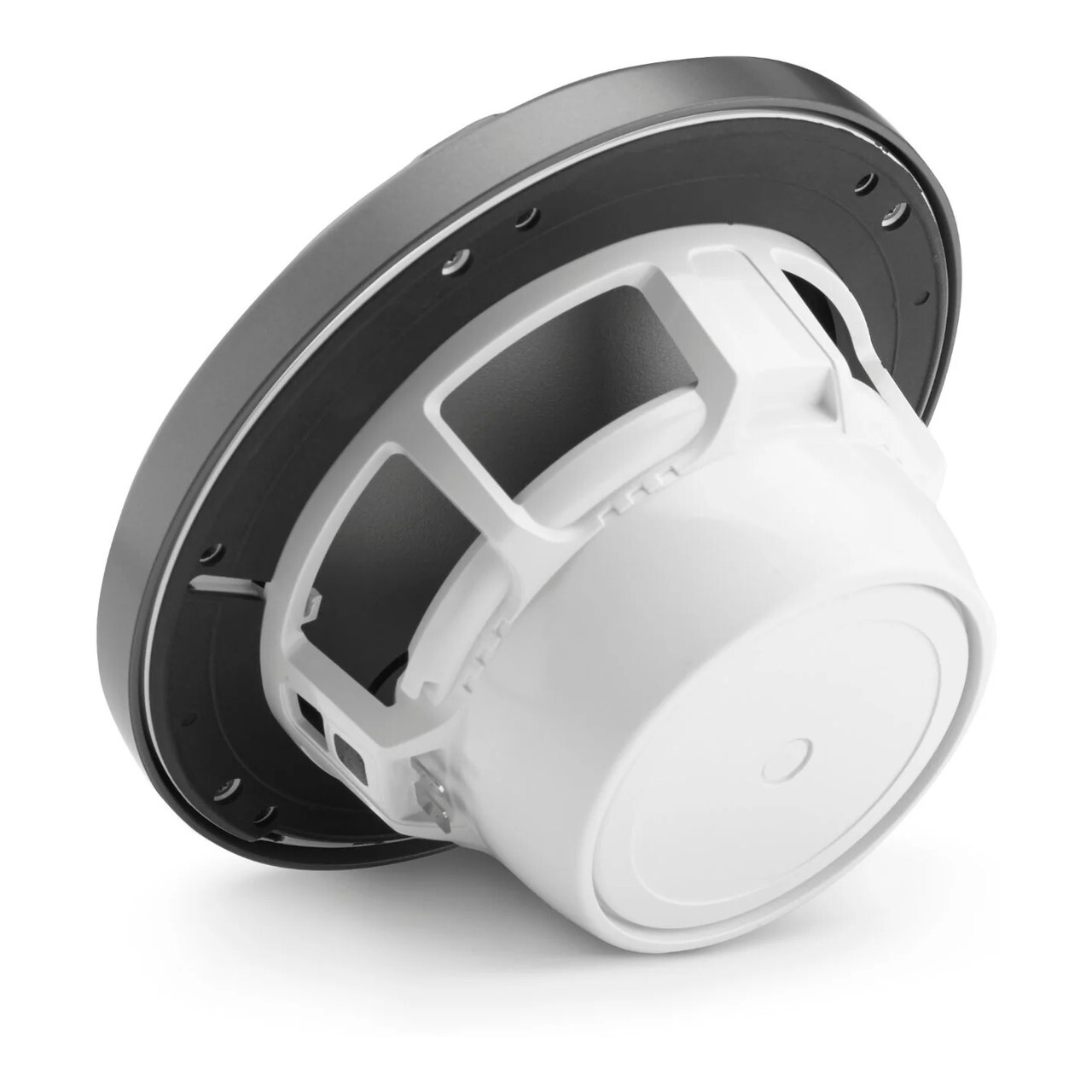

The M3-650X 6.5-inch coaxial speaker is designed around the standard marine 6.5-inch speaker format and features a wide mounting flange with a six hole mounting pattern.

The long excursion woofer design and excellent power handling make your music come through loud and clear at speed, or at anchor. The woofer design is optimised to operate with a large volume of air behind it (at least 2 cu. ft. / 57 l). Operating this coaxial system in less space will compromise its low frequency performance.

A 0.75-inch pure silk dome tweeter, specially treated to withstand the marine environment, handles the high-frequency duties. Silk has been chosen for its lightness, excellent damping properties and smooth response characteristics.

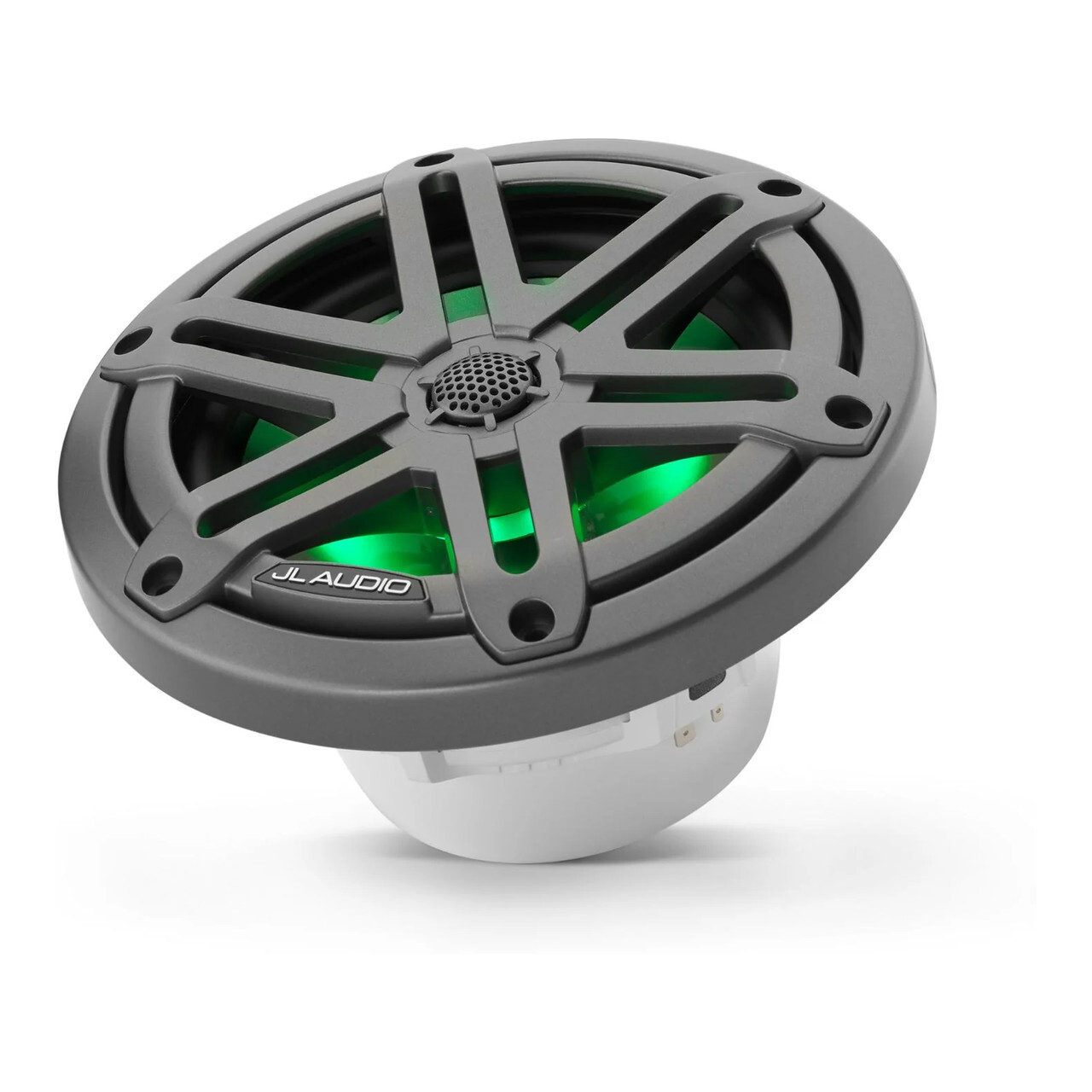

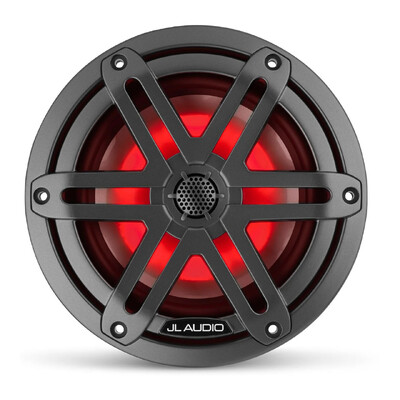

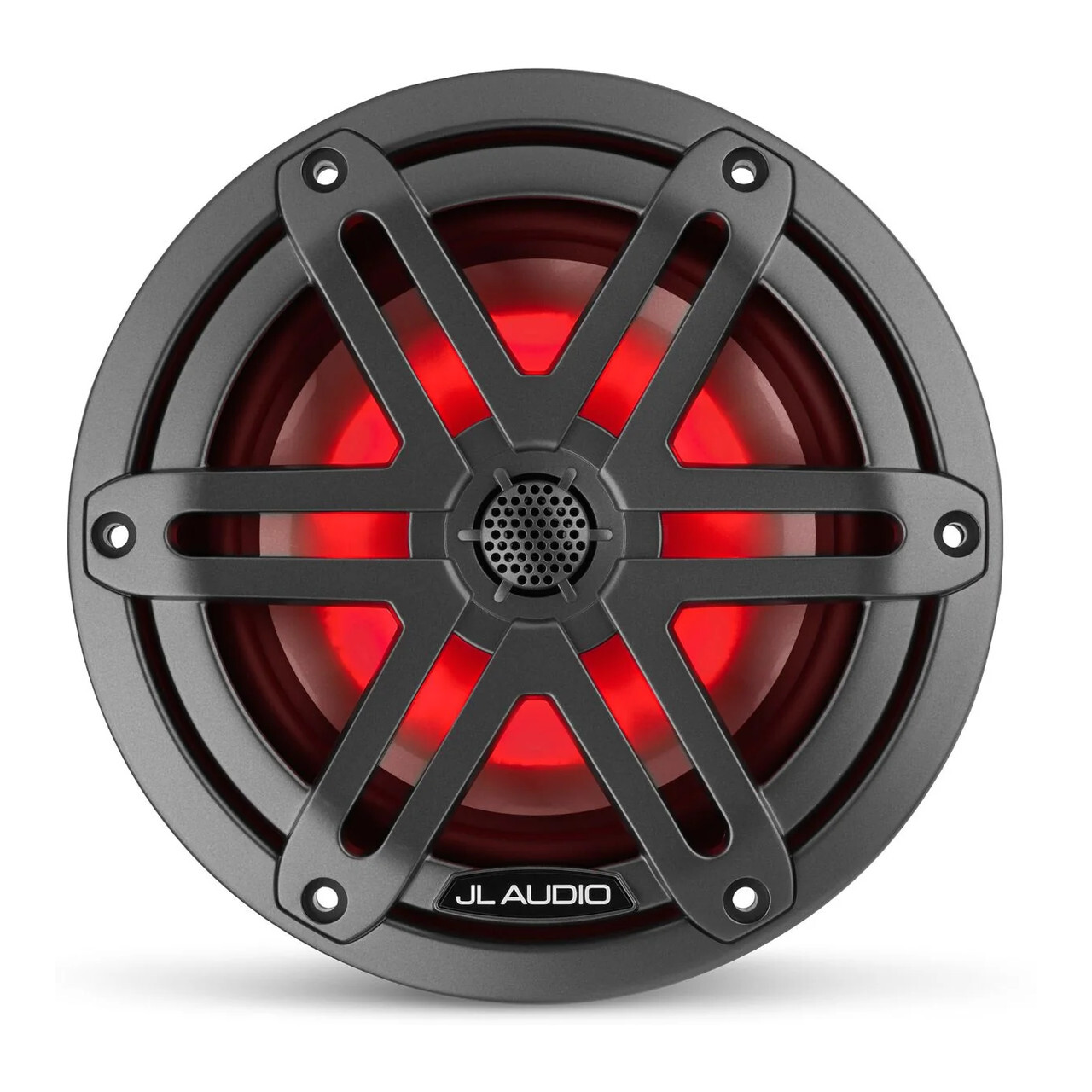

Integrated into the Sport Grille’s frame, the internal LED lighting assembly was meticulously designed to uniformly illuminate the woofer’s cone area with a lively glow, adding a dramatic visual experience to your high seas journey. Add an optional RGB controller to create thousands of color variations. Professional installation is strongly recommended.

Although M3-650X Coaxial Systems can be used with as little as 20 W per channel, for best audio performance we recommend amplifiers capable of between 75-100 W of continuous power per channel.

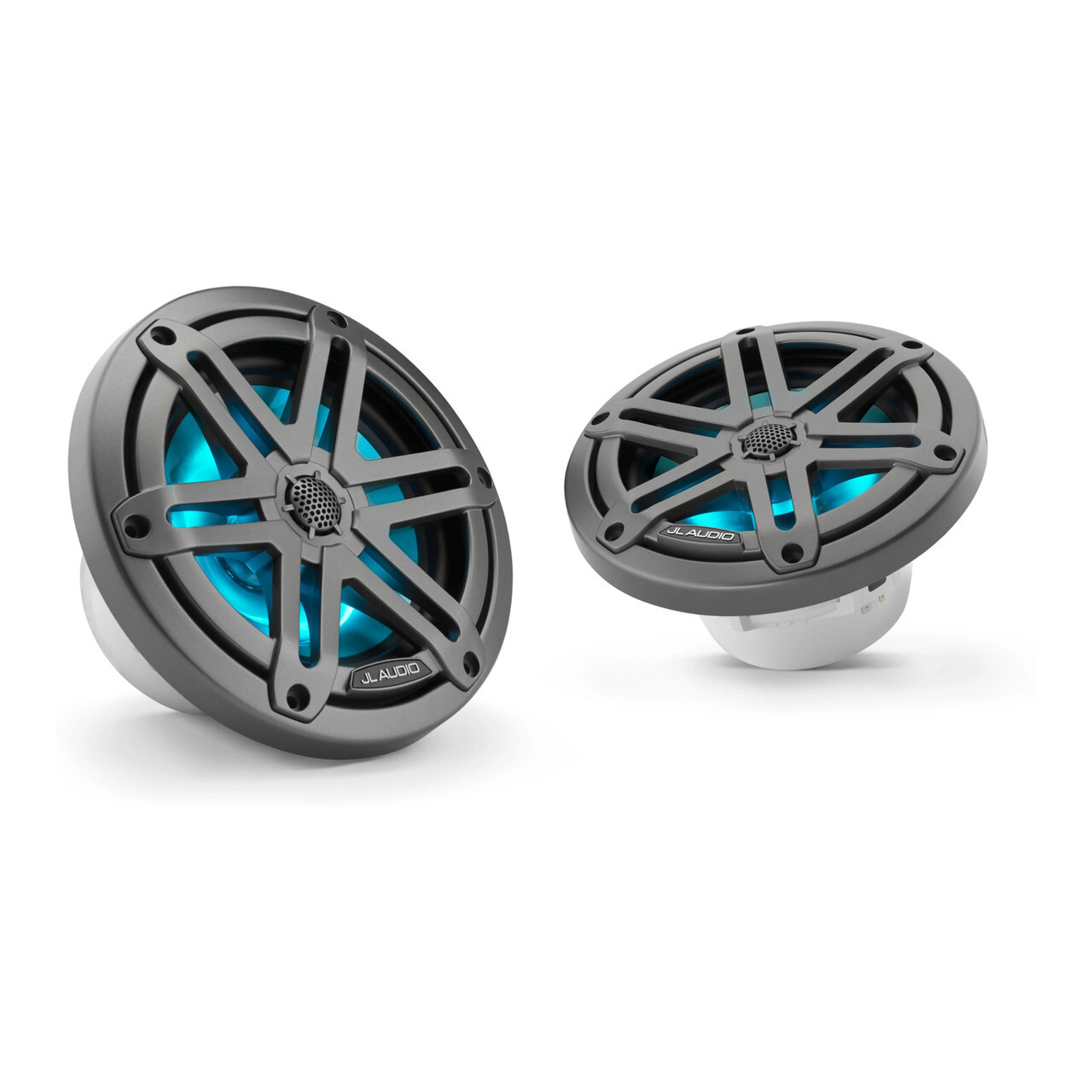

Sold as a pair.

General Specifications
Continuous Power Handling (RMS) 60 W
Recommended Amplifier Power (RMS) 20 - 120 W / Ch.
System Efficiency 89.5 dB @ 1 W / 1 m
System Nominal Impedance 4 Ω
System Frequency Response 55 Hz - 25 KHz ± 3 dB
Coaxial Physical Specifications
Frame Outer Diameter (A) 6.90 in / 175 mm
Bolt Hole Circle Diameter (B) 6.125 in / 156 mm
Frontal Grille Protrusion* (C) 0.97 in / 25 mm
Mounting Hole Diameter (D) 5.00 - 5.25 in / 127 - 133 mm
Mounting Depth (E) 2.78 in / 71 m
*Frontal grille protrusion measured from mounting surface
SKU GAR.010-03062-00
Model # M3-650X-S-Gm-i
UPC/EAN 699440935135
Brand JL Audio
Shipping Weight 3.0000kg
Unit Of Measure pr
