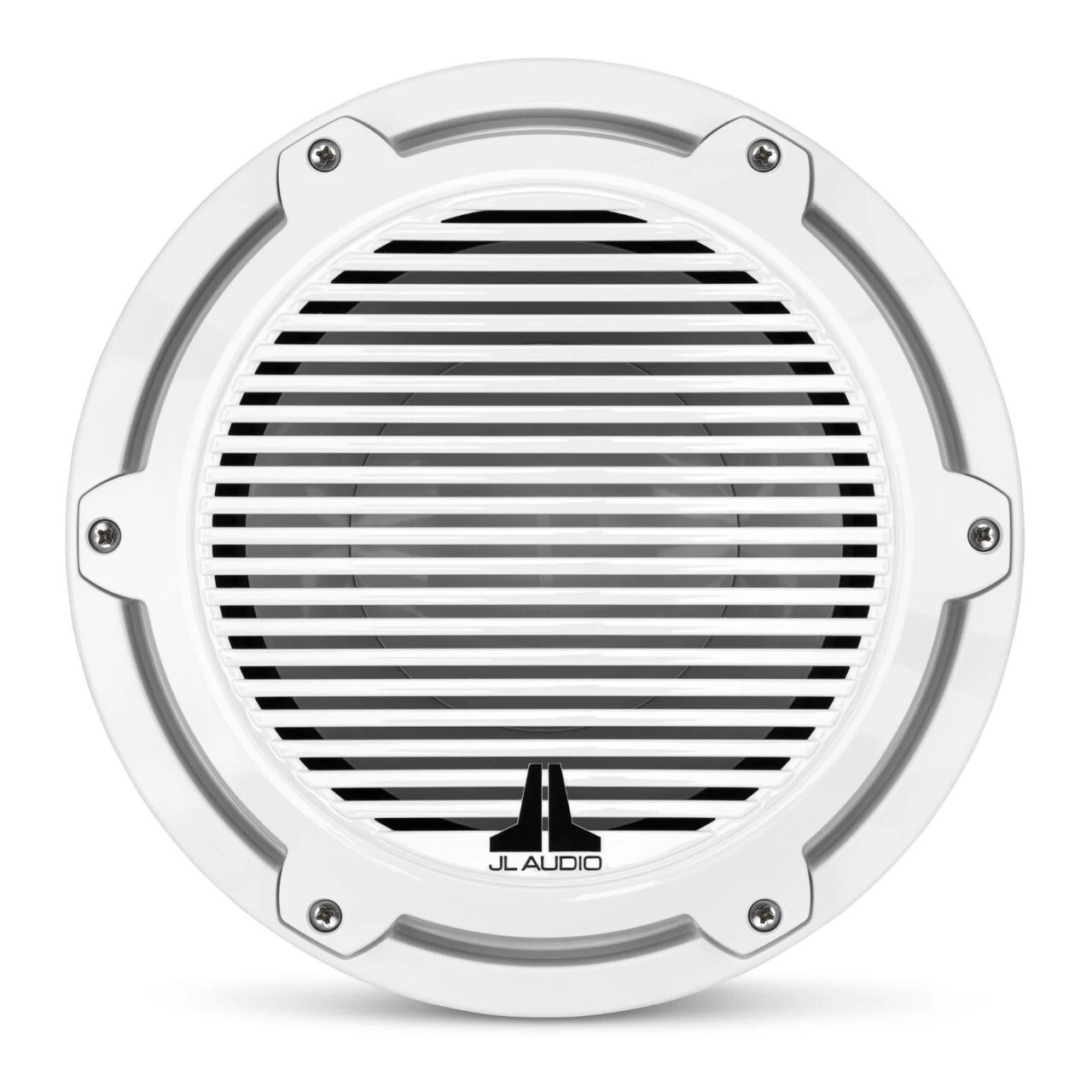

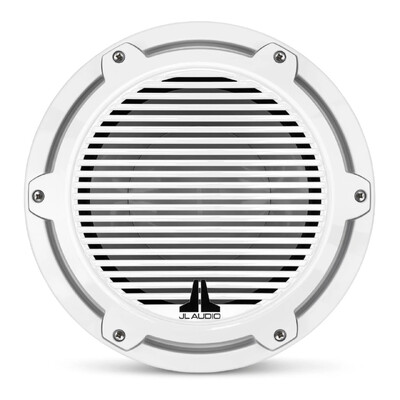

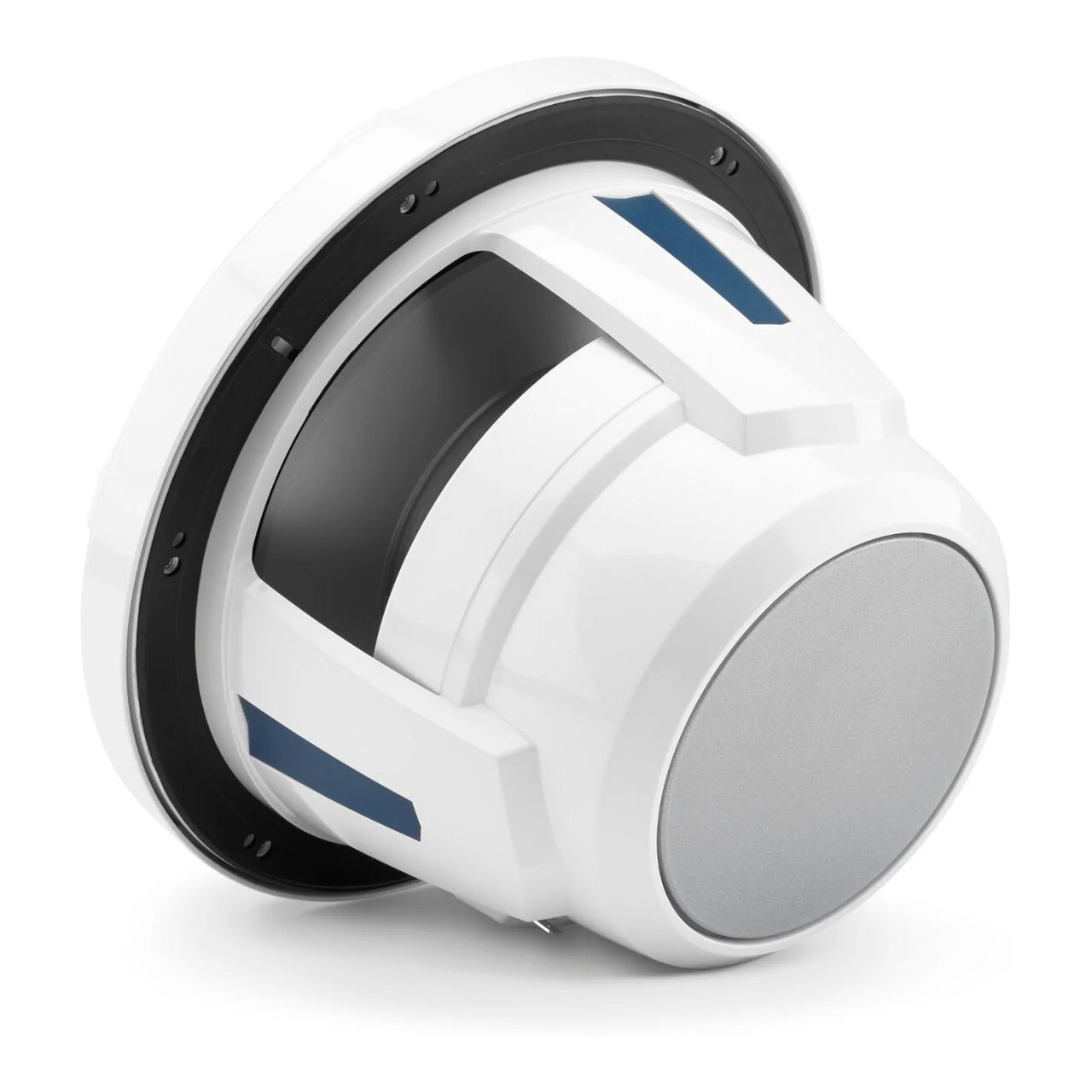

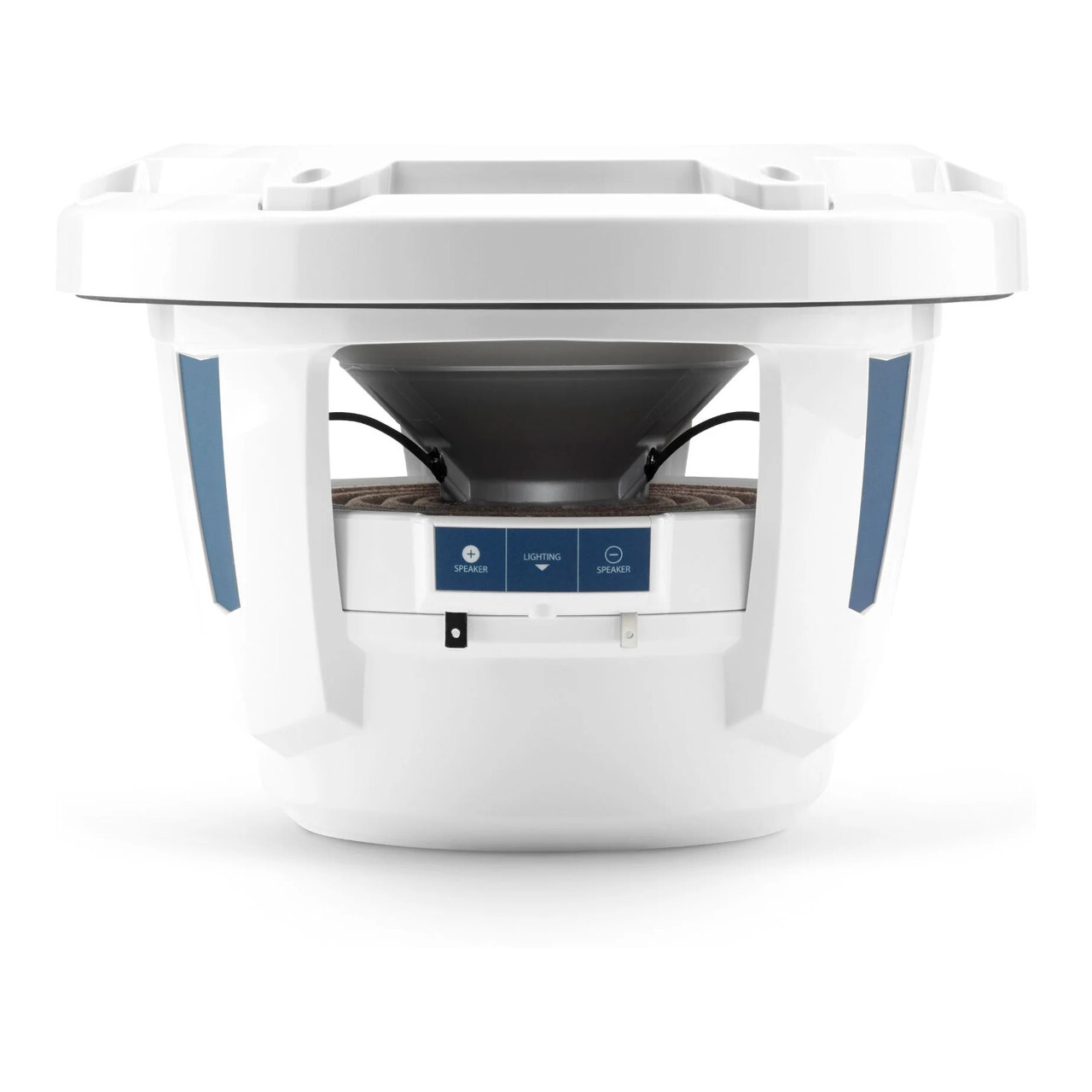

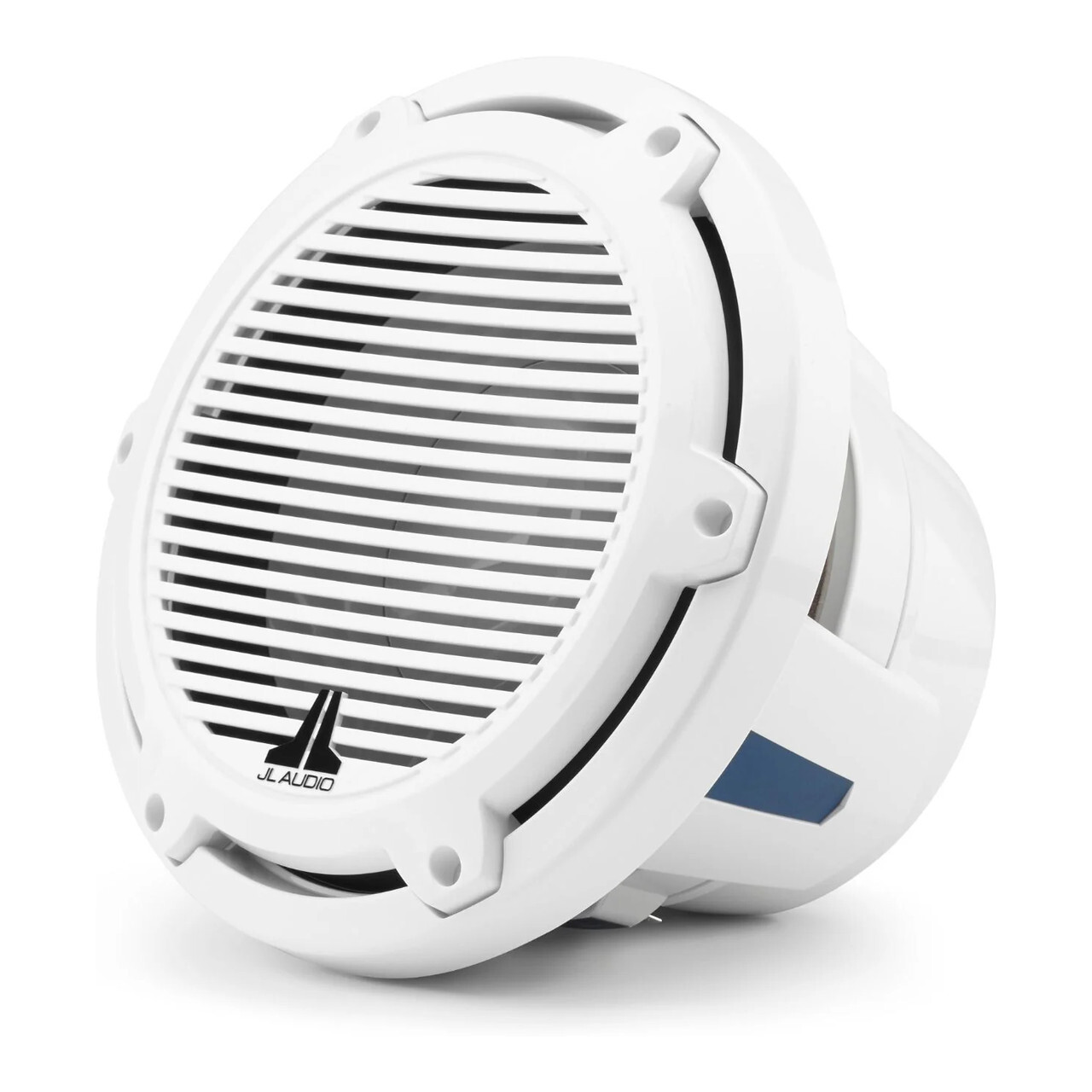

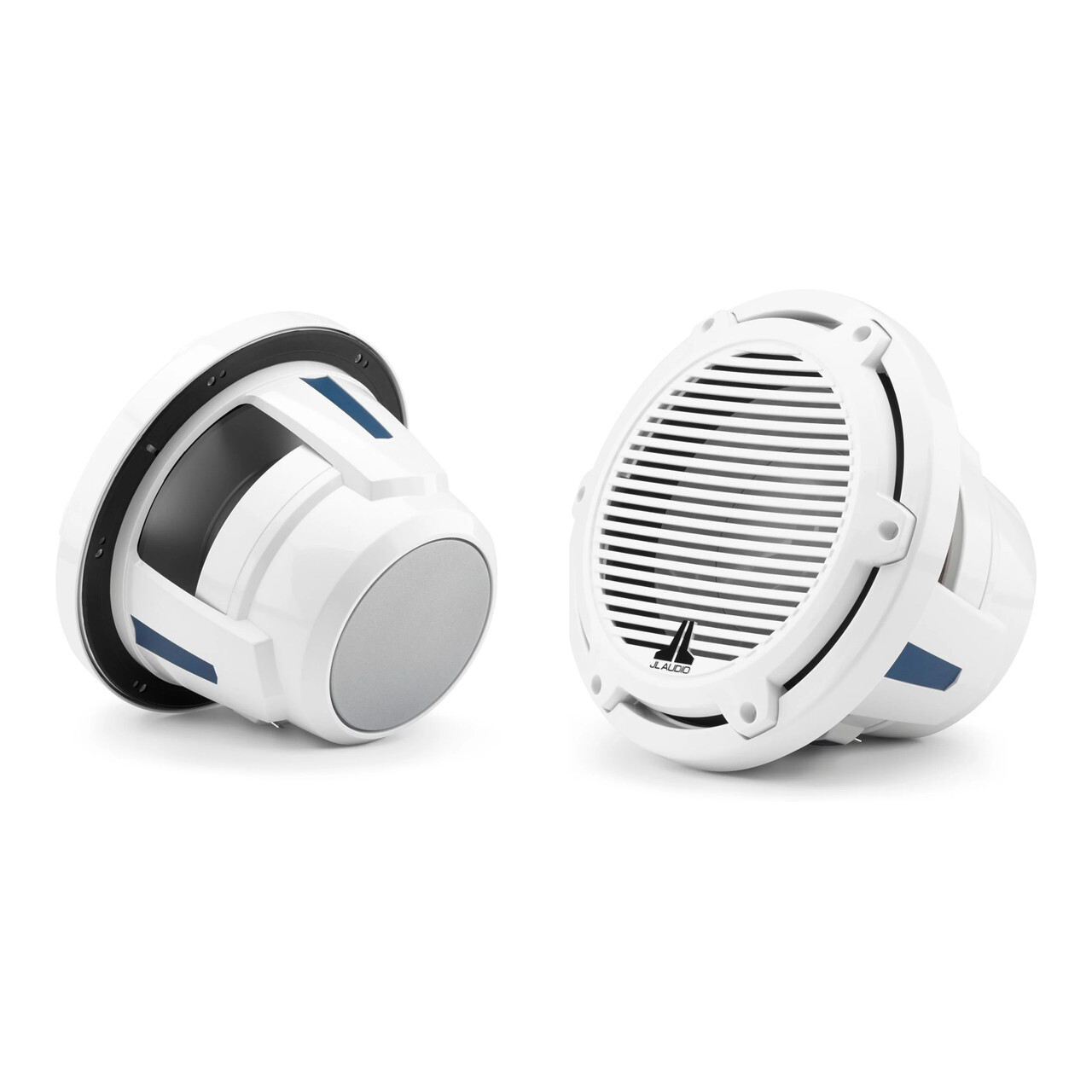

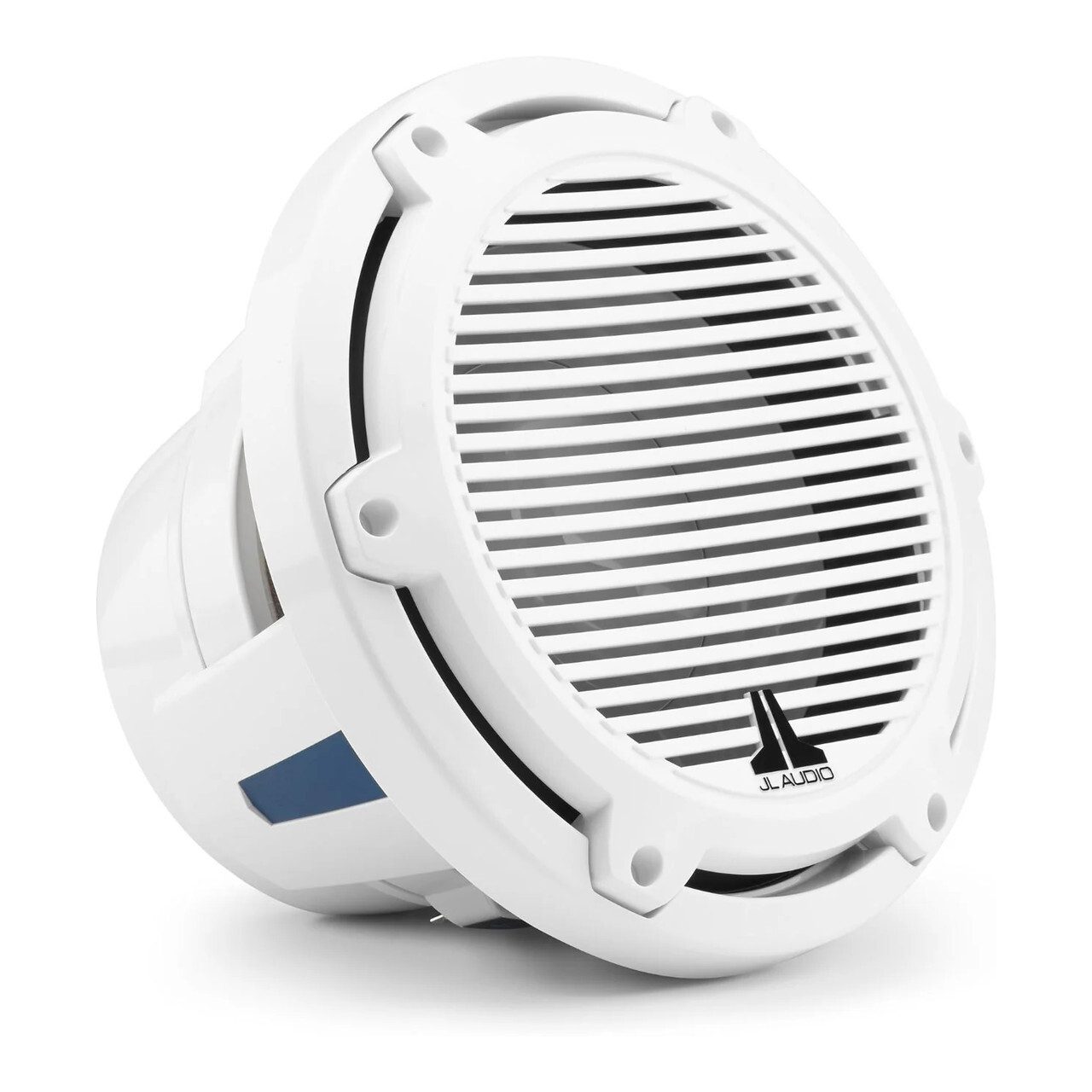

JL Audio M6 Marine Subwoofer, 10" with White Classic Grille
JL M6-10IB-C-GwGw-4 10-inch (250 mm) Marine Subwoofer Driver, Gloss White Trim Ring, Gloss White Classic Grille, 4 Ω
SKU: GAR.010-03083-00 | MPN: M6-10IB-C-GwGw-4
SAVE $62.10 (12%)
Special OrderSpecial Order from Supplier
Non Returnable/Non Refundable
M6 10-inch Marine Subwoofer for Infinite-Baffle Use (250 W, 4 Ω) - Gloss White Trim Ring, Gloss White Classic Grille
M6 subwoofers are built with rugged suspension systems and long excursion capabilities to deliver deep, controlled bass performance that enhances the best marine audio systems. This is bass that will impress you--not only with its sheer level, but even more with its smoothness, balance and precision.
With appropriate system setup, the addition of a subwoofer allows your smaller main speakers to be free of the burden of reproducing low frequencies. This allows your whole system to play louder and to sound cleaner at all listening levels.
Purpose-engineered and built for real marine duty, the M6 infinite-baffle woofers are designed to operate without a dedicated enclosure. Long excursion capability and rugged suspension systems help produce deep, powerful bass response that will transform your boat's audio system.
The M6-10IB is best used with amplifier power in the 75W - 250W range and is optimized to operate with a large volume of air behind it (at least 2 cu. ft. / 56.6 l). If you need a Subwoofer that operates in a small sealed enclosure, select our M6-10W, instead.
Like all JL Audio marine speakers, this driver is built to withstand a real saltwater marine environment and deliver years of listening enjoyment.
Production of all M6 loudspeakers takes place in JL Audio’s Miramar, Florida factory, using global components and materials.
General Specifications | |
---|---|
Continuous Power Handling (RMS) | 250 W |
Nominal Impedance (Znom) | 4 Ω |
Physical Specifications | |
---|---|
Nominal Diameter | 10.0 in / 250 mm |
Overall Diameter (A) | 10.75 in / 273 mm |
Bolt Hole Circle Diameter (B) | 9.70 in / 247 mm |
Frontal Grilles Protrusion* (C) | 1.66 in / 42 mm |
Mounting Hole Diameter (D) | 8.875 in / 225 mm |
Mounting Depth (E) | 5.90 in / 150 mm |
Driver Displacement | 0.052 cu ft / 1.47 L |
Net Weight | 12.60 lb / 5.70 kg |
*Frontal grille protrusion measured from mounting surface |
Parameters | |
---|---|
Free Air Resonance (Fs) | 43.76 Hz |
Electrical “Q” (Qes) | 0.907 |
Mechanical “Q” (Qms) | 11.315 |
Total Speaker “Q” (Qts) | 0.84 |
Equivalent Compliance (Vas) | 0.54 cu ft / 15.29 L |
One-Way Linear Excursion (Xmax)* | 0.52 in / 13.2 mm |
Reference Efficiency (no) | 0.28% |
Efficiency (1 W / 1 m)** | 86.1 dB SPL |
Effective Piston Area (Sd) | 50.11 sq in / 0.0323 sq m |
DC Resistance (Re) | 4.543 Ω |
* Xmax specifications are derived via one-way voice coil overhang method with no correction factors applied. |
SKU | GAR.010-03083-00 |
Model # | M6-10IB-C-GwGw-4 |
UPC/EAN | 699440936330 |
Brand | JL Audio |
Shipping Weight | 5.7000kg |
Shipping Width | 0.280m |
Shipping Height | 0.150m |
Shipping Length | 0.280m |
Shipping Cubic | 0.011760000m3 |
Unit Of Measure | ea |
