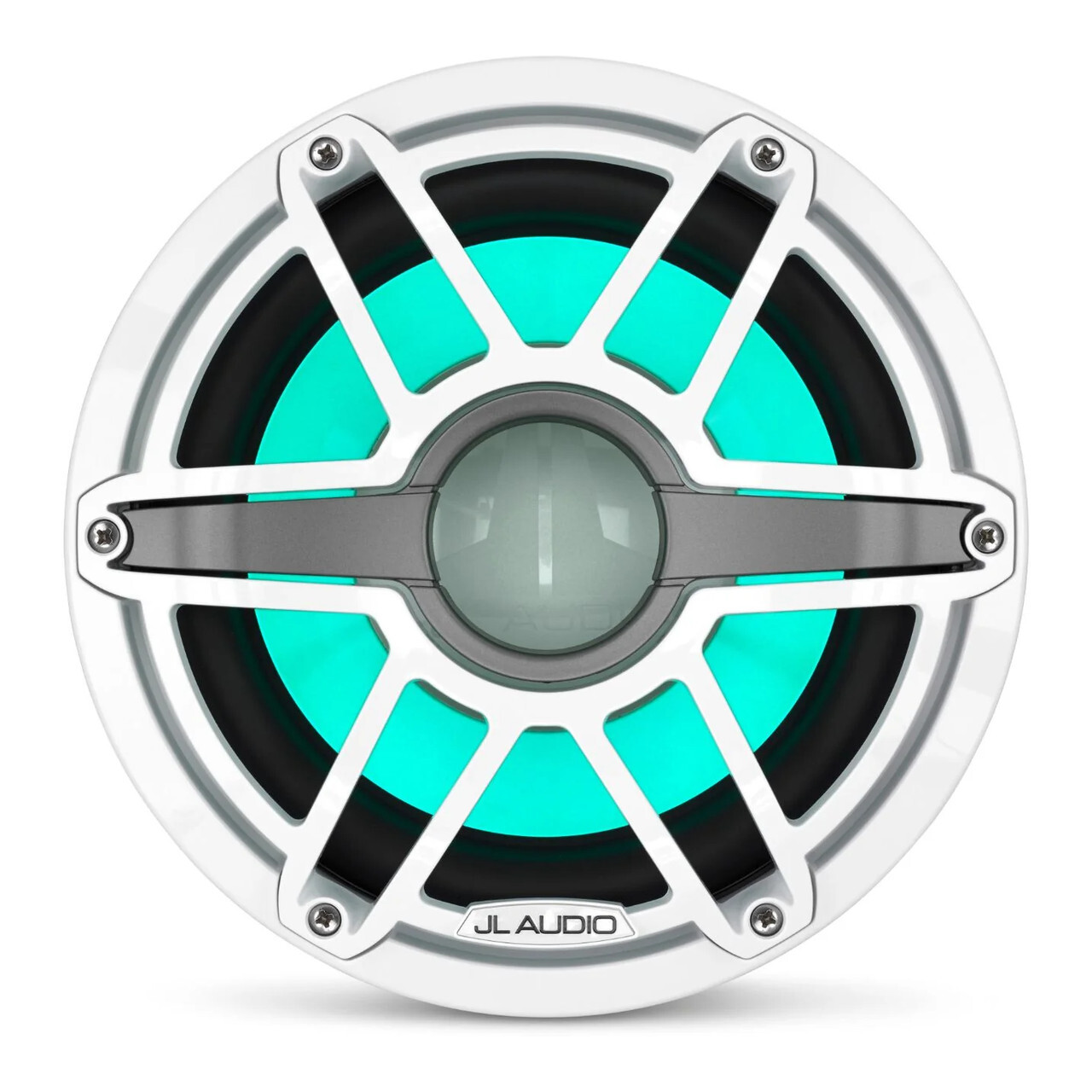

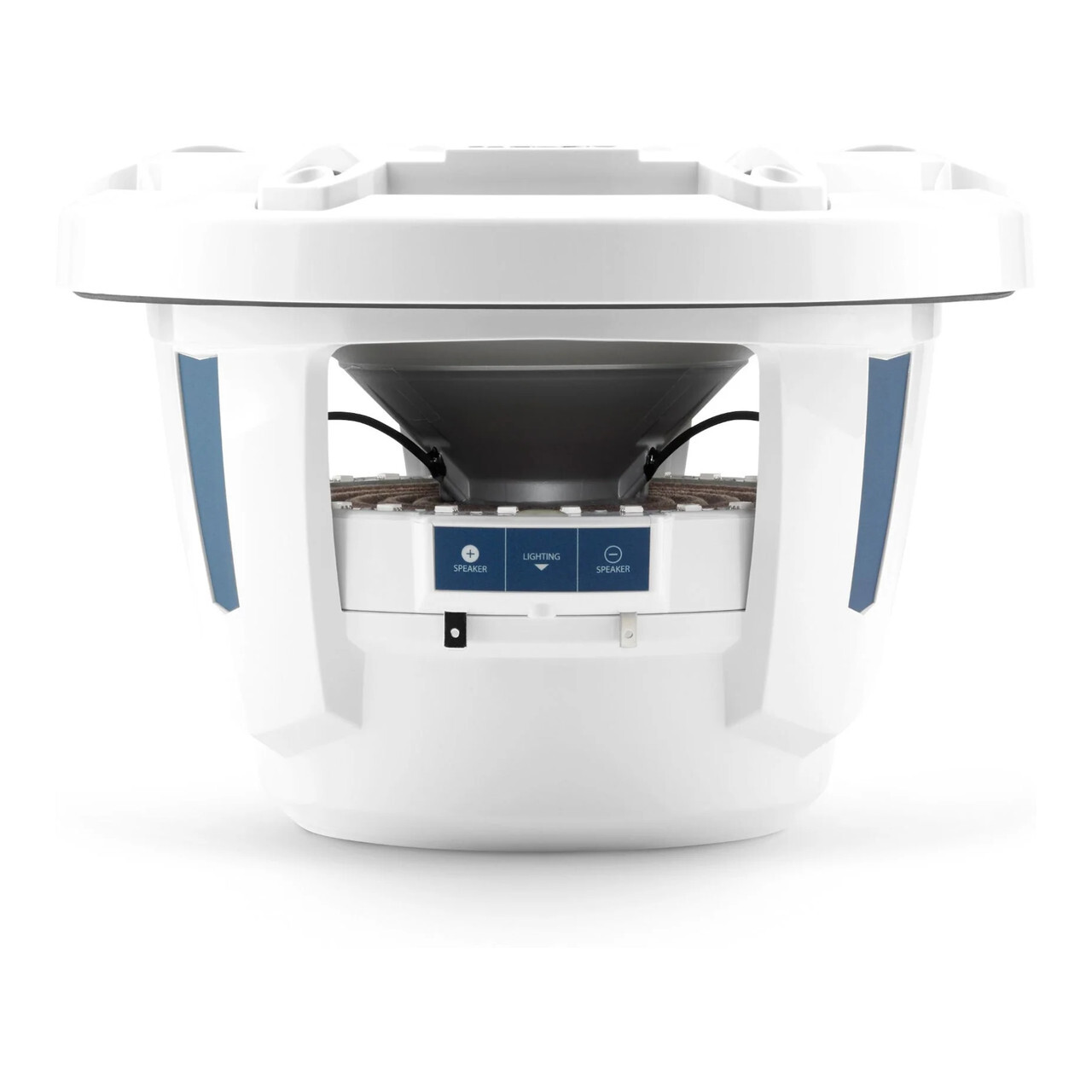

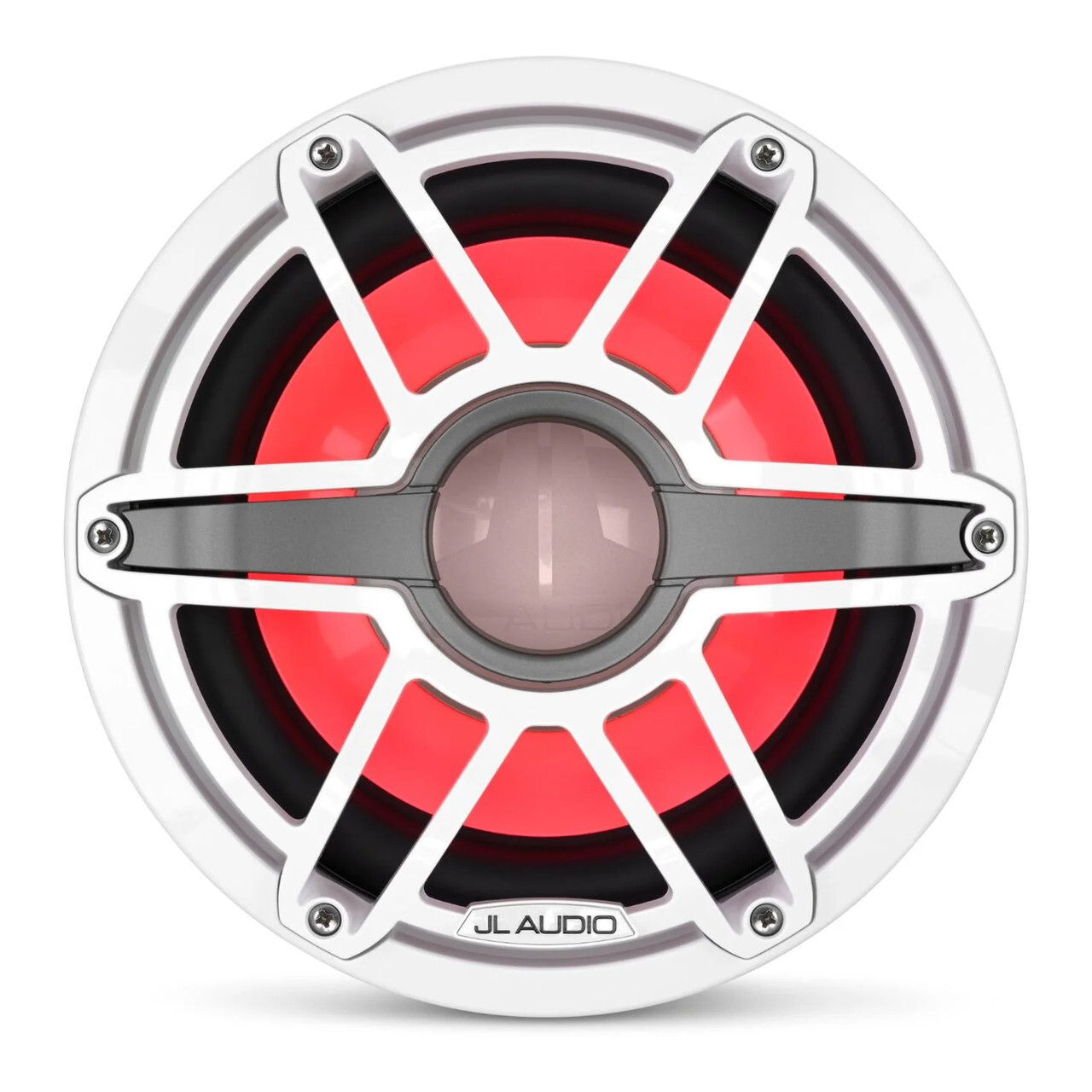

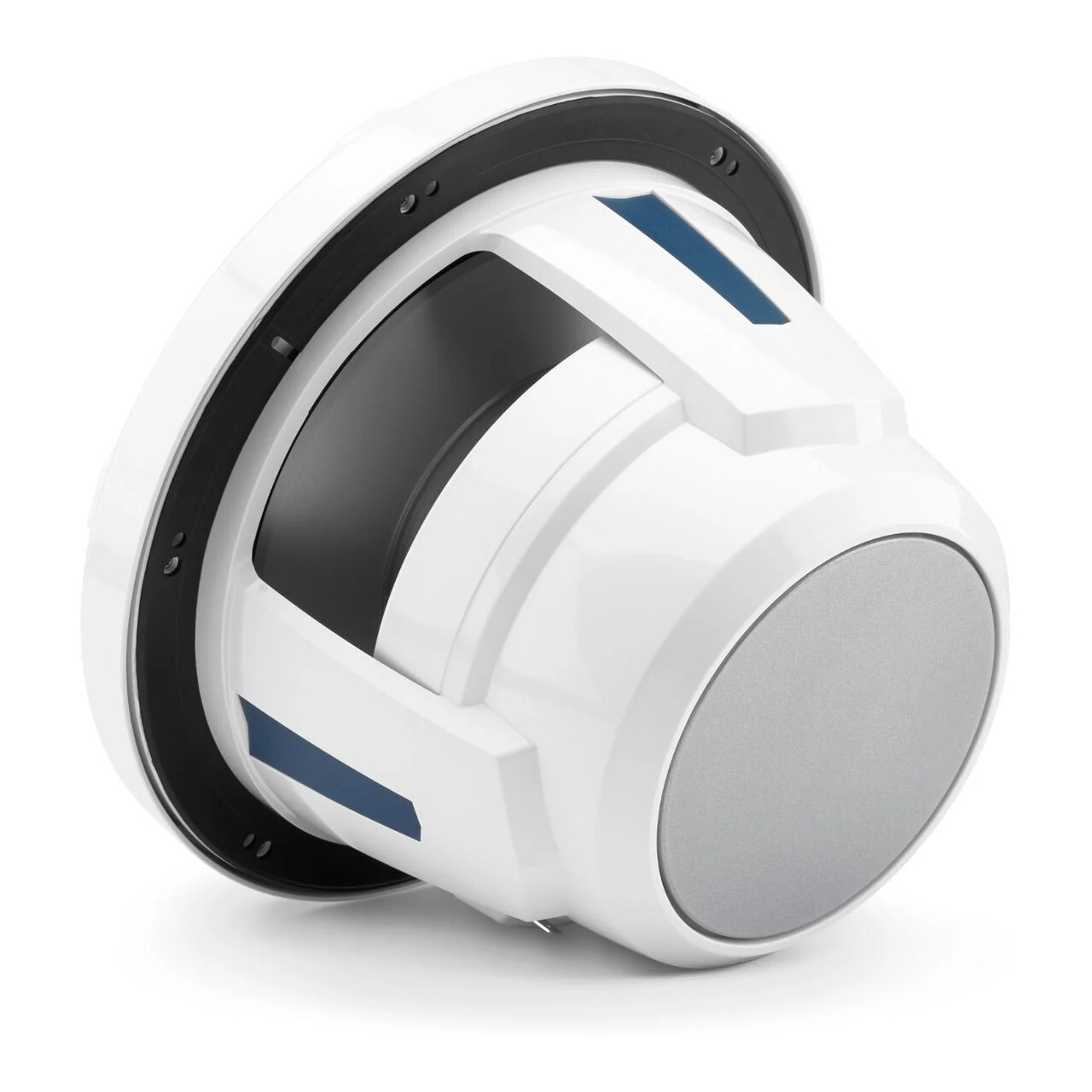

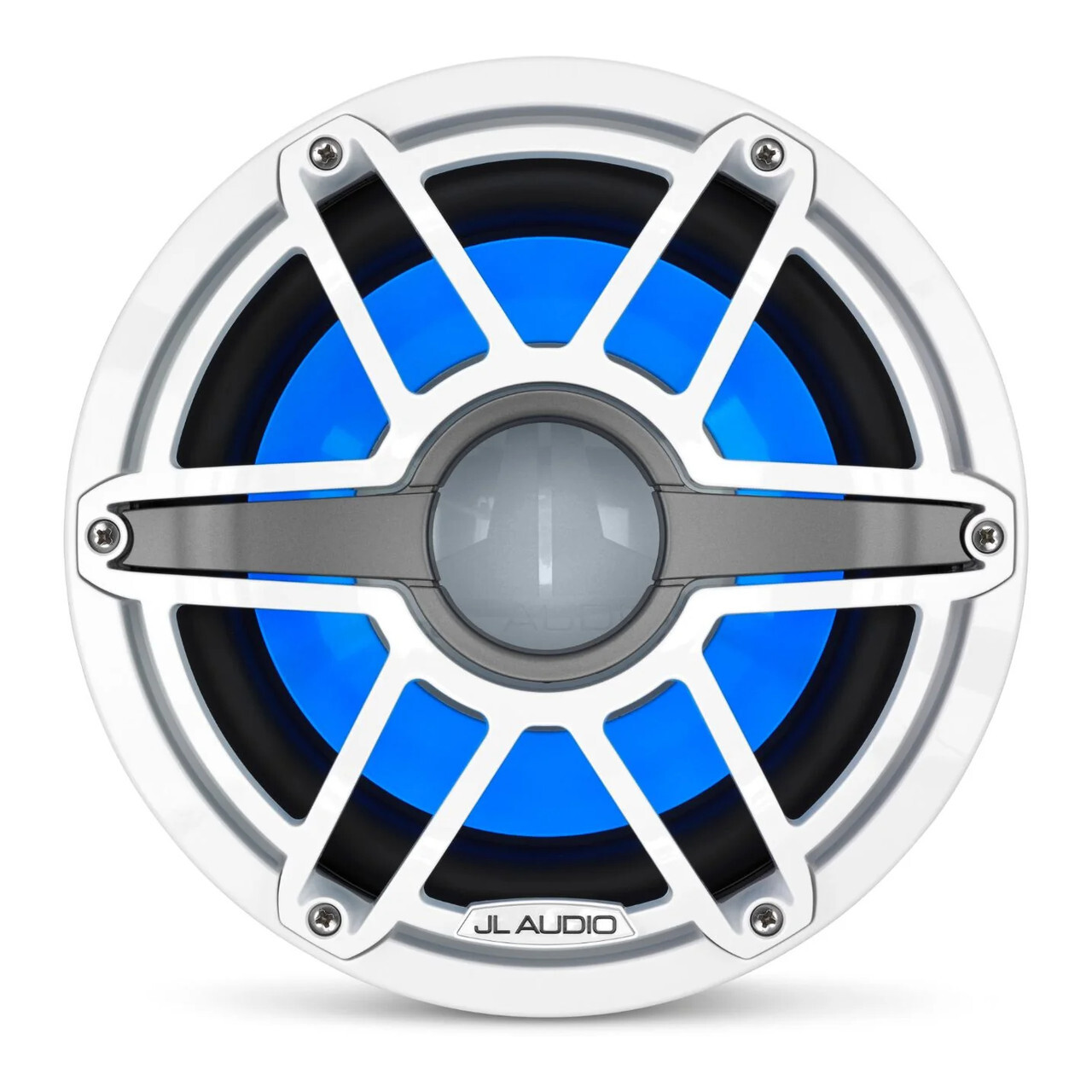

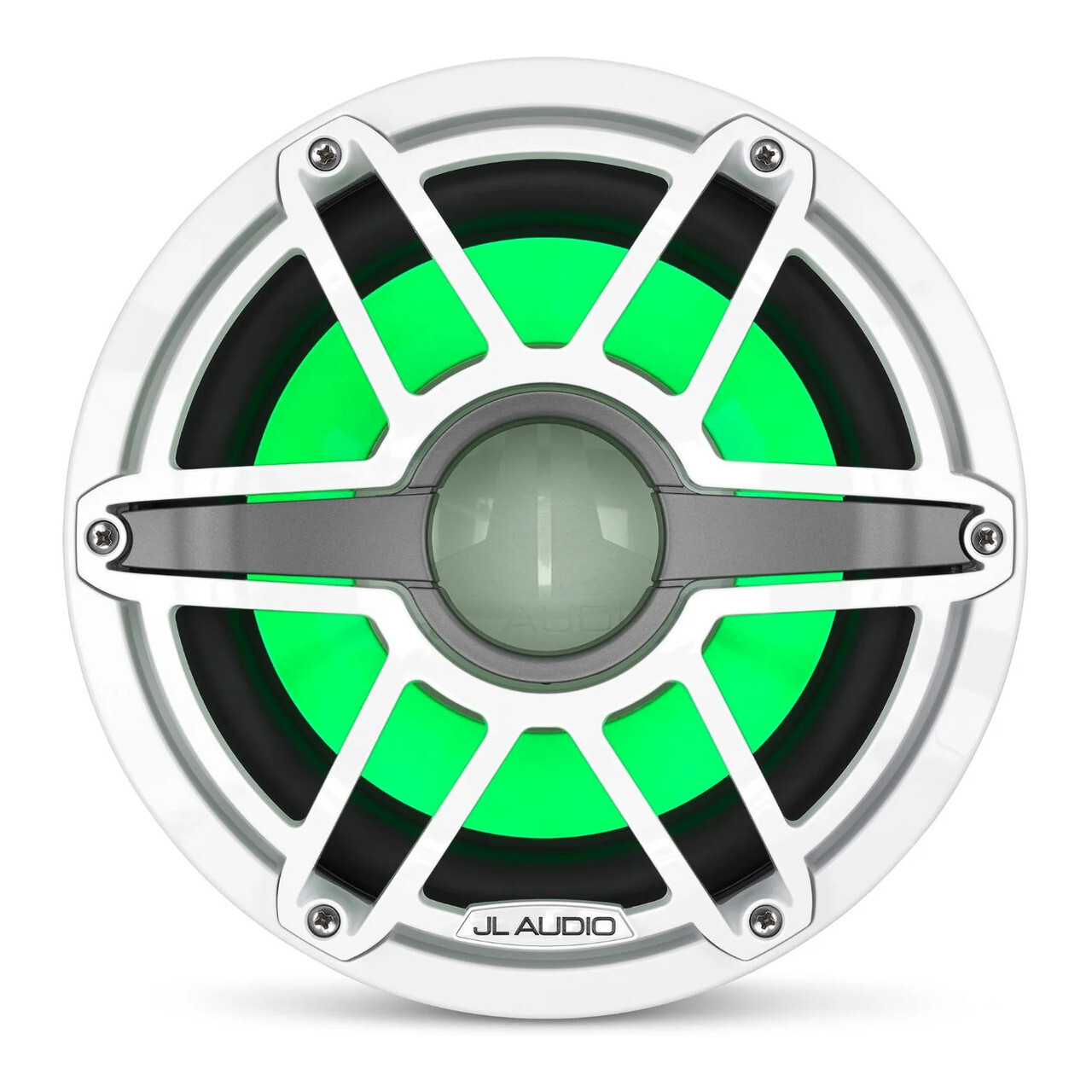

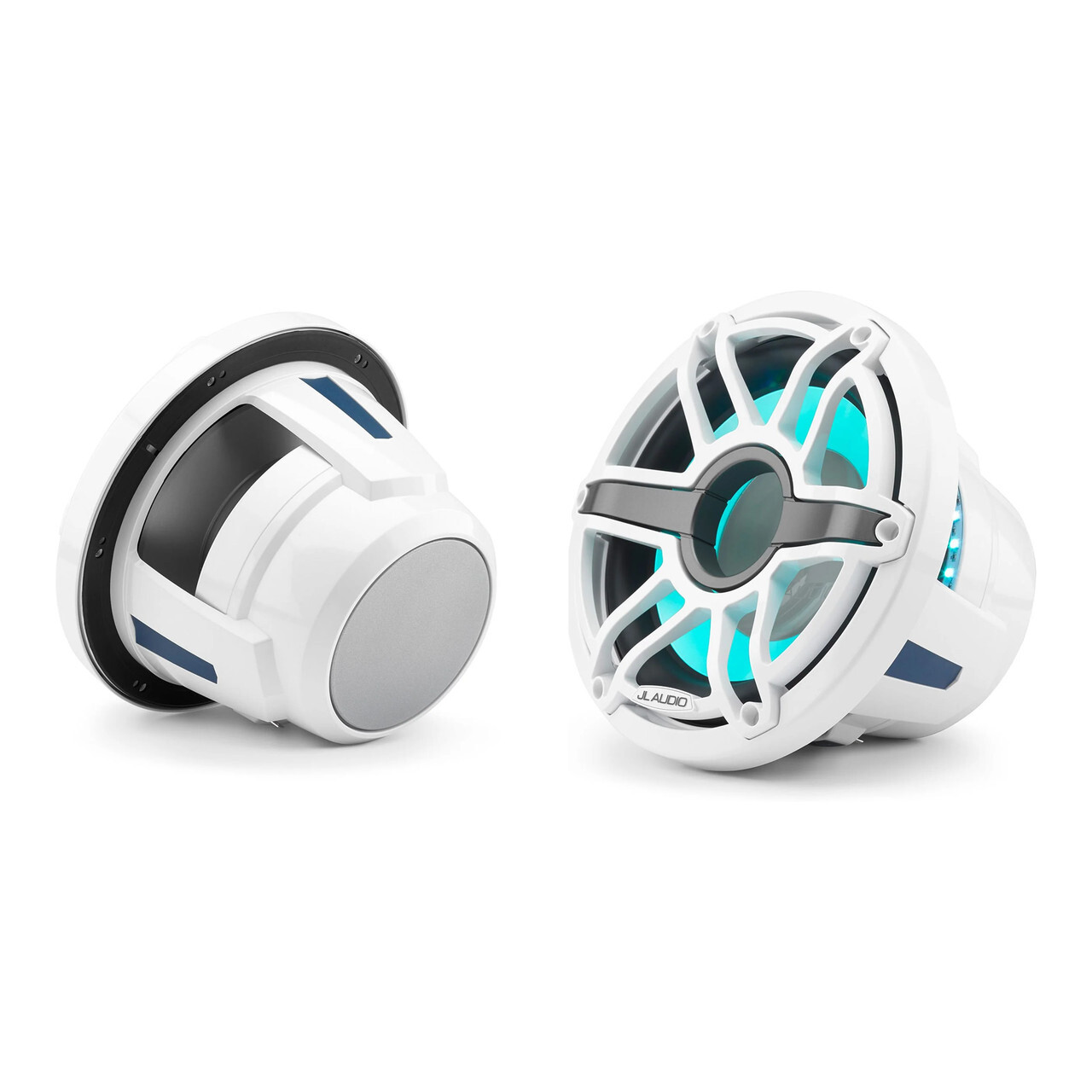

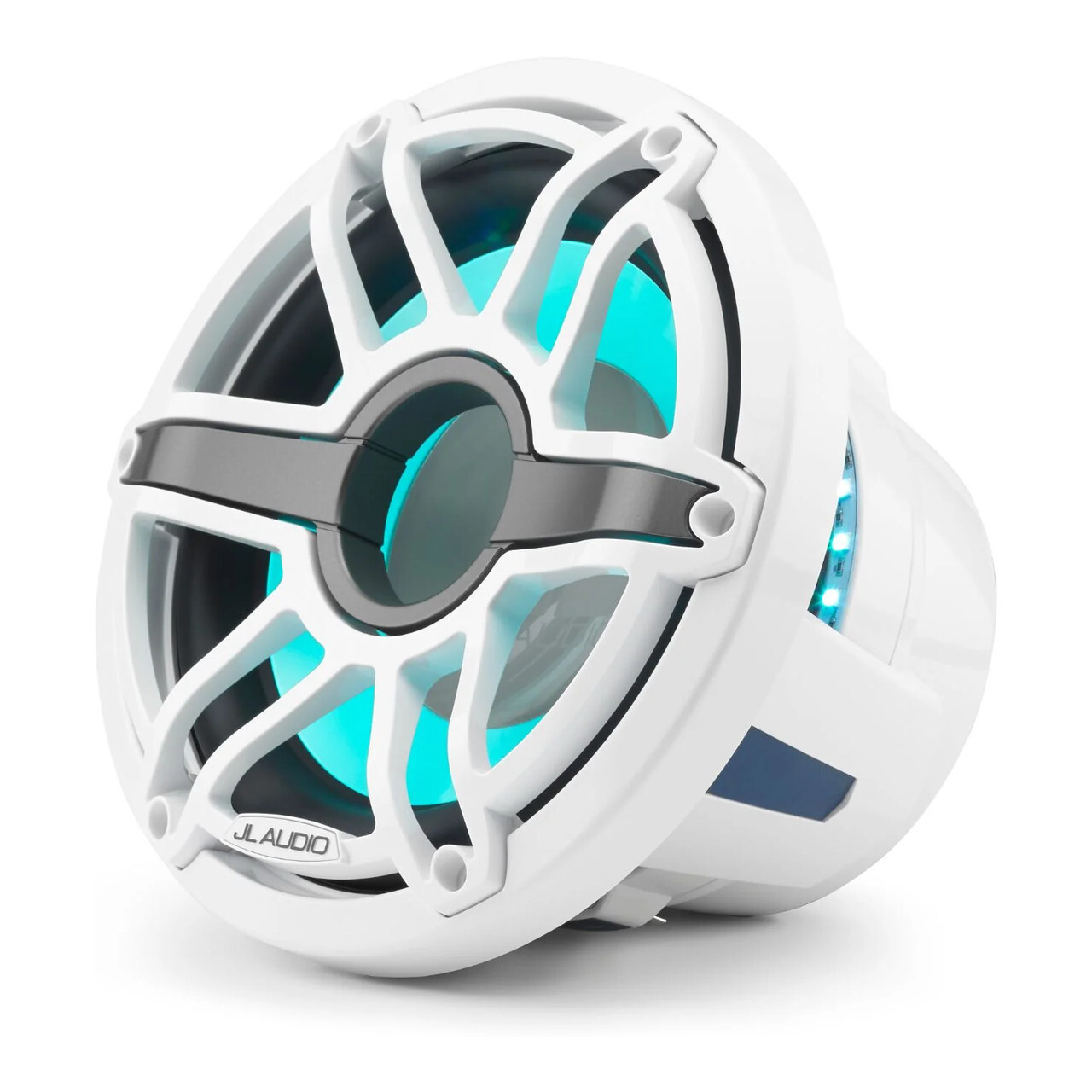

M6 10-inch Marine Subwoofer with Transflective™ LED Lighting for Infinite-Baffle Use (250 W, 4 Ω) - Gray Metallic Trim Ring, Titanium Sport Grille

M6 subwoofers are built with rugged suspension systems and long excursion capabilities to deliver deep, controlled bass performance that enhances the best marine audio systems. This is bass that will impress you--not only with its sheer level, but even more with its smoothness, balance and precision.

With appropriate system setup, the addition of a subwoofer allows your smaller main speakers to be free of the burden of reproducing low frequencies. This allows your whole system to play louder and to sound cleaner at all listening levels.

Purpose-engineered and built for real marine duty, the M6 infinite-baffle woofers are designed to operate without a dedicated enclosure. Long excursion capability and rugged suspension systems help produce deep, powerful bass response that will transform your boat's audio system.

The M6-10IB is best used with amplifier power in the 75W - 250W range and is optimised to operate with a large volume of air behind it (at least 2 cu. ft. / 56.6 l).

Like all JL Audio marine speakers, this driver is built to withstand a real saltwater marine environment and deliver years of listening enjoyment.

Production of all M6 loudspeakers takes place in JL Audio’s Miramar, Florida factory, using global components and materials.



General Specifications
Continuous Power Handling (RMS) 250 W
Nominal Impedance (Znom) 4 Ω
Physical Specifications
Nominal Diameter 10.0 in / 250 mm
Overall Diameter (A) 10.75 in / 273 mm
Bolt Hole Circle Diameter (B) 9.70 in / 247 mm
Frontal Grilles Protrusion* (C) 1.66 in / 42 mm
Mounting Hole Diameter (D) 8.875 in / 225 mm
Mounting Depth (E) 5.90 in / 150 mm
Driver Displacement 0.052 cu ft / 1.47 L
Net Weight 12.60 lb / 5.70 kg
*Frontal grille protrusion measured from mounting surface
Parameters
Free Air Resonance (Fs) 43.76 Hz
Electrical “Q” (Qes) 0.907
Mechanical “Q” (Qms) 11.315
Total Speaker “Q” (Qts) 0.84
Equivalent Compliance (Vas) 0.54 cu ft / 15.29 L
One-Way Linear Excursion (Xmax)* 0.52 in / 13.2 mm
Reference Efficiency (no) 0.28%
Efficiency (1 W / 1 m)** 86.1 dB SPL
Effective Piston Area (Sd) 50.11 sq in / 0.0323 sq m
DC Resistance (Re) 4.543 Ω

* Xmax specifications are derived via one-way voice coil overhang method with no correction factors applied.
** Efficiency (1 W / 1 m) is not an accurate indicator of a subwoofer’s output capability and should not be used as a comparison to other subwoofers to determine which one is “louder”.
Sealed Enclosure Specifications
Wall Thickness 0.75 in / 19 mm
Front Baffle Thickness 0.75 in / 19 mm
Volume (net int.) 2.00 cu ft / 56.6 L
External Width (W) 17 in / 432 mm
External Height (H) 17 in / 432 mm
External Depth (D) 16.25 in / 413 mm
F3 41.54 Hz
Fc 53.41 Hz
Qtc 1.0253

Enclosure Notes
* The enclosure recommendations listed above are external dimensions which assume the use of 0.75 in (19 mm) thick material. If you are using 0.625 in (16 mm) thick material, subtract 0.25 in (6.5 mm) from each dimension. Do not use any material with a thickness of less than 0.625 in (16 mm) as this may compromise the rigidity of the enclosure.
* All enclosure volumes listed above are net internal volumes! Driver displacement, port displacement and brace displacement must be added to obtain the final gross internal volume. All enclosure dimensions above have already taken this into account.
* When using multiple subwoofers in a common enclosure you will need to recalculate the enclosure and port dimensions. For assistance please contact your authorized JL Audio dealer or JL Audio Technical Support.
* We recommend the use of this speaker in a bi-amplified system using high-quality satellite speakers and a high-quality amplifier. We do not recommend the use of this subwoofer with a passive crossover (coil), as this type of device will adversely affect performance.
* All specifications are subject to change without notice.

Safety Notice
Prolonged exposure to sound pressure levels in excess of 100dB can cause permanent hearing loss. This high-performance speaker can exceed this level. Please exercise restraint in its operation in order to preserve your ability to enjoy its fidelity.

When installing a subwoofer in your vehicle, it is extremely important to secure the enclosure firmly. We recommend bolting the enclosure through the metal of the floorpan or the frame of the vehicle with large diameter washers for reinforcement. If an enclosure is not firmly attached, it can become a projectile in a collision. This is particularly important in a hatchback, station wagon, sports utility vehicle, or van.
Ported Enclosure Specifications
Wall Thickness 0.75 in / 19 mm
Front Baffle Thickness 0.75 in / 19 mm
Volume (net int.) 2.50 cu ft / 70.8 L
External Width (W) 17 in / 432 mm
External Height (H) 17 in / 432 mm
External Depth (D) 20.50 in / 676 mm
Internal Port Diameter (ID) 4 in / 102 mm
Port Length (L) 12 in / 305 mm
Tuning Frequency (Fb) 37 Hz
F3 25.09 Hz

Enclosure Notes
* The enclosure recommendations listed above are external dimensions which assume the use of 0.75 in (19 mm) thick material. If you are using 0.625 in (16 mm) thick material, subtract 0.25 in (6.5 mm) from each dimension. Do not use any material with a thickness of less than 0.625 in (16 mm) as this may compromise the rigidity of the enclosure.
* All enclosure volumes listed above are net internal volumes! Driver displacement, port displacement and brace displacement must be added to obtain the final gross internal volume. All enclosure dimensions above have already taken this into account.
* When using multiple subwoofers in a common enclosure you will need to recalculate the enclosure and port dimensions. For assistance please contact your authorized JL Audio dealer or JL Audio Technical Support.
* We recommend the use of this speaker in a bi-amplified system using high-quality satellite speakers and a high-quality amplifier. We do not recommend the use of this subwoofer with a passive crossover (coil), as this type of device will adversely affect performance.
* All specifications are subject to change without notice.

Safety Notice
Prolonged exposure to sound pressure levels in excess of 100dB can cause permanent hearing loss. This high-performance speaker can exceed this level. Please exercise restraint in its operation in order to preserve your ability to enjoy its fidelity.

When installing a subwoofer in your vehicle, it is extremely important to secure the enclosure firmly. We recommend bolting the enclosure through the metal of the floorpan or the frame of the vehicle with large diameter washers for reinforcement. If an enclosure is not firmly attached, it can become a projectile in a collision. This is particularly important in a hatchback, station wagon, sports utility vehicle, or van.
SKU GAR.010-03085-00
Model # M6-10IB-S-GwGw-i-4
UPC/EAN 699440936361
Brand JL Audio
Shipping Weight 5.7000kg
Shipping Width 0.280m
Shipping Height 0.150m
Shipping Length 0.280m
Shipping Cubic 0.011760000m3
Unit Of Measure ea
