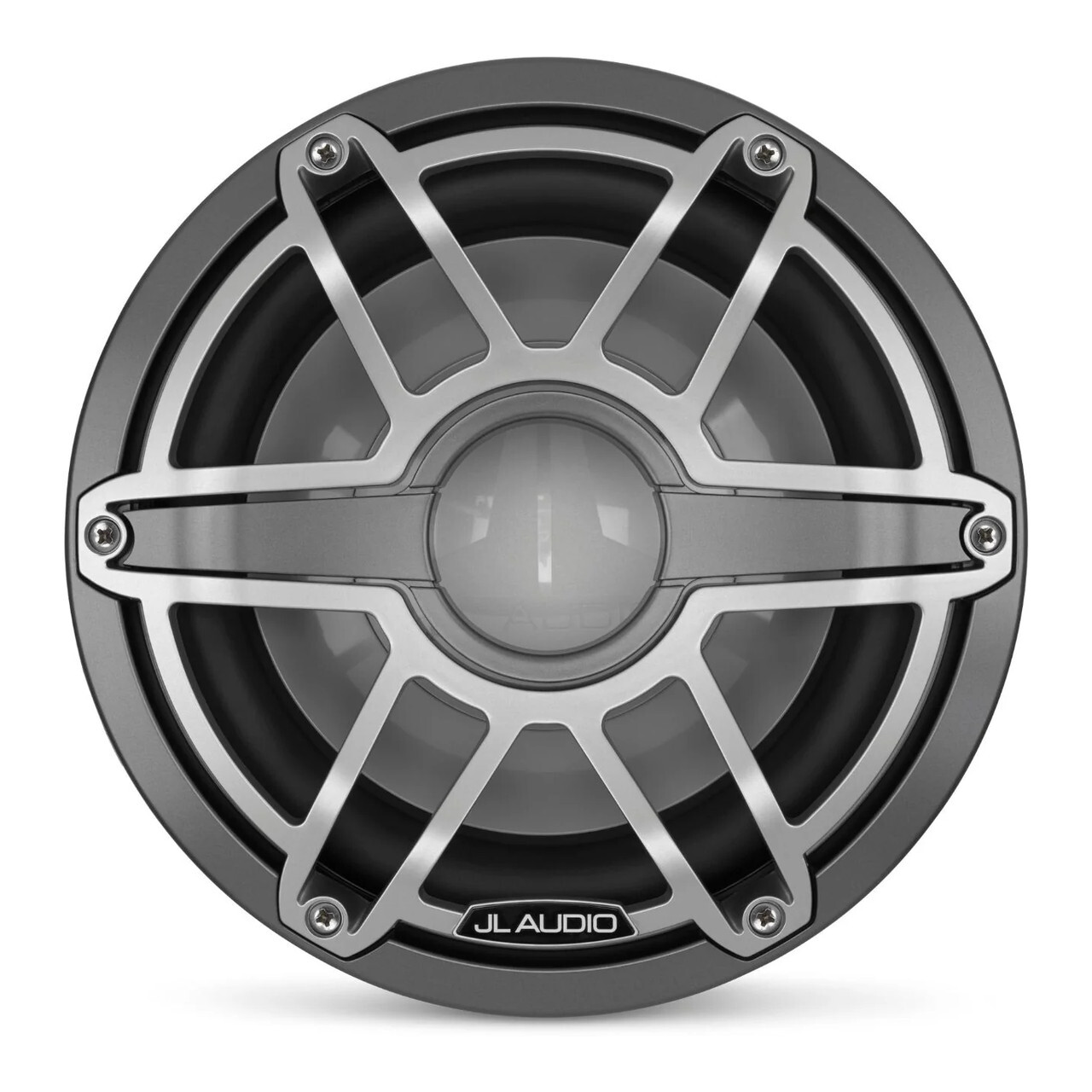

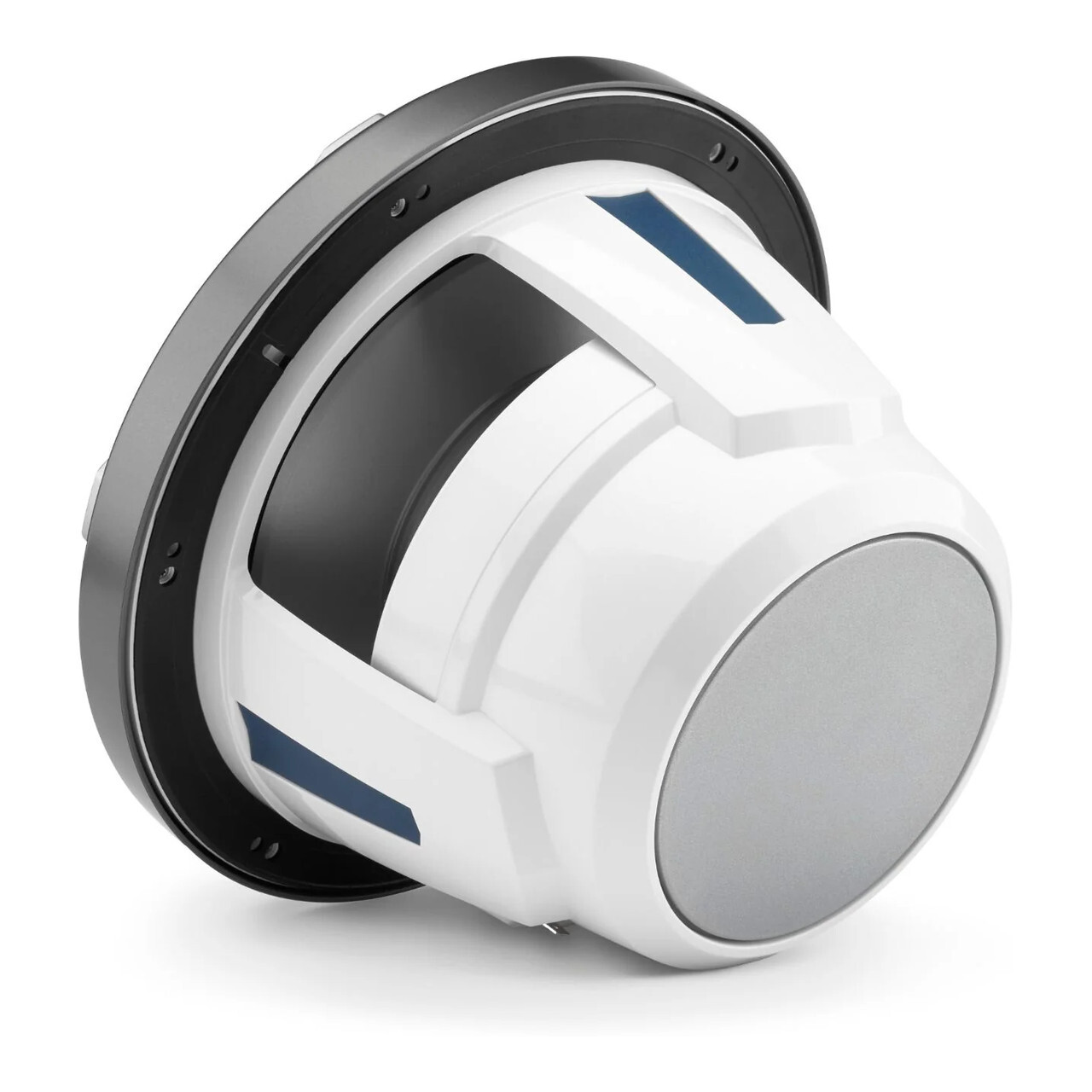

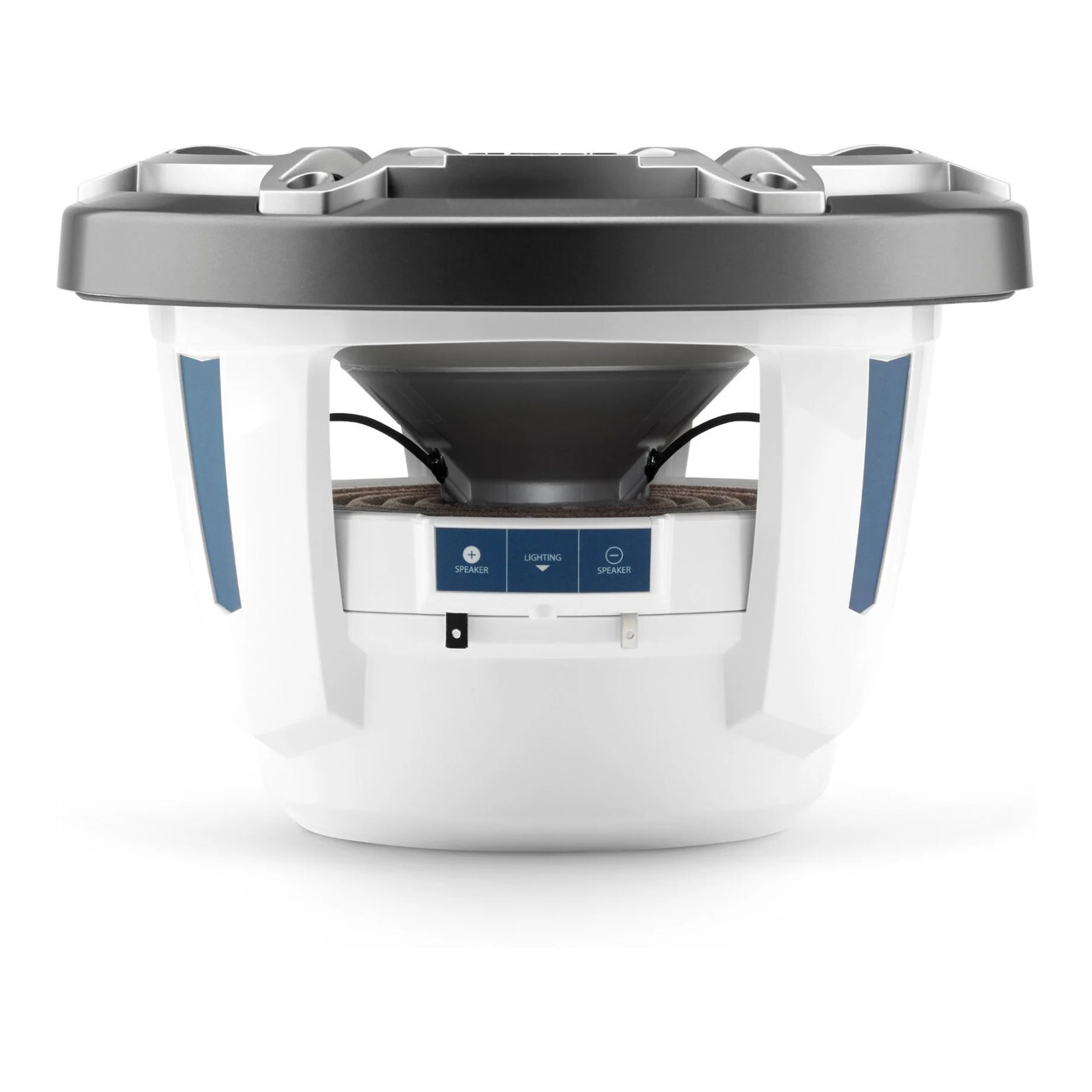

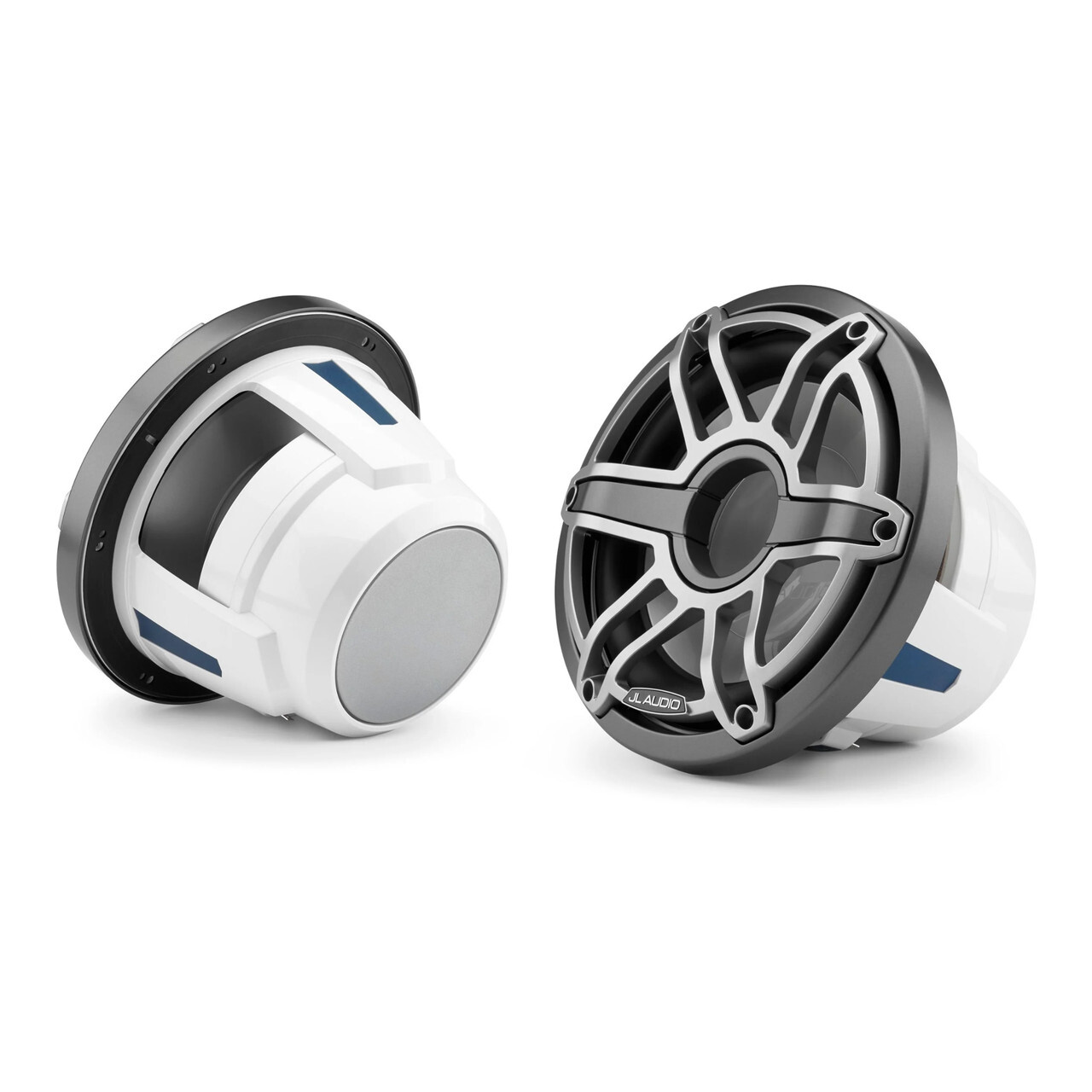

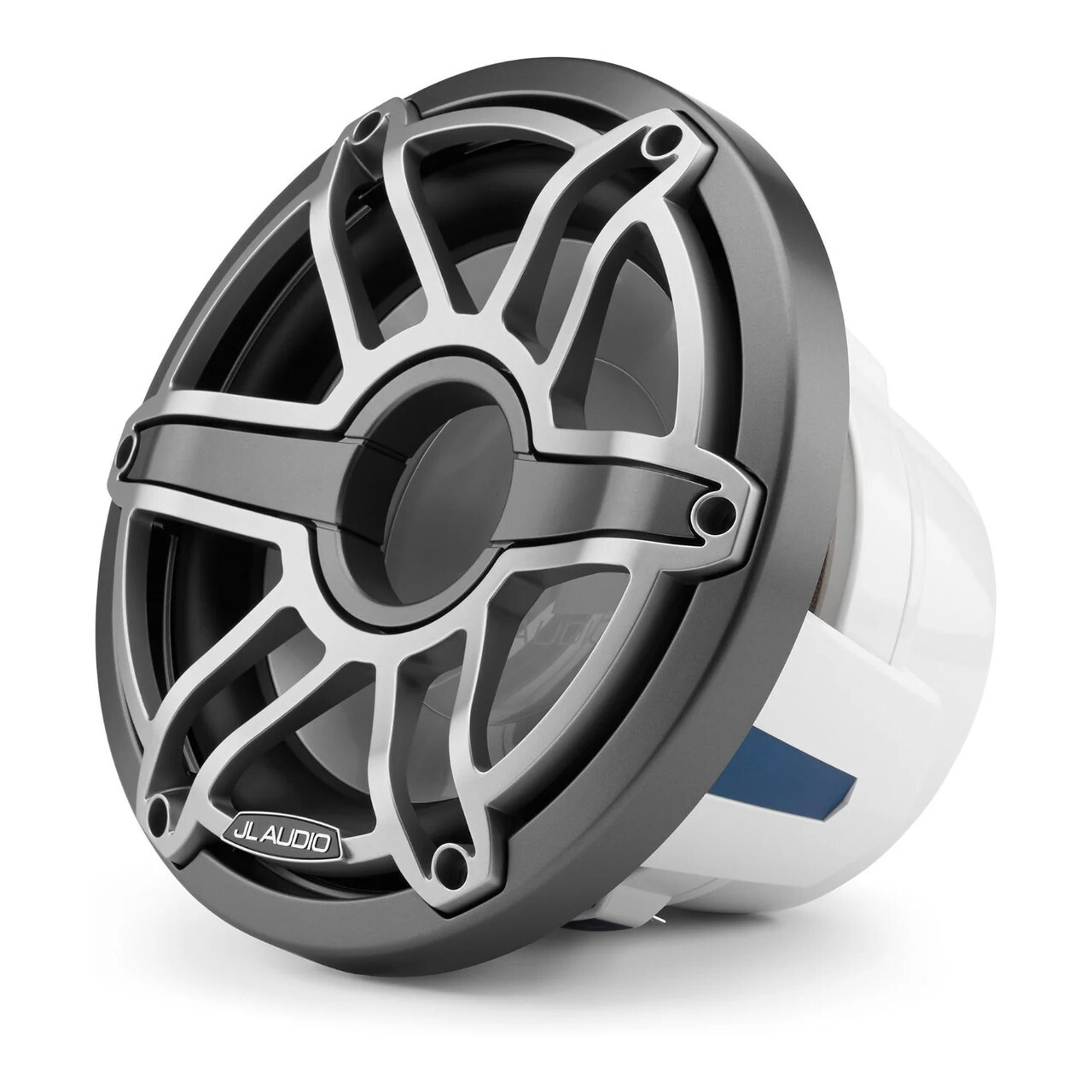

M6 10-inch Marine Subwoofer for Infinite-Baffle Use (250 W, 4 Ω) - Gray Metallic Trim Ring, Titanium Sport Grille

M6 subwoofers are built with rugged suspension systems and long excursion capabilities to deliver deep, controlled bass performance that enhances the best marine audio systems. This is bass that will impress you--not only with its sheer level, but even more with its smoothness, balance and precision.

With appropriate system setup, the addition of a subwoofer allows your smaller main speakers to be free of the burden of reproducing low frequencies. This allows your whole system to play louder and to sound cleaner at all listening levels.

Purpose-engineered and built for real marine duty, the M6 infinite-baffle woofers are designed to operate without a dedicated enclosure. Long excursion capability and rugged suspension systems help produce deep, powerful bass response that will transform your boat's audio system.

The M6-10IB is best used with amplifier power in the 75W - 250W range and is optimized to operate with a large volume of air behind it (at least 2 cu. ft. / 56.6 l). If you need a Subwoofer that operates in a small sealed enclosure, select our M6-10W, instead.

Like all JL Audio marine speakers, this driver is built to withstand a real saltwater marine environment and deliver years of listening enjoyment.

Production of all M6 loudspeakers takes place in JL Audio’s Miramar, Florida factory, using global components and materials.

General Specifications
Continuous Power Handling (RMS) 250 W
Nominal Impedance (Znom) 4 Ω
Physical Specifications
Nominal Diameter 10.0 in / 250 mm
Overall Diameter (A) 10.75 in / 273 mm
Bolt Hole Circle Diameter (B) 9.70 in / 247 mm
Frontal Grilles Protrusion* (C) 1.66 in / 42 mm
Mounting Hole Diameter (D) 8.875 in / 225 mm
Mounting Depth (E) 5.90 in / 150 mm
Driver Displacement 0.052 cu ft / 1.47 L
Net Weight 12.60 lb / 5.70 kg
*Frontal grille protrusion measured from mounting surface
Parameters
Free Air Resonance (Fs) 43.76 Hz
Electrical “Q” (Qes) 0.907
Mechanical “Q” (Qms) 11.315
Total Speaker “Q” (Qts) 0.84
Equivalent Compliance (Vas) 0.54 cu ft / 15.29 L
One-Way Linear Excursion (Xmax)* 0.52 in / 13.2 mm
Reference Efficiency (no) 0.28%
Efficiency (1 W / 1 m)** 86.1 dB SPL
Effective Piston Area (Sd) 50.11 sq in / 0.0323 sq m
DC Resistance (Re) 4.543 Ω

* Xmax specifications are derived via one-way voice coil overhang method with no correction factors applied.
** Efficiency (1 W / 1 m) is not an accurate indicator of a subwoofer’s output capability and should not be used as a comparison to other subwoofers to determine which one is “louder”.

SKU GAR.010-03086-00
Model # M6-10IB-S-GmTi-4
UPC/EAN 699440936378
Brand JL Audio
Shipping Weight 5.7000kg
Shipping Width 0.280m
Shipping Height 0.150m
Shipping Length 0.280m
Shipping Cubic 0.011760000m3
Unit Of Measure ea
