JL Audio Receiver MBT-CRXv3, JLA, Bluetooth Receiver/Controler, MBT-CRXv3
The MBT-CRXv3 is a compact, water-resistant Bluetooth audio receiver designed for marine, motorsports, and outdoor use, delivering high-quality streaming audio and easy control
SKU: GAR.010-03378-00 | MPN: 010-03378-00
SAVE $33.69 (13%)
Special OrderSpecial Order from Supplier
Non Returnable/Non Refundable
Water-resistant Audio Controller and Receiver with Bluetooth Wireless Technology
Engineered for marine, motorsports, and outdoor applications, the MBT-CRXv3 wireless receiver is designed to deliver top-quality streaming audio to almost any sound system, whether on land or water.
Features
- Water-Resistant Chassis: IP67-rated, built to withstand harsh conditions in marine, motorsports, and outdoor environments.
- Compact Design: Ideal for small watercraft, motorcycles, golf carts, and utility vehicles. Requires only a single hole for installation.
- Wireless Audio Source or Controller: Functions as either a stand-alone wireless audio source or as an add-on wireless audio controller and receiver.

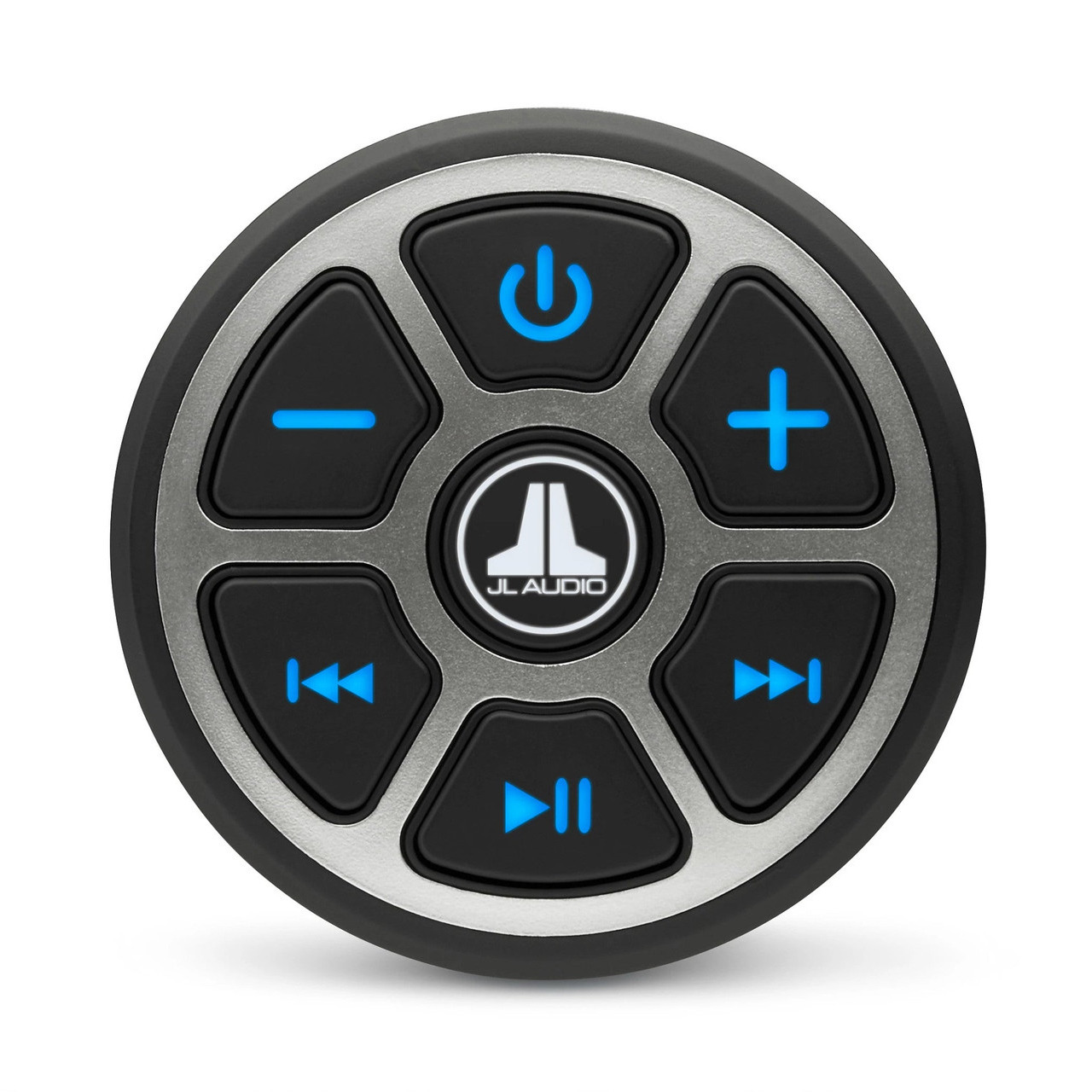

- Large Backlit Controls: Easy to operate day or night for convenient, user-friendly control.
- Bluetooth® Wireless Technology: Equipped with Bluetooth® for seamless wireless streaming.
- Qualcomm® aptX™ HD Audio Codec: Delivers dynamic, CD-like sound from your compatible streaming device up to 35' (11 meters) away.
- Dual Stereo Preamp Outputs: Includes two sets of 4-volt RMS stereo preamp outputs for two main audio zones and a dedicated subwoofer output.
- Independent Audio Zone Level Controls: Customize the audio levels for each zone, with LED color indicators for easy visual feedback.
- Remote Turn-On Output: Provides +12-volt (1 amp) remote turn-on output for amplifier control.
Designed to perform in the most demanding environments, the MBT-CRXv3 ensures premium audio quality with convenient control and easy integration into your sound system.
MBT-CRXv3 Specifications | |
---|---|
Bluetooth Version | 5.0 with Qualcomm aptX™-HD audio |
Current Draw | 83 mA (at idle) / 108 mA (at full output) |
Input Operating Voltage | 8 - 16 VDC |
Fuse Rating | 2A Mini ATC |
Output Voltage | 4V RMS |
Frequency Response | 20 Hz - 20 kHz (±1dB) |
Connection Range | Up to 35 ft / 11 m (maximum range in line-of-sight installations; actual range will vary based on installation specifics) |
S/N Ratio | 101 dB (20 Hz - 20 kHz) |
Remote Turn-on Output Capacity | 350 mA (max) |
Bluetooth Profile | A2DP (High-Quality, Stereo Audio) |
Outputs | Two Stereo Pairs per Zone, Plus One Mono Subwoofer (RCA Plugs) |

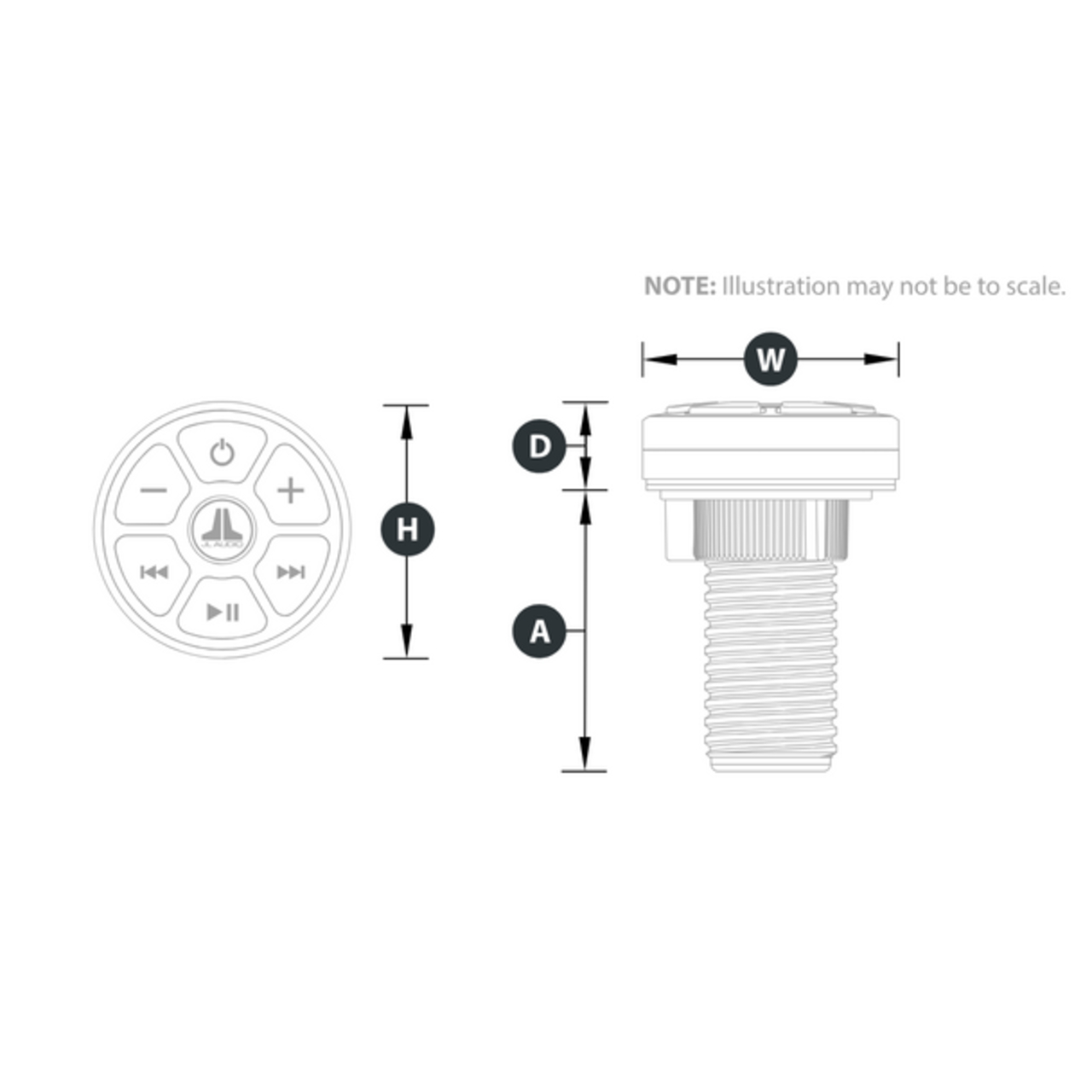

Physical Specifications | |
---|---|
Width (W) | 2.15 in / 55 mm |
Height (H) | 2.15 in / 55 mm |
Depth (D) | 0.74 in / 19 mm |
Mounting Depth (A) | 2.36 in / 60 mm |
Mounting Hole Diameter | 1.125 in / 29 mm (minimum diameter for mounting with rear panel access) / 1.875 in / 48 mm (maximum for front mounting with plate) |
SKU | GAR.010-03378-00 |
Model # | 010-03378-00 |
Brand | JL Audio |
Shipping Weight | 0.2900kg |
Shipping Width | 0.055m |
Shipping Height | 0.019m |
Shipping Length | 0.055m |
Shipping Cubic | 0.000057000m3 |
