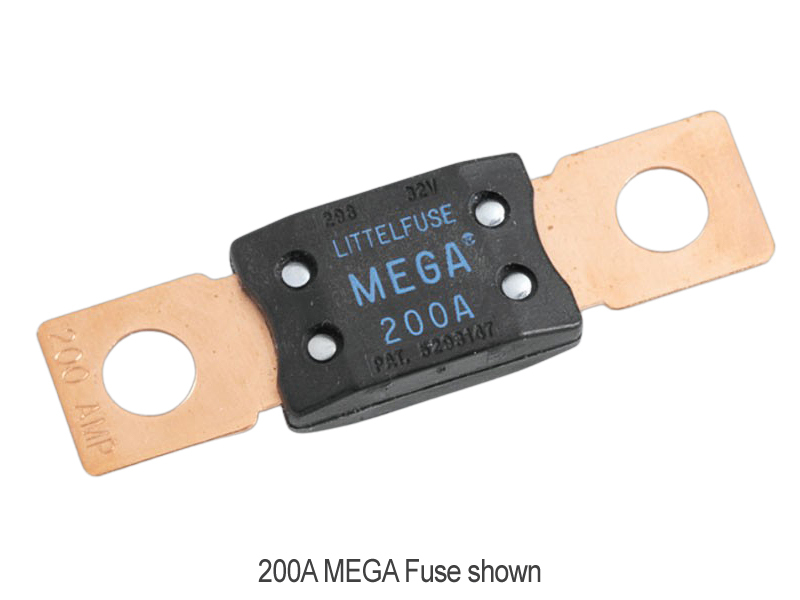

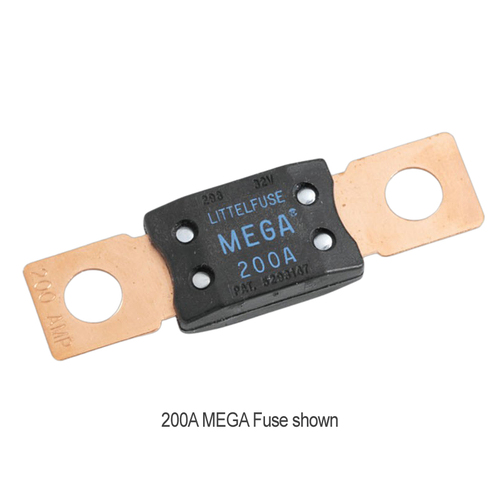

The MEGA® Fuse is designed for high current circuit protection up to 500A with “Diffusion Pill Technology.” The MEGA® Fuse also provides time-delay characteristics. The MEGA® Fuse is ideal for battery and alternator protection applications and other heavy gauge cables requiring ultra-high current protection.

MEGA® Fuse Specifications

  • Voltage Rating: up to 32 VDC
  • Operating Temperature Range: -40˚C to + 125˚C
  • Housing Material: PPA-GF33HS
  • Flammability (UL 94): HB
  • Clear Top Housing Material: PES (top) PPA-GF33HS (bottom)
  • Terminals: Copper
  •  M8 bolts
  • Mounting Torque: 12-18 Nm M8
  • Complies with: ISO 8820-5



SKU LIT.MEGA040-32
Model # 298040
Brand Littelfuse
Shipping Weight 0.0500kg
Shipping Width 0.020m
Shipping Height 0.020m
Shipping Length 0.080m
Shipping Cubic 0.000032000m3
Unit Of Measure ea
