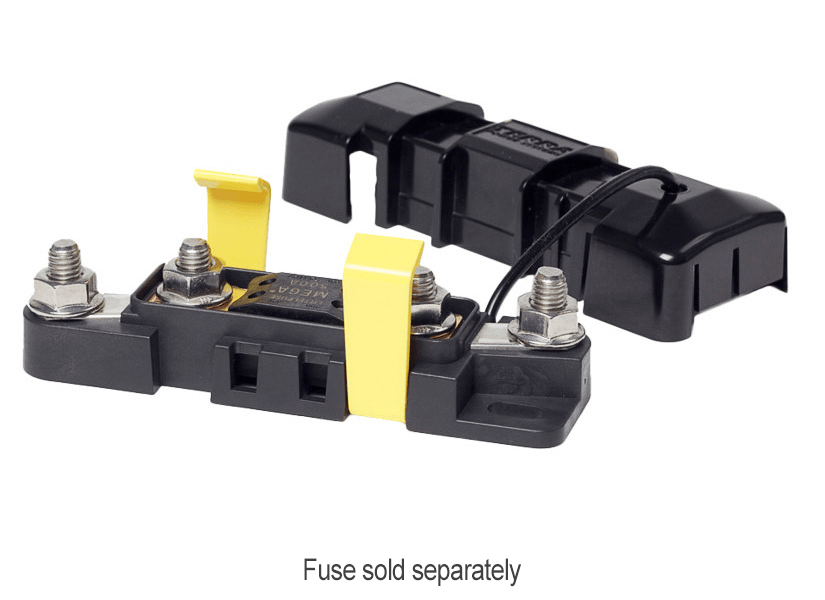

The Littelfuse 880014 fuse block is designed to fit MEGA fuses and features positive latching technology to form a water resistant seal when the tethered cover is fitted. Perfect for in-line, main or branch Circuit Protection in harsh or hazardous environments. Ignition protected to SAE J1171 and ISO 8846 for installation in a battery box or on vehicles carrying hazardous loads. All stainless steel hardware and tin-plated 100% pure copper optimize long-term corrosion protection. Includes M8 hex nuts and stainless steel screws. Surface mount design.

Fuse not included, available for purchase seperately.

Specifications

  • Max Voltage Rating: 32V DC
  • Max Current Rating: 500A
  • Studs: M8x1.25 thread
  • Recommended Stud Torque: 20 Nm / 15 lb-ft
  • Temperature Range: -50 to +125 °C
  • Ingress Protection: IP66 / IP6K9K
  • Humidity: 0-95% RH
  • Shock: 50 G
  • Vibration: 8 G
  • Dimensions: 130 x 47.4 x 40.7 mm



SKU LIT.880014
Model # 880014
Brand Littelfuse
Shipping Weight 0.1000kg
Shipping Width 0.050m
Shipping Height 0.050m
Shipping Length 0.150m
Shipping Cubic 0.000375000m3
Unit Of Measure ea
