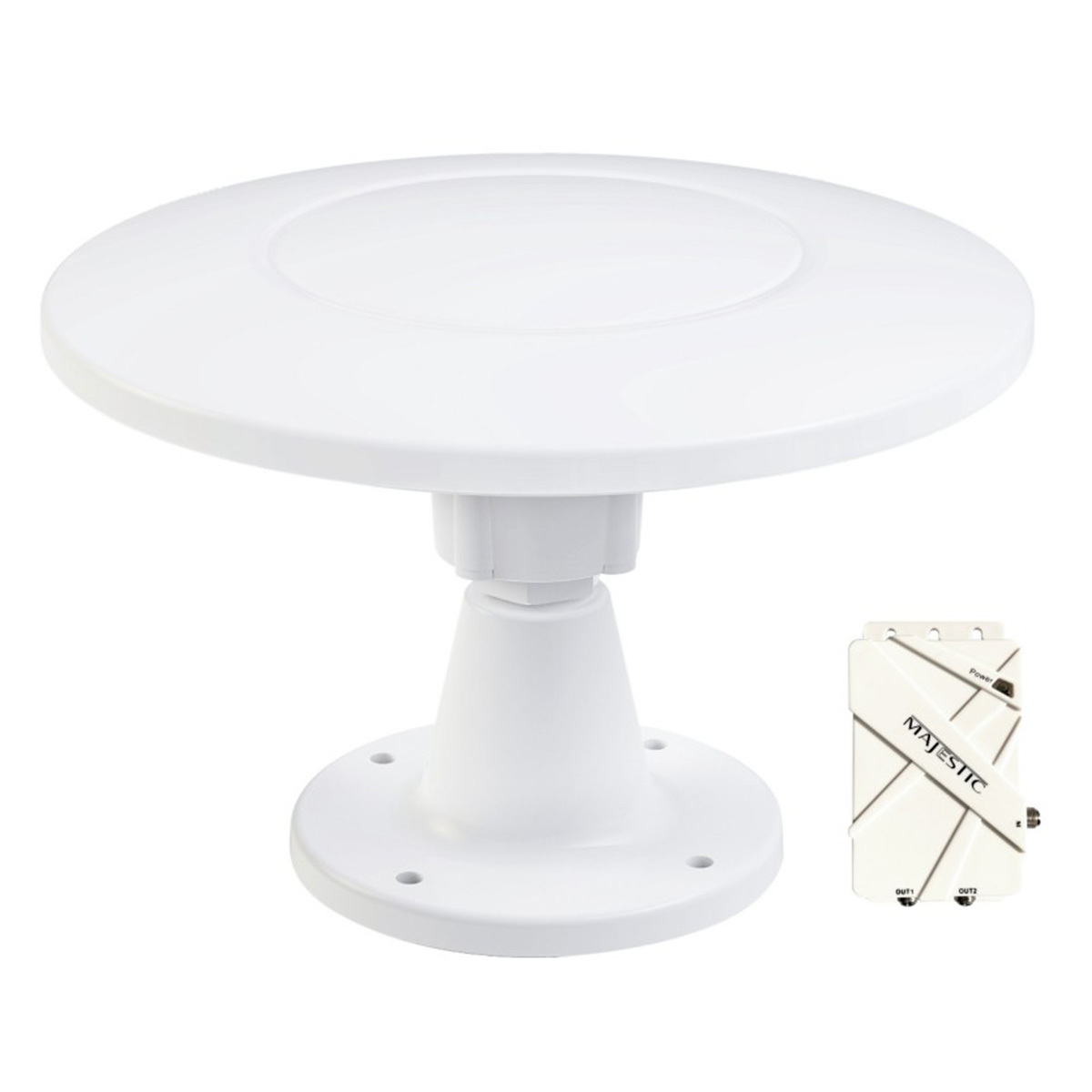

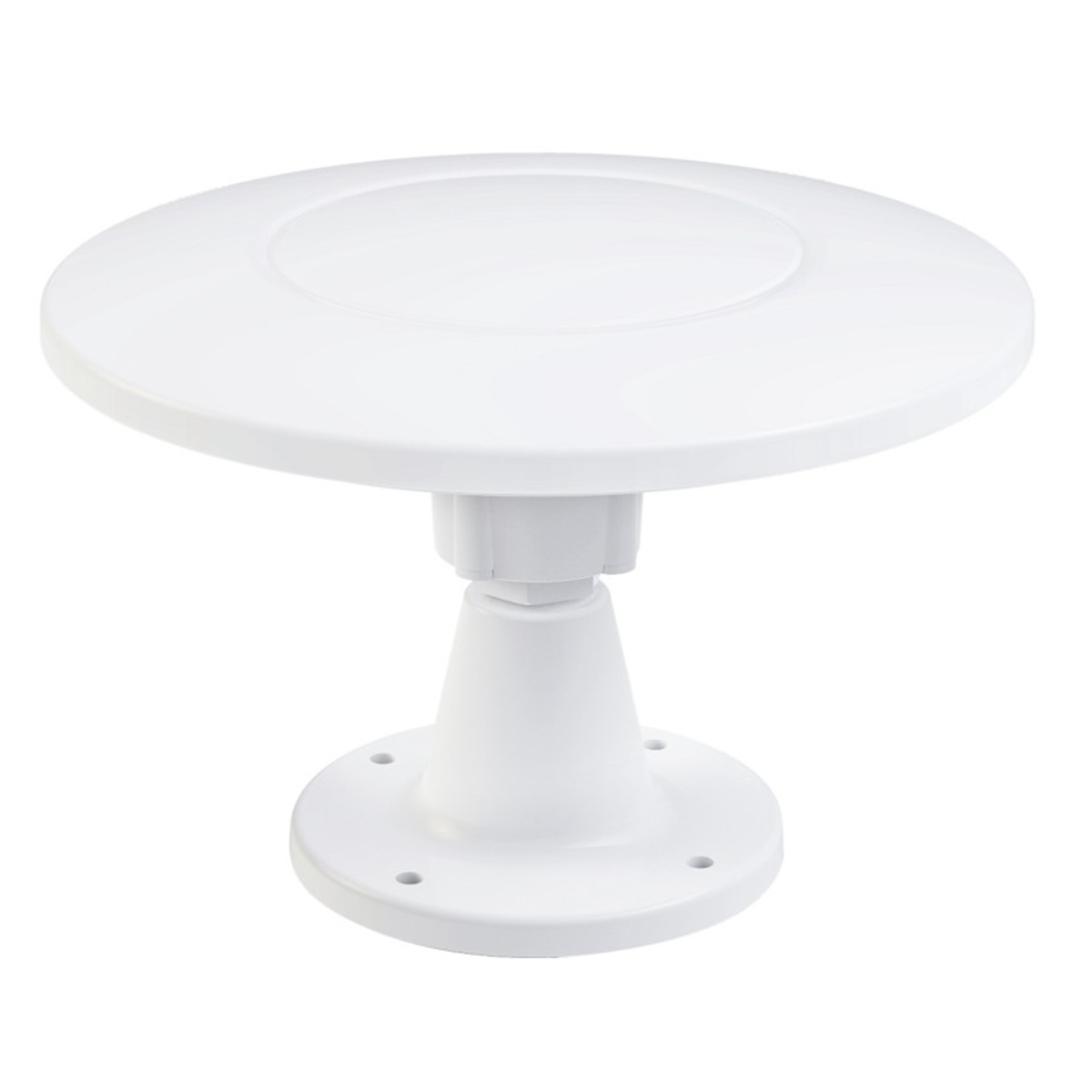

Majestic MJUFOX TV Antenna – UFO X 30dB
Offers unparalleled performance in marine and RV environments. Compact 24cm diameter with a high gain of 30dB, dual reception, and low SNR. Perfect for fringe areas, it operates from 9V-27V DC. Includes a 3-year global warranty.
SKU: MAJ.MJUFOX | MPN: MJUFOX
In Stock
Ships today from our Southport warehouse if order placed by 1pm
Key Features:
- Size: Reduced size of 24cm diameter, smaller than the previous model
- Gain: High Gain of 30dB, a 58% increase in signal performance
- Vertical and Horizontal Reception: Incorporated for performance in various locations
- Signal to Noise Ratio (SNR): Low SNR of 3dB for improved amplifier performance
- Ground Independent: No need for a ground plane
- Lighting: Features a bright blue light for easy identification and a green LED on the junction box
Technical Specifications:
- Voltage Range: Designed to work from 9V to 27V DC
- Reception Capability: High gain ensures superior signal reception in challenging areas
- Frequency Range:
- VHF: 47MHz - 230MHz
- UHF: 470MHZ - 862MHz
- FM: 87MHz - 108MHz
- Weight: Designed to withstand harsh environments
- Warranty: 3-year worldwide warranty
Additional Features:
- Upgrading: Compatible with junction boxes from the older UFO model
- Performance: Engineered with the latest technology for exceptional performance
- Suitability: Ideal for a variety of installations including RVs, Motorhomes, and Marine applications
Feature | Description |
---|---|

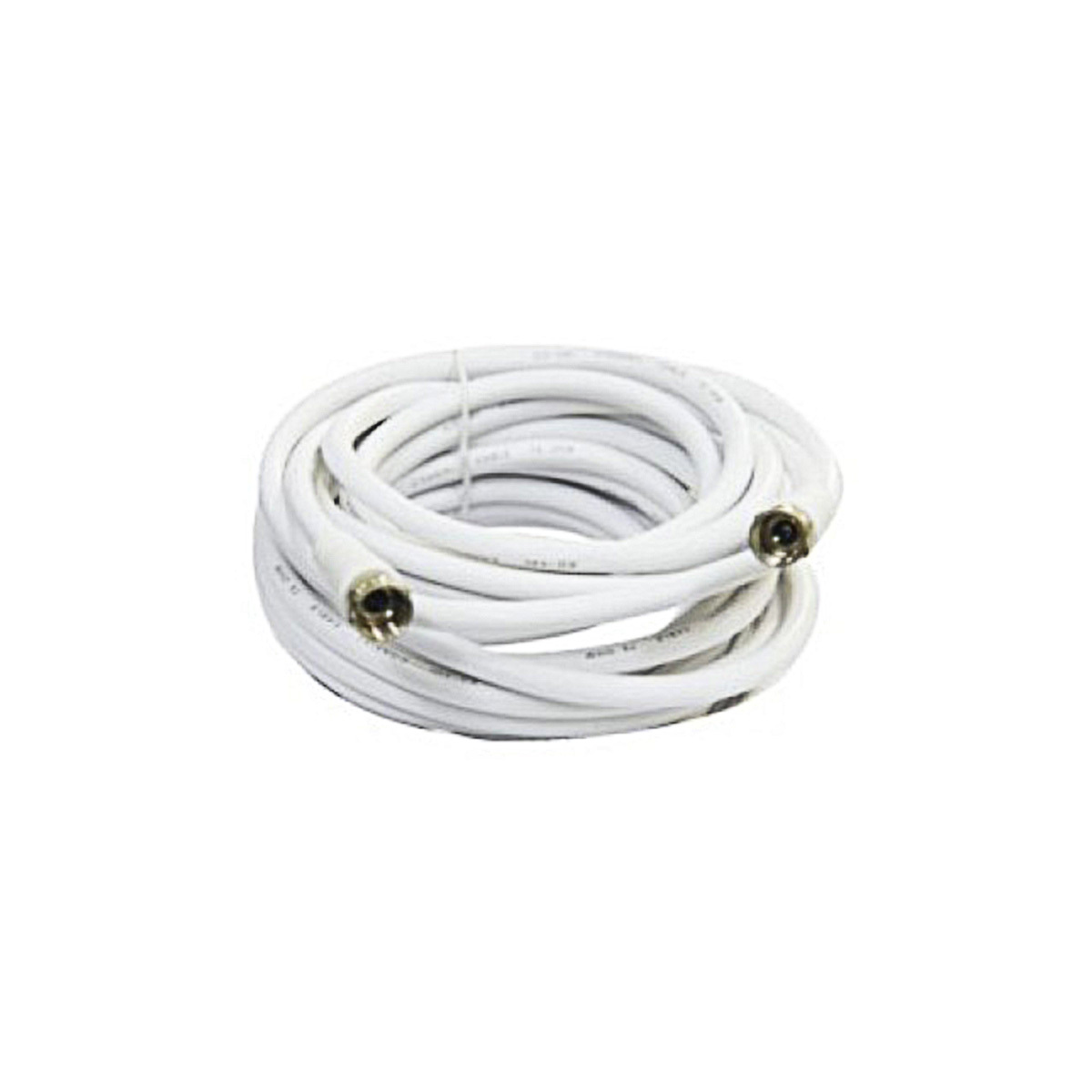

Accessories Supplied | Junction Box, Power Lead, Connectors, Manual, 10M Cable, White Deck Mount |
Colour | White |
Current Draw @ 12 Volt | Less than 0.1 Amp |
Dimensions: HxWxD No Stand | 24cm Diameter 9.4" |
Dimensions: HxWxD With Stand | Total Height 156mm - Base Dia 125mm - Base Hght 110m |
Features | Amplifier built in the antenna, Digital - UHF/VHF and FM, UV stabilised, Thread UNF 1”- 14 |
Gain | 30dB |
Polarisation | Horizontal & Vertical |
Reception | DVB-T2, ATSC, DAB/FM, ISDB-T, DMBT/H, |
Shipping Carton Size Single Unit | 24x14x24 (cm) |
Shipping Carton Size Multi Unit | 72x50x25 (cm) 12Kg 10 Units per Carton |
Shipping Weight | 1.1Kg |
UPC Barcode | 854273002595 |
Voltage Range | 10.9V to 24V DC |
Weight | 300g |
SKU | MAJ.MJUFOX |
Model # | MJUFOX |
Brand | Majestic |
Shipping Weight | 1.1000kg |
Shipping Width | 0.140m |
Shipping Height | 0.240m |
Shipping Length | 0.240m |
Shipping Cubic | 0.008064000m3 |
