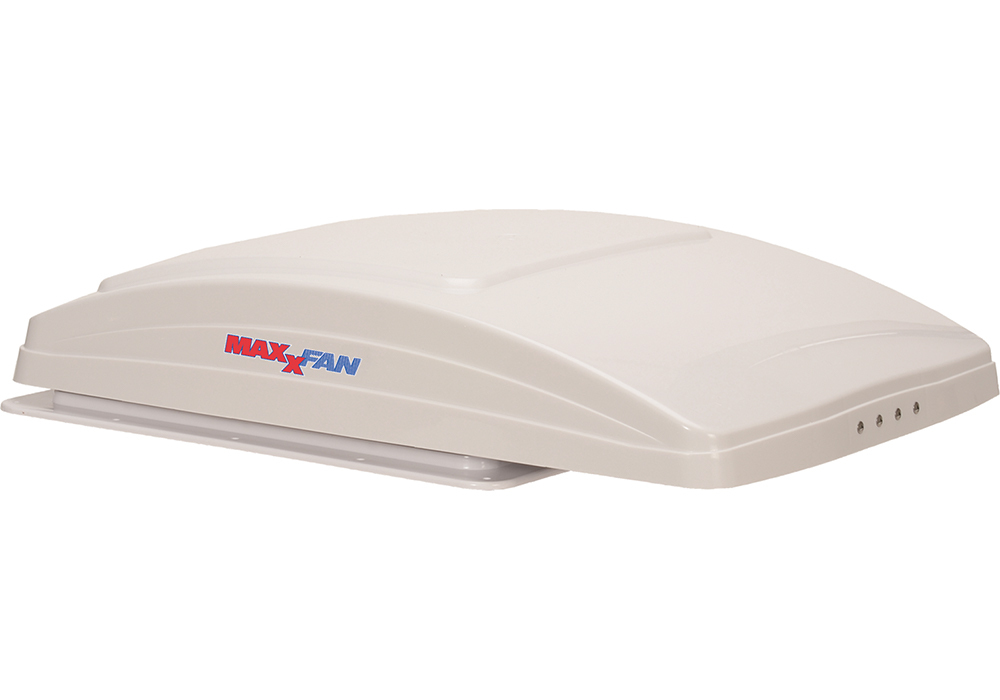

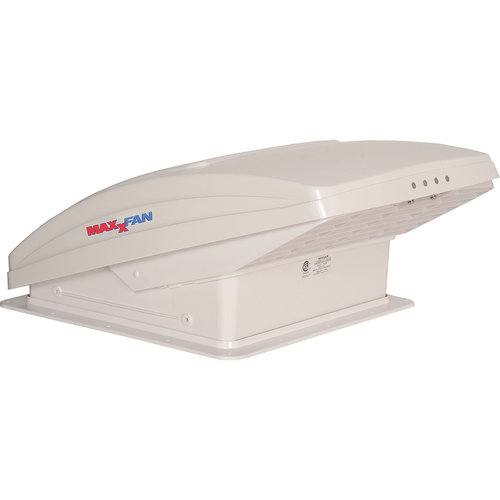

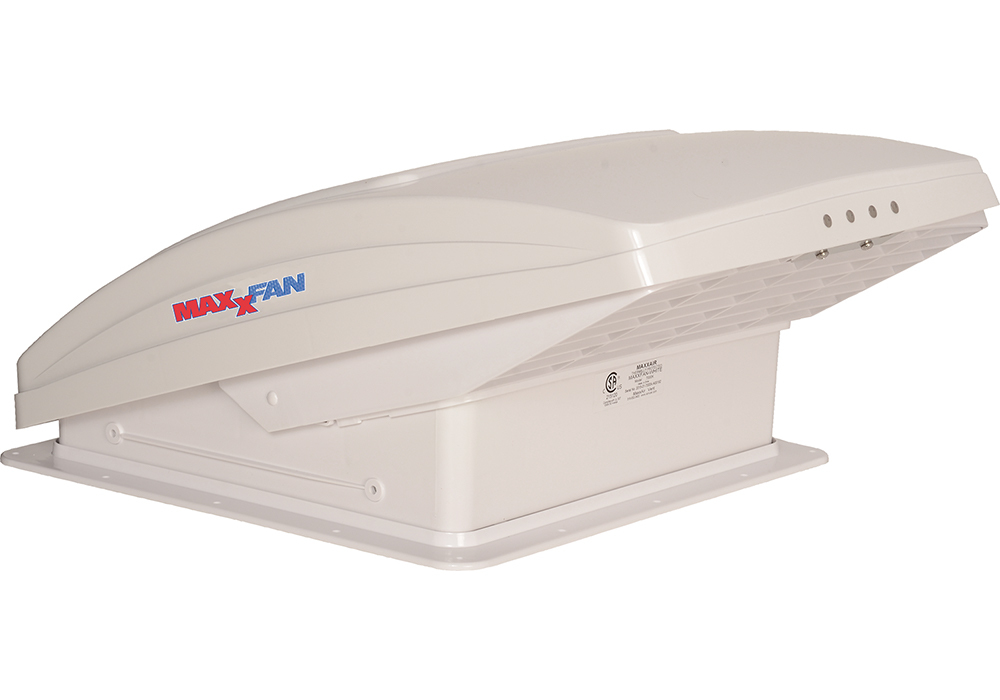

The MAXXFAN® Deluxe is the ONLY COMPLETE RV VENTILATION SYSTEM that incorporates a VENT, FAN and RAIN SHIELD in a single ALL IN ONE UNIT.

MAXXFAN Deluxe Features:

  • Built-In Rain Cover to always protect your RV's interior
  • Powerful 10 speed intake and exhaust fan
  • Thermostat to control room temperature
  • Manual Opening model
  • Provides over 900 CFM to keep you cool and comfortable
  • Brings in fresh air and removes hot musty air and odors
  • Fan runs with lid closed to circulate air (Ceiling Fan Mode)
  • Easy to remove interior insect screen, no tools required
  • Twin lifting arms, No more lid fluttering in high winds or when driving
  • Features a powerful, fuse protected, Long life, sealed ball bearing, 12 volt fan motor and a 12 inch - 10 blade fan
  • Flush mounted, easy to clean Keypad, controls fan speed, thermostat, air intake and/or exhaust functions
  • Closes securely for a low profile appearance
  • Fits all standard 365mm x 365mm (14" x 14") roof openings
  • Mounting screws and hardware included. (Roof sealant must be purchased separately)


Specifications

  • Amp Draw on High: 2.5A
  • Amp Draw on Low: 0.16A
  • Dimensions (closed): 589L x 421W x 128H (mm)
  • Dimensions (open): 589L x 421W x 230H (mm)
  • Installed Weight: 5.4kg
  • Roof Thickness: 25mm (min) – 90mm (max)
SKU MXX.650-03014
Model # 00-5100K
Brand Maxxair
Shipping Weight 6.0000kg
Shipping Width 0.600m
Shipping Height 0.250m
Shipping Length 0.450m
Shipping Cubic 0.067500000m3
